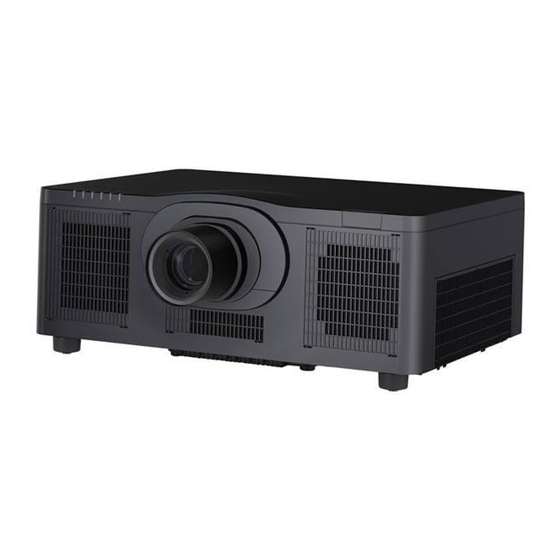

LCD Projector
MP-WU8801W/MP-WU8801B
MP-WU8701W/MP-WU8701B
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
Safety Guide
WARNING
CAUTION
NOTICE
NOTE
Trademark acknowledgment
®
1
®
QM00481-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-WU8801W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxell MP-WU8801W

Summary of Contents for Maxell MP-WU8801W

  • Page 1 LCD Projector MP-WU8801W/MP-WU8801B MP-WU8701W/MP-WU8701B User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING Safety Guide WARNING CAUTION NOTICE NOTE Trademark acknowledgment ® ® QM00481-1...

  • Page 2: Table Of Contents

    Introduction ....3 EASY MENU....57 PICTURE menu ... . 59 IMAGE menu .

  • Page 3: Introduction

    Introduction Features ® Checking the contents of package Contents of package User’s Manual (concise) WARNING NOTE QM00481-1...
  • Page 4 Introduction Part names Projector 113) 30 99) 115) WARNING CAUTION...
  • Page 5 Introduction Part names (continued) Control panel and Indicators STANDBY/ON INPUT 34 54) MENU LENS SHIFT ZOOM FOCUS SHUTTER 124, 125) SERVICE 124) STATUS 123) FILTER 124) LIGHT TEMP POWER 31 121 125) QM00481-1...
  • Page 6 Part names (continued) Ports 13 ~ 23) COMPUTER IN 3G-SDI HDBaseT AUDIO IN1 AUDIO IN2 L, R WIRELESS AUDIO OUT HDMI 1 MONITOR OUT HDMI 2 REMOTE CONTROL IN DisplayPort REMOTE CONTROL OUT VIDEO CONTROL HDMI OUT MP-WU8701W/MP-WU8701B MP-WU8801W/MP-WU8801B QM00481-1...
  • Page 7 Introduction Part names (continued) Remote control STANDBY ID - 1 2 3 4 COMPUTER 1 COMPUTER 2 VIDEO USB TYPE A USB TYPE B HDMI 1 HDMI 2 DisplayPort HDBaseT NETWORK INTERACTIVE DIGITAL FOCUS + / - INFO ZOOM + / - AV MUTE LENS MEMORY LOAD / SAVE SHIFT...

  • Page 8: Setting Up

    Setting up QM00481-1...
  • Page 9 Setting up Setting up (continued) Installing the lens unit QM00481-1...
  • Page 10 Setting up Arrangement User’s Manual (concise)
  • Page 11 Setting up Arrangement (continued) WARNING Install the projector where you can access the power outlet easily. Do not subject the projector to unstable conditions. Do not install the pro things. Do not place the projector where any oils, such as cooking or machine oil, are used.
  • Page 12 Setting up Arrangement (continued) CAUTION ventilation. Avoid placing the projector in smoky, humid or dusty place. NOTICE NOTE • QM00481-1...
  • Page 13 Setting up Connecting with your devices Network Guide WARNING Use only the appropriate accessories. CAUTION For a cable with a core at only one end, connect the end with the core to the projector. NOTE 14 ~ 23) About Plug-and-Play capability COMPUTER IN QM00481-1...
  • Page 14 Setting up Connecting with your devices (continued) MP-WU8701W/MP-WU8701B Computer MP-WU8801W/MP-WU8801B Computer...
  • Page 15 Setting up Connecting with your devices (continued) NOTE • • • QM00481-1...
  • Page 16 Setting up Connecting with your devices (continued) MP-WU8701W/MP-WU8701B USB wireless adapter Access point Computer External device MP-WU8801W/MP-WU8801B USB wireless adapter Access point Computer External device...
  • Page 17 Setting up Connecting with your devices (continued) WARNING CAUTION QM00481-1...
  • Page 18 Setting up Connecting with your devices (continued) MP-WU8701W/MP-WU8701B VCR/DVD/ Blu-ray Disc player MP-WU8801W/MP-WU8801B VCR/DVD/ Blu-ray Disc player...
  • Page 19 Setting up Connecting with your devices (continued) About HDBaseT™ connection   NOTE HDMI HDMI QM00481-1...
  • Page 20 Setting up Connecting with your devices (continued) NOTE QM00481-1...
  • Page 21 Setting up Connecting with your devices (continued) MP-WU8701W/MP-WU8701B Monitor Another Speakers projector (Wired) Remote control MP-WU8801W/MP-WU8801B Monitor Another Speakers projector (Wired) Remote control...
  • Page 22 Setting up Connecting with your devices (continued) NOTE REMOTE CONTROL IN REMOTE CONTROL OUT REMOTE CONTROL REMOTE CONTROL IN REMOTE CONTROL OUT QM00481-1...
  • Page 23 Setting up Connecting with your devices (continued) MP-WU8801W/MP-WU8801B Camera for commercial use NOTE 3G-SDI...
  • Page 24 Setting up Fastening the cables WARNING CAUTION QM00481-1...
  • Page 25 Setting up Attaching the terminal covers QM00481-1...
  • Page 26 Setting up Using the security bar and slot WARNING CAUTION NOTE...
  • Page 27 Setting up Connecting to a power supply POWER POWER WARNING NOTICE QM00481-1...

  • Page 28: Remote Control

    Remote control Installing the batteries WARNING QM00481-1...
  • Page 29 Remote control Using the REMOTE ID function NETWORK INTERACTIVE INFO NOTE Changing the frequency of remote control signal   MENU RESET MENU MY BUTTON-4 NETWORK INTERACTIVE RESET MY BUTTON-1 BUTTON-1 INFO BUTTON-4 QM00481-1...
  • Page 30 Remote control About the remote control signal NOTE...

  • Page 31: Power On/Off

    Power on/off POWER Turning on the power POWER STANDBY/ON POWER Selecting an input signal Turning off the power NETWORK INTERACTIVE INFO STANDBY/ON STANDBY STANDBY/ON STANDBY NETWORK INTERACTIVE INFO POWER POWER POWER QM00481-1...
  • Page 32 Power on/off WARNING NOTE QM00481-1...

  • Page 33: Operating

    Operating Adjusting the volume VOLUME + - VOLUME NETWORK INTERACTIVE + / - INFO NOTE Temporarily turning off the screen and audio AV MUTE AV MUTE NETWORK INTERACTIVE INFO AV MUTE NOTE LIGHT QM00481-1...
  • Page 34 Operating Selecting an input signal INPUT INPUT COMPUTER 1, VIDEO, LAN HDMI 1 / 2, DisplayPort, HDBaseT Button Ports COMPUTER 1 COMPUTER IN COMPUTER 2 VIDEO VIDEO USB TYPE A USB TYPE B NETWORK INTERACTIVE HDMI 1 HDMI 1 INFO HDMI 2 HDMI 2 DisplayPort...
  • Page 35 For a computer signal For HDMI , HDBaseT , and DisplayPort signals For a video signal or component video signal For an SDI signal (MP-WU8801W/MP-WU8801B only) For an input signal from the LAN port, or if there is no signal NOTE ASPECT QM00481-1...
  • Page 36 Operating Limiting OSD display OSD MSG OSD MSG OSD MSG NETWORK INTERACTIVE INFO    QM00481-1...
  • Page 37 Operating Adjusting the projector’s elevator WARNING QM00481-1...

  • Page 38: Zoom

    Operating Adjusting the lens FOCUS + / - Adjusting the zoom and focus ZOOM + / - ZOOM ZOOM - ZOOM + FOCUS FOCUS + FOCUS - ZOOM + / - NETWORK INTERACTIVE INFO ZOOM FOCUS + / - FOCUS NOTE FOCUS ZOOM...

  • Page 39: Lens Shift

    Operating Adjusting the lens (continued) Adjusting the lens position LENS SHIFT SHIFT ENTER SHIFT NETWORK INTERACTIVE INFO ENTER LENS SHIFT ENTER LENS SHIFT CENTERING ENTER INPUT LENS SHIFT CAUTION NOTE QM00481-1...
  • Page 40 Operating Adjusting the lens (continued) Lens memory LENS MEMORY LOAD NETWORK INTERACTIVE SAVE INFO ENTER LENS SHIFT SAVE: ENTER LOAD: ENTER CLEAR LENS MEMORY: ENTER NOTE LENS MEMORY QM00481-1...
  • Page 41 Operating Correcting the distortion GEOMETRY GEOMETRY NETWORK INTERACTIVE INFO NOTE GEOMETRY ENTER KEYSTONE: ENTER NOTE ENTER QM00481-1...
  • Page 42 Operating Correcting the distortion (continued) PERFECT FIT: ENTER ENTER ENTER INPUT ENTER INPUT QM00481-1...
  • Page 43 Operating Correcting the distortion (continued) LOAD: ENTER INPUT SAVE: ENTER INPUT NOTE WARPING: QM00481-1...
  • Page 44 Operating Using the EDGE BLENDING features ENTER INPUT...
  • Page 45 Operating ENTER INPUT QM00481-1...
  • Page 46 Operating ENTER INPUT ENTER INPUT ENTER INPUT Input Image Cropping Input Image Cropping...
  • Page 47 Operating NOTE QM00481-1...
  • Page 48 Operating Using the magnify feature MAGNIFY ON MAGNIFY ON / OFF MAGNIFY ON NETWORK INTERACTIVE INFO MAGNIFY ON For computer signals, RGB signals for HDMI , HDBaseT DisplayPort , input signals from the LAN port For video signals, Component signals for HDMI , HDBaseT DisplayPort , SDI signals...

  • Page 49: Shutter

    Operating Temporarily freezing the screen FREEZE FREEZE NETWORK INTERACTIVE INFO FREEZE NOTE Temporarily shading the screen SHUTTER SHUTTER SHUTTER CAUTION NOTE QM00481-1...

  • Page 50: Pbyp (Picture By Picture Pinp (Picture In Picture)

    Operating PbyP (Picture by Picture) / PinP (Picture in Picture) PbyP NETWORK INTERACTIVE INFO PbyP PbyP PbyP PbyP NOTE PbyP MENU QM00481-1...
  • Page 51 Operating PbyP (Picture by Picture) / PinP (Picture in Picture) (continued) Setting information Changing the main area QM00481-1...
  • Page 52 Operating PbyP (Picture by Picture) / PinP (Picture in Picture) (continued) Changing the picture input signal INPUT QM00481-1...
  • Page 53 Operating PbyP (Picture by Picture) / PinP (Picture in Picture) (continued) PbyP / PinP SWAP function MY BUTTON NOTE Changing the size of main area in PbyP mode Changing the position of sub area in PinP mode QM00481-1...

  • Page 54: Menu

    Operating Using the menu function MENU ENTER MENU NETWORK INTERACTIVE INFO RESET INPUT MENU In the EASY MENU In the ADVANCED MENU ENTER ENTER...
  • Page 55 Operating Using the menu function (continued) MENU ENTER NOTE RESET Indication in OSD (On Screen Display) Indication Meaning MENU QM00481-1...
  • Page 56 Operating Using the menu function (continued) Menu items Menu Items EASY MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK 105) 106) SECURITY QM00481-1...

  • Page 57: Easy Menu

    EASY MENU Item Description ASPECT KEYSTONE PERFECT FIT ® PICTURE MODE QM00481-1...
  • Page 58 EASY MENU Item Description LIGHT OUTPUT INSTALLATION RESET FILTER TIME LANGUAGE ENTER ADVANCED MENU EXIT ENTER QM00481-1...

  • Page 59: Picture Menu

    PICTURE menu ENTER Item Description BRIGHTNESS CONTRAST COLOR TINT SHARPNESS QM00481-1...
  • Page 60 PICTURE menu Item Description PICTURE MODE PICTURE QUALITY GAMMA QM00481-1...
  • Page 61 PICTURE menu Item Description GAMMA (continued) ENTER COLOR TEMP PICTURE QUALITY (continued) ENTER QM00481-1...
  • Page 62 PICTURE menu Item Description ACCENTUALIZER PICTURE QUALITY HDCR (continued) COLOR MANAGEMENT DYNAMIC BLACK ENTER MY MEMORY MY BUTTON QM00481-1...

  • Page 63: Image Menu

    IMAGE menu ENTER Item Description For a computer signal For HDMI , HDBaseT™, and DisplayPort™ signals For a video signal ASPECT For an SDI signal (MP-WU8801W/MP-WU8801B) For an input signal from the LAN port, or if there is no signal QM00481-1...
  • Page 64 IMAGE menu Item Description OVER SCAN COMPUTER IN RESET V POSITION above • LAN HDMI 1 / 2, HDBaseT, DisplayPort 3G-SDI RESET H POSITION above • LAN HDMI 1 / 2, HDBaseT, DisplayPort 3G-SDI QM00481-1...
  • Page 65 IMAGE menu Item Description H PHASE LAN HDMI 1 / 2 HDBaseT DisplayPort 3G-SDI LAN VIDEO HDMI 1 / 2 HDBaseT DisplayPort 3G-SDI H SIZE RESET For a computer signal For a video signal AUTO ADJUST EXECUTE QM00481-1...

  • Page 66: Input Menu

    INPUT menu ENTER Item Description PROGRESSIVE VIDEO NR COLOR SPACE 3G-SDI QM00481-1...
  • Page 67 INPUT menu Item Description VIDEO VIDEO FORMAT VIDEO HDMI1 / HDBaseT / DisplayPort HDMI 1 （*： ） ： DIGITAL SIGNAL FORMAT ： QM00481-1...
  • Page 68 INPUT menu Item Description ： DIGITAL SIGNAL FORMAT (continued) NOTE     HDMI 1/2, HDBaseT, DisplayPort, and 3G-SDI DIGITAL RANGE QM00481-1...
  • Page 69 INPUT menu Item Description COMPUTER IN COMPUTER IN FRAME LOCK QM00481-1...
  • Page 70 INPUT menu Item Description COMPUTER IN ENTER RESOLUTION ENTER ENTER QM00481-1...
  • Page 71 INPUT menu Item Description PinP POSITION PbyP / PinP FRAME LOCK PbyP / PinP SETUP QM00481-1...

  • Page 72: Setup Menu

    SETUP menu ENTER Item Description KEYSTONE Correcting the distortion PERFECT FIT GEOMETRY Correcting the distortion CORRECTION WARPING EDGE BLENDING 44 ~ 47 QM00481-1...
  • Page 73 SETUP menu Item Description PATTERN GEOMETRY CORRECTION (continued) LIGHT OUTPUT LIGHT & FILTER LIGHT SOURCE TIME QM00481-1...
  • Page 74 SETUP menu Item Description FILTER TIME RESET Cleaning and replacing FILTER MESSAGE LIGHT & FILTER (continued) QM00481-1...
  • Page 75 SETUP menu Item Description ・ PICTURE POSITION INSTALLATION ENTER INPUT QM00481-1...
  • Page 76 SETUP menu Item Description POWER POWER STANDBY MODE QM00481-1...
  • Page 77 SETUP menu Wake-On LAN (WOL) function Operation QM00481-1...
  • Page 78 SETUP menu Item Description COLOR UNIFORMITY OSD MESSAGE FREEZE QM00481-1...
  • Page 79 SETUP menu Item Description HDMI OUTPUT NOTE HDMI OUT ・ STANDBY OUTPUT QM00481-1...

  • Page 80: Audio Menu

    AUDIO menu ENTER Item Description VOLUME AUDIO OUT AUDIO SOURCE AUDIO IN1 AUDIO IN2 HDMI 1 HDMI 2 DisplayPort HDBaseT VIDEO COMPUTER IN QM00481-1...

  • Page 81: Screen Menu

    SCREEN menu ENTER Item Description LANGUAGE ENTER INPUT MENU POSITION MENU AV MUTE BLANK NOTE LIGHT QM00481-1...
  • Page 82 SCREEN menu Item Description AUTO BLANK START UP 107) QM00481-1...
  • Page 83 SCREEN menu Item Description ENTER INPUT RESET MyScreen ENTER INPUT RESET 107) • LAN, HDMI 1 / 2, DisplayPort, HDBaseT 3G-SDI QM00481-1...
  • Page 84 SCREEN menu Item Description MyScreen Lock 107) ENTER SOURCE NAME ENTER INPUT ENTER INPUT ENTER INPUT QM00481-1...
  • Page 85 SCREEN menu Item Description ENTER INPUT RESET INPUT ENTER INPUT SOURCE NAME continued) ENTER INPUT ENTER INPUT ENTER INPUT TEMPLATE ENTER QM00481-1...
  • Page 86 SCREEN menu Item Description DISPLAY C.C. MODE CHANNEL QM00481-1...

  • Page 87: Option Menu

    OPTION menu Item Description below SEARCH SKIP AUTO SEARCH QM00481-1...
  • Page 88 OPTION menu Item Description DIRECT POWER WARNING AUTO POWER WARNING QM00481-1...
  • Page 89 OPTION menu Item Description AUTO POWER CONTROL SHUTTER TIMER QM00481-1...
  • Page 90 OPTION menu Item Description MY BUTTON 5. My Image Function Network Guide) 6. Messenger Function Network Guide 104) MY BUTTON MY BUTTON QM00481-1...
  • Page 91 OPTION menu Item Description MY BUTTON (continued) How to setup the item NOTE ・ Item Description DATE & TIME SPECIFIC DATE SCHEDULE PROGRAM EDIT QM00481-1...
  • Page 92 OPTION menu Item Description How to activate (DATE AND TIME / SPECIFIC DATE) SCHEDULE (continued) QM00481-1...
  • Page 93 OPTION menu Item Description PROGRAM EDIT RETURN SELECT SCHEDULE (continued) COPY TO APPLY QM00481-1...
  • Page 94 OPTION menu Item Description How to edit the selected PROGRAM SCHEDULE (continued) NOTE ・ QM00481-1...
  • Page 95 OPTION menu Item Description ENTER ALTITUDE AUTO ADJUST SERVICE GHOST QM00481-1...
  • Page 96 OPTION menu Item Description LENS TYPE ENTER ENTER SERVICE (continued) LENS LOCK ZOOM ZOOM + - FOCUS FOCUS + - SHIFT LENS SHIFT LENS MEMORY QM00481-1...
  • Page 97 OPTION menu Item Description KEY LOCK SERVICE (continued) INPUT QM00481-1...
  • Page 98 OPTION menu Item Description SECURITY SERVICE (continued) QM00481-1...
  • Page 99 OPTION menu Item Description REMOTE RECEIV. REMOTE FREQ. 4 29 SERVICE (continued) REMOTE ID QM00481-1...
  • Page 100 OPTION menu Item Description CONTROL SERVICE COMMUNICATION (continued) Network Guide COMMUNICATION TYPE CONTROL CONTROL 7. Network Bridge Function Network Guide CONTROL QM00481-1...
  • Page 101 OPTION menu Item Description SERIAL SETTINGS CONTROL BAUD RATE PARITY TRANSMISSION METHOD SERVICE COMMUNICATION CONTROL (continued) (continued) 102) QM00481-1...
  • Page 102 OPTION menu Item Description RESPONSE LIMIT TIME CONTROL COMMUNICATION (continued) CONTROL SERVICE 101) (continued) STACK Instant Stack Guide WIRED NETWORK HDBaseT NOTE HDBaseT ・ CONTROL TERMINAL ・ QM00481-1...
  • Page 103 OPTION menu Item Description REMOTE CONTROL OUT REMOTE CONTROL REMOTE CONTROL OUT SERVICE (continued) HDMI OUT RESOLUTION QM00481-1...
  • Page 104 OPTION menu Item Description INFORMATION SERVICE (continued) 111) FACTORY RESET QM00481-1...

  • Page 105: Network Menu

    NETWORK menu Network Guide QM00481-1...

  • Page 106: Security Menu

    SECURITY menu Enter to the SECURITY menu below) If you have forgotten your password RESET INPUT Item Description SECURITY PASSWORD CHANGE ENTER QM00481-1...
  • Page 107 SECURITY menu Item Description 1 Turning on the MyScreen PASSWORD ENTER MyScreen PASSWORD 3 If you have forgotten your password QM00481-1...
  • Page 108 SECURITY menu Item Description 1 Turning on the PIN LOCK ENTER COMPUTER 1 INPUT PIN LOCK 3 If you have forgotten your PIN code RESET INPUT QM00481-1...
  • Page 109 SECURITY menu Item Description 1 Turning on the TRANSITION DETECTOR ENTER TRANSITION DETECTOR ENTER 3 If you have forgotten your password QM00481-1...
  • Page 110 SECURITY menu Item Description 1 Turning on the MY TEXT PASSWORD MY TEXT PASSWORD ENTER 3 If you have forgotten your password QM00481-1...
  • Page 111 SECURITY menu Item Description ENTER MY TEXT DISPLAY ENTER INPUT RESET INPUT ENTER INPUT MY TEXT WRITING ENTER INPUT ENTER INPUT ENTER INPUT QM00481-1...
  • Page 112 SECURITY menu Item Description SECURITY INDICATOR 108, 109) STACK LOCK Instant Stack Guide QM00481-1...

  • Page 113: Maintenance

    Maintenance UX43481 MENU QM00481-1...
  • Page 114 Maintenance WARNING NOTE QM00481-1...
  • Page 115 Maintenance Inserting or replacing the internal clock battery Network Guide 90° 90° WARNING ・ ・ ・ ・ ・ ・ ・ NOTE...
  • Page 116 Maintenance Other care Inside of the projector Caring for the lens QM00481-1...
  • Page 117 Maintenance Caring for the cabinet and remote control WARNING CAUTION NOTICE QM00481-1...

  • Page 118: Troubleshooting

    Troubleshooting WARNING Troubleshooting Related messages Message Description There is no input signal. QM00481-1...
  • Page 119 Troubleshooting Related messages (continued) Message Description The horizontal or vertical frequency of the input An improper signal is input. The internal temperature is rising. User's Manual (concise) QM00481-1...
  • Page 120 Troubleshooting Related messages (continued) Message Description Cleaning and replacing the air 74 113 The button operation is not available. QM00481-1...
  • Page 121 Regarding the indicator lamps Troubleshooting Regarding the indicator lamps Indicator Status Description Orange The projector is in a standby state. Green The projector is warming up. Green The projector is in an on state. Orange The projector is cooling down. QM00481-1...
  • Page 122 Regarding the indicator lamps Regarding the indicator lamps (continued) Indicator Status Description Blinking In Green 1 time At least 1 "Power ON" schedule is saved to the projector. Schedule Settings User’s Manual - Network Guide. Normally lighting in Orange. Blinking In Green 2 times for approx.

  • Page 123: Filter

    Regarding the indicator lamps Regarding the indicator lamps (continued) Indicator Status Description Blinking In Green 1 time PIN LOCK or TRANSITION DETECTOR Orange function is active. 108, 109, 112 Blinking In Red 1 time Green Cleaning and 113) Blinking In Red 2 〜 3 times Green NOTE FILTER...

  • Page 124: Light

    Regarding the indicator lamps Regarding the indicator lamps (continued) Indicator Status Description The interior portion has become heated. Blinking In Red 2 〜 6 times The light source does not light or the illuminance Blinking In Red 1 〜 5 times system is operating in degraded mode, and there is a possibility that interior portion has become Red or...
  • Page 125 Regarding the indicator lamps Regarding the indicator lamps (continued) Indicator Status Description The cooling fan is not operating. Blinking In Red 1 〜 11 times Red or Green Lens shift does not work correctly. Blinking In Orange 1 time Orange or Green Blinking In Orange 2 〜...
  • Page 126 Regarding the indicator lamps Regarding the indicator lamps (continued) NOTE Resetting all settings QM00481-1...
  • Page 127 Troubleshooting Issues that may be easy to be mistaken for machine defects Reference Issue Cases not involving a machine defect page The electrical power cord is not plugged in. The main power source has been interrupted during operation such as by a power outage (blackout), etc. OSD MESSAGE is set to INHIBIT.
  • Page 128 Troubleshooting Issues that may be easy to be mistaken for machine defects (continued) Reference Issue Cases not involving a machine defect page The signal cables are not correctly connected. The volume is adjusted to an extremely low level. The AUDIO SOURCE setting is not correct. The Sound checkbox in LiveViewer is disabled.
  • Page 129 Troubleshooting Issues that may be easy to be mistaken for machine defects (continued) Reference Issue Cases not involving a machine defect page The batteries in the remote control are near the end. The ID numbers set in the projector and the remote The FREEZE function is working.
  • Page 130 Troubleshooting Issues that may be easy to be mistaken for machine defects (continued) Reference Issue Cases not involving a machine defect page The lens cover is attached. – Either the focus and/or horizontal phase settings are not properly adjusted. FOCUS + / - FOCUS The lens is dirty or misty.
  • Page 131 Troubleshooting Issues that may be easy to be mistaken for machine defects (continued) Reference Issue Cases not involving a machine defect page The SAVING/NETWORK(WOL) function is working. The same network address is set for both wireless and wired LAN. – Blending Region is set.
  • Page 132 Troubleshooting Issues that may be easy to be mistaken for machine defects (continued) Reference Issue Cases not involving a machine defect page Check if the LAN setting is HDBaseT. – This projector is compatible with 100BASE-T only – – – –...
  • Page 133 Troubleshooting Issues that may be easy to be mistaken for machine defects (continued) Reference Issue Cases not involving a machine defect page – – – – – QM00481-1...
  • Page 134 Troubleshooting Issues that may be easy to be mistaken for machine defects (continued) Reference Issue Cases not involving a machine defect page The SAVING/NETWORK(WOL) function is working. The internal clock has been reset. – Check if SAVING/NETWORK(WOL) is set in SETUP - STANDBY MODE.
  • Page 135 Troubleshooting Issues that may be easy to be mistaken for machine defects (continued) Reference Issue Cases not involving a machine defect page Disconnect the LAN cable and check that the projector is working properly. – POWER NOTE QM00481-1...
  • Page 136 User’s Manual (concise) End User License Agreement for the Product Software QM00481-1...
