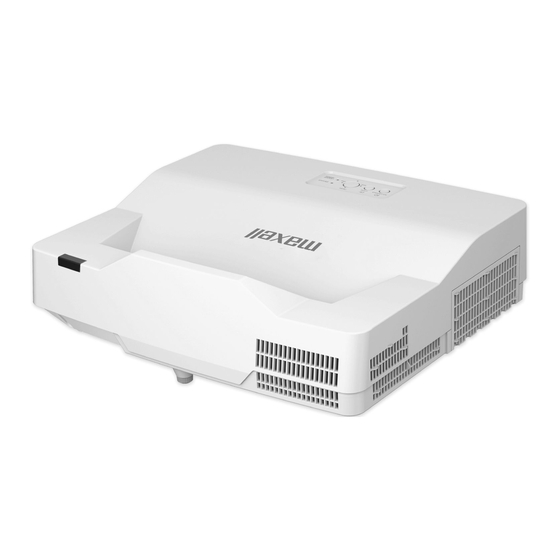

LCD Projector
MP-TW4011/MP-TW3011
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
WARNING
CAUTION
NOTICE
NOTE
Safety Guide
1
QM00261-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-TW4011 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxell MP-TW4011

Summary of Contents for Maxell MP-TW4011

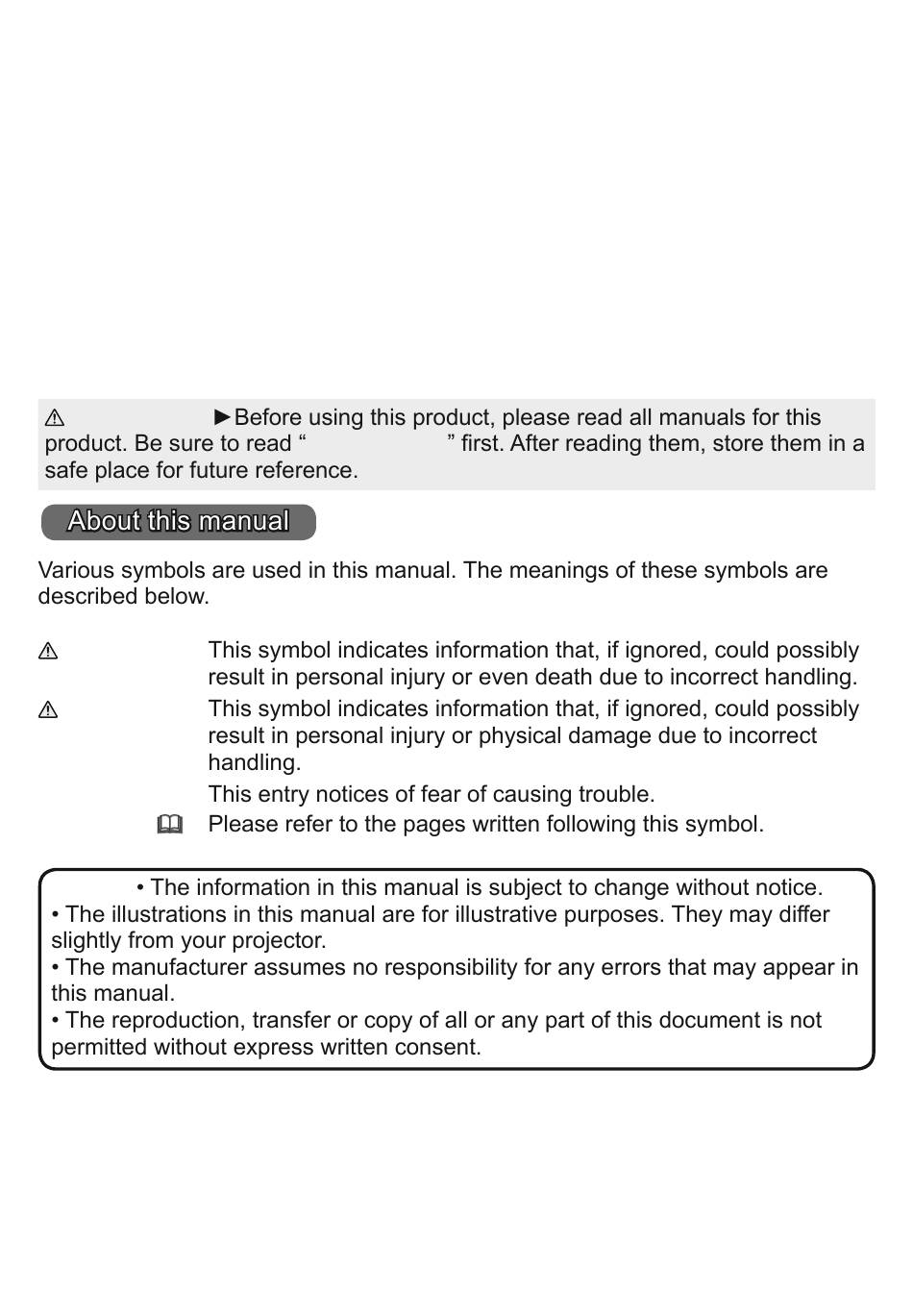

  • Page 1 LCD Projector MP-TW4011/MP-TW3011 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING Safety Guide WARNING CAUTION NOTICE NOTE QM00261-1...

  • Page 2: Table Of Contents

    Introduction ....3 SETUP menu ....58 Setting up ....8 AUDIO menu .

  • Page 3: Introduction

    Introduction Features HDMI ® Checking the contents of package Contents of package User’s Manual (concise) NOTE QM00261-1...
  • Page 4 Introduction Part names Projector HOT! 14, 30, 66 HOT! WARNING HOT! CAUTION QM00261-1...
  • Page 5 Introduction Part names (continued) Control panel STANDBY/ON INPUT 28, 140 POWER/STATUS1 STATUS2 Buttons FOCUS + - USB TYPE A MENU Ports 11 ~ 16 USB TYPE A AUDIO OUT COMPUTER IN1 USB TYPE B COMPUTER IN2 / MONITOR OUT HDMI 1 VIDEO HDMI 2 / MHL CONTROL...
  • Page 6 Introduction Part names (continued) Remote control INPUT 75, 76 MY BUTTON-1 MYBUTTON 75, 76 MY BUTTON-2 INPUT STANDBY/ON ASPECT PbyP AUTO FREEZE ASPECT MAGNIFY FOCUS ZOOM VOLUME PbyP AUTO PAGE GEOMETRY PICTURE MUTE FREEZE DOWN INTERACTIVE NETWORK BLANK MAGNIFY ON MENU FOCUS + ZOOM +...
  • Page 7 Introduction Part names (continued) Interactive pen Pen tip Indicator Button NOTE QM00261-1...

  • Page 8: Setting Up

    Setting up Arrangement • •  •  •  WARNING QM00261-1...
  • Page 9 Setting up Arrangement (continued) WARNING QM00261-1...
  • Page 10 Setting up Arrangement (continued) CAUTION NOTE • • • QM00261-1...
  • Page 11 Setting up Connecting with your devices WARNING CAUTION QM00261-1...
  • Page 12 Setting up Connecting with your devices (continued) About Plug-and-Play capability COMPUTER IN1 COMPUTER IN1 COMPUTER IN2 USB TYPE B USB TYPE B AUDIO HDMI Cb/Pb Cr/Pr VIDEO RS-232C DISPLAY HDMI AUDIO COMPONENT Smartphone VCR/DVD/Blu-ray Disc Computer player Tablet QM00261-1...
  • Page 13 Setting up Connecting with your devices (continued) NOTE • HDMI HDMI HDMI QM00261-1...
  • Page 14 Setting up Connecting with your devices (continued) NOTE ® • USB TYPE 120) RGB IN Monitor Speakers QM00261-1...
  • Page 15 Setting up Connecting with your devices (continued) CONTROL User's Manual - Network Guide USB storage device USB wireless adapter RS-232C USB TYPE A Access point Computer CAUTION 123)
  • Page 16 Setting up Connecting with your devices (continued) NOTE QM00261-1...
  • Page 17 Setting up Connecting with your devices (continued) HDMI HDMI HDMI screw No cable tie With cable tie Cable tie - medium HDMI cable holder WARNING CAUTION QM00261-1...
  • Page 18 Setting up Connecting with your devices (continued) Fastening the adapter cover USB TYPE A USB TYPE A WARNING QM00261-1...
  • Page 19 Setting up Connecting to a power supply POWER/STATUS1 WARNING QM00261-1...
  • Page 20 Setting up Using the security bar and slot Security slot 12mm 19mm 14mm Security bar Anti-theft chain or wire WARNING CAUTION NOTE ・  ・ ...

  • Page 21: Remote Control

    Remote control Installing the batteries WARNING QM00261-1...
  • Page 22 Remote control About the remote control signal Remote sensor 30° 30° (approx.) NOTE Changing the frequency of remote control signal MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE DOWN INTERACTIVE NETWORK BLANK MENU ENTER VOLUME - RESET OSD MSG...
  • Page 23 Remote control Using as a simple PC mouse & keyboard TYPE B USB TYPE B PAGE UP key: PAGE UP PAGE DOWN key: PAGE DOWN MYBUTTON INPUT Mouse left button: ENTER ASPECT PbyP AUTO FREEZE Move pointer: MAGNIFY FOCUS ZOOM VOLUME ESC key: PAGE...

  • Page 24: Interactive Pen

    Interactive pen Installing the battery NOTE...
  • Page 25 Interactive pen WARNING CAUTION QM00261-1...
  • Page 26 Interactive pen Replacing the tip of the pen Function of the pen Pen tip Indicator Button ・Indicator QM00261-1...
  • Page 27 Interactive pen ・Button ・ NOTE QM00261-1...

  • Page 28: Power On/Off

    Power on/off Turning on the power POWER/STATUS1 STANDBY/ON POWER/STATUS1 STANDBY/ON MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME POWER/STATUS1 PAGE GEOMETRY PICTURE MUTE DOWN INTERACTIVE NETWORK BLANK MENU ENTER OSD MSG RESET Selecting an input signal QM00261-1...
  • Page 29 Power on/off WARNING Turning off the power STANDBY/ON STANDBY/ON POWER/STATUS1 POWER/STATUS1 WARNING NOTE QM00261-1...

  • Page 30: Operating

    Operating VOLUME + - Adjusting the volume MYBUTTON INPUT VOLUME + VOLUME - ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE Temporarily muting the sound MUTE MUTE MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MUTE VOLUME + MAGNIFY FOCUS ZOOM...
  • Page 31 Operating Selecting an input signal INPUT INPUT INPUT MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE USB TYPE B Selecting an aspect ratio ASPECT ASPECT MYBUTTON INPUT ASPECT PbyP AUTO FREEZE For a computer signal, an HDMI signal, a video signal or MAGNIFY FOCUS...
  • Page 32 Operating Calibration INTERACTIVE MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE DOWN INTERACTIVE NETWORK BLANK INTERACTIVE QM00261-1...
  • Page 33 Operating Adjusting the projector's elevator WARNING NOTE Adjusting the zoom and focus ZOOM + ZOOM + ZOOM - MYBUTTON INPUT ZOOM + ZOOM - ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE ZOOM - QM00261-1...
  • Page 34 Operating FOCUS + FOCUS + FOCUS - FOCUS + FOCUS - MYBUTTON INPUT FOCUS + FOCUS - ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE MENU FOCUS - FOCUS +/- USB TYPE A Using the automatic adjustment feature AUTO AUTO MYBUTTON...
  • Page 35 Operating Correcting the distortion GEOMETRY GEOMETRY MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE NOTE GEOMETRY ENTER KEYSTONE: ENTER NOTE ENTER QM00261-1...
  • Page 36 Operating Correcting the distortion (continued) PERFECT FIT: ENTER ENTER ENTER ENTER QM00261-1...
  • Page 37 Operating Limiting OSD display OSD MSG OSD MSG MENU ENTER OSD MSG OSD MSG RESET     QM00261-1...
  • Page 38 Operating Using the magnify feature MAGNIFY ON MAGNIFY ON/OFF MAGNIFY ON MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE MAGNIFY ON For computer signals, HDMI (RGB) signals, input signals from the LAN, USB TYPE A or USB TYPE B port For video signals, component video signals or HDMI (Component) signals...
  • Page 39 Operating Temporarily freezing the screen FREEZE FREEZE MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE FREEZE DOWN INTERACTIVE NETWORK BLANK Temporarily blanking the screen BLANK BLANK MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME BLANK...
  • Page 40 Operating Using the menu function MENU MENU MENU MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME ENTER PAGE GEOMETRY PICTURE MUTE DOWN INTERACTIVE NETWORK BLANK MENU MENU ENTER OSD MSG RESET OSD MSG RESET RESET ENTER MENU In the EASY MENU In the ADVANCED MENU ENTER ENTER...
  • Page 41 Operating Using the menu function (continued) MENU ENTER RESET Indication in OSD (On Screen Display) Indication Meaning MENU QM00261-1...

  • Page 42: Easy Menu

    EASY MENU Item Description IWB CALIBRATE ASPECT D-ZOOM KEYSTONE PERFECT FIT QM00261-1...
  • Page 43 EASY MENU Item Description ® PICTURE MODE LIGHT OUTPUT INSTALLATION RESET FILTER TIME QM00261-1...
  • Page 44 EASY MENU Item Description LANGUAGE ENTER ADVANCED MENU EXIT ENTER QM00261-1...

  • Page 45: Iwb Menu

    EASY MENU IWB menu ENTER QM00261-1...

  • Page 46: Picture Menu

    PICTURE menu ENTER Item Description BRIGHTNESS CONTRAST COLOR TINT SHARPNESS QM00261-1...
  • Page 47 PICTURE menu Item Description ENTER PICTURE MODE GAMMA PICTURE QUALITY QM00261-1...
  • Page 48 PICTURE menu Item Description GAMMA (continued) ENTER COLOR TEMP PICTURE QUALITY (continued) ENTER QM00261-1...
  • Page 49 PICTURE menu Item Description ACCENTUALIZER PICTURE QUALITY (continued) HDCR DYNAMIC BLACK ENTER MY MEMORY MY BUTTON QM00261-1...

  • Page 50: Image Menu

    IMAGE menu ENTER Item Description For a computer signal, an HDMI signal, a video signal or component video signal 16:9 16:10 14:9 ASPECT For an input signal from the LAN, USB TYPE A or USB TYPE B port, or if there is no signal OVER SCAN COMPUTER LAN USB TYPE A USB TYPE B...
  • Page 51 IMAGE menu Item Description RESET V POSITION • LAN USB TYPE A USB TYPE B, HDMI 1 HDMI 2 / MHL RESET H POSITION • • LAN USB TYPE A USB TYPE B, HDMI 1 HDMI 2 / MHL H PHASE LAN USB TYPE A USB TYPE B, HDMI 1 HDMI 2 / MHL QM00261-1...
  • Page 52 IMAGE menu Item Description LAN USB TYPE A USB TYPE B, HDMI 1 HDMI 2 / MHL H SIZE RESET For a computer signal For a video signal AUTO ADJUST For a component video signal EXECUTE QM00261-1...

  • Page 53: Input Menu

    INPUT menu ENTER Item Description PROGRESSIVE VIDEO NR COLOR SPACE LAN USB TYPE A USB TYPE B QM00261-1...
  • Page 54 INPUT menu Item Description VIDEO VIDEO FORMAT VIDEO HDMI 1 HDMI 2 / MHL HDMI DIGITAL RANGE QM00261-1...
  • Page 55 INPUT menu Item Description COMPUTER IN1 COMPUTER IN COMPUTER IN FRAME LOCK HDMI 1 HDMI 2 / MHL QM00261-1...
  • Page 56 INPUT menu Item Description COMPUTER IN1 COMPUTER IN2 ENTER RESOLUTION ENTER ENTER QM00261-1...
  • Page 57 INPUT menu Item Description MHL STANDBY PWR. QM00261-1...

  • Page 58: Setup Menu

    SETUP menu ENTER Item Description D-ZOOM D-SHIFT QM00261-1...
  • Page 59 SETUP menu Item Description ・ PICTURE POSITION KEYSTONE Correcting the distortion 36 . PERFECT FIT GEOMETRY  Correcting the distortion CORRECTION PATTERN QM00261-1...
  • Page 60 SETUP menu Item Description ENTER SETUP MEMORY BUTTON QM00261-1...
  • Page 61 SETUP menu Item Description     LIGHT OUTPUT LIGHT SOURCE TIME LIGHT &  FILTER RESET FILTER TIME FILTER  MESSAGE QM00261-1...
  • Page 62 SETUP menu Item Description INSTALLATION SCREEN GAIN QM00261-1...
  • Page 63 SETUP menu Item Description POWER/STATUS1 POWER/STATUS1 STANDBY MODE QM00261-1...
  • Page 64 SETUP menu Wake-On LAN (WOL) function Operation 01:02:03:04:05:06: QM00261-1...
  • Page 65 SETUP menu Item Description OSD MESSAGE FREEZE OSD MSG STANDBY •  OUTPUT •  QM00261-1...

  • Page 66: Audio Menu

    AUDIO menu ENTER Item Description VOLUME SPEAKER AUDIO OUT AUDIO SOURCE AUDIO IN1 AUDIO IN2 AUDIO IN3 HDMI 1 HDMI 2 / MHL USB TYPE B VIDEO COMPUTER IN1 COMPUTER IN2 QM00261-1...

  • Page 67: Screen Menu

    SCREEN menu ENTER Item Description LANGUAGE ENTER MENU POSITION MENU BLANK BLANK AUTO BLANK QM00261-1...
  • Page 68 SCREEN menu Item Description START UP ENTER RESET MyScreen • LAN, USB TYPE A USB TYPE B, HDMI 1 HDMI 2 / MHL QM00261-1...
  • Page 69 SCREEN menu Item Description MyScreen Lock ENTER SOURCE NAME ENTER ENTER ENTER QM00261-1...
  • Page 70 SCREEN menu Item Description ENTER RESET ENTER SOURCE NAME continued ENTER ENTER ENTER TEMPLATE ENTER QM00261-1...
  • Page 71 SCREEN menu Item Description DISPLAY C.C. (Closed Caption) MODE CHANNEL QM00261-1...

  • Page 72: Option Menu

    OPTION menu ENTER Item Description below SEARCH SKIP AUTO SEARCH USB TYPE B QM00261-1...
  • Page 73 OPTION menu Item Description DIRECT POWER WARNING AUTO POWER WARNING QM00261-1...
  • Page 74 OPTION menu Item Description AUTO POWER CONTROL QM00261-1...
  • Page 75 OPTION menu Item Description MY BUTTON COMPUTER IN1 COMPUTER IN2 HDMI 1 HDMI 2 / MHL VIDEO USB TYPE A USB TYPE B USB TYPE A, Messenger Function Network Guide MY BUTTON MY BUTTON QM00261-1...
  • Page 76 OPTION menu Item Description MY BUTTON continued How to setup the item NOTE Item Description DATE AND TIME SPECIFIC DATE SCHEDULE PROGRAM EDIT QM00261-1...
  • Page 77 OPTION menu Item Description How to activate( /  DATE AND TIME SPECIFIC DATE  ( SCHEDULE continued QM00261-1...
  • Page 78 OPTION menu Item Description PROGRAM EDIT RETURN SELECT SCHEDULE continued COPY TO APPLY WARNING QM00261-1...
  • Page 79 OPTION menu Item Description How to edit the selected PROGRAM SCHEDULE continued NOTE QM00261-1...
  • Page 80 OPTION menu Item Description ENTER ALTITUDE AUTO ADJUST SERVICE GHOST FLICKER REDUCTION    QM00261-1...
  • Page 81 OPTION menu Item Description KEY LOCK STANDBY/ON REMOTE FREQ. SERVICE (continued) CONTROL COMMUNICATION Network Guide QM00261-1...
  • Page 82 OPTION menu Item Description COMMUNICATION TYPE CONTROL CONTROL Network Bridge Function Network Guide CONTROL below SERIAL SETTINGS CONTROL BAUD RATE SERVICE COMMUNICATION (continued) (continued) PARITY TRANSMISSION METHOD CONTROL QM00261-1...
  • Page 83 OPTION menu Item Description RESPONSE LIMIT TIME CONTROL COMMUNICATION (continued) CONTROL SERVICE (continued) CLONING QM00261-1...
  • Page 84 OPTION menu Item Description SERVICE CLONING (continued) (continued) POWER/STATUS1 STATUS2 POWER/STATUS1 STATUS2 POWER/STATUS1 STATUS2 POWER/STATUS1 STATUS2 TYPE A QM00261-1...
  • Page 85 OPTION menu Item Description SERVICE CLONING (continued) (continued) QM00261-1...
  • Page 86 OPTION menu Item Description CLONING (continued) INFORMATION SERVICE (continued) FACTORY RESET QM00261-1...

  • Page 87: Network Menu

    NETWORK menu Network Guide QM00261-1...

  • Page 88: Security Menu

    SECURITY menu Enter to the SECURITY menu below If you have forgotten your password RESET Item Description SECURITY PASSWORD CHANGE ENTER QM00261-1...
  • Page 89 SECURITY menu Item Description 1 Turning on the MyScreen PASSWORD ENTER MyScreen PASSWORD 3 If you have forgotten your password QM00261-1...
  • Page 90 SECURITY menu Item Description 1 Turning on the PIN LOCK ENTER INPUT PIN LOCK 3 If you have forgotten your PIN code RESET QM00261-1...
  • Page 91 SECURITY menu Item Description 1 Turning on the TRANSITION DETECTOR ENTER TRANSITION DETECTOR ENTER 3 If you have forgotten your password QM00261-1...
  • Page 92 SECURITY menu Item Description 1 Turning on the MY TEXT PASSWORD MY TEXT PASSWORD ENTER 3 If you have forgotten your password QM00261-1...
  • Page 93 SECURITY menu Item Description ENTER MY TEXT DISPLAY ENTER RESET ENTER MY TEXT WRITING ENTER ENTER ENTER CLONING LOCK QM00261-1...

  • Page 94: Presentation Tools

    Presentation tools below Interactive Function QM00261-1...
  • Page 95 Presentation tools Interactive Function (continued) Connection during use DISPLAY HDMI USB TYPE A COMPUTER IN HDMI USB TYPE B QM00261-1...
  • Page 96 Presentation tools Interactive Function (continued) NOTE COMPUTER IN1 COMPUTER IN2 HDMI 1 HDMI 2/MHL CAUTION QM00261-1...
  • Page 97 Presentation tools Interactive Function (continued) USER SETTING Item Description AUTO CALIBRATE NOTE QM00261-1...
  • Page 98 Presentation tools Interactive Function (continued) Item Description MANUAL CALIBRATE NOTE QM00261-1...
  • Page 99 Presentation tools Interactive Function (continued) Item Description ENTER IWB MODE ENTER ⇔ ⇔ IWB SETUP FINGER TOUCH ⇔ ・ ： ・ QM00261-1...
  • Page 100 Presentation tools Interactive Function (continued) Item Description CAMERA VIEW ENTER ・ ： MOUSE TYPE IWB SETUP (continued) ⇔ ・ ・ NOTE ・ QM00261-1...
  • Page 101 Presentation tools Interactive Function (continued) Item Description ENTER SCREEN TYPE ⇔ ⇔ ・ ・ CALIBRATE SETUP NOTE ・ ・ ・ ・ QM00261-1...
  • Page 102 Presentation tools Interactive Function (continued) Item Description IWB AREA SETUP ENTER ▶ ⇔ ・ ・ ENTER ・ ▶ ・ CALIBRATE SETUP (continued) NOTE ・ ・ ・ QM00261-1...
  • Page 103 Presentation tools Interactive Function (continued) Item Description ⇔ INTERACTIVE NOTE TOOL ・ ・ ⇔ ⇔ MULTI DISPLAY ・ ・ ⇔ ・ MEMORY ・ ACCESS NOTE ・ QM00261-1...
  • Page 104 Presentation tools Interactive Function (continued) Main Functions Drawing on projected images NOTE Saving and displaying drawn images NOTE Using as a simple mouse NOTE QM00261-1...
  • Page 105 Presentation tools Interactive Function (continued) Using Interactive tool. ： ： ：   NOTE ・ ・ QM00261-1...
  • Page 106 Presentation tools Interactive Function (continued) PC operation mode NOTE ・ USB TYPE B ・ （ ） ・ ・ QM00261-1...
  • Page 107 Presentation tools Interactive Function (continued) PJ internal Painter mode   NOTE 1. Pen QM00261-1...
  • Page 108 Presentation tools Interactive Function (continued) 2. Graphic drawing QM00261-1...
  • Page 109 Presentation tools Interactive Function (continued) 3. Pen color 4. Editing operation 5. File Operation   QM00261-1...
  • Page 110 Presentation tools Interactive Function (continued) 5. File Operation (continued) NOTE QM00261-1...
  • Page 111 Presentation tools Interactive Function (continued) 6. Selecting an input signal ※ 7.Background 8. Return 9. Minimize 10.Move QM00261-1...
  • Page 112 Presentation tools Interactive Function (continued) PJ operation mode • • • AV MUTE QM00261-1...
  • Page 113 Presentation tools Interactive Function (continued) PJ operation mode (continued) QM00261-1...
  • Page 114 Presentation tools Interactive Function (continued) Preliminary preparation Using the pen CAUTION NOTE QM00261-1...
  • Page 115 Presentation tools Interactive Function (continued) Basic pen operation NOTE QM00261-1...
  • Page 116 Presentation tools Interactive Function (continued) Using “StarBoard Software”           CAUTION NOTE QM00261-1...
  • Page 117 Presentation tools Interactive Function (continued) System requirements : StarBoard Software tive Function. (Windows computer) ® ® Memory Display ® ® ® ® Ap plication: ® ® ® ® ® ® ® ® ® DVD-ROM drive ® Memory Others QM00261-1...
  • Page 118 Presentation tools Interactive Function (continued) unction. (Mac computer) ® ® Memory Display ® Ap plication: ® ® DVD-ROM drive ® Memory Others Memory QM00261-1...
  • Page 119 Presentation tools Interactive Function (continued) NOTE ® ® ® QM00261-1...
  • Page 120 Presentation tools Presentation tools PC-LESS Presentation USB TYPE A USB TYPE A [Supported storage media] NOTE 15, 123 [Supported format] NOTE QM00261-1...
  • Page 121 Presentation tools Presentation tools PC-LESS Presentation (continued) NOTE Thumbnail mode USB TYPE A...
  • Page 122 Presentation tools PC-LESS Presentation (continued) Operating by buttons or keys Button operation Functions PAGE UP PAGE UP PAGE DOWN PAGE DOWN below ENTER INPUT ENTER The setup menu for the selected image Item Functions ENTER ” ” SKIP ” ENTER ”...
  • Page 123 Presentation tools PC-LESS Presentation (continued) Operating by the menu on the Thumbnail screen Item Functions ENTER ENTER ENTER USB TYPE A QM00261-1...
  • Page 124 Presentation tools Presentation tools PC-LESS Presentation (continued) NOTE INTERNAL MEMORY NOTE QM00261-1...
  • Page 125 Presentation tools PC-LESS Presentation (continued) Full Screen Mode ENTER ENTER] Operations for still images Button operation Functions PAGE DOWN PAGE DOWN PAGE UP PAGE UP ENTER INPUT ENTER QM00261-1...
  • Page 126 Presentation tools PC-LESS Presentation (continued) Slideshow mode ENTER [ENTER] Button operation Functions ENTER INPUT ENTER NOTE ENTER QM00261-1...
  • Page 127 Presentation tools PC-LESS Presentation (continued) NOTE QM00261-1...
  • Page 128 Presentation tools PC-LESS Presentation (continued) Playlist [Example of playlist.txt” NOTE Slideshow mode QM00261-1...
  • Page 129 Presentation tools USB Display(Windows computer) ® Hardware and software requirement for computer ® ® ® ® Graphic card Memory Hard disk space USB Port USB cable Starting USB Display USB TYPE B NOTE QM00261-1...
  • Page 130 Presentation tools USB Display(Windows computer) (continued) ® NOTE Network Guide USB TYPE B HDMI HDMI ” ” QM00261-1...
  • Page 131 Presentation tools USB Display(Windows computer) (continued) ® Right-Click menu NOTE Floating menu ① ① ② ② NOTE QM00261-1...
  • Page 132 Presentation tools USB Display(Windows computer) (continued) ® Options window Optimize Performance Transmission speed Image quality Keep PC resolution [Keep PC resolution] Sound Display LiveViewer Lite for USB About NOTE AUDIO IN QM00261-1...

  • Page 133: Maintenance

    Maintenance Type number : UX43251 QM00261-1...
  • Page 134 Maintenance MENU WARNING NOTE QM00261-1...
  • Page 135 Maintenance Installing or replacing the internal clock battery CR2032 CR2032H 90° 90° WARNING ・ ・ ・ ・ ・ ・ ・ NOTE...
  • Page 136 Maintenance Caring for the projection window and camera lens WARNING QM00261-1...
  • Page 137 Maintenance Other care Inside of the projector Caring for the cabinet and remote control Maintenance of the pen WARNING CAUTION NOTICE QM00261-1...

  • Page 138: Troubleshooting

    Troubleshooting WARNING Troubleshooting Related messages Message Description There is no input signal. QM00261-1...
  • Page 139 Troubleshooting Related messages (continued) Message Description The horizontal or vertical frequency of the input signal is An improper signal is input. The COMPUTER IN2/MONITOR OUT port is selected as the picture input source even though MONITOR OUT 55). is selected for COMPUTER IN2( COMPUTER IN2/MONITOR OUT The internal temperature is rising.
  • Page 140 Troubleshooting Regarding the indicator lamps POWER/STATUS1 STATUS2 POWER/STATUS1 STATUS2 Description indicator indicator The projector is in a standby state. Orange Blinking The projector is warming up. Green The projector is in an on state. Green Blinking The projector is cooling down. Orange The light source does not light.
  • Page 141 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator The cooling fan is not operating. Blinking Blinking 7 times 1 〜 6 times The internal temperature is rising. Blinking 2 times Blinking 1 time QM00261-1...
  • Page 142 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator There is a possibility that the interior portion Blinking Blinking has become overcooled. 9 times 1 〜 4 times Blinking Blinking The illuminance system is operating in degraded mode. 9 times 5 〜...
  • Page 143 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator The interior portion has become heated. Blinking Blinking 2 times 1 〜 4 times Other error has occurred. NOTE QM00261-1...
  • Page 144 Troubleshooting Resetting all settings Phenomena that may be easy to be mistaken for machine defects Reference Phenomenon Cases not involving a machine defect page The electrical power cord is not plugged in. The main power source has been interrupted during operation such as by a power outage (blackout), etc.
  • Page 145 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. The MUTE function is working. VOLUME + - The volume is adjusted to an extremely low level. The AUDIO SOURCE/SPEAKER setting is not correct.
  • Page 146 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. The brightness is adjusted to an extremely low level. The computer cannot detect the projector as a plug- and-play monitor.
  • Page 147 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The FREEZE function is working. FREEZE Color settings are not correctly adjusted. COLOR SPACE setting is not suitable. The brightness and/or contrast are adjusted to an extremely low level.
  • Page 148 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page When the projector is operating in LONG LIFE mode or The OVER SCAN ratio is too big. Excessive VIDEO NR. The FRAME LOCK function cannot work on the current input signal.
  • Page 149 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page function is working. SAVING/NETWORK(WOL) The internal clock has been reset. Disconnect the LAN cable and check that the projector is working properly.
  • Page 150 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Is the power of the projector turned on? POWER/STATUS1 Is the USB cable connected correctly? Has PC INTERACTIVE mode been activated? INTERACTIVE Has calibration been performed? INTERACTIVE...
  • Page 151 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Is transmission between the pen and the projector  obstructed?           Is the camera lens dirty?  ...
  • Page 152 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Has the battery run out? Is the tip of the pen worn out? Is the transmission between the pen and the projector blocked? Are you moving the pen quickly? Is the indicator of the pen lighting in orange?
  • Page 153 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page SYNC OUT and SYNC IN are not connected with a cable. SYNC OUT SYNC IN MULTI DISPLAY is not set. Is the projector correctly installed? Is the computer image projected within the area of the screen?
  • Page 154 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page This may be due to exhaustion of the battery of the pen. This may be due to poor contact of the battery in the pen.
  • Page 155 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page In BIOS setting, are you using USB area for BOOT? Are you using USB cable other than the one supplied with this product ? Are you using repeater cable? QM00261-1...
  • Page 156 User’s Manual (concise) End User License Agreement for the Product Software Trademark acknowledgment ® ® ® ® ® ® ® ® QM00261-1...

This manual is also suitable for:

Mp-tw3011

Table of Contents
