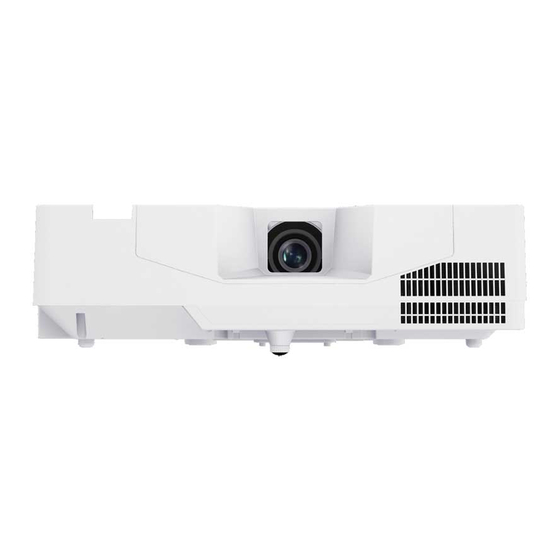

LCD Projector
MP-JW351E/MP-JW401E
MP-JX351E
User's Manual (detailed)
Operating Guide

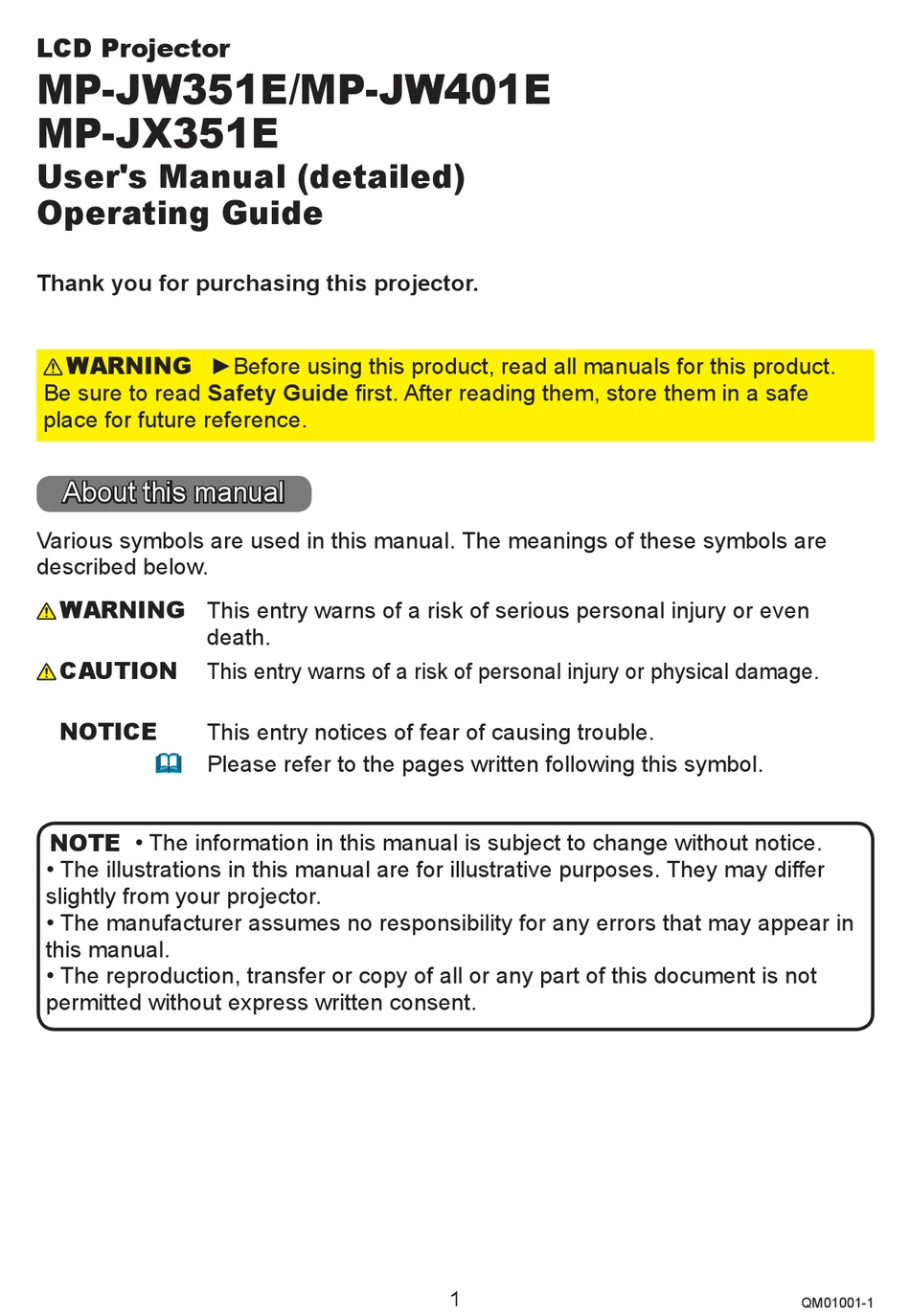

Thank you for purchasing this projector.
WARNING
Be sure to read Safety Guide first. After reading them, store them in a safe
place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
This entry warns of a risk of serious personal injury or even
death.
CAUTION
This entry warns of a risk of personal injury or physical damage.
NOTICE
This entry notices of fear of causing trouble.
Please refer to the pages written following this symbol.
NOTE
• The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
►Before using this product, read all manuals for this product.
1
QM01001-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maxell MP-JW351E
Summary of Contents for Maxell MP-JW351E
- Page 1 LCD Projector MP-JW351E/MP-JW401E MP-JX351E User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, read all manuals for this product. Be sure to read Safety Guide first. After reading them, store them in a safe place for future reference.
-
Page 2: Table Of Contents
Contents Introduction . . . . . . . . . . . . . . . 3 OPTION menu . . . . . . . . . . . . . 70 Features . -
Page 3: Introduction
Introduction Introduction Features The projector provides you with the broad use by the following features. ü Adopting laser diodes as light source, realized a compact product with smallness and lightness. ü This projector has a variety of I/O ports that supposedly cover for any business scene. -
Page 4: Warnings, Cautions, And Notices
Introduction Warnings, Cautions, and Notices WARNING ►Never use the projector if a problem should occur. • Otherwise it can cause fire or electric shock. • If any of the following abnormalities occur, urgently stop using the product and unplug it from the power outlet: - The product is giving off smoke or strange smell, or making a strange sound. - Page 5 Introduction Warnings, Cautions, and Notices (continued) WARNING ►Do not get the product wet. • It could result in a fire, an electric shock, and/or malfunction to the projector. • Do not place the projector near water, such as in a bathroom, kitchen, or poolside.
- Page 6 Introduction Warnings, Cautions, and Notices (continued) WARNING ►Never disassemble and modify. • The product contains high voltage components and/or laser light-emitting part beyond the scope of Class 1 (IEC60825-1). Modification and/or disassembly of the product could result in fire, electrical shock, or injury to eyes or skin. •...
- Page 7 Introduction Warnings, Cautions, and Notices (continued) WARNING ►Use the accessory cable or a designated type cable for the connection. • If you use a power cord or a signal cable that are not comply with the specification, it causes fire, electric shock, malfunction, or radio wave interference.
- Page 8 Introduction Warnings, Cautions, and Notices (continued) WARNING ►Do not damage the power cord, cables, and connectors. • If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. • If it is damaged, consult your dealer to get a new one. ►Do not touch the power cord with a wet hand.
- Page 9 Introduction Warnings, Cautions, and Notices (continued) CAUTION ► Do not place the projector in a place where it can be hot nor block the projector's ventilation openings. • The projector may shut down automatically, or may malfunction due to high internal temperature if it is placed in a place where it can be hot or ventilation does not operate normally.
- Page 10 Introduction Warnings, Cautions, and Notices (continued) CAUTION ►Avoid Magnetism. • Magnetic objects may cause interruption of the projector's internal mechanical performance which may interfere with cooling fans speed or stopping, and may cause the projector to completely shut down. • The projector may shutdown automatically or may malfunction if its internal temperature is too high.
- Page 11 Introduction Warnings, Cautions, and Notices (continued) CAUTION ►Ask your dealer to clean the inside of the projector about every year. • Accumulations of dust inside the projector result in fire or malfunction. • To ensure the safe use of your projector, ask your dealer to clean and inspect it about once a year.
- Page 12 Introduction Warnings, Cautions, and Notices (continued) NOTICE ►Take care not to fatigue your eyes. • Watching the display continuously for a long time makes your eyes tired. • Rest the eyes periodically. ►Take care of the lens. • It may cause breakage, malfunction, or image failure. •...
- Page 13 Introduction Warnings, Cautions, and Notices (continued) NOTICE ►Caring for the cabinet and remote control • Incorrect care could cause not only an injury but adverse influence such as discoloration, peeling paint, etc. Take right care of the projector according to the following.
- Page 14 Introduction Warnings, Cautions, and Notices (continued) NOTE ►Characteristics of the projector • Positional deviation or distortion of a projected image, or shift of the focus may occur due to ambient conditions, and so on. They tend to occur until the operation becomes stable, especially within about 30 minutes after the light source is turned on.
- Page 15 Introduction Warnings, Cautions, and Notices (continued) NOTE ►Be careful of condensation. • It is not a malfunction even if a projected image becomes blurred or cannot be seen due to condensation of internal lens or mirror when the projector is moved out of a room with a low temperature to a room with a high temperature.As the projector adapts to the ambient temperature, condensation is gone and the projected image goes back to normal.
-
Page 16: Part Names
Introduction Part names (9) (10) Projector (1) Speaker (35, 64) (2) Filter cover (85) The air filter and intake vent are inside. (3) Elevator feet (x2) (38) (12) (4) Remote sensor (31) (5) Lens (87) (13) (6) Lens cover (7) Intake vents (8) Control panel (17) (9) FOCUS ring (39) (10) ZOOM ring (39) - Page 17 Introduction Part names (continued) Control panel (1) STANDBY/ON button (33) (2) INPUT button (36) (3) MENU button (44) (4) STATUS2 indicator (91) (5) POWER/STATUS1 indicator (91) Ports(23 ~ 27) (1) HDMI port (5) CONTROL port (2) AUDIO IN port (6) USB TYPE B port (3) AUDIO OUT port (7) DC5V 2A port (USB TYPE A connector) (4) COMPUTER IN port...
-
Page 18: Remote Control
Introduction Part names (continued) Remote control (1) INPUT button ( 36 ) 73 ) (2) MY BUTTON-1 button ( 73 ) (3) MY BUTTON-2 button ( MYBUTTON INPUT 33 ) (4) STANDBY/ON button ( ASPECT PbyP AUTO FREEZE (10) (11) 36 ) (5) ASPECT button (... -
Page 19: Setting Up
Setting up Setting up Install the projector according to the environment and manner the projector will be used in. This projector will perform in a free tilt angle, as shown in the figures below. For the case of installation in a special state such as ceiling mount, the specified mounting accessories and service may be required. - Page 20 Setting up Arrangement (continued) WARNING ►Install the projector where you can access the power outlet easily. If an abnormality should occur, unplug the projector urgently. Otherwise it could cause a fire or electric shock. ►Do not subject the projector to unstable conditions. If the projector falls or topples over, it could result in injury or damage to the projector and the surrounding things.
- Page 21 Setting up Arrangement (continued) WARNING ►Do not place the projector in a place where it may get wet. Getting the projector wet or inserting liquid into the projector could cause a fire and an electric shock, and damage the projector. •...
- Page 22 Setting up Arrangement (continued) NOTICE • Do not place the projector in a smoking area, kitchen, passageway or by the window. • Position the projector to prevent light from directly hitting the projector's remote sensor. • Positional deviation or distortion of a projected image, or shift of the focus may occur due to ambient conditions, and so on.
-
Page 23: Connecting With Your Devices
Setting up Connecting with your devices Before connecting the projector to a device, consult the manual of the device to confirm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. - Page 24 Setting up Connecting with your devices (continued) NOTE • Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector. •...
- Page 25 Setting up Connecting with your devices (continued) Computer AUDIO USB TYPE A DISPLAY HDMI RS-232C NOTE • Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector. - Depending on the input signal, an adapter may be required or the projector may not display the images correctly.
- Page 26 Setting up Connecting with your devices (continued) VCR/DVD/Blu-ray Disc player COMPONENT AUDIO HDMI Cr/Pr Cb/Pb Y NOTE • The HDMI port of this model is compatible with HDCP (High- bandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like. - The HDMI port supports the following signals.
- Page 27 Setting up Connecting with your devices (continued) Speakers (with an amplifier) QM01001-1...
-
Page 28: Connecting To A Power Supply
Setting up Connecting to a power supply Put the connector of the power cord into the POWER/STATUS1 indicator AC (AC inlet) of the projector. Firmly plug the power cord’s plug into the outlet. In a couple of seconds after the power supply connection, the POWER/STATUS1 indicator will light up in steady orange. -
Page 29: Using The Security Bar And Slot
Setting up Using the security bar and slot A commercially available anti-theft wire can be attached to the security bar on the projector. Refer to the fi gure to choose an 12mm anti-theft wire. Also, this product has the security slot for the Kensington lock. -
Page 30: Remote Control
Remote control Remote control Installing the batteries Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place. -
Page 31: About The Remote Control Signal
Remote control About the remote control signal The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active: 60 degrees (30 degrees to the left and right of the sensor) within about 3 meters. -
Page 32: Using As A Simple Pc Mouse & Keyboard
Remote control Using as a simple PC mouse & keyboard The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s USB TYPE B port and the computer’s type A USB port are connected. USB TYPE B port (1) PAGE UP key: Press the PAGE UP button. -
Page 33: Power On/Off
Power on/off Power on/off Turning on the power Make sure that the power cord is firmly POWER/STATUS1 indicator and correctly connected to the projector STANDBY/ON button and the outlet. Make sure that the POWER/STATUS1 indicator is lighted in steady orange (91). -
Page 34: Turning Off The Power
Power on/off Turning off the power Press the STANDBY/ON button on the projector or the remote control. The message “Power off?” will appear on the screen for about 5 seconds. Press the STANDBY/ON button again while the message appears. The light source will go off, and the POWER/STATUS1 indicator will begin blinking in orange. -
Page 35: Operating
Operating Operating MYBUTTON INPUT Adjusting the volume ASPECT PbyP AUTO FREEZE Use the VOLUME + / - buttons to adjust the volume. MAGNIFY FOCUS ZOOM VOLUME VOLUME + / - MYBUTTON INPUT ASPECT PbyP AUTO FREEZE A dialog will appear on the screen to aid you in MAGNIFY FOCUS ZOOM... -
Page 36: Selecting An Input Signal
Operating Selecting an input signal Press the INPUT button on the projector INPUT button or the remote control. Select a desirable input referring to the displayed input list. MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE MYBUTTON... -
Page 37: Limiting Osd Display
PAGE GEOMETRY PICTURE MUTE Operating INTERACTIVE NETWORK BLANK DOWN Limiting OSD display MENU To change this function, follow the steps below. ENTER 1. Press the OSD MSG button on the remote control INPUT MYBUTTON ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME for 3 seconds. -
Page 38: Adjusting The Projector's Elevator
Operating Adjusting the projector’s elevator Lengthening or shortening each elevator foot shifts the projection position and the projection angle. Front foot Turn the elevator foot to adjust its length. max. WARNING ►Do not lengthen the elevator foot exceeding 22 mm. The foot lengthened exceeding the limit may come off and drop the projector down, and result in an injury or damaging the projector. -
Page 39: Adjusting The Zoom And Focus
Operating Adjusting the zoom and focus Use the ZOOM ring to adjust the screen FOCUS ring size. ZOOM ring Use the FOCUS ring to focus the picture. QM01001-1... -
Page 40: Using The Automatic Adjustment Feature
Operating Using the automatic adjustment feature MYBUTTON INPUT Press AUTO button on the remote control. ASPECT PbyP AUTO FREEZE Pressing this button performs the following. AUTO button INPUT MYBUTTON ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME For a computer signal MAGNIFY FOCUS ZOOM... -
Page 41: Correcting The Distortion
ASPECT PbyP AUTO FREEZE Operating MAGNIFY FOCUS ZOOM VOLUME Correcting the distortion Press GEOMETRY button on the remote control. INPUT MYBUTTON PAGE GEOMETRY ASPECT PbyP AUTO FREEZE GEOMETRY PICTURE MUTE A dialog will appear on the screen to aid you in MAGNIFY FOCUS ZOOM... -
Page 42: Using The Magnify Feature
Operating MYBUTTON INPUT Using the magnify feature ASPECT PbyP AUTO FREEZE Press the MAGNIFY ON button on the remote control. MAGNIFY FOCUS ZOOM VOLUME The picture will be magnified, and the MAGNIFY MAGNIFY INPUT MYBUTTON ASPECT PbyP AUTO FREEZE ON/OFF dialog will appear on the screen. -
Page 43: Temporarily Freezing The Screen
Operating Temporarily freezing the screen MYBUTTON INPUT Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen FREEZE ASPECT PbyP AUTO FREEZE MYBUTTON INPUT ASPECT PbyP AUTO FREEZE button (however, the indication will not appear when MAGNIFY FOCUS ZOOM... -
Page 44: Using The Menu Function
Operating Using the menu function This projector has the following menus: MYBUTTON INPUT PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus ASPECT PbyP AUTO FREEZE are classified into each purpose and brought together as the ADVANCED MENU. MAGNIFY FOCUS ZOOM... -
Page 45: Indication In Osd(On Screen Display)
Operating Using the menu function (continued) To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds. NOTE •... -
Page 46: Containing Items Of Each Menu
Operating Using the menu function (continued) Containing items of each menu The items contained in the menus are as below; Menu Items ASPECT, AUTO KEYSTONE, KEYSTONE, EASY MENU (47) PICTURE MODE, LIGHT OUTPUT, INSTALLATION, RESET, FILTER TIME, LANGUAGE, ADVANCED MENU, EXIT BRIGHTNESS, CONTRAST, COLOR, TINT, SHARPNESS, PICTURE (49) PICTURE QUALITY, DYNAMIC BLACK, MY MEMORY... -
Page 47: Easy Menu
EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. Item Description Using the ◄/► buttons switches the mode for aspect ratio. ASPECT See the ASPECT item in IMAGE menu (52). - Page 48 EASY MENU Item Description Pressing the ► button displays the dialog for light output. See the LIGHT OUTPUT item of the LIGHT & FILTER item in SETUP menu (60). LIGHT OUTPUT • When the ambient temperature is around 35 to 40°C, the brightness of light source is reduced automatically.
-
Page 49: Picture Menu
PICTURE menu PICTURE menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ◄/►... - Page 50 PICTURE menu Item Description Selecting this item displays the PICTURE QUALITY menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item. PICTURE MODE After selecting USER-1 / USER-2 / USER-3, the following features are adjustable.
- Page 51 PICTURE menu Item Description Turns on/off the DYNAMIC BLACK function. Configures the projector to automatically adjust the contrast of the input image. When a dark video signal is input, the projector DYNAMIC BLACK dynamically adjusts the picture contrast. This function may not work correctly when analog signals contain noise.
-
Page 52: Image Menu
IMAGE menu IMAGE menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. - Page 53 IMAGE menu Item Description Using the ◄/► buttons adjusts the vertical position. Down ó Up • Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION V POSITION is selected will reset the V POSITION to the default setting.
- Page 54 IMAGE menu Item Description Using the ◄/► buttons adjusts the horizontal size. Small ó Large • This item can be selected only for a computer signal. This function is unavailable for a signal from the HDMI port. • When this adjustment is excessive, the picture may not be H SIZE displayed correctly.
-
Page 55: Input Menu
INPUT menu INPUT menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. - Page 56 INPUT menu Item Description Using the ◄/► cursor buttons switches the video format for an input from the HDMI port. AUTO ó VIDEO ó COMPUTER Feature AUTO automatically sets the optimum mode. DIGITAL FORMAT VIDEO sets the suitable mode for DVD signals. COMPUTER sets the suitable mode for computer signals.
- Page 57 INPUT menu Item Description The computer input signal type for COMPUTER IN port can be set. Use the ◄/► buttons to select the computer input signal type. AUTO ó SYNC ON G OFF COMPUTER IN • Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port (25).
- Page 58 INPUT menu Item Description The resolution for the COMPUTER IN input signal can be set on this projector. (1) In the INPUT menu, select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed.
-
Page 59: Setup Menu
SETUP menu SETUP menu From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. - Page 60 SETUP menu Item Description Using the ▲/▼ buttons switches the LIGHT OUTPUT. NORMAL ó LONG LIFE 1 ó LONG LIFE 2 ó WHISPER • When the ambient temperature is around 35 to 40°C, the brightness of light source is reduced automatically. •...
- Page 61 SETUP menu Item Description Pressing the ►button displays the dialog for changing the INSTALLATION setting. INSTALLATION Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog. This function is unavailable when TRANSITION DETECTOR ( is ON. (continued on next page) QM01001-1...
- Page 62 SETUP menu Item Description Using ▲/▼ buttons switches the standby mode setting. QUICK START: For quick start-up (Standby power increases). When the projector is set to QUICK START and in standby mode, POWER/STATUS1 indicator blinks in Green 2 times for about 3 seconds. QUICK START is disabled in 30 minutes and the mode switches to NORMAL standby.
- Page 63 SETUP menu Item Description Using the ▲/▼ buttons turns on/off the message function. For more information, see “Limiting OSD display” (37). NORMAL ó SILENT ó INHIBIT ■NORMAL : OSD message is displayed normally. ■SILENT : The following message functions do not work. “AUTO IN PROGRESS”...
-
Page 64: Audio Menu
AUDIO menu AUDIO menu From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table. -
Page 65: Screen Menu
SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. - Page 66 SCREEN menu Item Description Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ó ORIGINAL ó OFF MyScreen : Screen can be registered by the MyScreen item (66). START UP ORIGINAL : Screen preset as the standard screen.
- Page 67 SCREEN menu Item Description Using the ▲/▼ buttons turns on/off the MyScreen lock function. ON ó OFF When the ON is selected, the item MyScreen is locked. Use this MyScreen Lock function for protecting the current MyScreen. • This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (80).
- Page 68 SCREEN menu Item Description (6) The current name will be displayed on the first line. Use the ▲/▼/◄/► buttons and the ENTER or button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and button at the same time.
- Page 69 SCREEN menu Item Description The C.C. is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. It is required to have 480i@60 format component video source supporting C.C.
-
Page 70: Option Menu
OPTION menu OPTION menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. - Page 71 OPTION menu Item Description Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function. ON ó OFF When set to the ON, the light source in projector will be automatically turned on without the usual procedure (33), only when the projector is supplied with the power after the power was cut while the light source was on.
- Page 72 OPTION menu Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically. AUTO POWER When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the light...
- Page 73 OPTION menu Item Description This item is to assign one of the following functions to MY BUTTON 1/2 on the remote control (18). (1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY BUTTON - (1/2). (2) Then using the ◄/►...
- Page 74 OPTION menu Item Description Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item. ALTITUDE Using the ▲/▼ buttons switches the rotation speed of the cooling fans.
- Page 75 OPTION menu Item Description KEY LOCK (1) Use the ▲/▼ buttons to choose the operations control. CONTROL PANEL ó REMOTE CONTROL (2) Use the ◄/► buttons to select ALL, ON or OFF. ALL ó ON ó OFF If you select ALL, all key functions are disabled. Selecting ON in Step 2 locks the buttons except STANDBY/ON on the operations control selected in Step 1.
- Page 76 OPTION menu Item Description 2. Disabling the PIN code lock function If you unlock this item by locked keys, enter registered PIN code while OSD is not displayed. The STATUS2 indicator blinks while entering the PIN code. If you unlock this item by unlocked keys, follow the steps below. Unlocked keys: If REMOTE CONTROL is set to ALL, they are control panel.
- Page 77 OPTION menu Item Description REMOTE FREQ. (1) Use the ▲/▼ button to change the projector's remote sensor frequency setting (31). 1:NORMAL ó 2:HIGH (2) Use the ◄/► button to change the projector's remote sensor on or off. ON ó OFF If the remote control does not function correctly, disable either of them.
- Page 78 OPTION menu Item Description INFORMATION Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input. • The “FRAME LOCK” message on the dialog means the frame lock function is working. • This item cannot be selected for no signal and sync out. SERVICE •...
-
Page 79: Security Menu
1. Press the ► button. The ENTER PASSWORD box will be displayed. 2. Use the ▲/▼/◄/► buttons to enter the registered password. The factory default password is as follows. MP-JW351E/MP-JW401E : 3300 MP-JX351E : 8902 (below) This password can be changed . - Page 80 SECURITY menu Item Description The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten. 1 Turning on the MyScreen PASSWORD 1-1 Use the ▲/▼ buttons on the SECURITY menu to select MyScreen PASSWORD and press the ►...
- Page 81 SECURITY menu Item Description PIN LOCK is a function which prevents the projector from being used unless a registered Code is input. 1 Turning on the PIN LOCK 1-1 Use the ▲/▼ buttons on the SECURITY menu to select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/off menu.
- Page 82 SECURITY menu Item Description If this function is set to ON and the vertical angle of the projector is different from the previous recorded setting, the TRANSITION DETECTOR ON alarm will be displayed and the input signal will not be displayed. •...
- Page 83 SECURITY menu Item Description The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT; • The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting. •...
- Page 84 SECURITY menu Item Description (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY and press the ► or ENTER button to display the MY TEXT DISPLAY on/off menu. (2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select on or off.
-
Page 85: Maintenance
Maintenance Maintenance Cleaning and replacing the air filter Check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. The filter unit is attached to inner side of the filter cover. If a filter of the filter unit is damaged or heavily soiled, replace the whole unit with a new one. - Page 86 Maintenance Cleaning and replacing the air filter (continued) Turn the projector on and reset the filter time using the FILTER TIME item in the EASY MENU. (1) Press the MENU button to display a menu. (2) Point at the FILTER TIME using the ▲/▼ buttons, then press the ► button. A dialog will appear.
-
Page 87: Other Care
Maintenance Other care Inside of the projector To ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once a year. Caring for the lens If the lens is flawed, soiled or fogged, it could cause deterioration of display quality. - Page 88 Maintenance Caring for the cabinet and remote control Incorrect care could have adverse influence such as discoloration, peeling paint, etc. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently. After making sure that the projector is cool adequately, wipe lightly with gauze or a soft cloth.
-
Page 89: Troubleshooting
Troubleshooting Troubleshooting If an abnormal operation should occur, stop using the projector immediately. WARNING ►Never use the projector if abnormal operations such as smoke, Troubleshooting strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately disconnect the power plug from the power outlet. - Page 90 Troubleshooting Related messages (continued) Message Description The horizontal or vertical frequency of the input signal is not within the specified range. Please confirm the specs for your projector or the signal source specs. An improper signal is input. Please confirm the specs for your projector or the signal source specs.
-
Page 91: Regarding The Indicator Lamps
Troubleshooting Troubleshooting Regarding the indicator lamps When operation of the POWER/STATUS1 and STATUS2 indicators differs from usual, check and cope with it according to the following table. If the same indication is displayed after the remedy or if other indication not described in the table below is displayed, contact your dealer or service company. - Page 92 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator The cooling fan is not operating. Please turn the power off, and allow the projector to Blinking Blinking cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation 7 times 1 ~ 5 times that no foreign matter has become caught in the fan,...
- Page 93 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator There is a possibility that the interior portion has become overcooled. Blinking Blinking Please use the unit within the usage temperature parameters (0°C to 40°C). 9 times 1 ~ 3 times After the treatment, turn the power on.
- Page 94 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator The interior portion has become heated. Turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, confirm the following items, and then turn the power on again.
-
Page 95: Resetting All Settings
Troubleshooting Resetting all settings When it is hard to correct some wrong settings, the FACTORY RESET function of SERVICE item in OPTION menu (78) can reset all settings (except settings such as STANDBY MODE, AUTO BLANK, LANGUAGE, LIGHT SOURCE TIME, FILTER TIME, FILTER MESSAGE, SECURITY and COMMUNICATION) to the factory default. - Page 96 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. 23 ~ 27 Connect the audio cables correctly. The MUTE function is working. Restore the sound pressing the VOLUME +/- button on the remote control.
- Page 97 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. 23 ~ 27 Connect the connection cables correctly. The brightness is adjusted to an extremely low level. Adjust BRIGHTNESS to a higher level using the menu function.
- Page 98 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The FREEZE function is working. Video screen display freezes. Press the FREEZE button to restore the screen to normal. Color settings are not correctly adjusted.
- Page 99 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The OVER SCAN ratio is too big. Some kind Adjust OVER SCAN in the IMAGE menu smaller. of image Excessive VIDEO NR.
-
Page 100: Specifications
Specifications Specifications Please see the Specifications in the User’s Manual (concise) which is a book. End User License Agreement for the Product Software • Software in the projector consists of the plural number of independent software modules and there exist our copyright and/or third party copyrights for each of such software modules.
