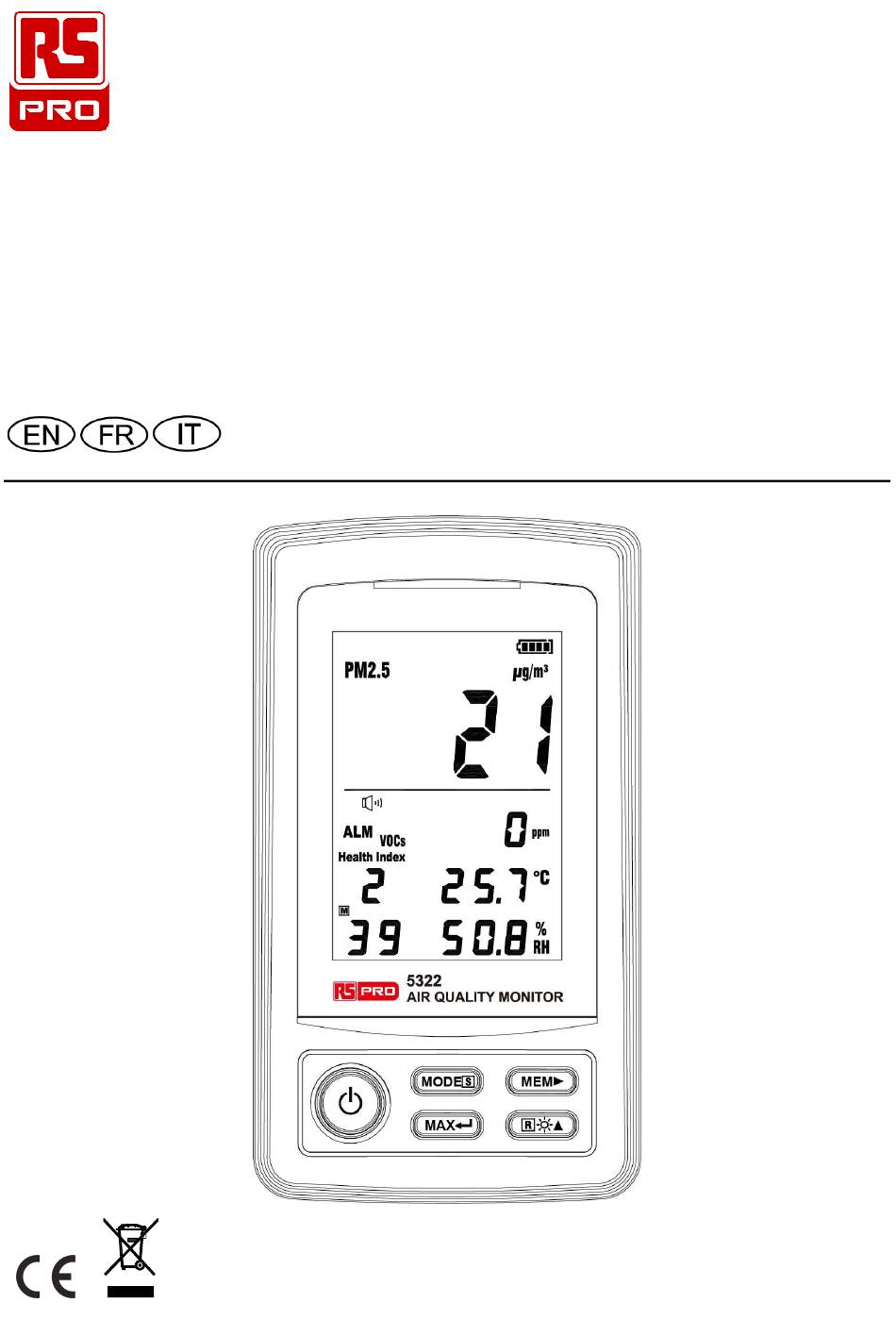

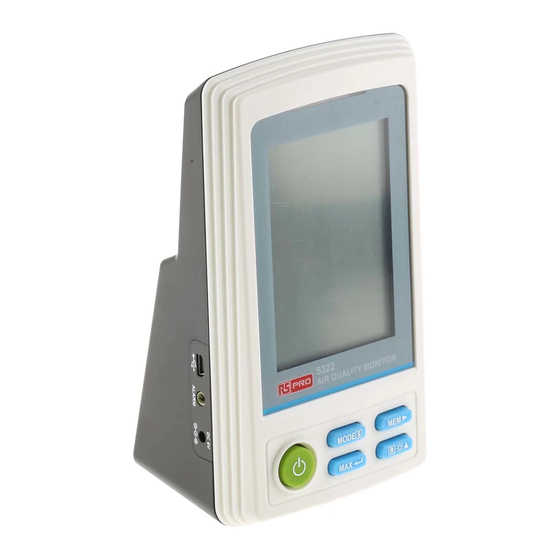

- Page 1 Instruction Manual RS-5322 174-9558 PM2.5 AIR QUALITY MONITOR...
-
Page 2: Table Of Contents
PM2.5 AIR QUALITY MONITOR / EN CONTENTS Title Page 1. SAFETY INFORMATION ..............1 2. INTRODUCTION ..................2 2-1 Features..................3 2-2 Applications..................4 3. SPECIFICATIONS ................4 4. PARTS & CONTROLS .................6 4-1 Description of Parts & Control keys..........6 4-2 Description of Display ..............9 5. -
Page 3: Safety Information
PM2.5 AIR QUALITY MONITOR / EN 1. SAFETY INFORMATION Read and keep the instruction manual. Follow all warnings and instructions. To avoid any adhesive particle like oil, etc. to gets into the meter. Do not install or operate the meter close to noise generator, such as electric dust collector, fluorescent lighting, etc. -
Page 4: Introduction
PM2.5 AIR QUALITY MONITOR / EN 2. INTRODUCTION Particle pollution comes from many different type of sources. Fine particle (2.5 micrometers in diameter and smaller) include power plants, industrial processes, vehicle tailpipes, wood stoves, and wildfires. Coarse particles (between 2.5 and 10 micrometers) come from crushing and grinding operations, road dust, and some agricultural operations. -
Page 5: Features
PM2.5 AIR QUALITY MONITOR / EN VOCs include a variety of chemicals that can cause eye, nose and throat irritation, shortness of breath, headaches, fatigue, nausea, dizziness, and skin problems. Higher concentrations may cause irritation of the lungs, as well as damage to the liver, kidney, or central nervous system. Some VOCs are suspected to cause cancer in humans and have been shown to cause cancer in animals. -
Page 6: Applications
PM2.5 AIR QUALITY MONITOR / EN 2-2 Applications Sensitive individuals can monitor their personal space at home and work. Evaluate effectiveness and placement of air filtration devices. Investigate the effectiveness of different strategies to reduce particulates. Correlate health related issues to changes in particulate levels. Indoor air quality investigations. - Page 7 PM2.5 AIR QUALITY MONITOR / EN Response time: PM2.5: ≦ 1min VOCs: ≦ 10min Humidity: 45% R.H. to 95% R.H. ≦ 1min 95% R.H. to 45%R.H. ≦ 3min Temperature : 10℃/2sec. Sampling rate: 1 sample/second. Memory data memory capacity: 39 sets. (Direct reading from LCD display) Auto data record capacity: Internal micro SD CARD 4GB.
-
Page 8: Parts & Controls
PM2.5 AIR QUALITY MONITOR / EN 4. PARTS & CONTROLS 4-1 Description of Parts & Control keys: Health Index MODE 05/24/18 Version No. 00... - Page 9 PM2.5 AIR QUALITY MONITOR / EN 1. PM2.5 LED Air quality indicator Air Quality Who Needs to Be PM2.5 (µg/m Color Index Concerned ? 24-hour average Good No one. Air quality is good for 0.0 – 12.0 Green (0 – 50) everyone.
- Page 10 PM2.5 AIR QUALITY MONITOR / EN SET PM2.5 TWA: PM2.5 TWA average time setting mode. SET UNit VOCs: VOCs unit ppm or mg/m setting mode. SET cA: User calibration setting mode. SET A M Int- : Auto data record interval time setting mode. SET A M StAt: Auto data record start time setting mode.
-
Page 11: Description Of Display
PM2.5 AIR QUALITY MONITOR / EN 9. Air sampling outlet port. 10. Mocro-USB: USB input/output connector for input of control signals and output of measurement data. 11. Alarm output jack: Allow output of a alarm signal is available this jack. 12. - Page 12 PM2.5 AIR QUALITY MONITOR / EN MAX MIN: In the MAX/MIN recording mode, current value indication. : Battery capacity indication. : Low battery indication. PM2.5: Fine particulate matter (PM2.5) measurement value indication. PM2.5 TWA: Fine particulate matter (PM2.5) measurement TWA value indication.
- Page 13 PM2.5 AIR QUALITY MONITOR / EN : Temperature measurement value. : Auto memory indication. : Disappeared one time store one sets data into the memory. M 39: Manual memory address number indication. : Read mode indication. R 39: Recall manual memory address number indication. Hour 24: PM2.5 or VOCs TWA average time indication or setting.
-
Page 14: Before Operation
PM2.5 AIR QUALITY MONITOR / EN 5. BEFORE OPERATION 5-1 Power Supply The meter can be powered by two ways: Four AA-size alkaline batteries or the AC adaptor. 5-2 Install the Batteries Insert 4 AA-size batteries as indicated by the diagram located on the inside of the battery compartment. -
Page 15: Operating Instructions
PM2.5 AIR QUALITY MONITOR / EN 6. OPERATING INSTRUCTIONS 6-1 Selecting Temperature Unit ℃ or ℉ 1. Press key to turn on the meter. 2. Press S key for 3 seconds to enter the setting mode, the “SET” and “dAtE” marks are displayed. 3. -
Page 16: Setting The Twa Average Time
PM2.5 AIR QUALITY MONITOR / EN 6-4 Setting the TWA Average Time 1. Press key to turn on the meter. 2. Press S key for 3 seconds to enter the setting mode, the “SET” mark is displayed. 3. Press S key 4 times to enter the PM2.5 TWA average time setting mode, the “SET PM2.5 TWA hour”... - Page 17 PM2.5 AIR QUALITY MONITOR / EN 3. If you will read previously recorded data, press R key to circulate display the recorded data, then press MAX key for 3 seconds to exit this mode. Otherwise press MAX key again to enter the recorder mode and auto clear the previous recorded data.
-
Page 18: Taking Alarm Operation
PM2.5 AIR QUALITY MONITOR / EN 5. Press MAX key for 3 seconds to exit this mode and store the recorded data to memory. 6-7 Taking Alarm Operation 1. Quantity for alarm operation Alarm setpoints: A alarm monitors the quantity chosen for the alarm operation. When the measured value is in between the “high”... - Page 19 PM2.5 AIR QUALITY MONITOR / EN Mode 3: Both setpoints set Mode 4: Both setpoints set “high” > “low”. “high” < “low”. measured measured value value time time Alarm is ON when value is Alarm is OFF when value outside the setpoints. is outside the setpoints.
- Page 20 PM2.5 AIR QUALITY MONITOR / EN Press ↵ key to move to the next setting value or to enter the VOCs alarm mode select, the “VOCs ALM” and “no-x” marks are displayed. f). Repeat step above to complete the VOCs limit value setting, and to enter the temperature alarm mode select, the “...
-
Page 21: Clearing Memorized Data
PM2.5 AIR QUALITY MONITOR / EN 6-8 Clearing Memorized data 1. Press key to turn off the meter. 2. Press and hold down MEM key then press key to turn on the meter and to enter the clear the manual memorized data mode, the “rEC CLr M no”... -
Page 22: Auto Data Record
PM2.5 AIR QUALITY MONITOR / EN 6-10 Auto data record 1. Record data without preset start time a). Press key to turn on the meter. b). Press S key for 3 seconds to enter the setting mode, the “SET” and “dAtE”... -
Page 23: User Friendly Calibration Procedure
PM2.5 AIR QUALITY MONITOR / EN e). Press ↵ key for 3 seconds to stored the start time and to enter the stop time setting mode, the “Stop A M” mark and the flicking number of year are displayed. f). Repeat step 4 to complete the end time setting. g). - Page 24 PM2.5 AIR QUALITY MONITOR / EN d). Wait about 10 minutes, until the meter and the standard meters all reading are stable, then press ↵ key to hold the meter measured values, the “HOLD” mark is displayed and the “PM2.5 1” mark is blink.
-
Page 25: Maintenance
PM2.5 AIR QUALITY MONITOR / EN 7. MAINTENANCE Cleaning: Periodically wipe the case with a dry or damp cloth and mild detergent. Do not use abrasives or solvents to clean this instrument. Battery Replacement: When the battery power is not sufficient, LCD will show “ ”... -
Page 26: Air Pollution Regulation
PM2.5 AIR QUALITY MONITOR / EN 9. AIR POLLUTION REGULATION European Canada United Union IT-1 IT-2 IT-3 AQG California States Yearly average PM2.5 Daily µg/m 50 37.5 25 average (24-hour) China South Hong Australia Japan Thailand Taiwan Korea Kong Class1 Class2 Yearly average PM2.5...
