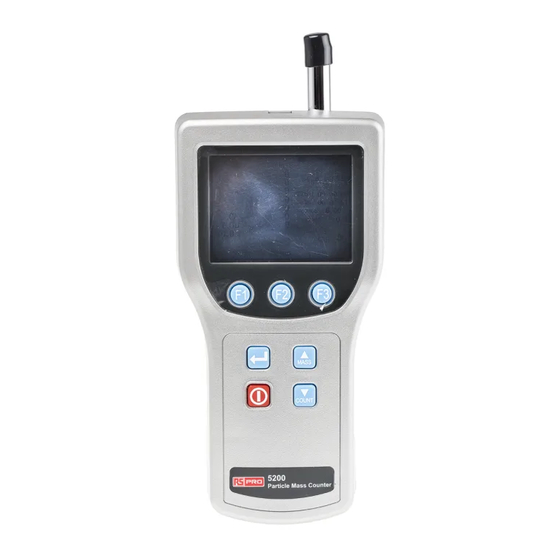

RS PRO RS-5200 Instruction Manual

Particle mass counter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

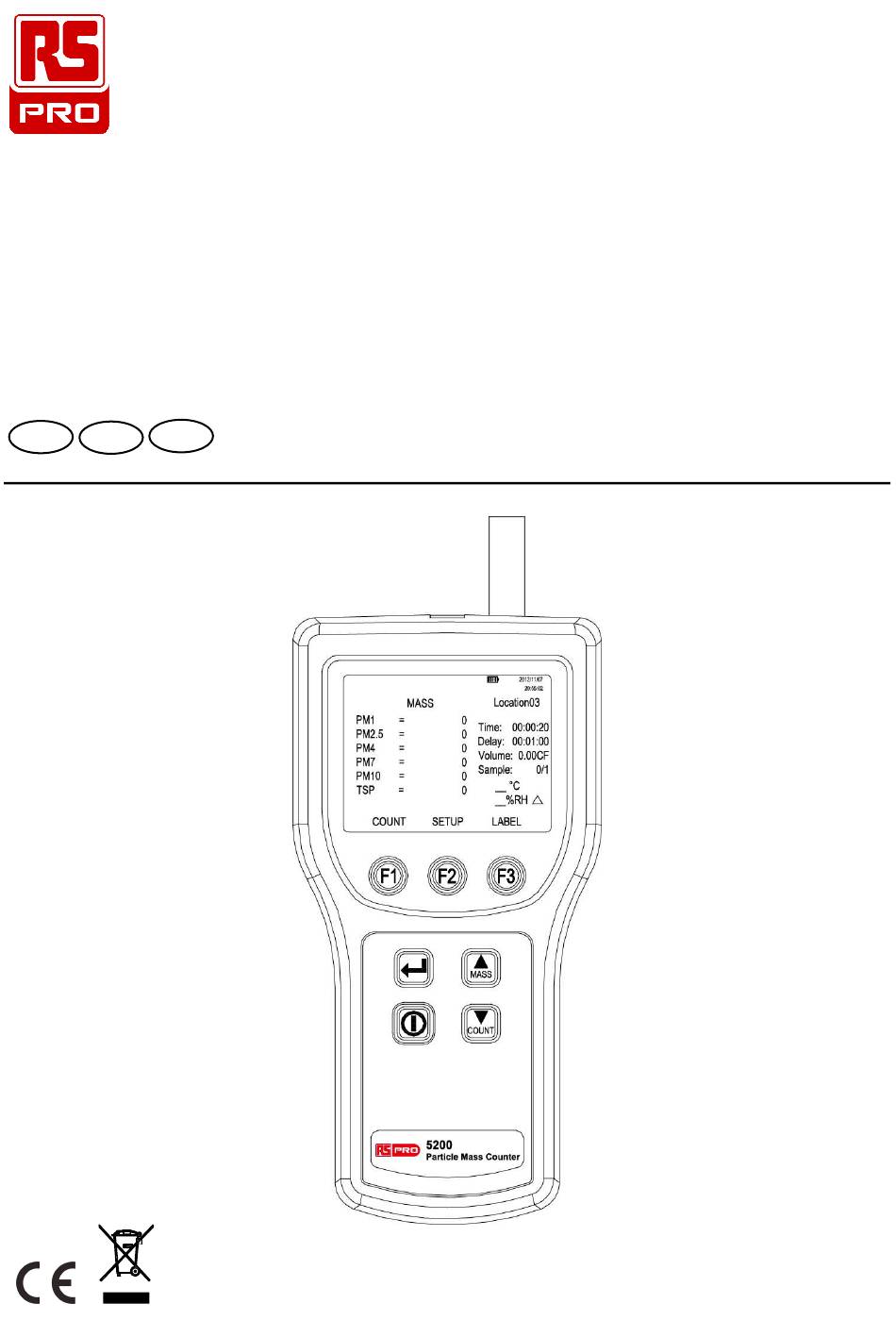

Instruction Manual
RS-5200
146-4657
PARTICLE MASS COUNTER
IT
EN
FR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-5200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RS PRO RS-5200

Summary of Contents for RS PRO RS-5200

  • Page 1 Instruction Manual RS-5200 146-4657 PARTICLE MASS COUNTER...

  • Page 2: Table Of Contents

    PARTICLE MASS COUNTER / EN CONTENTS Title Page 1. SAFETY INFORMATION................... 1 2. GENERAL INFORMATION ................2 3. SPECIFICATIONS ..................... 3 4. QUICK START....................5 5. CONTROLS AND FUNCTIONS ................ 6 6. DISPLAY......................7 6-1 Main Screen....................7 6-2 Setup Screen ....................8 6-3 Label Menu Screen..................

  • Page 3: Safety Information

    PARTICLE MASS COUNTER / EN 1. SAFETY INFORMATION A Warning identifies a condition or action that pose hazard(s) to the user; a Caution identifies a condition or action that may damage the meter or the equipment under test. Read this entire manual before using the meter. Safety labels used in this manual and on the meter are as follows.

  • Page 4: General Information

    PARTICLE MASS COUNTER / EN Caution To avoid possible damage to the meter: Avoid using the meter in an excessively dirty or dusty atmosphere. Excessive particle intake can damage the meter. Remove the isokinetic probe cap before the startup. Not doing so can damage the meter.

  • Page 5: Specifications

    PARTICLE MASS COUNTER / EN 3. SPECIFICATIONS Operating principle: Counts individual particles using scattered laser light and calculates the equivalent mass concentration using a proper algorithm. Optical system: Sideway light-scattering method Light source: Laser diode Laser product class: Class 1, IEC 60825-1 / EN 60825-1 Mass Mode: Mass concentration ranges: PM1, PM2.5, PM4, PM7, PM10, and TSP Concentration range: 0 to 1000 µg/m...
  • Page 6 PARTICLE MASS COUNTER / EN Delay time: 0 to 24 hours Sample inlet: Isokinetic probe Interface: USB Vacuum source: Internal pump flow controlled Dimensions: 11.0 x 21.8 x 6.7 cm (4.33 " x 8.58 " x 2.64 ") Weight: 875 g Environmental: Operating: 10 °C to 40 °C (50 °F to 104 °F), 20 % to 90 % RH, non-condensing Storage: -10 °C to 50 °C (14 °F to 122 °F), Up to 90 % RH, non-condensing...

  • Page 7: Quick Start

    PARTICLE MASS COUNTER / EN 4. QUICK START The meter may be used directly out of the box. To immediately use the meter: 1. Read “Safety Information” 2. Remove the Isokinetic probe cap. 3. Press the (POWER) key. 4. Press key to select MASS mode or Press key to select COUNT mode.

  • Page 8: Controls And Functions

    PARTICLE MASS COUNTER / EN 5. CONTROLS AND FUNCTIONS Parts description: 1. Isokinetic probe and cap. 2. External power: 12 VDC, 3 A External power. 3. USB Port. Power key: Press to turns the meter on and off. Arrow keys: Press key to select MASS mode or press key to select COUNT...

  • Page 9: Display

    PARTICLE MASS COUNTER / EN 6. DISPLAY Press the corresponding button from the keypad at the bottom of the LCD to invoke the following screens: Main screen Setup screen (pages 1, 2 and 3) Label menu screen 6-1 Main Screen The Main screen appears after the meter is turned on and after the opening screen appears.

  • Page 10: Setup Screen

    PARTICLE MASS COUNTER / EN 6-2 Setup Screen 1. From the Main screen, press (SETUP) key, the Setup screen Page 1 appears. Press key again to select the desired setup screen pages. 09/15/17 Version No. 00...
  • Page 11 PARTICLE MASS COUNTER / EN 2. Press keys to move up and down through each parameter. Press (left arrow) and (right arrow) keys to navigate within each screen entry that is highlighted. 3. Press (RETURN) key to store the setup changes and to return to the Main screen.

  • Page 12: Label Menu Screen

    PARTICLE MASS COUNTER / EN 6-3 Label Menu Screen It may be useful to assign labels to samples taken from different areas or rooms. Use the Label menu to select sample labels. 6-3-1 To edit labels using the keypad: 1. Press (LABEL) key on the main screen to display the Label Menu screen.
  • Page 13 PARTICLE MASS COUNTER / EN 6-3-2 To reviewing the buffer: The Label menu screen includes: List of location labels. 1. Press (LABEL) key on the main screen to display the Label Menu screen. 2. Press (BUFFER) key to recall the buffer. 09/15/17 Version No.
  • Page 14 PARTICLE MASS COUNTER / EN 3. Press key to select the particle or mass mode and its memory buffer. 4. Press (ENTER) key, the Buffer review screen and the last record stored in the buffer is displayed. 5. Press key to scroll through the different samples. 6.

  • Page 15: Using The Meter

    PARTICLE MASS COUNTER / EN 7. USING THE METER The following sections give detailed information about using the meter. 7-1 Setup To set up the meter: Go through the different screens and set the desired parameters for sampling. Refer to previous sections regarding the different screens and menus. 7-1-1 Setting the Counting mode: The counting mode choices are: Concentration mode:...
  • Page 16 PARTICLE MASS COUNTER / EN 7-1-2 Setting the air sampling volume or sampling time: In the MASS mode, the sample time is fixed at 60 seconds (2.83L). In the COUNT mode: To set the sample volume or sample time: 1. Press (SETUP) key on the Main screen.
  • Page 17 PARTICLE MASS COUNTER / EN 7-1-3 Setting the method of counting data: The choices for data counting are: Cumulative – Includes all particles that are larger than or equal to the particle size selected in the sample volume field. Differential – Includes all particles that are larger than or equal to the particle size selected in the sample volume field, but small than the next largest particle size.
  • Page 18 PARTICLE MASS COUNTER / EN 7-1-5 Setting the memory buffer: The meter can store measurement data in the internal flash memory or on micro SD card. To set the memory buffer: 1. Press (SETUP) key on the Main screen. The Setup page 1 screen is displayed with the current “Cnt Mode”...
  • Page 19 PARTICLE MASS COUNTER / EN 7-1-7 Setting the date and time: To set the date and time: 1. Press (SETUP) key on the Main screen. The Setup Page 1 screen is displayed. 2. Press (PAGE 2) key on the Setup Page 1 screen. The Setup Page 2 screen is displayed.
  • Page 20 PARTICLE MASS COUNTER / EN 6. Press to increase the time; press to decrease the time. 7. Once the desired time has been selected, press (SAVE) key. 8. Press (RETURN) key to return to the Main screen. Note: The maximum delay time is 23:59:59. 7-1-9 Setting the temperature unit: To set the Temperature unit to °...

  • Page 21: Counter Operation

    PARTICLE MASS COUNTER / EN To set the K-Factor coefficients: 1. Press (SETUP) key on the Main screen. The Setup Page 1 screen is displayed. 2. Press (PAGE 2) key on the Setup Page 1 screen. The Setup Page 2 screen is displayed.
  • Page 22 PARTICLE MASS COUNTER / EN 7-2-1 Purging the Particle Counter: Before taking particle samples, the meter should be purged using the zero count filter. Purging the meter will make sure the readings are accurate. To purge the meter: 1. Fit the filter adapter onto the end of the zero count filter.
  • Page 23 PARTICLE MASS COUNTER / EN 7-2-2 Collect samples: Important Caution: Remove the isokinetic probe cap so that the isokinetic probe is not obstructed. Not doing so can damage the meter. To collect samples: 1. Press the (POWER) key to turn on the meter. 2.
  • Page 24 PARTICLE MASS COUNTER / EN In COUNT mode: Press (COUNT) key on the Main screen to start sampling. The cycle will automatically stop on completion of the sample. If the Sample Volume is set to Manual, the meter will continuously samples until the (Stop) key is pressed.
  • Page 25 PARTICLE MASS COUNTER / EN 7-2-6 Display the number of samples in the buffer: To display the number of samples in the buffer: 1. Press (SETUP) key on the Main screen. 2. Press (PAGE 2) key on the Setup screen. The number of samples in the buffer is displayed in the “Buffer Count”...

  • Page 26: Maintenance

    PARTICLE MASS COUNTER / EN 8. MAINTENANCE Warning The Meter contains no user-serviceable parts. To avoid electric shock, injury, or damage to the meter, do not open the meter. Use the zero count filter to ensure that the meter filter is free of contamination. Refer to “Purging the Meter”.

  • Page 27: Purging The Meter Sensor

    PARTICLE MASS COUNTER / EN To connect the ac adapter: 1. Attach the power cord to the end of the ac adapter. 2. Plug the ac adapter into the 12V jack on the meter. 3. Plug the power cord into an ac outlet. The meter will take 2.5 hours to fully charge.
