Summary of Contents for 3SIXT 3S-0686

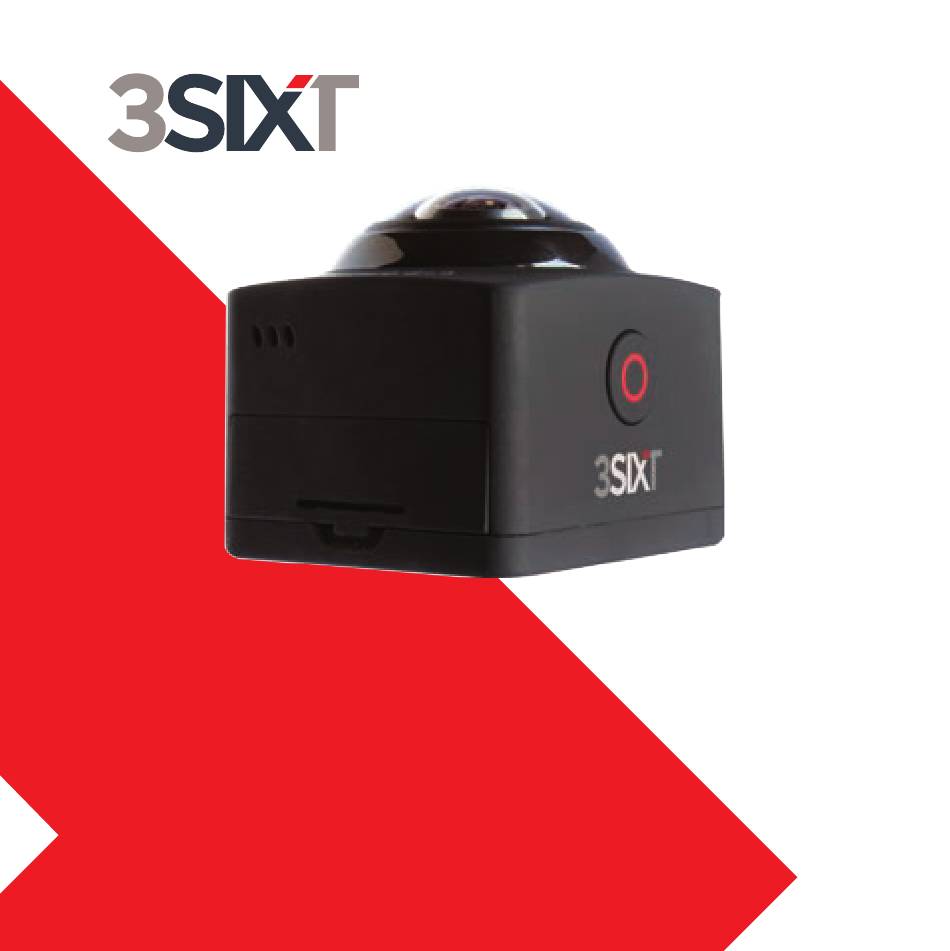

- Page 1 360° FULL HD SPORTS ACTION CAMERA with Wi-Fi QUICK START GUIDE...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read the instructions carefully before using this camera for proper and safe operation. • Please check the camera operates normally before use. • Do not expose the camera to direct sunlight, or point its lens to sunlight - the image sensor may get damaged. •... - Page 3 Welcome This Quick Start Guide will give you the basics on how to enjoy your 3SIXT Action Camera. For more information, visit www.3sixtgear.com...
- Page 4 THE BASICS Wi-Fi Button Battery Door Power/Mode Button Screen Indicator Light Shutter Button Audio Alert Micro USB Port Lens microSD Slot Speaker Micro HDMI Port...
- Page 5 SET UP Insert a compatible microSDHC card (requires at least a Class 10 or microSDHC card up to 32GB- not included). 2. Charge using the included USB cable. The LED status light turns off when fully charged. 3. Before use, gently remove the plastic film on the lens and screen.
-
Page 6: Changing The Capture Mode
CAPTURE MODE Changing the capture mode VIDEO PHOTO PLAY BACK Turn camera ON and long press (3 sec) the shutter button to cycle through camera modes and settings. The modes will appear in following order: VIDEO PHOTO PLAY BACK... -
Page 7: Changing The Settings
SETTINGS Changing the settings Press the Power//Mode Button to enter the settings menu. Repeatedly press the Power/Mode Button to cycle through the options and press the Shutter/Select Button to select the desired option. Or use the Wi-Fi Button to cycle through the various options. -
Page 8: Downloading The App
DOWNLOADING THE APP or search on Google or search on the App Play for ‘OTCam*’ Store for ‘OTCam*’ Requires Android 3.2 Requires iOS 9 or later. or later. Compatible with iPhone, iPad, and iPod touch. *Playback may not be supported on some devices. OTCam is a third-party App that is supported by the developer. -
Page 9: Connecting To The App
Apple or Android device. Do not launch the APP. 2. Press the Wi-Fi connect button on the camera. 3. Connect your device to the Camera via Wi-Fi. Wi-Fi Name is 3SIXT-0686 4. APP Wi-Fi password is 1234567890. 5. Once connected launch the APP. - Page 10 ACCESSORIES WATERPROOF WATERPROOF SUCTION HOUSING HOUSING MOUNT MOUNT ADHESIVE CLIP HANDLEBAR/ HANDLEBAR/ HELMET BASE + SPARE POLE MOUNT HELMET STRAPS MOUNT ADAPTER ADHESIVES...
-
Page 11: Waterproof Housing
ACCESSORIES Waterproof Housing CAMERA IS SUBMERSIBLE UP TO 30M IF THE CAMERA IS CORRECTLY SEALED IN THE WATERPROOF HOUSING Release the secure clasp of the waterproof housing. Inspect the water sealing gasket to be sure it’s in good condition. Test the gasket by closing the housing without inserting the camera. Submerse the housing completely in a bowl of water for about a minute. - Page 12 ACCESSORIES Helmet Mount Assembly Option 1 Option 2 Handle Bar Mount Assembly Option 1 Option 2...
-
Page 13: Memory Cards
MEMORY CARDS This camera supports a Class 10 microSDHC Memory Card (up to 32GB). Please insert a compatible microSDHC Memory card before use. Memory cards are not included and need to be purchased separately. Please back up data stored on the memory card. Memory cards are manufactured from precise electronic components. -
Page 14: System Requirements
SYSTEM REQUIREMENTS Windows • Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 or later • Pentium® 4 processor (or above) 1 GB of RAM, 250 MB available hard disk space • QuickTime® 6 or higher Microsoft®... -
Page 15: Tech Specs
TECH SPECS Image Settings Auto ISO Lens F/2.0, f = 1.1 mm, 360° x 200° Video VR 360° (1920 x 960 @ 30fps) Resolution 360° (2048 x 416 @ 30fps) 180° (1920 x 1080 @ 30fps) Fisheye (1344 x 1344 @ 30fps) Picture 12MP Resolution... - Page 16 3S-0686 For more information, visit www.3sixtgear.com or visit www.3sixtgear.com/support...
