3SIXT 3S-0686 User Manual

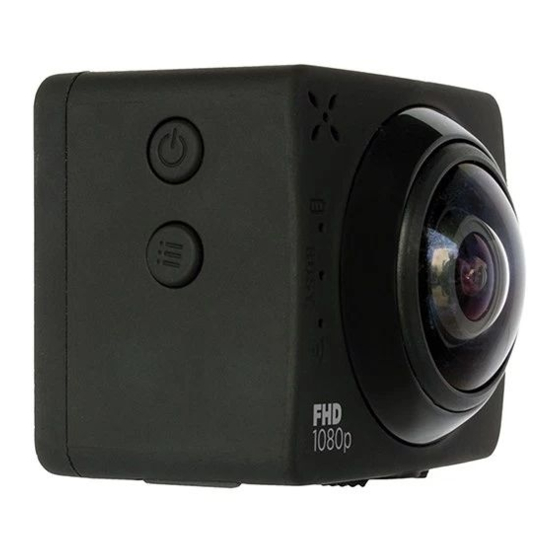

360 full hd sports action camera with wi-fi
Hide thumbs Also See for 3S-0686:

Advertisement

Table of Contents

360o FULL HD
SPORTS ACTION
CAMERA
with Wi-Fi
3S-0686
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3S-0686 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3SIXT 3S-0686

Summary of Contents for 3SIXT 3S-0686

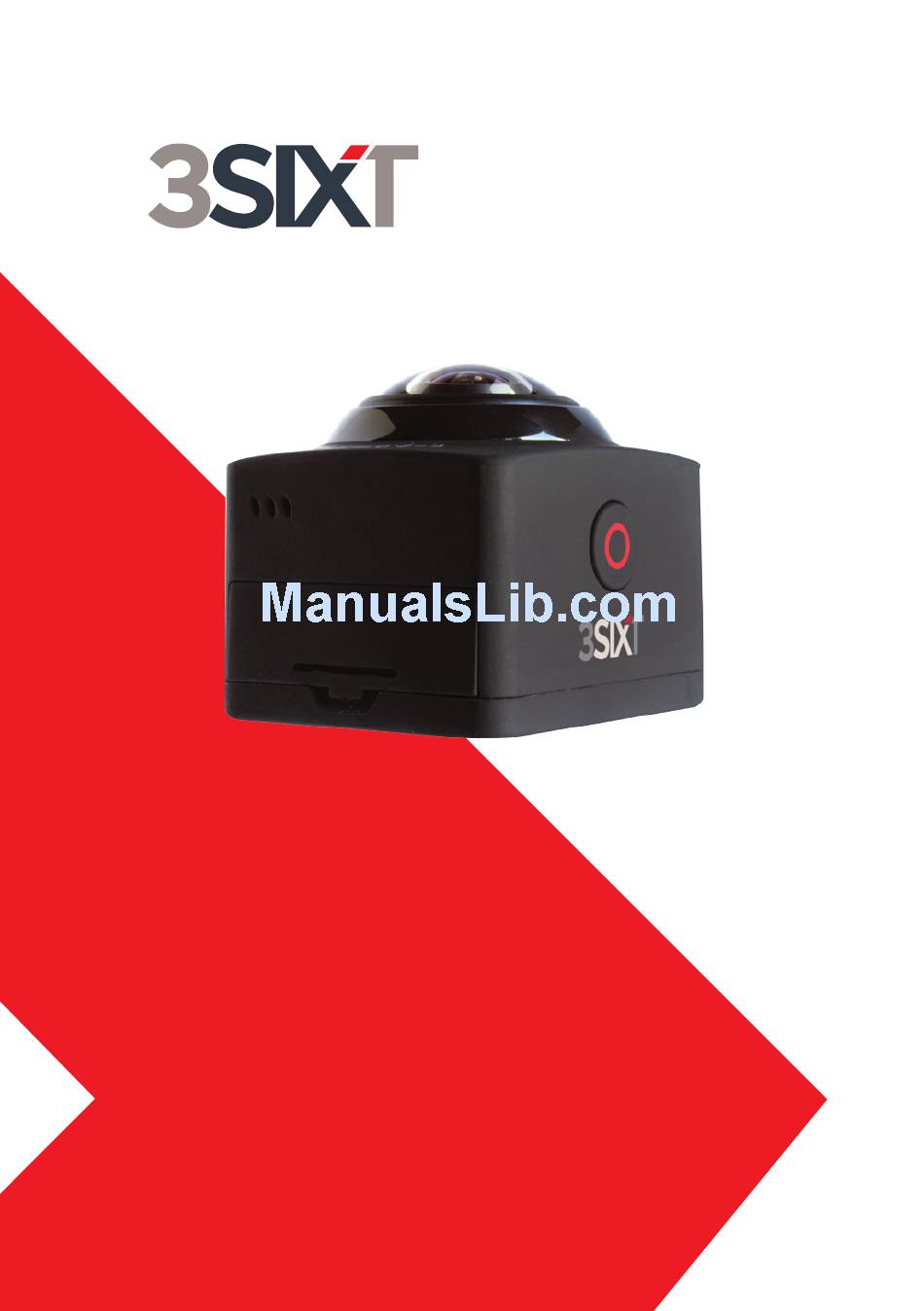

  • Page 1 360o FULL HD SPORTS ACTION CAMERA with Wi-Fi 3S-0686 USER GUIDE...
  • Page 2 IMPORTANT SAFETY INFORMATION Please read the instructions carefully before using this camera for proper and safe operation. • Using a wall/car charger other than a 5V 1A Charger can damage the camera battery and could result in fire or leakage. Only use chargers marked: Output 5V 1A. •...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS The Basics .....................4 Installing and Charging the Battery ..........6 Installing the microSD Card ..............8 Turning the Camera ON/OFF ...............9 Capture/Playback Modes ..............10 Camera Settings Menu ................14 Downloading the APP ................18 Connecting to the APP .................19 Transferring Video and Images to PC or Mac ......20 Playback Video and Images on a TV with a HDMI port ..20 Included Accessories ................21 System Requirements ................25...

  • Page 4: The Basics

    THE BASICS Wi-Fi Button Wi-Fi Status Light Power/Mode Button Lens Charging Status Light Speaker Audio Alert Battery Door Indicator Light LCD Screen...
  • Page 5 Shutter/Select Button microSD Slot Micro USB Port Micro HDMI Port...

  • Page 6: Installing And Charging The Battery

    INSTALLING AND CHARGING THE BATTERY INSTALLING THE BATTERY 1. First, make sure that the camera is OFF when inserting or removing the battery. 2. Remove the camera from it’s housing. 3. Lift up the battery door with your fingernail. Remove the battery door and place the battery door in a safe location.
  • Page 7 CHARGING THE BATTERY Charging Status Light 1. Make sure that the camera is switched OFF. 2. To start charging the battery, connect the supplied micro USB cable into the camera’s micro USB port into a PC, MAC or wall adaptor’s USB 2.0 port only).

  • Page 8: Installing The Microsd Card

    INSTALLING THE MICROSD CARD It is recommended to use 32GB Class 10 microSD cards for microSD Slot maximum performance. 1. Make sure the camera is OFF when inserting or removing the microSD card. 2. Make sure the memory card is inserted in the correct direction (the gold contacts of the microSD card should face the inside of the camera)

  • Page 9: Turning The Camera On/Off

    TURNING THE CAMERA ON/OFF Install the battery, charge fully and insert the microSD card as described on page 8. TURNING ON THE CAMERA Power/Mode Button • Press and hold the Power/Mode Button for 2 seconds until the LCD Screen displays ON and a sound is heard.

  • Page 10: Capture/Playback Modes

    CAPTURE/PLAYBACK MODES Cycling through and selecting capture and playback modes VIDEO PHOTO PLAYBACK Turn camera ON and repeatedly long press the Shutter/Select Button to cycle through camera modes and settings. The modes will appear in the following order: VIDEO PHOTO PLAYBACK Mode Description...
  • Page 11 VIDEO MODE To record a video, make sure the camera is in Video mode which should be displayed on the LCD Screen . If not, long press the Shutter/Select Button repeatedly until appears. TO START RECORDING • LCD Screen in ‘Video’ mode Short press the Shutter/Select Button.
  • Page 12 TO STOP RECORDING • Short press the Shutter/Select Button • The Indicator Light will stop flashing which indicates that a recording has ceased. • When the microSD card is full or the battery is drained, recording will cease automatically. The recorded video will be saved before the camera switches off.
  • Page 13 PLAYBACK/REVIEW MODE To view your videos and photos make sure the camera is in Video or Photo Playback mode which should be displayed on the LCD Screen by long pressing the Shutter/Select Button repeatedly until the still image appears. • Use the Power/Mode Button LCD Screen when ‘Playback’...

  • Page 14: Camera Settings Menu

    CAMERA SETTINGS To enter the settings menu firstly select the correct mode by long pressing the Select/Shutter Button. • When you are at the standby screen of your selected mode press the Power/ Mode Button to enter the settings screen for that mode. LCD Screen when ‘Settings’...
  • Page 15 Date & Time Power Save Key Sound Screen Setting Light Frequency Format Default Setting System Information...
  • Page 16 CAMERA SETTINGS MENU GUIDE Setting Description Options Default Video Round/Panorama 180/ Video Mode Set the type of Video mode Panotrama 360/4 in 1/ Round 3 in 1/2 in 1/YouTube 360 Turn the Loop Record function ON/OFF Loop Record OFF/1 min/3 mins/5 mins and set the Loop Record time Turn the Time Lapse function ON/OFF and Off/1 min/3 mins/5 mins/...
  • Page 17 Setting Description Options Default Settings Year, Month, Day, Hour, Change the Date & Times and set the 2019,02,04,01, Date & Time Minute,YY/MM/DD, MM/ Date format 53,YY/MM/DD DD/YY Turn the Power Saver function ON/OFF or Power Save OFF/1 min/3 mins/5 mins set the delay Key Sound Turn the key sound ON/OFF...

  • Page 18: Downloading The App

    DOWNLOADING THE APP The OTCam App lets you control your camera remotely using a smartphone or tablet. Features include camera control, live preview, photo playback and sharing of content and more. Download the OTCam App to your smartphone or tablet via the Apple App Store or Google Play Store.

  • Page 19: Connecting To The App

    Wi-Fi. 4. In your device’s Wi-Fi settings, connect to the network called “3SIXT-0686”. 5. Enter the password “1234567890”. 6. Open the OTCam App on your device. 7. Add the new camera and allow access...

  • Page 20: Transferring Video And Images To Pc Or Mac

    TRANSFERRING VIDEO AND IMAGES TO PC OR MAC • Turn the camera ON and connect it to a PC or MAC’s USB 2.0 port via the supplied micro USB cable. For PC: Your captured videos and images will be located in My Computer >...

  • Page 21: Included Accessories

    INCLUDED ACCESSORIES WATERPROOF WATERPROOF SUCTION HOUSING HOUSING MOUNT MOUNT ADHESIVE CLIP HANDLEBAR/ HANDLEBAR/ BASE + SPARE POLE MOUNT HELMET MOUNT ADAPTER ADHESIVES HELMET STRAPS...
  • Page 22 WATERPROOF HOUSING The camera is submersible up to 30m if the camera is correctly sealed in the Waterproof Housing. To fit and test Waterproof Housing: 1. Release the secure clasp of the Waterproof Housing. 2. Inspect the water sealing gasket (the rubberised material) to be sure it’s in good condition.
  • Page 23 ACCESSORY ASSEMBLY WATERPROOF HOUSING HANDLE BAR MOUNT Option 1 Option 2...
  • Page 24 HELMET MOUNT Option 1 Option 2...

  • Page 25: System Requirements

    SYSTEM REQUIREMENTS WINDOWS Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 or later Pentium® 4 processor (or above) 1 GB of RAM, 250 MB available hard disk space QuickTime® 6 or higher Microsoft® Internet Explorer 7 or higher Windows Media Player 10 or higher DirectX 9 or higher MACINTOSH Intel processor running Mac OS X v10.5.x or later...

  • Page 26: Limitation Of Liability And Indemnity

    3SIXT 360° Full HD Sports Action Camera User Manual or use of any 3SIXT product and/or related apps. In no event shall 3SIXT be liable for...

  • Page 27: Warranty

    1 YEAR WARRANTY 3SIXT will replace the faulty product at no cost to the consumer. The warranty does not extend to any consequential damages or costs that may be incurred and is valid for 1 year from date of purchase. The consumer must return the faulty product to the retail store it was purchased from together with proof of purchase.
  • Page 28 For more information, visit www.3sixtgear.com or visit www.3sixtgear.com/support...
