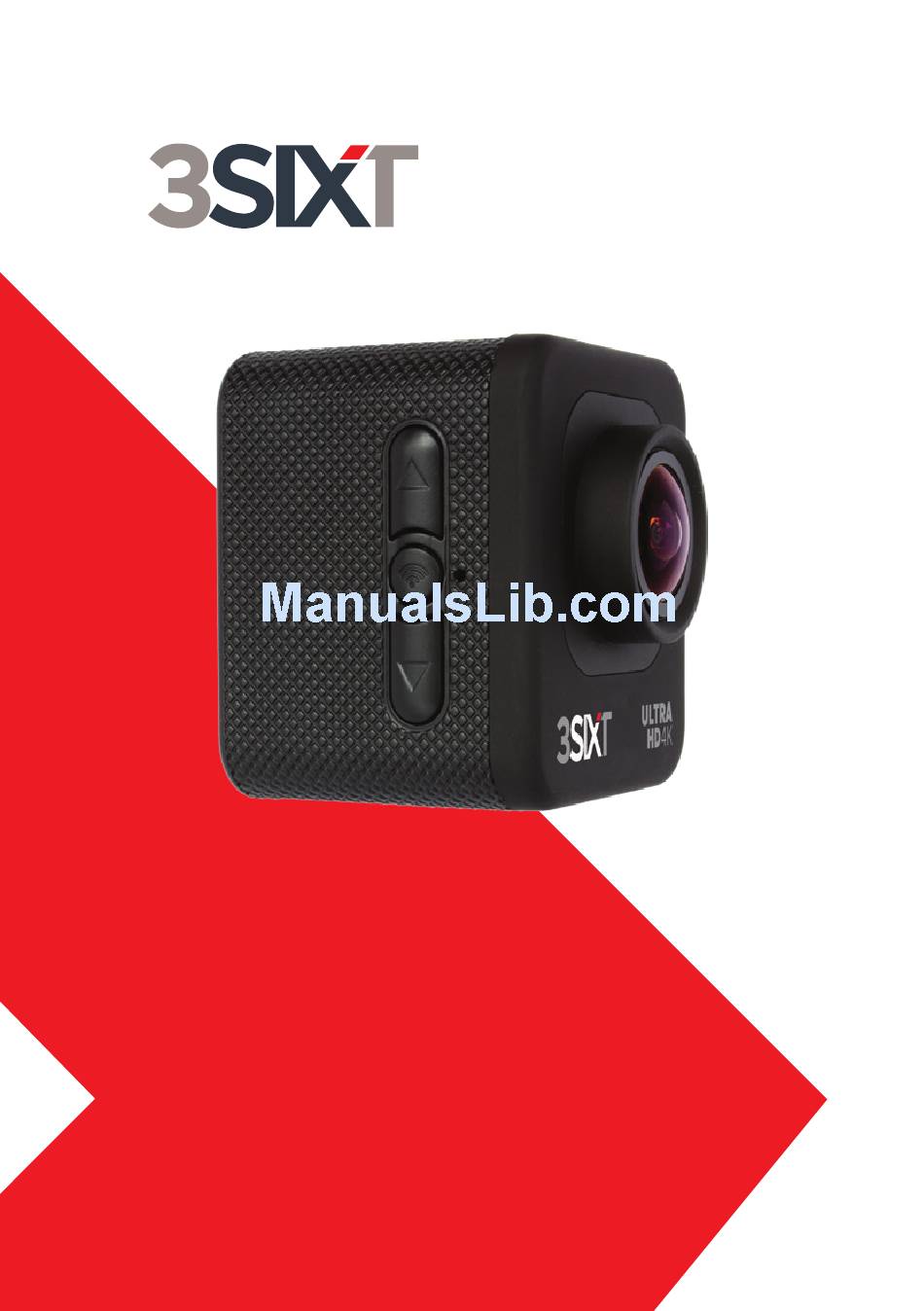

- Page 1 ULTRA HD SPORTS ACTION CAMERA with Wi-Fi 3S-0685 USER GUIDE...
- Page 2 IMPORTANT SAFETY INFORMATION Please read the instructions carefully before using this camera for proper and safe operation. • Using a wall/car charger other than a 5V 1A Charger can damage the camera battery and could result in fire or leakage. Only use chargers marked: Output 5V 1A. •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS The Basics .....................4 Installing and Charging the Battery ..........6 Installing the microSD Card ..............8 Turning the Camera ON/OFF ...............9 Capture/Playback Modes ..............10 Camera Settings Menu ................14 In-Vehicle Settings ..................18 Downloading the APP ................19 Connecting to the APP ................20 Transferring Video and Images to PC or Mac ......21 Playback Video and Images on a TV with a HDMI port ..21 Included Accessories ................22... -
Page 4: The Basics
THE BASICS Lens LCD Screen Micro HDMI Wi-Fi Button Speaker microSD Slot Down Micro USB Port Microphone... - Page 5 Power/Mode Button Shutter/Select Button Indicator Light Battery Door...
-
Page 6: Installing And Charging The Battery
INSTALLING AND CHARGING THE BATTERY INSTALLING THE BATTERY 1. First, make sure that the camera is OFF when inserting or removing the battery. 2. Remove the camera from it’s housing. 3. Lift up the battery door with your fingernail. Remove the battery door and place the battery door in a safe location. - Page 7 CHARGING THE BATTERY 1. Make sure that the camera is switched OFF. 2. To start charging the battery, connect the supplied micro USB cable into the camera’s micro USB port into a PC, MAC or wall adaptor’s USB 2.0 port only).The indicator light will Indicator Light be lit blue while charging and...
-
Page 8: Installing The Microsd Card
INSTALLING THE MICROSD CARD It is recommended to use 32GB Class 10 microSD cards for maximum performance. microSD Slot 1. Make sure the camera is OFF when inserting or removing the microSD card. 2. Make sure the memory card is inserted in the correct direction (the gold contacts of the microSD card should face the front of the camera) -
Page 9: Turning The Camera On/Off
TURNING THE CAMERA ON/OFF Install the battery, charge fully and insert the microSD card as described on page 8. TURNING ON THE CAMERA • Press and hold the Power/Mode Button for 2 seconds until the LCD Screen displays ON and a sound is heard. -
Page 10: Capture/Playback Modes
CAPTURE/PLAYBACK MODES Cycling through and selecting capture and playback modes VIDEO PHOTO PLAYBACK Turn camera ON and repeatedly press the Power/Mode Button cycle through camera modes and settings. The modes will appear in the following order: VIDEO PHOTO PLAYBACK SETUP Mode Description Video... - Page 11 VIDEO MODE To record a video, make sure the camera is in Video mode which should be displayed on the LCD Screen . If not, short press the Power/Mode Button repeatedly until appears. TO START RECORDING • LCD Screen in ‘Video’ mode Short press the Shutter/Select Button .
- Page 12 TO STOP RECORDING • Short press the Shutter/Select Button • The red recording icon next to the video icon on the LCD Screen will disappear. The Indicator Light will also stop flashing which indicates that a recording has ceased. • When the microSD card is full or the battery is drained, recording will cease automatically.
- Page 13 PLAYBACK/REVIEW MODE To view your videos and photos make sure the camera is in Video or Photo Playback mode which should be displayed on the LCD Screen by short pressing the Power/Mode Button repeatedly until the Playback icon appears. • LCD Screen when ‘Playback’...
-
Page 14: Camera Settings Menu
CAMERA SETTINGS Turn camera ON and repeatedly press the Power/Mode Button to cycle through camera modes and stop at the Settings screen. • Press the Shutter/Select Button to scroll through the playback and settings menu. LCD Screen when ‘Settings’ is selected •... - Page 16 CAMERA SETTINGS MENU GUIDE Setting Description Options Default Set the Video Resolution to your 4K/2K/1080P/720P/WVGA/ Resolution preferred output VGQ/QVGA Loop Recording Choose the Loop Recording time OFF/3/5/10 mins Time Lapse Set the Time Lapse time (seconds) OFF/1/2/5/10/30/60 Record OSD Mode Turn the On-Screen Display ON/OFF ON/OFF Turn the High Dynamic Range feature...
- Page 17 Setting Description Options Default Lock Current/ Choose to protect Video & Image files from Protect Unlock Current/Lock All/ accidental deletion Unlock All Date/Time Set the Date & Time Setting Auto Power OFF Set the camera to power-off automatically OFF/1/2/5 mins Beep Sound Turn the Beep Sound ON/OFF ON/OFF...
-
Page 18: In-Vehicle Settings
IN-VEHICLE SETTINGS To set your camera up for in-vehicle crash cam recording: • In the settings menu turn on the “Car Mode” setting. • In the settings menu turn on the “Looping Recording” setting. LCD Screen when ‘Car Mode’ is selected •... -
Page 19: Downloading The App
DOWNLOADING THE APP The Canany App lets you control your camera remotely using a smartphone or tablet. Features include camera control, live preview, photo playback and sharing of content and more. or search on the App or search on Google Store for ‘CANANY ’... -
Page 20: Connecting To The App
Wi-Fi. 4. In your device’s Wi-Fi settings, connect to the network called “3SIXT-0685”. 5. Enter the password “12345678”. 6. Open the Canany App on your device. 7. Add the new camera and allow access... -
Page 21: Transferring Video And Images To Pc Or Mac
TRANSFERRING VIDEO AND IMAGES TO PC OR MAC • Turn the camera ON and connect it to a PC or MAC’s USB 2.0 port via the supplied micro USB cable. For PC: Your captured videos and images will be located in My Computer >... -
Page 22: Included Accessories
INCLUDED ACCESSORIES WATERPROOF WATERPROOF SUCTION HOUSING + HOUSING MOUNT MOUNT REPLACEMENT DOOR ADHESIVE CLIP BASE HANDLEBAR/ HANDLEBAR/ POLE MOUNT HELMET (X2) + SPARE MOUNT ADAPTER ADHESIVES CLIP HOUSING CLIP HOUSING CAMERA CLIP ADAPTER ADAPTER HOUSING CLIP HOUSING CURVED MOUNT HELMET BELT CLIP STRAPS (X2) - Page 23 WATERPROOF HOUSING The camera is submersible up to 30m if the camera is correctly sealed in the Waterproof Housing. To fit and test Waterproof Housing: 1. Release the secure clasp of the Waterproof Housing. 2. Inspect the water sealing gasket (the rubberised material) to be sure it’s in good condition.
- Page 24 ACCESSORY ASSEMBLY WATERPROOF HOUSING CLIP HOUSING HANDLE BAR MOUNT Option 1 Option 2...
- Page 25 HELMET MOUNT Option 1 Option 2 Option 3 Option 4...
- Page 26 CLIP MOUNT Option 1 Option 2 Option 3 Option 4...
-
Page 27: System Requirements
SYSTEM REQUIREMENTS WINDOWS Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 or later Pentium® 4 processor (or above) 1 GB of RAM, 250 MB available hard disk space QuickTime® 6 or higher Microsoft® Internet Explorer 7 or higher Windows Media Player 10 or higher DirectX 9 or higher MACINTOSH Intel processor running Mac OS X v10.5.x or later... -
Page 28: Limitation Of Liability And Indemnity
3SIXT Ultra HD Sports Action Camera User Manual or use of any 3SIXT product and/or related apps. In no event shall 3SIXT be liable for... -
Page 29: Warranty
1 YEAR WARRANTY 3SIXT will replace the faulty product at no cost to the consumer. The warranty does not extend to any consequential damages or costs that may be incurred and is valid for 1 year from date of purchase. The consumer must return the faulty product to the retail store it was purchased from together with proof of purchase. - Page 30 For more information, visit www.3sixtgear.com or visit www.3sixtgear.com/support...
