3SIXT WDV5000SA-3S User Manual

Full hd sports action wifi camera
Hide thumbs

Advertisement

Table of Contents

FULL HD
SPORTS
WIFI CAMERA
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDV5000SA-3S and is the answer not in the manual?

Questions and answers

John Eller
February 2, 2025

What is the password when pairing to a Samsung phone?

0

Subscribe to Our Youtube Channel

Related Manuals for 3SIXT WDV5000SA-3S

Summary of Contents for 3SIXT WDV5000SA-3S

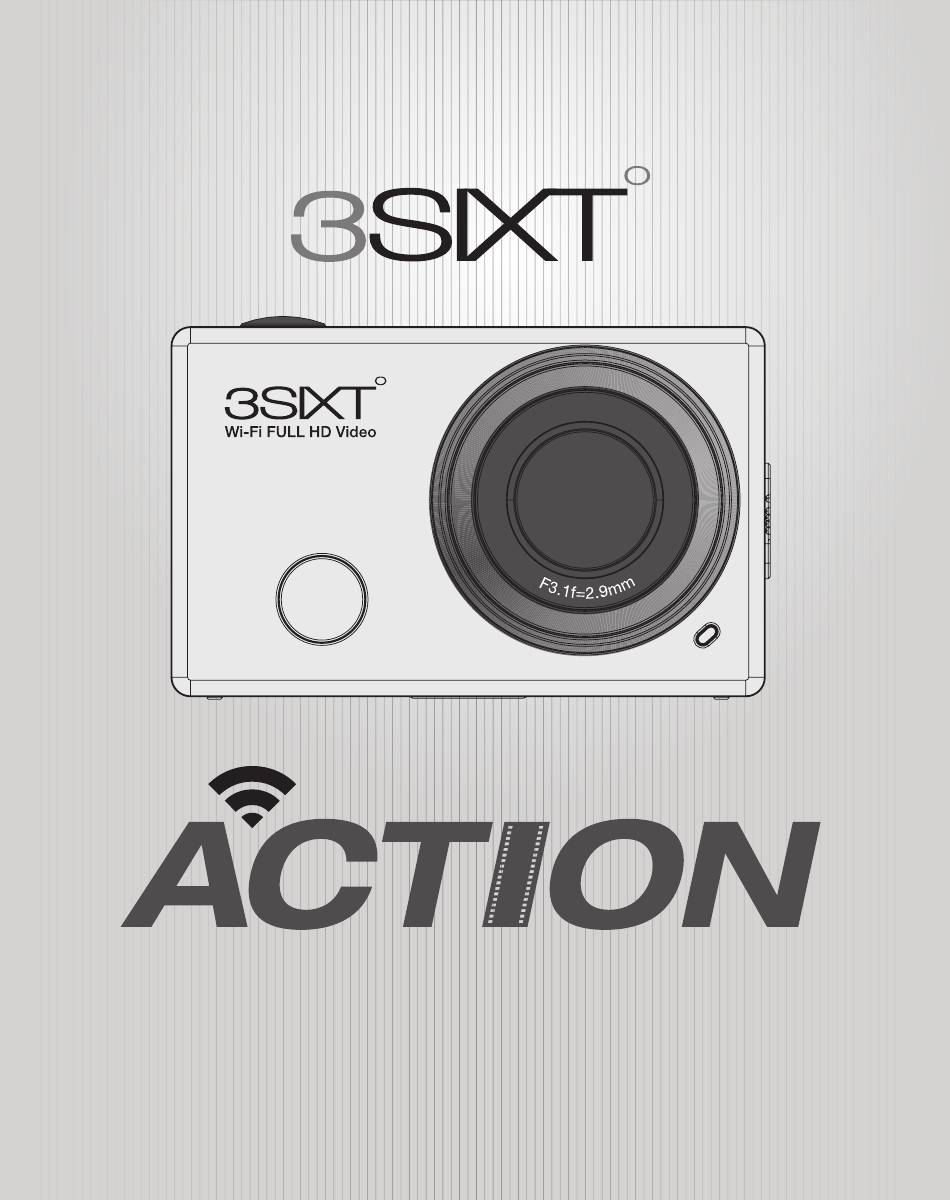

  • Page 1 FULL HD SPORTS WIFI CAMERA USER MANUAL...
  • Page 2 Thank you for purchasing the 3SIXT Full HD Sports Action WiFi Camera Before getting started, please read this User Manual* FULLY and carefully to ensure correct operation and optimised performance. FULL HD SPORTS WIFI CAMERA Important information to keep your camera and captured videos/images safe •...
  • Page 3 Please see page 19 for more information on correct use of supplied Waterproof Case. • Keep the camera free of dust and chemical materials. Place it in a cool, dry and well ventilated environment. Do not place the camera in a high temperature, moist or dusty place. •...
  • Page 4 Buttons, Connections and LCD Panel See page 6 for more detail Shutter Button Lens Built-in microphone WiFi Button/Status Indicator LCD Panel Power/Mode Button...
  • Page 5 See page 6 for more detail Infrared Light External Microphone Port micro USB Port Battery Cover Switch Mini HDMI port Status LED microSD Card Slot...
  • Page 6 Camera Mode Video Mode WiFi (displayed when enabled) microSD card (displayed when card inserted) Photo resolution/video size* Mute mode (displayed when enabled) Photo counter (displays up to 999) Video recording timer (displays hrs and mins) Battery power status * In camera mode - HI = 8MP, Lo = 5MP. In video mode - HI = FullHD (1920 x 1080 @ 30fps), HILo = 1280 x 720 @60fps, LO = HD (1280 x 720 @ 30fps)

  • Page 7: Installing And Charging The Battery

    Installing and charging the battery Installing the battery First make sure that the camera is off when inserting or removing the battery. 1. Slide up the battery cover switch while sliding the back open in the direction of the arrow to open the battery cover. 2.

  • Page 8: Installing A Microsd Memory Card

    Installing a microSD memory card Use memory cards with speeds faster than Class 4 and up to 32GB. We recommend Lexar Class 10 microSD memory cards for FullHD video capturing. 1. Make sure the cameras is off when inserting or removing the microSD card. 2.
  • Page 9 Turning On/Off and Mode Selection Install the battery, charge fully and insert the microSD card as described on pages 7 & 8. Turning on the camera Press and hold the Power/Mode Button ) for 4 seconds until the LCD panel displays ON and a beep sound is heard.

  • Page 10: Video Mode

    Video Mode To record a video, make sure the camera is in video recording mode which should be displayed on the LCD panel . If not, short press the button repeatedly until appears. To START recording Short press the Shutter ) button.

  • Page 11: Photo Capture Mode

    Photo Capture Mode To take a still image, make sure the camera is in photo capture mode which should be displayed on the LCD panel . If not, short press the button repeatedly until appears. To capture an image Short press the Shutter ) button.
  • Page 12 Enabling WiFi Connection for viewing, recording, playback and download* You can view, record, playback and download your captured videos and images using the cameras in-built WiFi, connected to compatible iOS and Android devices using the dedicated app, SYMAGIX. Getting SYMAGIX and connecting to your device For iOS devices 1.
  • Page 13 1. Go to Settings > WiFi on your iOS device, then scan or wait until 3SIXT5000 becomes available in your list of available networks. 2. Select 3SIXT5000 from the list and when prompted enter the password 1234567890 and wait for confirmation of a connection.
  • Page 14 For Android devices 1. Find the SYMAGIX app at the Google Play store on your device or scan this QR Code - and install it. When installation is completed, the SYMAGIX icon will appear on your home/menu screen. 2. Make sure a microSD card is in your camera and turned ON.
  • Page 15 What you should see on your Android device while SYMAGIX app is open and connected to your camera’s WiFi: Video resolution Playback mode Video mode White balance Shutter WiFi signal Setup menu Photo mode Battery power status *Playback may not be supported on some devices.
  • Page 16 Downloading captured videos and images to external devices via cable Connecting to a PC or MAC using supplied micro USB cable 1. Turn the camera ON and connect it to PC or MAC via supplied micro USB cable. will be then be displayed on the LCD panel 3.
  • Page 17 2. Connect the a HDMI cable (Mini HDMI) between the camera and a HDTV. 3. For playback mode, short press the Power/Mode Button ) to switch between videos and photos. When there are several videos or photos, press the WiFi/Status Button ) to select the desired video or photo.
  • Page 18 Downloading captured videos and 5. In Playback Mode, press and hold the Shutter images to external devices via cable ) button and a prompt for file deletion and memory formatting will appear. 6. Press the WiFi/Status Button ) to switch between file deleting and memory formatting.
  • Page 19 Special instructions for Waterproof Case The camera is only submersible up to 2M if it is correctly sealed within the supplied Waterproof Case. Before sealing the Waterproof Case, keep the camera housing’s rubber seal clean. A single hair or grain of sand can cause leaking.

  • Page 20: Limitation Of Liability And Indemnity

    3SIXT for lost data, inaccurate output, work delays or lost profits resulting from the use of the materials.

  • Page 21: Limitations Of Liability

    The 3SIXT FullHD Sports Action WiFi Camera User Manual may contain or reference links to third-party sites and apps, however, please be aware that 3SIXT is not responsible for and cannot control these other sites/apps. 3SIXT makes no representations or warranties whatsoever about any other websites/apps which you may access as a result of reading this User Manual, or otherwise.
  • Page 22 1 Year Warranty 3SIXT will replace the faulty product at no cost to the consumer. The warranty does not extend to any consequential damages or costs that may be incurred and is valid for 1 year from date of purchase. The consumer must return the faulty product to the retail store it was purchased from together with proof of purchase.

  • Page 23: Specifications

    Specifications Image Sensor CMOS sensor Lens F/3.1, f = 2.9 mm, View Angle 120° Video 1920 x 1080 (1080p @30fps) Resolution 1280 x 720 (720p @60fps) 1280 x 720 (720p @30fps) Picture 8MP (3264 x 2448) Resolution 5MP (2592 x 1944) Storage Media microSD/microSDHC (up to 32GB)
  • Page 24 What’s included in this box: CAMERA MICRO USB CABLE REMOTE CONTROL WATERPROOF CASEˇ BIKE MOUNT HELMET MOUNT HELMET BAND 3sixtgear.com...
