User's Manual
* Disclaimer: This device is not a medical device. It cannot determine the presence of an illness or
disease. The examination of a medical professional is required for diagnosis.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H20N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for inbody H20N

Summary of Contents for inbody H20N

  • Page 1 User’s Manual * Disclaimer: This device is not a medical device. It cannot determine the presence of an illness or disease. The examination of a medical professional is required for diagnosis.
  • Page 2 InBody Test Posture Stretch out your arms. Avoid contact with your waist. Put your thumb on the round electrodes. Place your heel at the end of the heel electrodes and allow the rest of your foot to point forward.

  • Page 3: Table Of Contents

    Contents Precautions Product Components and Set-Up Instructions A. Product Components B. Installation and User Registration of BodyKey App C. Interlocking BodyKey App with InBody H20N Weight Measurement III. InBody Test A. Precautionary Steps B. Test Posture C. Test Instructions D. Understanding InBody Outputs Troubleshooting A.

  • Page 4: Precautions

    Co., Ltd. is not liable for any incidental or consequential damages that occur. 2. Place the InBody on a flat and vibrationless floor. Placing it on an uneven floor, like a carpet or a mattress can result in incorrect measurements. For long-term storage, remove the battery pack, and place it on a flat surface. 3. Keep your InBody device away from other electronics while testing. It may cause errors. 4. After an individual with any kind of contagious disease or infection tests on the InBody, sterilize the device with a soft cloth or with ethyl alcohol wipes before use. 5. Excessively high or low temperatures, humidity, and pressure can affect the accuracy of the InBody.

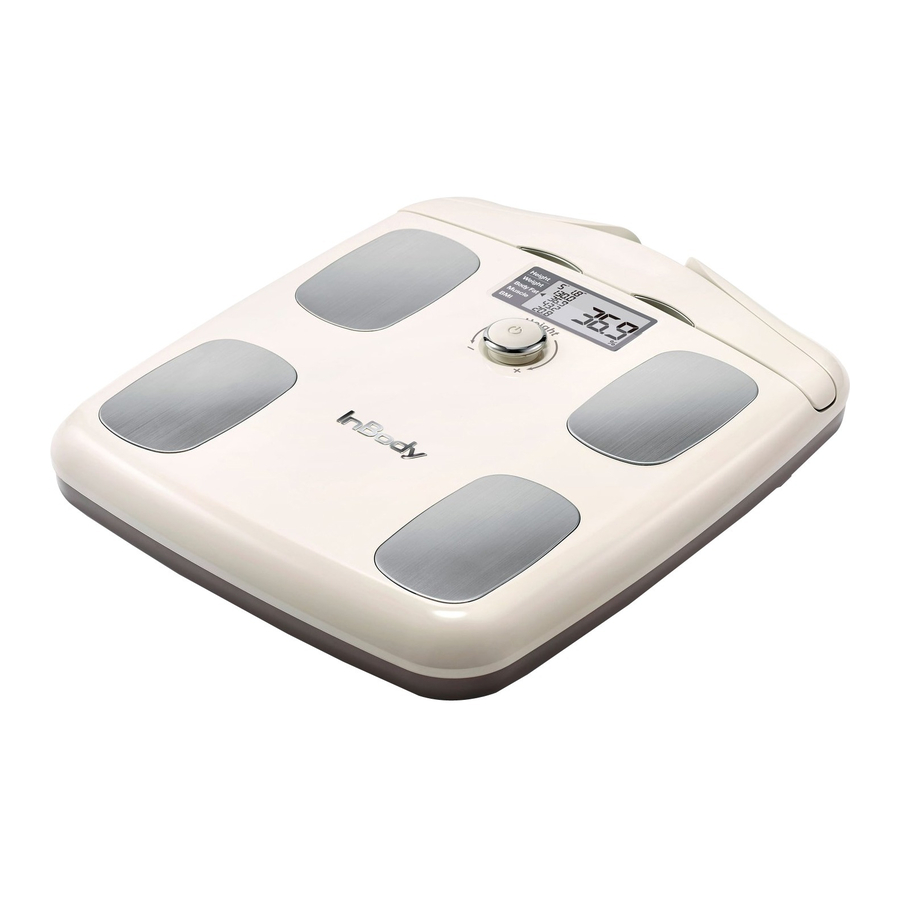

  • Page 5: Product Components

    Displays outputs on the screen. Dial: Use to power ON/OFF, input height and check results. ❷ ❸ Hand electrodes: User holds the device with hands and fingers. ❹ Foot electrodes: User stands on the device, placing the back of heels on the rear electrodes. Footplate: Measures the weight of the user. ❺ ❻ Battery insert: The InBody H20N takes 4 AA batteries. Open the cover to insert the batteries. ❼ Back cover: Do not open, dismantle or attempt to repair your device yourself.

  • Page 6: Installation And User Registration Of Bodykey App

    II. Product Components B. Installation and User Registration of BodyKey app Download and install the BodyKey App from the iPhone App Store or Google ❶ Play Store prior to testing. (iOS 8, or newer. Android 5.0, or newer.) Or Once the download is complete, open the BodyKey app. ❷...
  • Page 7 II. Product Components Keep the Bluetooth ON to use the InBody H20N.

  • Page 8: Interlocking Bodykey App With Inbody H20N

    II. Product Components C. Interlocking the InBody App with BodyKey H20N...
  • Page 9 II. Product Components * Data will transmit from the BodyKey App automatically after syncing is complete.

  • Page 10: Weight Measurement

    When 0.0 is displayed on the screen. ❷ A “beepˮ will indicate when the measurement is complete. The power turns off automatically when you step off the footplate. * Zero-Point Adjustment When the device is being calibrated, a scrolling rectangle will appear on the screen. If you want to test on the InBody H20N immediately after measuring weight, turn the dial and input height. Then, hold the hand electrodes and stand with the correct test posture to take the InBody Test.

  • Page 11: Inbody Test

    IV. InBody Test A. Precautionary Steps Do not eat immediately before testing on the InBody. ❶ Test in the morning, if possible. ❷ Test after going to the bathroom. ❸ Test prior to working out. ❹ Test prior to taking a shower, bath or using a sauna. ❺ Stand for about 5 minutes prior to testing.

  • Page 12: Test Posture

    IV. InBody Test B. Test Posture Arms and legs aren’t Arms are extended Arms are too high Arms are too low touching each other Arms are bent Do not let your arms touch your stomach and make sure your arms are Hold the hand electrodes extended from your body and wear light clothes with sleeves.

  • Page 13: Test Instructions

    IV. InBody Test C. Test Instructions ❶ Power ON: Press the dial to turn the power on. ❷ Enter height: Press the dial to enter height. When the power is on, the height of the previous user is displayed. Be sure not to press the footplate while adjusting the dial.
  • Page 14 IV. InBody Test ❸ Run BodyKey App: After running the app, go to InBody Test page and press Connect button to start InBody Test. Step on the InBody H20N to begin testing.
  • Page 15 ❹ Weight Measurement and InBody Test: Step on the footplate barefoot and stand as shown in the fi gure below. Hold the hand electrodes as previously described. After fi nishing the weight measurement, a "beep-beep" will sound and the InBody Test begins. The Test runs for about 10 seconds and is fi nished when a “tu-lu-lu“ sounds. Once “End” appears on the screen, step down from the footplate. If a user’s palms and/or soles are dry or callused, he or she may have diffi culty testing. Wipe hands and feet with an InBody Tissue for more accurate results.
  • Page 16 • When not synced with the App: Turn the dial to enlarge results. Outputs will be displayed for 100 seconds after an InBody Test has completed. If the device is not used within that timeframe, it will turn off. To turn off the device immediately after use, press and hold the dial. • When synced with the App: Data will automatically sync between the InBody H20N and BodyKey App.

  • Page 17: Understanding Inbody Outputs

    IV. InBody Test D. Understanding InBody Outputs Body fat mass and muscle mass change with diet and exercise. • Weight : Total body mass Weight is the total mass of the human body. • Percent Body Fat : Total mass of fat mass divided by total body mass A person’s body fat percentage is the total fat mass divided by the person’s weight.

  • Page 18: Troubleshooting

    V. Troubleshooting A. Error Message The InBody displays an error message on the LCD screen if a disruption occurs. ❶ Error messages caused by incorrect testing posture If the following error messages appear, do not put your socks or stockings on. Check your testing posture and try again. ❷ Error messages caused by internal malfunction of the InBody H20N If the following error messages appear, please contact InBody.

  • Page 19: Solving Simple Problems

    V. Troubleshooting B. Solving Simple Problems If the problem still persists, please contact InBody. Q1. The power does not turn on after pressing the dial. This can happen when the batteries are dead. Replace the batteries. This can happen when the batteries are not inserted correctly. Remove the batteries and make sure the electrodes are in the correct spots.

  • Page 20: Frequently Asked Questions (Faq)

    VI. Frequently Asked Questions (FAQ) If your question is not listed here, please contact InBody. Q1. The InBody Test results vary. Why is there a diff erence in outcomes? A. If you are standing with incorrect posture, outcomes will vary. Make sure your hands and feet are come in contact with the electrodes properly. Maintain this posture until the Test is complete.
  • Page 21 VI. Frequently Asked Questions (FAQ) Q4. What if the user does not know his or her height? Height is important for obtaining accurate InBody Test results. Measure the user on a stadiometer for best results. Q5. If the user’s thighs or armpits touch, would that affect the test results? A. Yes. If the user’s thighs or armpits touch, have him or her wear a light short sleeve...

  • Page 22: Specifications

    VII. Specifications Bioelectrical Bioelectrical Impedance(Z) : 10 Impedance measurements are taken Impedance (BIA) by using two(2) different frequencies (20kHz, 100kHz) in each of the Measurement Items five (5) segments (right arm, left arm, body, right leg, left leg) Electrode Method Tetrapolar 8-Point Tactile Electrode Methods Testing Method Direct Segmental Multi-frequency Bioelectrical Impedance Analysis Method, DSM-BIA type Body Composition No Empirical Estimation Calculation Method Outputs Weight, Percent Body Fat, Muscle Mass, Visceral Fat Level (LCD Screen) Applied Rating 100 ㎂ Current Power Consumption DC 6V(1.5V AA battery 4 EA) Display Type Customized LCD...
  • Page 23 FCC ID:F6OINBODYH20N FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which • can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.

  • Page 24: Product Warranty

    Date of Purchase : Place of Purchase : This product warranty gives an assurance for the InBody product as below: 1. This product undergoes a strict review process to ensure quality control 2. The warranty period of this product follows the warranty period policy of the manufacturer.
  • Page 25 ©2020 InBody Co., Ltd. All rights Reserved. Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody Co., Ltd under the copyright laws. This manual might have typographical errors, and its content can be changed without prior notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the contents of the Users̓ Manual.
  • Page 28 TEL : +91 22-6223-1911 Website: inbody.in E-mail: india@inbody.com InBody Europe [EU] InBody Europe B.V. Gyroscoopweg 122, 1042 AZ, Amsterdam, The Netherlands TEL : +31-20-238-6080 FAX : +31-6-5734-1858 Website: nl.inbody.com E-mail: info.eu@inbody.com InBody Asia [ASIA] InBody Asia Sdn. Bhd. Unit 3A-11, Oval Damansara, 685 Jalan Damansara Kuala Lumpur, WP KL 60000 Malaysia TEL : +60-3-7732-0790 FAX: +60-3-7733-0790 Website: inbodyasia.com E-mail: info@inbodyasia.com © 2020 InBody Co., Ltd. All rights reserved. BM-ENG-M4-D-200222...
