User's Manual

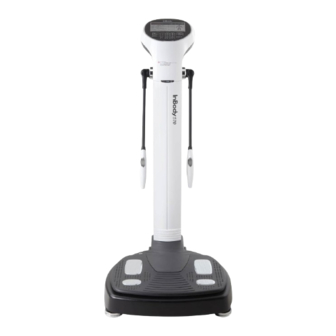

InBody570 User's Manual for Measurement Guide and Setup
Thank you for purchasing the InBody570. This user's manual describes all the features of the InBody570.
Please read before use and keep it in a safe place. By following the manual instructions, you will be
able to use the InBody570 more safely and effectively.

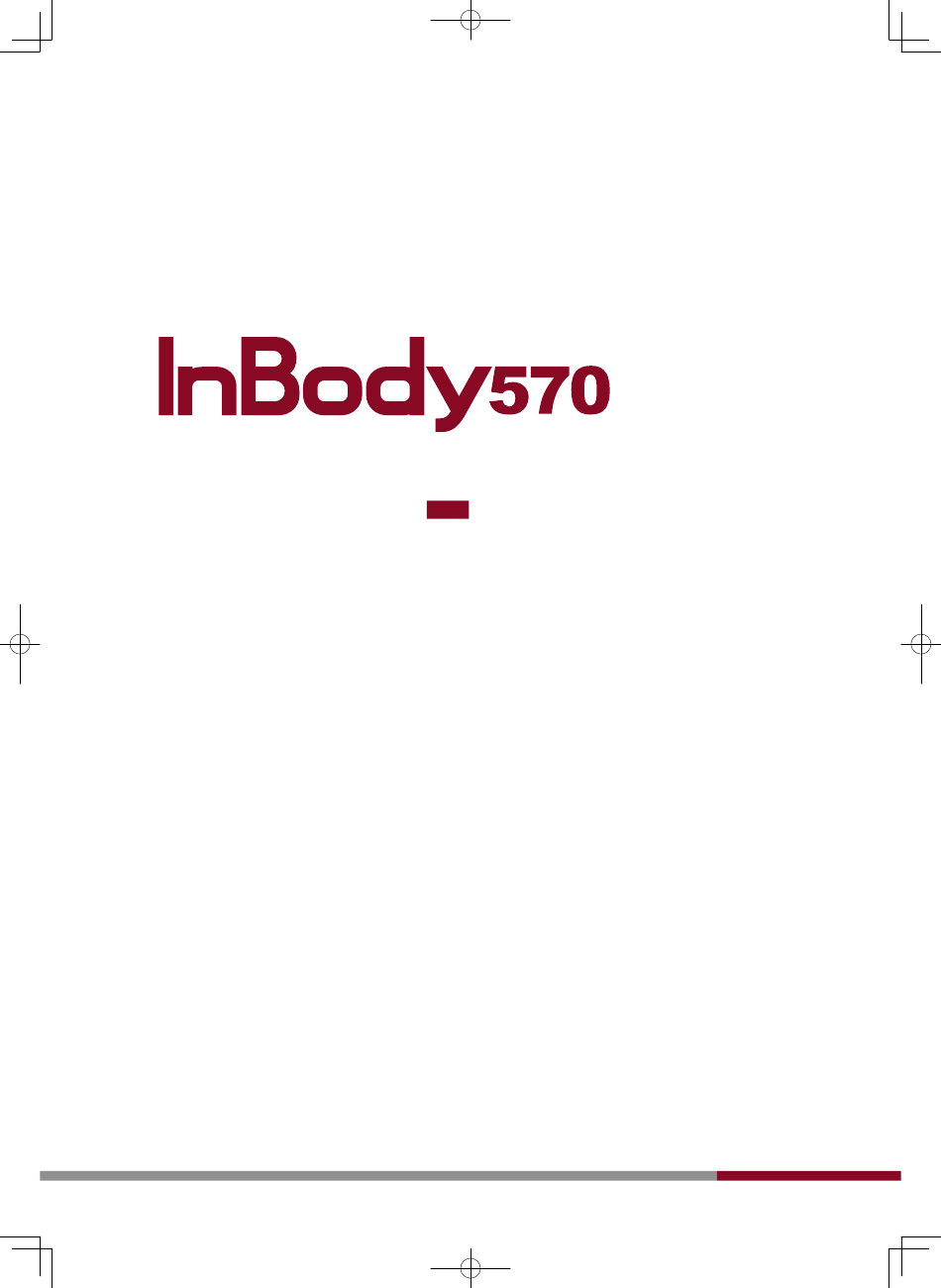

570_manual_USA_J_220323.indd 1
570_manual_USA_J_220323.indd 1
USA
2022. 3. 25. 오후 2:15
2022. 3. 25. 오후 2:15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for inbody 570

Summary of Contents for inbody 570

  • Page 1 User’s Manual InBody570 User's Manual for Measurement Guide and Setup Thank you for purchasing the InBody570. This user’s manual describes all the features of the InBody570. Please read before use and keep it in a safe place. By following the manual instructions, you will be able to use the InBody570 more safely and effectively.
  • Page 2 • Sarcopenia: InBody provides a quick, easy to perform test that provides a calculation for skeletal muscle index (SMI), the sum of the lean mass in the arms and legs, normalized for height. This marker is useful in identifying low muscle in the appendages, which increases frailty risk.
  • Page 3 This manual might have typographical errors, and its content can be changed without prior notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the content of the User’s Manual.
  • Page 4 570_manual_USA_J_220323.indd 4 570_manual_USA_J_220323.indd 4 2022. 3. 25. 오후 2:15 2022. 3. 25. 오후 2:15...

  • Page 5: Table Of Contents

    III. Transportation and Storage A. Cautions during Transportation B. Repacking Instructions C. Transportation and Storage Environment IV. Frequently Asked Questions (FAQ) A. Regarding the InBody B. Regarding the InBody Test V. Others A. Exterior and Functions B. Safety Information C. Classification D. Specifications 570_manual_USA_J_220323.indd 5...

  • Page 6: Inbody570 Installation

    I. InBody570 Installation A. Product Components The InBody570 consists of the following components. Please make sure all of the following components are present. * Please inspect each component of the InBody570 for defects prior to installation. InBody570 Keypad ❶ Adapter (DC 12V, 3.4A/3.34A) 1 EA ❷...

  • Page 7: Operating Environment

    참 조 주 의 참 고 주 의 Si vous avez des problèmes lors de l'installation de votre InBody570, veuillez contacter InBody pour • obtenir de l'aide. Ne transportez pas l'équipement en tenant l'écran ou les articulations des électrodes à main.
  • Page 8 Never clean the hand and foot electrodes with liquid spray or detergent directly. The equipment may corrode • and/or malfunction if the liquid or detergent leaks inside. Use the InBody Tissue when cleaning the InBody570. * For inquires regarding the InBody Tissue, please contact InBody.
  • Page 9 4. Connect the adapter ( ) to the power input port, which is located on the rear panel ( ). Connect the adapter ( ❷ ❶ ❷ to the power cord ( ). Plug the power cord ( ) into a grounded 3-socket outlet. ❸...
  • Page 10 InBody570 first. This is necessary to minimize electrical surges on the InBody570. Always use the specified adapter provided by InBody as it is a part of the InBody570. Using other adapters • may result in malfunction of the InBody570.
  • Page 11 5. Flip the power switch to turn on the InBody570. Power switch CAUTION NOTE DANGER Caution 참 조 주 의 참 고 주 의 Adapter must be arranged so that easily cut off the power when a problem occurs in the InBody570. •...

  • Page 12: Initial Setup

    D. Initial Setup 1. The InBody570 automatically starts booting when it is turned on. While booting, it performs a self weight calibration. * While booting (about 5 minutes), make sure there is nothing on top of the footplate. Please do not stand on the footplate, or place objects on the footplate.
  • Page 13 : Back up the InBody Test results to a USB Thumb Drive or restore test results using a backup file on a USB Thumb Drive. 09. Printer Setup : Connect the printer to the InBody. A connected printer will allow for printing results sheets after testing. 10. N/A 11. Automatic Printing Options : Print applicable results sheets automatically after each completed test. The InBody can print up to 2 copies after every test.
  • Page 14 : Adjust the alignment of where the results will be printed on the results sheets. 16. Internet Options : You can connect the InBody to the Internet. When the InBody is connected to the internet, can connect to data management software LookinBody120, regardless of location.
  • Page 15 InBody use/test. 01. Customer Service Information : See the contact information of InBody. Please contact InBody if your problem cannot be resolved through the ‘Troubleshooting’ or if you have further inquiries regarding the InBody Test.

  • Page 16: Connecting Printer, Stadiometer, Blood Pressure Monitor, And Barcode Reader

    1) First turn off the InBody570 and then the printer. * You may experience connection issues in connecting the printer to the InBody570 if the InBody is turned on. 2) Plug the USB cable provided with the printer into the USB HOST port on the rear panel of the InBody570 and plug the other end of the USB cable into the printer.
  • Page 17 1) First turn off the InBody570 and then the blood pressure monitor. * You may experience connection issues in connecting the blood pressure monitor to the InBody570 if the InBody is turned on. 2) Plug the serial cable provided with the blood pressure monitor to the 9-pin blood pressure monitor serial port on the rear panel of the InBody570.

  • Page 18: Maintenance

    F. Maintenance CAUTION NOTE DANGER Caution 참 조 주 의 참 고 주 의 Do not bend the handles of the hand electrodes or rotate them in the reverse direction beyond its limitation. • Do not extend the handles of the hand electrodes beyond its limitation. •...

  • Page 19: Inbody Test

    Children and people with limited mobility should be supervised or assisted when attempting to test on the InBody. • After an individual with any kind of contagious disease or infection tests on the InBody, use an InBody Tissue • to clean the equipment.
  • Page 20 • corps tout au long de la journée, affectant la précision des résultats. Avant le test, bien essuyer la paume des mains et la plante des pieds avec l'InBody Tissue. Effectuer le test peut • être difficile si les paumes et les plantes du candidat sont trop sèches ou si le candidat a trop de callosités.

  • Page 21: Test Instructions

    * The screens vary according to the Settings of the Administrator Menu ‘02. Self Mode/Professional Mode’. Professional Mode: An examiner is present and guiding the examinee through the InBody Test. Self Mode: The examinee takes the InBody Test following the instructions that are displayed on screen. 2. Weight measurement begins.

  • Page 22: Test Posture

    6. When the test is completed, the results will be shown on screen. Professional Mode Self Mode C. Test Posture The examinee must maintain proper posture to have accurate test results. * The test will proceed when there is good electrical contact. Your arms must not touch the sides of your body.

  • Page 23: Transportation And Storage

    2. Separate the connected adapter, cords, and cables from the equipment, and cover the InBody570 with the polyethylene foam cover. After covering the InBody, lower the upper part. Polyethylene foam cover 3. Put the InBody into the packing box. Place the packing pad over the equipment and tape up the packing box. 재포장...

  • Page 24: Frequently Asked Questions (Faq)

    Insert the power cord completely into the adapter. The problem may occur if you are using the power adapter that is not provide • by InBody. Always connect a power adapter (DC 12V, 3.4A/3.34A) provided by InBody. Power adapter Power cord 570_manual_USA_J_220323.indd 22...
  • Page 25 If you cannot enter the Administrator Menu due to touchscreen problems, • please restart the InBody. The InBody stores the last touchscreen alignment and will automatically recall the previous touchscreen settings. The InBody can also recognize if its touchscreen alignment is off screen and will automatically take the user to the calibration screen after restarting.

  • Page 26: Regarding The Inbody Test

    • harmful to the body? that is not harmful to the body. The safety of the InBody has been tested and proven. The InBody products have been approved for medical use by the CE and all over the world. Many medical institutions around the world are actively using the InBody.

  • Page 27: Others

    Others * The InBody570 is manufactured according to the quality management procedure of InBody. InBody complies with the ISO9001 and ISO13485 which are international quality management systems. * This equipment satisfies the IEC60601-1 (EN60601-1), an international safety standard for electronic medical equipment. This equipment also satisfies the IEC60601-1-2 (EN60601-1-2), an international standard for electromagnetic conformity. A. Exterior and Functions The following are the names and functions of each part of the InBody.
  • Page 28 2. Footplate Front sole electrode: The examinee makes contact with this electrode by stepping with the front part of their foot. ❶ Rear sole electrode: The examinee makes contact with this electrode by stepping with the heel of their foot. ❷...
  • Page 29 Power input port: Used for connecting to the power adapter. ❾ * Always use the specified adapter provided by InBody as it is a part of the InBody570. Using other adapters may result in malfunction of the InBody570. Power switch: Used for turning on/off the equipment.
  • Page 30 CAUTION NOTE DANGER Warning 참 조 주 의 참 고 주 의 Do not touch signal input, signal output or other connectors, and the patient simultaneously. • External equipment intended for connection to signal input, signal output or other connectors, shall comply •...

  • Page 31: Safety Information

    B. Safety Information Indicators 9-pin serial port (Female, RS-232C) LAN port (Ethernet, 10T Base) USB port Safety Symbols Dangerous High Voltage Warning, Caution BF Type Equipment Adapter Power On Power Off Etc. Symbols European Conformity Serial number 1639 0120 0120 Manufacturer Direct current Authorized representative in the...

  • Page 32: Classification

    • Actual: Weight, Body Mass Index (BMI) and Impedance Values, Height Optional Equipment Stadiometers from InBody, Blood pressure monitor from InBody Logo Name, Address, and Contact Information can be shown on the InBody Results Sheet. 570_manual_USA_J_220323.indd 30 570_manual_USA_J_220323.indd 30 2022. 3. 25. 오후 2:15...
  • Page 33 Provides audible indication for test in progress, test complete, and successfully saved settings changes. Database Test results can be saved if the member ID is utilized. The InBody can save up to 100,000 results. Test Mode Self Mode, Professional Mode...
  • Page 34 570_manual_USA_J_220323.indd 32 570_manual_USA_J_220323.indd 32 2022. 3. 25. 오후 2:15 2022. 3. 25. 오후 2:15...
  • Page 35 570_manual_USA_J_220323.indd 33 570_manual_USA_J_220323.indd 33 2022. 3. 25. 오후 2:15 2022. 3. 25. 오후 2:15...
  • Page 36 1639 ©2022 InBody Co., Ltd. All rights reserved. IM-USA-D3-J-220323 570_manual_USA_J_220323.indd 34 570_manual_USA_J_220323.indd 34 2022. 3. 25. 오후 2:15 2022. 3. 25. 오후 2:15...
