4
Grasp the exposed edge of the white Staple Pack
and remove the Staple Pack from the Staple Car-
tridge (Figure 5).
5
Remove a new Finisher Staple Pack from its
packaging.
CAUTION: Do not remove the white paper strip that
holds the staples in place until the Staple Pack has
been loaded into the Staple Cartridge.
6
Align the arrow on the Staple Pack with the arrow
on the Staple Cartridge and snap the Staple Pack
into the Staple Cartridge (Figure 6).
20

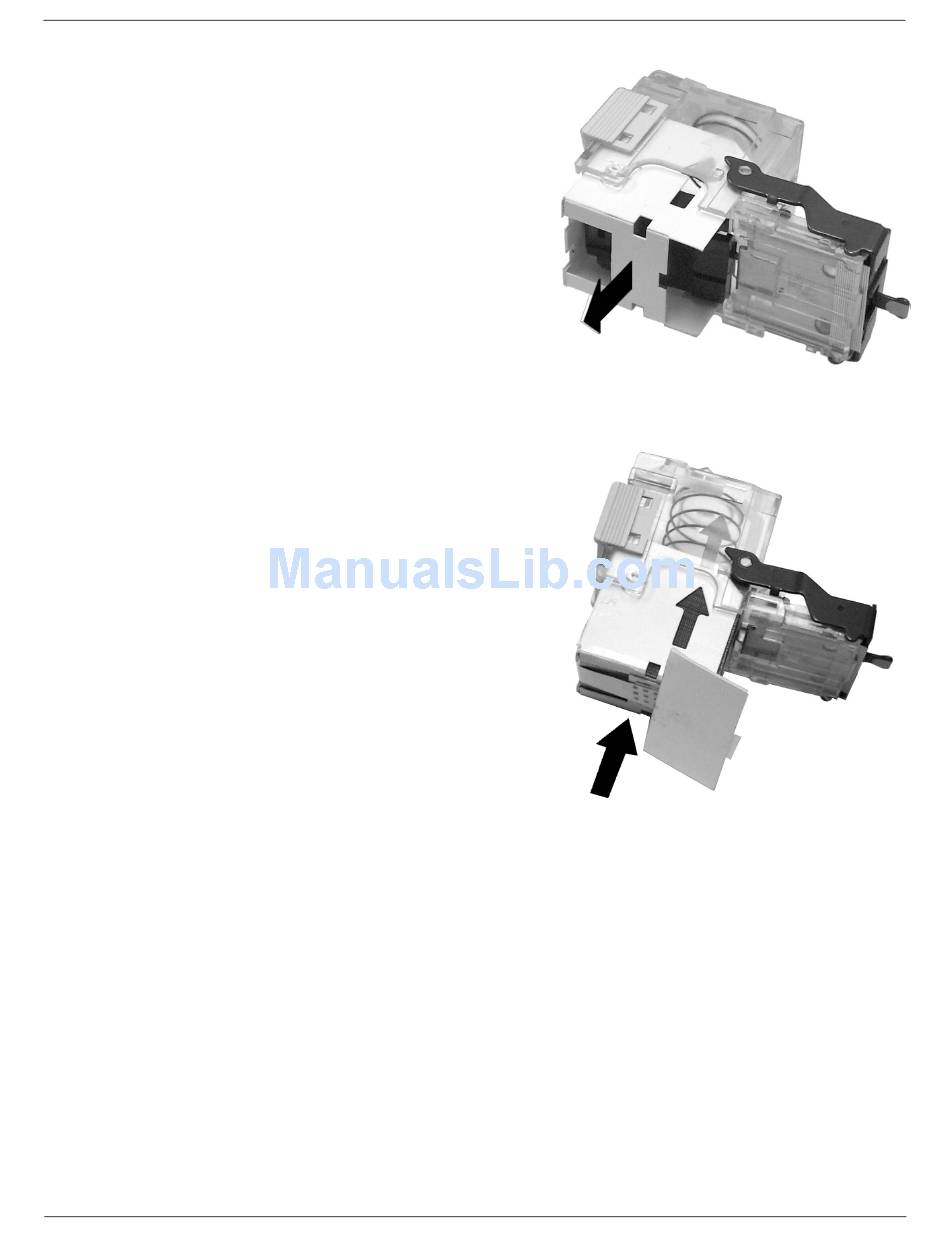

Figure 5: Removing the empty Staple Pack
from the Staple Cartridge
Figure 6: Inserting the new Staple Pack into
the Staple Cartridge
IN-LINE STAPLER FINISHER USER GUIDE
