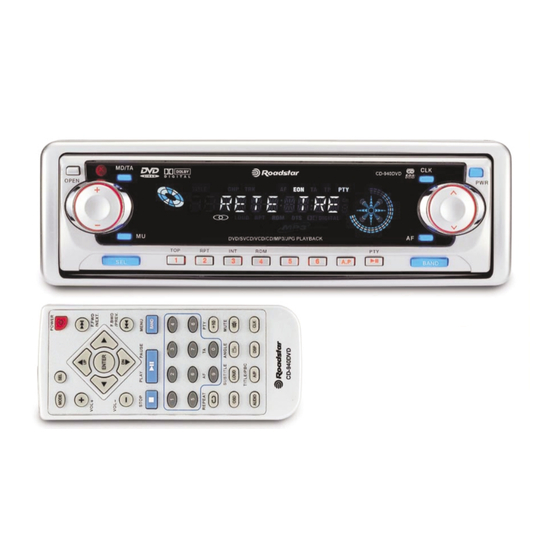

Roadstar CD-940DVD Service Manual

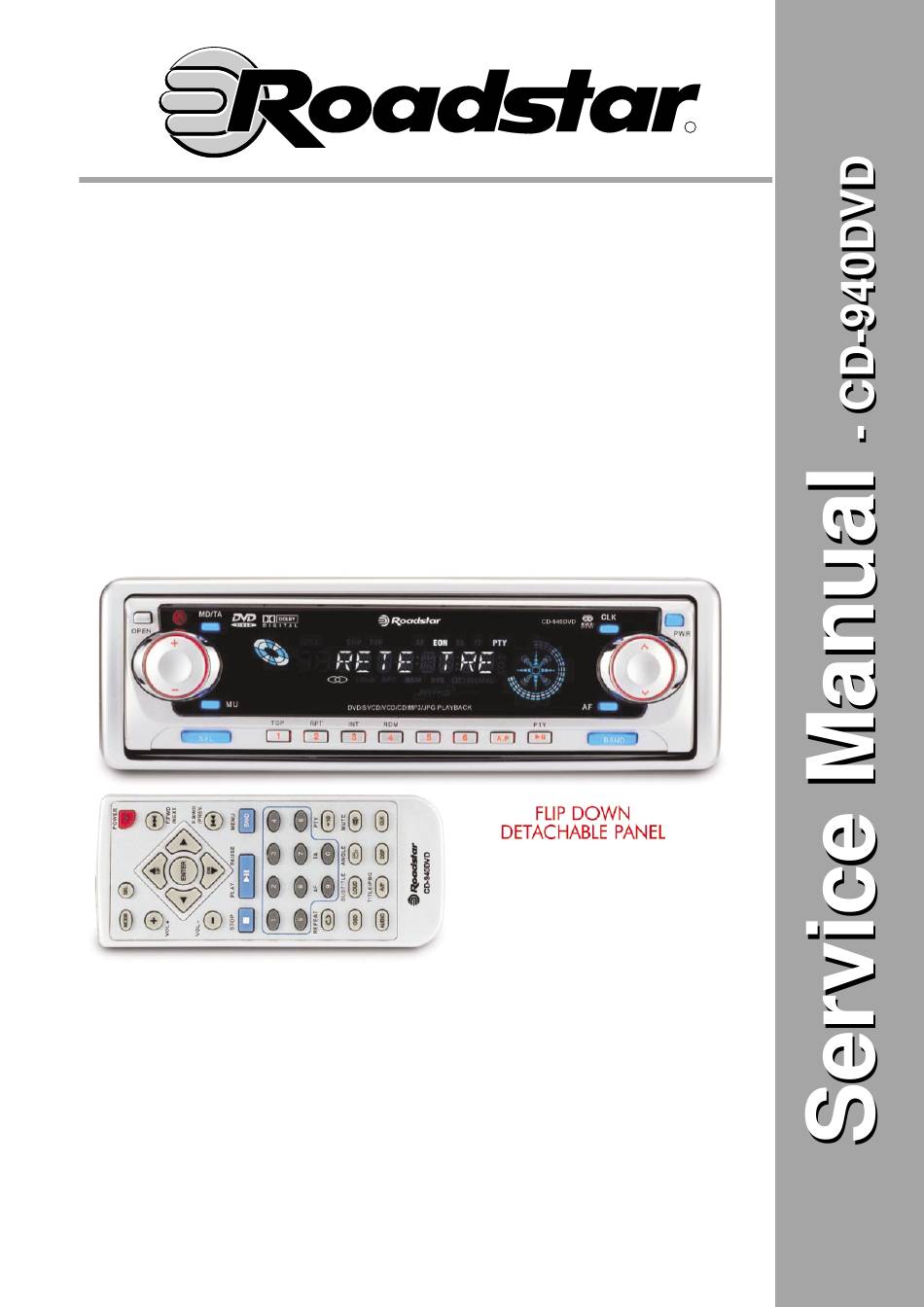

Flip down detachable panel
Hide thumbs

Advertisement

Quick Links

Download this manual
R
CD-940DVD

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD-940DVD and is the answer not in the manual?

Questions and answers

Related Manuals for Roadstar CD-940DVD

Summary of Contents for Roadstar CD-940DVD

  • Page 1 CD-940DVD...
  • Page 2 Product Assembly Listing Part Code Name/Description Unit Location mbly Code: JPW-88DV3110-00-00 JUMP WIRE A'SSY FC0-41815043-00-00 FILEXABLE WIRE 150MM 18PIN PITH=1.0MM SK0-03022401-02-00 D TYPE CONNECTOR FEMALE PH=2.0MM 2P L=240+3MM (PH=1.25MM) SK0-07022501-00-01 AUDIO SOCKET RCA JACK 250MM GREY 1 P RCA ) RCA ( Product Assembly Listing Part Code...
  • Page 3 MP0-88DV3110-06-00 TOP CABINET MP0-88DV3110-07-00 BOTTOM CABINET MP0-88DV3110-16-00 HEAT SINK A POWER IC MP0-88DV3110-55-00 FRONT DECK BKT-L MP0-88DV3110-56-00 FRONT DECK BKT-R MP0-88DV3110-61-00 REAR DECK BKT-L MP0-88DV3110-62-00 REAR DECK BKT-R MP0-96CM6700-09-00SHORT SLEEVE MP0-96CM6700-27-00KEY PLATE PV0-00923030-00-01 PVC FOR LCD-01 108X23.30MM PV0-00923030-00-02 PVC FOR LCD-02 108X23.30MM PV0-88DV3110-01-00 INSULATION SHEET 175×148×0.5MM Product Assembly Listing Part Code...
  • Page 4 MD0-00734000-00-00 MICRO DAMPER MP0-00928000-70-00 FOLD PLAE PL0-00005010-00-00 PLAIN WASHER M5X10 SA0-00000050-00-00 SPRING WASHER D=5.0MM SG0-00440828-05-00 SPONGE FOR CARRY BOX 180X58X5MM SG0-88DV3130-01-00 SPONGE 16.9X4.0MM SP0-00440680-BW-00 SPRING FOR REL KNOB OPEN SP0-00882000-01-01 SPRING-LOCKER-01 SP0-00928000-03-00 SPRING-HOLDER SP0-00928800-01-00 SPRING-RELEASE SR0-00001703-02-01 SCREW 1.7X3 KM BLACK SR0-00001708-05-01 SCREW 1.7X8 PA BLACK SR0-00002003-00-01 SCREW 2X3 PM BLACK SR0-00002005-00-00 SCREW 2X5 PM...
  • Page 5 Part Code Name/Description Unit Location mbly Code: OPC-88DV3130-00-00OTHER PURCHASE PARTS A'SSY SR0-00005025-05-00 SCREW 5X25 PA SR1-00001703-02-01 SCREW 1.7X3.5 KM BLACK SU0-00440839-01-00 SPONGE RUBBER 8X6X3.5 SU0-00928000-03-00 SPONGE RUBBER 1.0X8.0MM Product Assembly Listing Part Code Name/Description Unit Location mbly Code: PAK-88DV3120-00-00 PACKING A'SSY (15A) CT0-00928000-00-01 BUILD CARTON 45.0X30.0X39.0CM 0,25...
  • Page 6 2000/3000 LB0-23000803-02-00 POWER B(+) RED LABEL LB0-23870803-05-00 LEFT SPEAKER REAR OUTPUT GREEN LABEL LB0-30000803-09-00 LEFT CH RCA OUTPUT WHITE LABEL 2000/3000 LB0-30000803-14-00 "RIGHT RCA OUTPUT" RED LABEL LB0-80000603-01-00 CATION LABLE-01 LB0-80000603-02-00 CATION LABLE-02 LB0-80000603-03-00 CATION LABLE-03 LB0-90000803-04-00 WOOFER LINE OUT LB0-90000803-04-01 MEMORY BACKUP LB0-90000803-06-00 AUTO ANTENNA B(+) LB0-96000803-07-00 RIGHT SPEAKER REAR OUTPUT PURPLE LABEL...
  • Page 7 PY0-00030090-00-00 POLY BAG 9"X3"X0.05MM PY0-00043100-00-00 POLY BAG 10"X4.3"X0.025MM PY0-00110120-00-00 POLY BAG 12"X11"X0.05MM SK0-07031400-00-00 RCA PLUG WITH LINE 3P 1400MM ( . . ) 3P RCA Product Assembly Listing Part Code Name/Description Unit Location mbly Code: PCB-88DV3030-25-00 (DVD )( DV3110M2 ) CC0-10010540-00-00 CHIP CAP 0603 10P NPO 50V +/-5% C61-64.66.67 CC0-10110540-00-00 CHIP CAP 0603 100P NPO 50V +/-5%...
  • Page 8 CC0-47410540-00-00 CHIP CAP 0603 474P 50V X7R +/-10% C10.92 CC0-56110540-00-00 CHIP CAP 0603 560P X7R 50V +/-10% CC0-68110540-00-00 CHIP CAP 0603 680P X7R 50V +/-10% C37.38.40.41 CC0-68210540-00-00 CHIP CAP 0603 682P X7R 50V +/-10% CF0-12700001-00-00 CRYSTAL 27MHZ 2LEG CF0-13386301-00-00 CRYSTAL 33.8688MHZ 2LEG CH0-04310000-01-00 CHIP FERRITE BEAD 0805 FB-310 FB9.10.13 CH0-04310000-02-00 CHIP FERRITE BEAD 0603 FB-310...
  • Page 9 CR0-10350710-00-00 RESISTOR 10Kx4 OHM 1/8W -/+ 5% RN4.5.9-12 CR0-10450410-00-00 CHIP RESISTOR 0603 100K OHM 1/8W +/-5% R1.60.105.109 CR0-10550410-00-00 CHIP RESISTOR 0603 1M OHM 1/8W +/-5% R20.32.40 CR0-10850210-00-00 CHIP RESISTOR 0805 1 OHM 1/8W +/-5% R83-86 CR0-12250410-00-00 CHIP RESISTOR 0603 1.2K OHM 1/8W +/-5% CR0-12350410-00-00 CHIP RESISTOR 0603 12K OHM +/-5% CR0-15250410-00-00 CHIP RESISTOR 0603 1K5 OHM 1/8W +/-5% R21.41.51.31.33...
  • Page 10 Product Assembl y Listing Part Code Name/Description Unit Location mbly Code: PCB-88DV3030-25-00 (DVD )( DV3110M2 ) CR0-56350410-00-00 CHIP RESISTOR 0603 56K OHM 1/8W +/-5% R2.42 CR0-68250410-00-00 CHIP RESISTOR 0603 6K8 OHM 1/8W +/-5% CR0-75050410-00-00 CHIP RESISTOR 0603 75 OHM 1/8W +/-5% R91-93 CR0-82210410-00-00 CHIP RESISTOR 0603 8K2 OHM 1/8W +/-1% R26.44...
  • Page 11 IC0-95705700-00-00 IC M5705 A1 QFP-176 IC0-95716300-00-00 IC SDRAM HY57V161610D,16M,TSO 50PIN IC0-95764300-00-00 IC HY57V641620HG-T-H 54PIN TSOP(II) IC0-95954300-00-00 IC BA5954FP 28PIN HSOP IC0-96018800-00-00 IC ES6018 208-PIN PQFP (DVD PB0-DV311074-25-M2P.C.B DV3110-M2 116.1X109.8MM SS HB FR4 TH=1.2MM SK0-02040010-00-05 D TYPE CONNECTOR MALE 4P NONE WIRE PH=1.25MM Product Assembly Listing Part Code Name/Description...
  • Page 12 Product Assembly Listing Part Code Name/Description Unit Location mbly Code: PCB-88DV3110-01-00 MAIN BOARD A'SSY CC0-10115500-00-00 CHIP CAP 0805 =0.8MM 101P NPO 50V +/-5% C203.204.259.265 CC0-10215500-00-00 CHIP CAP 0805 =0.8MM 102P X7R 50V +/-10% C235 CC0-10315500-00-00 CHIP CAP 0805 =1.25MM 103P X7R 50V +/-10% C232.316.306.307 CC0-10415500-00-00 CHIP CAP 0805 =1.25MM 104P X7R 50V +/-10% C229.233.101.130.263.249.245.222-225.52.302.305.313.24.
  • Page 13 CH0-04310000-00-00 CHIP FERRITE BEED 1206 FB-310 FB100.310.102.135.R38.R23.R125.FB7 CH0-04310000-01-00 CHIP FERRITE BEAD 0805 FB-310 CH0-09188000-00-00 CHP INDUCTANCE 1206 1.8UH +/-10% FB101 CH0-11151090-00-00 TOROIDAL COIL T50-52B 150UH +/-10% L102 CH0-14201280-00-00 TRANSFORMER 20X12X8 2~3mH L101 CR0-00050410-00-00 CHIP RESISTOR 0603 0 OHM 1/8W +/-5% R83.85.88.53 CR0-00051210-00-00 CHIP RESISTOR 0805 0 OHM 1/8W +/-5% R50.409.415.24.4.12.54.D7.D4P FM...
  • Page 14 CR0-10450210-00-00 CHIP RESISTOR 0805 100K OHM 1/8W +/-5% R313.314 CR0-15150210-00-00 CHIP RESISTOR 0805 150 OHM 1/8W +/-5% R137.138.143.100.131 CR0-15350210-00-00 CHIP RESISTOR 0805 15K OHM 1/8W +/-5% R121.123.124.128 CR0-15450000-00-00 RESISTOR 150K OHM 1/8W +/-5% R243 CR0-15450210-00-00 CHIP RESISTOR 0805 150K OHM 1/8W +/-5% R248.245 CR0-22050210-00-00 CHIP RESISTOR 0805 22 OHM 1/8W+/-5% R237.238...
  • Page 15 CR0-33250210-00-00 CHIP RESISTOR 0805 3K3 OHM 1/8W +/-5% R113.307.308 CR0-33350210-00-00 CHIP RESISTOR 0805 33K OHM 1/8W +/-5% R103.104 CR0-39350210-00-00 CHIP RESISTOR 0805 39K OHM 1/8W +/-5% R224-227 CR0-39450210-00-00 CHIP RESISOTR 0805 390K OHM 1/8W +/-5% R261 CR0-47250000-00-00 RESISTOR 4K7 OHM 1/8W +/-5% R3.101.102.47 CR0-47250210-00-00 CHIP RESISTOR 0805 4K7 OHM +/-5% R301.303.318...
  • Page 16 EC0-10704020-00-00 100UF 16V+/-20% -40+85 5X11MM I=0.004CV or 0.4 (uA) Product Assembly Listing Part Code Name/Description Unit Location mbly Code: PCB-88DV3110-01-00 MAIN BOARD A'SSY EC0-10804020-01-00 1000UF 16V +/-20% -40+105 10X14MM I=0.004CV C100 EC0-22509051-01-00 2.2UF 50V +/-10% -40+105 4X7MM I=0.004CV or 0.4 (uA) C318.226.248 EC0-33704010-01-00 330UF 10V +/-20% (6X12MM) -40+105 C107.123...
  • Page 17 IC0-37800300-00-00 IC MICOM UPD78F0034A LQFP64 (10X10) IC400 )CPU IC0-96289300-00-00 IC BA6289F SOP 8PIN IC402 IC0-97213300-00-00 IC LC7213O PLCC 24PIN IC300 LE0-12035420-00-00 LED ROUND 3MM (RED) LEG.L=30MM LE0-72035420-00-00 SUPER BRIGHT (ORANGE) D=5MM ROUND LED D102 PB0-DV311005-01-A1 P.C.B DV3110-A1 174X150MM SS HB TH=1.6MM SK0-02020000-00-01 D TYPE CONNECTOR MALE 2P NONE WIRE PH=2.0MM CON103 SK0-06000002-00-00 VIADE CONNECTOR AV2-8.4-13...
  • Page 18 AM/FM Product Assembly Listing Part Code Name/Description Unit Location mbly Code: PCB-88DV3130-07-04 FRONT PCB A'SSY +RDS CC0-10415500-00-00 CHIP CAP 0805 =1.25MM 104P X7R 50V +/-10% C6.7.9-12.1.4.5P C1.4.5.6) CC0-68115500-00-00 CHIP CAP 0805 681P =0.8MM X7R 50V +/-10% C13P14104IC C13) CR0-00051210-00-00 CHIP RESISTOR 0805 0 OHM 1/8W +/-5% CR0-10150210-00-00 CHIP RESISTOR 0805 100 OHM 1/8W +/-5% R13.1P CR0-10250210-00-00 CHIP RESISTOR 0805 1K OHM 1/8W +/-5%...
  • Page 19 CR0-62350210-00-00 CHIP RESISTOR 0805 62K OHM 1/8W +/-5% R19P14104IC R19) CR0-82250210-00-00 CHIP RESISTOR 0805 8K2 OHM 1/8W +/-5% R30.40 EC0-47604011-00-00 47UF 10V +/-20% 4X7MM -40+85 I=0.004CV or 0.4ua (4X7MM) FC0-41206441-00-01 FILEXABLE WIRE 12P 64MM PITH=1.25MM IC0-31410300-00-00 IC HL14104 QFP 64PIN=IC LC75854NE QFP 64PIN IC0-36554700-00-00 IC PT6554 QPF64 IC0-97437400-00-00 IC 74HC374 SOP20 LD0-0DV30501-02-00 LCD DISPLAY DV3050+RDS 100X26.5MM 45P...
  • Page 20 SW0-10040250-00-00 TACT SWITCH 4PIN 2.5MM SMD PM1157 EJECT1 TR0-61815824-00-00 CHIP TRANSISTOR HMBT1815 SOT-23 NPN (L6) Q1.2.3P Q1.2.3) ZE0-95CE3010-00-00 ZEBRRA RUBBER 93.6X7.3X2.5MM Product Assembly Listing Part Code Name/Description Unit Location mbly Code: PPA-88DV3130-00-00 PLASTIC PARTS A'SSY PP0-00732380-YH-00 FUSE SLEEVE PP0-00882000-AU-00 PLASTIC LOCK PP0-00882000-DN-00 TRANSFORMER BRACKET PP0-00923020-BA-00 EJ-KNOB PP0-00923020-BA-01 EJ-KNOB-01(...
  • Page 21 PP0-88DV3070-YP-00 RIGHT COWNECTOR COVER PP0-88DV3080-AG-00ANTE-THEFT BOX PP0-88DV3130-01-00 KNOB 01 PP0-88DV3130-01-01 KNOB 01-01( "1,2,3,4") 01-01 PP0-88DV3130-01-04 KNOB 01-03( "5,6"/"A.P""▲║")VCD 01-03 PP0-88DV3130-02-00 KNOB 02 PP0-88DV3130-02-01 KNOB 02-01( "+.-") 02-01 PP0-88DV3130-02-02 KNOB 02-02( "^. ") 02-02 PP0-88DV3130-AA-00 FRONT CABINET PP0-88DV3130-AA-03 FRONT CABINET 03 (DVD+RDS ) PP0-88DV3130-AB-00 MIDDLE CABINET PP0-88DV3130-AF-00 ART PRO BLOCK Product Assembly Listing...
  • Page 22 01-01 PPS-88DV3130-01-02 CRYSTAL KNOB 01-02( "BAND") 01-02 PPS-88DV3130-02-00 CRYSTAL KNOB 02 PPS-88DV3130-03-00 CRYSTAL KNOB 03 PPS-88DV3130-04-00 CRYSTAL KNOB 04 PPT-88DV3130-01-00 PLASTIC PROP 01 PPT-88DV3130-02-00 PLASTIC PROP 02 PPT-88DV3130-03-00 PLASTIC PROP 03 PPT-88DV3130-04-00 PLASTIC PROP 04 Product Assembly Listing Part Code Name/Description Unit Location...
  • Page 23 (4X7MM) IC0-36122300-00-00 IC SC6122-001 SOP-24 LB0-20002401-00-00 ARTIFICIAL LABEL (102X48.6X0.3MM) LB0-20002401-01-00 ARTIFICIAL LABEL (72.6X32.6X0.3MM) LB0-30102401-01-00 LABEL (DVD)+RDS MP0-00882000-65-03 SPRING SHEET FOR BATTERY (+) MP0-00882000-66-00 SPRING SHEET FOR BATTERY (-) PB0-20007300-18-04 P.C.B D2000-04 110X47.8MM FR4.HB TH=1.0MM PP0-00882000-AR-00 REMOTR FRONT CAB PP0-00882000-AS-00 REMOTE BOTTOM CAB PP0-00882000-AV-00 BATTER COVER PV0-00882000-03-00 BATTERY PVC 58X20X0.05MM PY0-00031063-00-00 POLY BAG 8X16CM...
  • Page 24 OS0-02883110-00-00 OUT SOCKET WITH WIRE PW0-10350611-00-00 TWIN WIRE AWG 18 L=5+350+5MM GREEN/ GREEN.BLACK PW0-10350619-00-00 TWIN WIRE AWG 18 L=5+350+5MM WHITE/WHITE BLACK PW0-10350620-00-00 TWIN WIRE AWG 18 L=5+350+5MM PURPLE/PURPLE BLACK PW0-10350631-00-00 TWIN WIRE AWG 18 L=5+350+5MM GREY/GREY BLACK PW0-20140602-00-01 PVC WIRE AWG 18 L=5+140+5MM RED DC 12V+ PW0-20140606-00-01 PVC WIRE AWG 18 L=5+140+5MM BLUE AUTO ANT...
