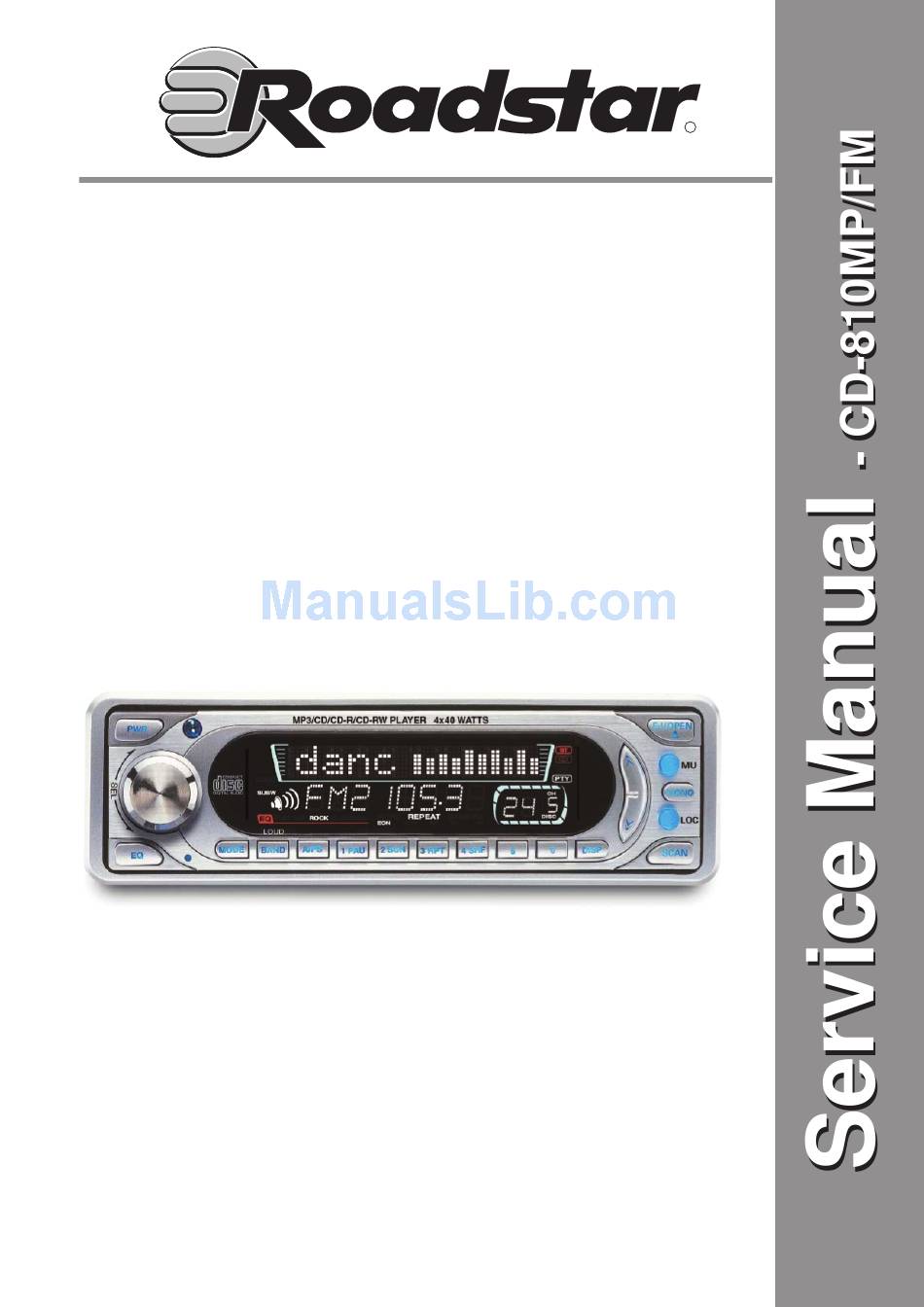

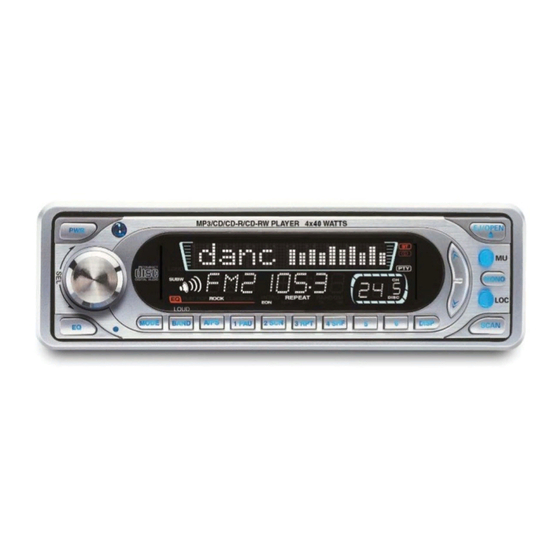

  • Page 1 CD-810MP/FM...
  • Page 2 ITEM CODE DESCRIPTION SYMBOL 001-7806D-480 P.C.B MAIN BOARD 001-3896S-A60 P.C.B LAMP BOARD 001-3896S-B10 P.C.B SWITCH SW-A BOARD 001-3896S-B11 P.C.B SWITCH SW-B BOARD 002-1923F-G07 I.C BU1923F 1 IC403 002-07384-J06 I.C TDA7384 1 IC401 002-02313-B00 I.C TDA7313D/PT2313L 1 IC106 002-07343-A00 I.C TA7343AP 1 U2 002-01140-A09 I.C LA1140 1 IC201...
  • Page 3 ITEM CODE DESCRIPTION SYMBOL 004-05403-000 DIODE IN5403 1 D5 D10.11.4.16.41.3.201.1.2.2COR. CDLAST.DSCDC.DSAUX.AREA 1. DSTAPE.FMONLY.AREA2. 004-04148-000 DIODE IN4148 MOTORIZED.AREA3.ENTAAL 005-00100-A00 ZENER DIODE 1/2W 10V 2 ZD8.5 005-00033-A00 ZENER DIODE 1/2W 3.3V 1 ZD3 005-00039-A00 ZENER DIODE 1/2W 3.9V 1 ZD7 005-00051-A00 ZENER DIODE 1/2W 5.1V 3 ZD9.2.1 005-00056-A00 ZENER DIODE 1/2W 5.6V 1 ZD4...
  • Page 4 ITEM CODE DESCRIPTION SYMBOL 011-B151A-200 RESISTOR CHIP 0603 ±5% 150 OHM 1 R80 011-B152A-200 RESISTOR CHIP 0603 ±5% 1.5K OHM 3 R85.139.79 011-B182A-200 RESISTOR CHIP 0603 ±5% 1.8K OHM 1 R163 011-B181A-200 RESISTOR CHIP 0603 ±5% 180 OHM 1 R53 011-B220A-200 RESISTOR CHIP 0603 ±5% 22 OHM 2 R72.68 011-B221A-200 RESISTOR CHIP 0603 ±5% 220 OHM...
  • Page 5 ITEM CODE DESCRIPTION SYMBOL 013-F107N-000 Chip ELEC CAP 100uF 16V 6.3x5.4mm 6 C108.84.55.148.149.6 013-F474P-000 Chip ELEC CAP 0.47uF 50V 4x5.4mm 4 C98.97.96.95 013-F335P-000 Chip ELEC CAP 3.3uF 50V 4x5.4mm 1 C137 C28.29.142.47.48.33.34. 013-F475Q-000 Chip ELEC CAP 4.7uF 25V 4x5.4mm 32.105.19.116.64 C94.70.147.125.81.35.85.86.87.

  • Page 6: Front Pcb

    ITEM CODE DESCRIPTION SYMBOL 029-B0000-020 ANTENNA JACK D.SCRWE 033-S1000-GY0 28# 1P SHIELD WIRE 100mm 034-A1612-008 I.S.O 16P W/WIRE 12P LINEIN 035-B0400-BK1 JUMPER WIRE #20 40mm BLACK 035-B1200-BK1 JUMPER WIRE #20 120mm BLACK 035-F0600-BK1 JUMPER WIRE #28 60mm BLACK 036-A0200-090 9PIN WAFER P=2.0mm 036-B0260-160 16PIN WAFER P=2.6mm 036-D0125-250 25PIN CONNECTOR PITCH P=1.25mm 036-F0100-160...
  • Page 7 ITEM CODE DESCRIPTION SYMBOL 011-B222A-200 0603 RES +-5% 2.2K OHM 2 R177.175 011-B331A-200 0603 RES +-5% 330 OHM 2 R173.170 011-B332A-200 0603 RES +-5% 3.3K OHM 2 R183.178 011-B471A-200 0603 RES +-5% 470 OHM 2 R172.174 011-B472A-200 0603 RES +-5% 4.7K OHM 4 R187.1.186.184 011-B561A-200 0603 RES +-5%...
  • Page 8 ITEM CODE DESCRIPTION SYMBOL 004-SR23G-000 PHOTO DIODE SR-23G 2 SQ2.1 006-16934-000 RESONATOR 16.9344MHz 3PIN 1 X2 011-B102A-200 RES CHIP ±5% 0603 1K OHM 8 R42.57.22.37.34.27.21.12 011-B103A-200 RES CHIP ±5% 0603 10K OHM 7 R1.2.44.39.53.54.45 011-B104A-200 RES CHIP ±5% 0603 100K OHM 6 R55.56.10.11.52.51 011-B105A-200 RES CHIP ±5% 0603 1M OHM...
  • Page 9 ITEM CODE DESCRIPTION SYMBOL 014-B030C-500 CER CAP CHIP ±10% 3PF 50V 0603 1 C35 014-B102C-500 CER CAP CHIP ±10% 0.001uF 50V 0603 2 C62.27 014-B103C-500 CER CAP CHIP ±10% 0.01uF 50V 0603 8 C29.15.23.2.36.44.43.17 C68.75.31.24.25.26.28.14.12.9.6 014-B104C-600 CER CAP CHIP ±20% 0.1uF 50V 0603 .65.64.63.61.38.58.66.69.19 014-B152C-500 CER CAP CHIP ±10% 0.0015uF 50V 0603 4 C16.50.49.32...
  • Page 10 ITEM CODE DESCRIPTION SYMBOL 212-52100-05P PLATE WASHER 5.2x10x0.5mm 212-65097-05F FLAT-WASHER-C 1 FIBER T-0.5 218 214-DECK0-A00 CD FIBER 105x95x0.5mm 1 FOR CD KMC DECK 216-7803H-C00 HEAT-SINK 1 AL DIE CASTING BLACK 216-3896B-C00 HEAT SINK-S 1 AL WHITE 217-1001E-E12 MOUNTING STRIP 1 EG1 T=1.2 217-3896F-E08 SWITCH-BRACKET-F 1 EGI T=0.8mm 217-3896R-E08 SWITCH-BRACKET-R...
  • Page 11 ITEM CODE DESCRIPTION SYMBOL 223-3896D-A10 RELEASE CHASSIS (D.H) 1 45# 钢板 T=1.0mm 223-3896E-A10 MAIN RELEASE-BRACKET (D.HNI) 1 45# 钢板 T=1.0mm D.H NI 223-3896F-A10 RELEASE-BRACKET-L (D.HNI) 1 45# 钢板 T=1.0mm D.H NI 223-3896G-A10 RELEASE-BRACKET-R (D.HNI) 1 45# 钢板 T=1.0mm D.H NI 225-08008-400 RUBBER CUSHION 8x8x4mm 3 RUBBER...
  • Page 12 ITEM CODE DESCRIPTION SYMBOL 234-PT026-050 SCREW TTP 2.6x5 PM WHITE 4 deck-brkt+bottom cover:4 antenna-clamper+main-brkt.r:1 main.bracket+bottom.cover:4 main.bracket®+bottom.cover:2 bottom-cover+main-pcb:1HEAT SINK:2 234-PT026-060 SCREW TTP 2.6x6 PM WHITE bottom-cover+main-pcb:1 TRANS FOR MER BOX:1 234-PT026-080 SCREW TTP 2.6x8 PM WHITE HEAT SINK:2 234-PB030-080 SCREW PB 3x8 WHITE 1 AV4-8.4 234-PT030-050 SCREW TTP 3x5 TAP TYPE (C) WHITE 1 ANTENNA+MAIN-BKT-R:1...
  • Page 13 ITEM CODE DESCRIPTION SYMBOL 402-7803S-4BK NOSE PIECE CASE 1 PP BLACK 402-3896A-3BK BASE PANEL 1 PC BLACK 402-7802B-1BK NOSE-PIECE 1 ABS BLACK 402-7802C-1BK NOSE-PIECE-BACK 1 ABS BLACK 413-7802A-2CR WINDOW 1 ACRYL CLEAR 413-7802D-2CR SENSOR-LENS 1 ACRYL CLEAR 414-3896C-2CR CD-GUIDE-REFLECTOR 1 Acryl CLEAR 414-7802A-1CR REFLECTOR-CIRCLE 1 ABS CLEAR 414-7802B-1CR REFLECTOR-RIGHT...
