Summary of Contents for HIKVISION DS-2TD2 Series

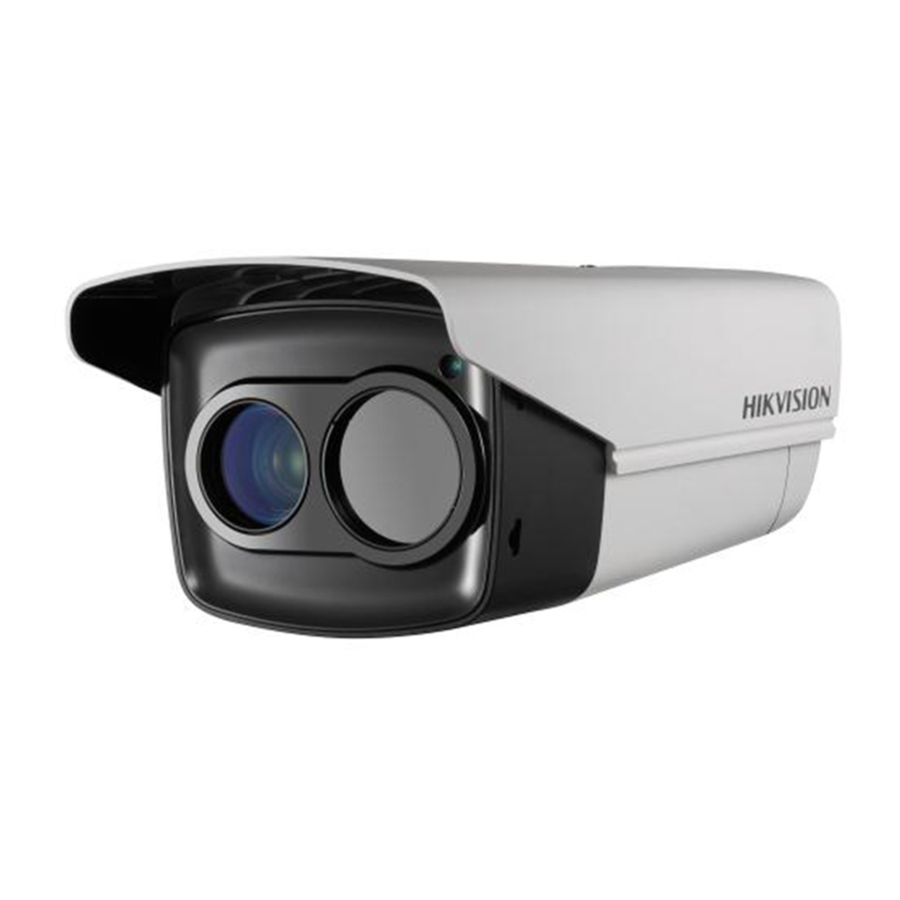

- Page 1 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual...
- Page 2 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Legal Information About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could result in death or Danger serious injury.
- Page 4 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Maintenance If the product does not work properly, please contact your dealer or the nearest service center. We • shall not assume any responsibility for problems caused by unauthorized repair or maintenance. A few device components (e.g., electrolytic capacitor) require regular replacement.
-
Page 5: Table Of Contents
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Contents Chapter 1 Overview ............................10 1.1 Brief Description ............................10 1.2 Function ................................. 10 Chapter 2 Device Activation and Accessing ....................11 2.1 Activate the Device via SADP ......................... 11 2.2 Activate the Device via Browser ........................ - Page 6 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 5.6 Set Global Size Filter ............................27 Chapter 6 Event and Alarm ..........................28 6.1 Set Motion Detection ............................. 28 6.1.1 Normal Mode ............................28 6.1.2 Expert Mode ............................29 6.2 Set Video Tampering Alarm ..........................30 6.3 Set Alarm Input ...............................
- Page 7 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 9 Video and Audio ..........................41 9.1 Video Settings ..............................41 9.1.1 Stream Type ............................41 9.1.2 Video Type ............................41 9.1.3 Resolution ............................41 9.1.4 Bitrate Type and Max. Bitrate ......................41 9.1.5 Video Quality ............................
- Page 8 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 9.4 Set Privacy Mask ............................50 9.5 Overlay Picture ............................... 50 9.6 Set Manual DPC (Defective Pixel Correction) ....................51 9.7 Set Picture-in-Picture ........................... 51 Chapter 10 Video Recording and Picture Capture ..................52 10.1 Storage Settings ............................
- Page 9 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 11.11 Set HTTP Listening ............................. 63 Chapter 12 System and Security ........................64 12.1 View Device Information ..........................64 12.2 Search and Manage Log ..........................64 12.3 Import and Export Configuration File ......................64 12.4 Export Diagnose Information ........................
-
Page 10: Chapter 1 Overview
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 1 Overview 1.1 Brief Description Thermal and Optical Bi-Spectrum Network Camera equipped with built-in GPU, which supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and real-time alarms. It is applied to perimeter defense and fire-prevention purposes in critical infrastructures such as community, villa, construction site, factory, automotive dealerships, etc. -
Page 11: Chapter 2 Device Activation And Accessing
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 2 Device Activation and Accessing To protect the security and privacy of the user account and data, set a login password to activate the device when accessing the device via a network. Refer to the software client user manual for detailed information about client software activation. -
Page 12: Login
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 4. Set device activation password. STRONG PASSWORD RECOMMENDED − We highly recommend that you create a strong password of your own choosing (using a minimum of eight characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. -
Page 13: Chapter 3 Temperature Measurement
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 3 Temperature Measurement When you enable this function, the device measures the actual temperature of the scene. It alarms when the temperature exceeds the temperature threshold value. 3.1 Notice This part introduces the notices of configuring temperature measurement function. The target surface should be as vertical to the optical axis as possible. -
Page 14: Automatic Thermography
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Figure 1, Thermography Configuration Flow Chart Quick Start Guide Refer to the for detailed installation information. 3.3 Automatic Thermography Configure the temperature measurement parameters and temperature measurement rules. The device can measure the actual temperature and output alarms when the temperature exceeds the alarm threshold value. - Page 15 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 1) Display Temperature Info. 2) Select Yes to display temperature information on live view. 3) Enable Rules to display the rules information on live view. 2. Click Save. 3. Go to Configuration → Temperature Measurement → Basic Settings to configure parameters. Enable Temperature Measurement: Check to enable temperature measurement function.
-
Page 16: Set Normal Mode
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 3.3.2 Set Normal Mode This function is used to measure the temperature of the whole scene and alarm. 1. Go toConfiguration → Temperature Measurement → Basic Settings, and check Enable Temperature Measurement. -
Page 17: Set Thermography Rule
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 6. See Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for setting linkage method. 7. Click Save. The maximum temperature and thermography rules will be displayed on live view. Go to Image →... -
Page 18: Point Thermography
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual threshold, it triggers the pre-alarm or alarm output of the connected device. Area’s Temperature Comparison: Select two areas and set the comparison rule, and set the • temperature difference threshold. The device alarms when the temperature difference meets the set value. -
Page 19: Manual Thermography
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 2. Click 3. Drag the mouse in live view to draw the area. Drag the corners of the red rectangle area to change its shape and size. 4. Right click the mouse to stop drawing. 5. -
Page 20: Chapter 4 Fire Source Detection
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 4 Fire Source Detection The device will trigger and upload an alarm when it detects a fire source or smoking. Fire source detection includes fire source detection and smoking detection. It is applied to fire- prevention purposes in scenic region, forest, tunnels, etc. - Page 21 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual will be detected (false rate is higher). When VCA Resource Type is selected as Temperature Measurement+Behavior Analysis, only smoking detection is supported. When VCA Resource Type is selected as Temperature Measurement+Fire Detection, both detection modes are supported. 6.
-
Page 22: Chapter 5 Behavior Analysis
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 5 Behavior Analysis The behavior analysis function is used to detect if a target breaks the VCA rules. The optical camera will track the target or the device and will alarm when the VCA rule is triggered. 5.1 Flow Chart of Behavior Analysis The process of configuraing the behavior analysis function is decribed below. -
Page 23: Calibration
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual occurs. You can also set the picture quality and resolution separately. 2. Click Save. 3. Go to Configuration → Local, check Enable rules to display rules information on the live view. 5.3 Calibration 5.3.1 Calibrate Automatically Before You Start... -
Page 24: Calibrate Manually
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 5.3.2 Calibrate Manually 1. Go to Configuration → VCA → Camera Calibration. 2. Check Manual Calibration. 3. Click Fig 1. Click and drag the vertical line until it fits the target. 4. -
Page 25: Set Rules
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 5.4 Set Rules The device can detect if a target breaks a VCA rule. The optical camera will track the target or the device will alarm when the VCA rule is triggered. 1. -
Page 26: Advanced Configuration
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 6. Check to enable Filter by Pixel. Then draw max size and min size rectangles to filter the target among human, vehicle, animal, and others. Only targets whose size is between the Max. Size and Min. Size values will trigger the alarm. -
Page 27: Set Global Size Filter
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Restore Default: Click Restore to restore the parameters to the defaults. • Restart VCA: Click Restart to restart the VCA function. • 5.6 Set Global Size Filter Targets larger or smaller than the set size range are filtered out. The setting is valid for all behavior analysis rules. -
Page 28: Chapter 6 Event And Alarm
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 6 Event and Alarm This section introduces event configurations. The device reequires certain responses to triggered alarms. 6.1 Set Motion Detection It helps to detect moving objects in the detection region and trigger linkage actions. 1. -
Page 29: Expert Mode
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Figure 3, Set Rules 4. (Optional): Set the parameters for multiple areas by repeating the above steps. 6.1.2 Expert Mode You can configure the motion detection parameters of the day/night switch according to actual needs. 1. -
Page 30: Set Video Tampering Alarm
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Figure 4, Set Rules 4. (Optional): Repeat the above steps to set multiple areas. 6.2 Set Video Tampering Alarm When the configured area is covered and cannot be monitored normally, the alarm is triggered and the device takes certain alarm response actions. -
Page 31: Set Alarm Input
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Figure 5, Set Video Tampering Area 6. See Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for setting linkage method. 7. Click Save. 6.3 Set Alarm Input Alarm signal from an external device triggers corresponding actions of the current device. -
Page 32: Set Exception Alarm
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 6.4 Set Exception Alarm Exceptions such as network disconnection can trigger the device to take corresponding action. 1. Go to Configuration → Event → Basic Event → Exception. 2. Select Exception Type. HDD Full: The HDD storage is full. -
Page 33: Chapter 7 Arming Schedule And Alarm Linkage
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 7 Arming Schedule and Alarm Linkage Arming Schedule is a customized time period during which the device performs certain tasks. Alarm linkage is the response to a detected incident or target during the scheduled time. 7.1 Set Arming Schedule Set the valid time of the device tasks. -
Page 34: Ftp/Nas/Memory Card Uploading
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual external alarm device. Alarm Name: Customize a name for the alarm output. • Delay: Select Manual. • 2. Click Manual Alarm to enable manual alarm output. 3. (Optional): Click Clear Alarm to disable manual alarm output. Automatic Alarm Set the automatic alarm parameters, then the device will trigger an alarm output automatically in the set arming schedule. -
Page 35: Notify Surveillance Center
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual TCP/IP for DNS settings. 1. Go to the e-mail settings page: Configuration → Network → Advanced Settings → Email. 2. Set e-mail parameters. 1) Input the sender’s e-mail information, including the Sender's Address, SMTP Server, and SMTP Port. 2) (Optional): If your e-mail server requires authentication, check Authentication and input your user name and password to log in to the server. -
Page 36: Set Flashing Alarm Light Output
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 1. Go to the setting page: Configuration → Event → Basic Event → Audible Alarm Output. 2. Select desired alarm sound type and alarm times. 3. Set arming schedule for audible alarm. See Set Arming Schedule 4. -
Page 37: Chapter 8 Live View
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 8 Live View Introduction to live view parameters, function icons, and transmission parameters settings. 8.1 Live View Parameters For multichannel devices, select the desired channel first before live view settings. 8.1.1 Window Division refers to 1 ×... -
Page 38: Light
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 1. Click to start full screen mode. 2. Press ESC button to exit. 8.1.7 Light 1. Click to turn on or turn off the illuminator. 8.1.8 Wiper For devices that have a wiper, you can control the wiper via a Web browser. 1. -
Page 39: Set Transmission Parameters
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Click , and the lens zooms out. Focus • Click , then the lens focuses far and the distant object gets clear. Click , then the lens focuses near and the nearby object gets clear. PTZ Speed •... - Page 40 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Custom: You can set the frame rate manually. In a poor network environment, you can reduce the frame rate to get a fluent live view. But the rule information may cannot display. Auto Start Live View •...
-
Page 41: Chapter 9 Video And Audio
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 9 Video and Audio This section addresses video and audio related parameter configuration. 9.1 Video Settings Setting video parameters such as stream type, video encoding, and resolution. 1. Go to setting page: Configuration → Video/Audio → Video. For devices with multiple camera channels, select a channel before other settings. -
Page 42: Video Quality
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 9.1.5 Video Quality When the Bitrate Type is set as Variable, video quality is configurable. Select a video quality according to actual needs. Note that higher video quality requires higher bandwidth. 9.1.6 Frame Rate The frame rate describes the frequency at which the video stream is updated and is measured in frames per second (fps). -
Page 43: Smoothing
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual to decode high quality video stream. 9.1.8 Smoothing Refers to the stream smoothness. The higher the smoothing value, the better the stream fluency, though the video quality may not be so satisfactory. The lower the smoothing value, the higher quality of the stream, though it may appear less fluent. -
Page 44: Set Roi
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 1. Click Live View. 2. Click on the toolbar to enable two-way audio function of the camera. 3. Click and select , then move the slider to adjust the volume. 4. Click to disable the two-way audio function. -
Page 45: Image Adjustment
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 2. Click Default to restore settings. 9.2.1 Image Adjustment By adjusting the Brightness, Saturation, Contrast and Sharpness, the image can be best displayed. 9.2.2 Image Adjustment (Thermal Channel) You can optimize the image display effect of the thermal channel by setting background correction and manual correction. -
Page 46: Set Supplement Light
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Day/Night Switch function varies by model. 9.2.5 Set Supplement Light 1. Go to Configuration → Maintenance → System Service. 2. Check Enable Supplement Light. 3. Click Save. 4. Go to Configuration → Image → Display Settings → Day/Night Switch to set supplement light parameters. Smart Supplement Light: Uses smart image processing technology to reduce overexposure caused •... -
Page 47: Dnr
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 9.2.9 DNR Digital Noise Reduction reduces the image noise and improves the image quality. Normal and Expert modes are selectable. Normal: Sets the DNR level to control the noise reduction degree. A higher level means stronger •... - Page 48 DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Figure 6, Set the Target’s Temperature and Color Above (be colored): When a high temperature target needs to be colored, set the high • temperature color. Targets above the setting temperature will be displayed in the setting color. Between (be colored): When an interval temperature target needs to be colored, set the •...
-
Page 49: Dde
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 9.2.13 DDE Digital Detail Enhancement adjusts the image details. OFF and Normal modes are selectable. OFF: Disable this function. • Normal: Set the DDE level to control the details of the image. The higher the level, the more details •... -
Page 50: Set Privacy Mask
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual You can customize OSD (On-Screen Display) information such as device name, time/date, font, color, and text overlay displayed on the video stream. 1. Go to OSD setting page: Configuration → Image → OSD Settings. Set the corresponding parameters, and click Save to take effect. -
Page 51: Set Manual Dpc (Defective Pixel Correction)
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 4. Check Enable Picture Overlay. 5. Drag the picture to adjust its position. 6. Click Save. 9.6 Set Manual DPC (Defective Pixel Correction) If the amount of defective pixels in the image is comparatively small and accurate correction is needed, you can correct these pixels manually. -
Page 52: Chapter 10 Video Recording And Picture Capture
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 10 Video Recording and Picture Capture This section introduces capturing video clips and snapshots, playback, and downloading captured files. 10.1 Storage Settings This part introduces the configuration of several common storage paths. 10.1.1 Set Memory Card If you choose to store the files to a memory card, insert and format the memory card in advance. -
Page 53: Set Cloud Storage
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Before You Start Get the FTP server address. 1. Go to Configuration → Network → Advanced Settings → FTP. 2. Configure FTP settings. Server Address and Port: The FTP server address and corresponding port. •... -
Page 54: Record Automatically
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual This section introduces manual and scheduled recording, playback, and downloading recorded files. 10.2.1 Record Automatically This function can record video automatically during configured time periods. Before You Start Select Trigger Recording in event settings for each record type except Continuous. See Event and Alarm. 1. -
Page 55: Record Manually
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 7. Click Save. 10.2.2 Record Manually 1. Go to Configuration → Local. 2. Set the Record File Size and saving path to for recorded files. 3. Click Save. 4. Click to start recording. Click to stop recording. -
Page 56: Capture Automatically
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 10.3.1 Capture Automatically This function can capture pictures automatically during configured time periods. Before You Start If event-triggered capture is required, configure related linkage methods in event settings. See Event and Alarm for settings. -
Page 57: Chapter 11 Network Settings
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 11 Network Settings 11.1 TCP/IP TCP/IP settings must be properly configured before operating the device over a network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting with each other. 1. -
Page 58: Port
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 11.2 Port The device port can be modified when the device cannot access the network due to port conflicts. CAUTION: Do not modify the default port parameters at will, otherwise the device may be unaccessible. -
Page 59: Multicast
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 3. Click Save. What To Do Next Go to the router port mapping settings interface and set the port number and IP address to be the same as those on the device. For more information, refer to the router user manual. 11.4 Multicast Multicast is group communication protocol where data transmission is addressed to a group of destination devices simultaneously. -
Page 60: Access To Device Via Pppoe Dial Up Connection
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Registration on the DDNS server is required before configuring the DDNS settings of the device. 1. Refer to TCP/IP to set DNS parameters. 2. Go to the DDNS settings page: Configuration → Network → Basic Settings → DDNS. 3. -
Page 61: Enable Guarding Vision Service On Camera
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the camera. To solve the inconvenience of a dynamic IP, get a domain name from a DDNS provider (e.g., DynDns.com). See Access to Device via Domain Name for detailed information. -
Page 62: Access Camera Via Guarding Vision
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 5. Click and read “Terms of Service” and “Privacy Policy.” 6. Confirm the settings. 11.8.3 Access Camera via Guarding Vision Guarding Vision is an application for mobile devices. Using the App, you can view live image, receive alarm notification, etc. -
Page 63: Set Http Listening
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Delete: Delete the selected ONVIF user. • Modify: Modify the selected ONVIF user. • 4. Click Save. 5. (Optional): Repeat the steps above to add more ONVIF users. 11.11 Set HTTP Listening The device can send alarms to destination IP or host name through HTTP protocol. -
Page 64: Chapter 12 System And Security
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 12 System and Security This section introduces system maintenance, system settings and security management, and explains how to configure relevant parameters. 12.1 View Device Information You can view device information such as Device No., Model, Serial No., and Firmware Version. 1. -
Page 65: Reboot
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 12.5 Reboot You can reboot the device via a Web browser. 1. Go to Configuration → System → Maintenance → Upgrade & Maintenance, and click Reboot. 12.6 Restore and Default Restore and Default helps restore the device parameters to the default settings. 1. -
Page 66: Time And Date
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 12.9 Time and Date You can configure the device time and date f by configuring the time zone, time synchronization, and Daylight Saving Time (DST). 12.9.1 Synchronize Time Manually 1. Go to Configuration → System → System Settings → Time Settings. 2. -
Page 67: Set Rs-232
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 4. Click Save. 12.10 Set RS-232 RS-232 can be used to debug the device or access a peripheral device. RS-232 can realize communication between the device and computer or terminal when the communication distance is short. Before You Start Connect the device to the computer or terminal with an RS-232 cable. -
Page 68: Authentication
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 12.13.1 Authentication You can improve network access security by setting RTSP and Web authentication. 1. Go to Configuration → System → Security → Authentication to choose the authentication protocol and method according to your needs. RTSP Authentication: Digest and digest/basic are supported, which means authentication •... -
Page 69: Set Ip Address Filter
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 4. (Optional): Click Export to save the log files to your computer. 12.13.3 Set IP Address Filter IP address filter is a tool for access control. You can enable the IP address filter to allow or forbid visits from certain IP addresses. -
Page 70: Set Qos
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Install Authorized Certificate Create certificate request and install certificate: Refer to • 4. Click Save. Create and Install Self-signed Certificate 1. Check Create Self-signed Certificate. 2. Click Create. 3. Follow the prompt to enter Country, Hostname/IP, Validity, and other parameters. 4. -
Page 71: Set Ieee 802.1X
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual 3. Click Save. 12.13.7 Set IEEE 802.1X You can authenticate user permission of the connected device by setting IEEE 802.1X. 1. Go to Configuration → Network → Advanced Settings → 802.1X and enabling the function. Select protocol and version according to router information. -
Page 72: Chapter 13 Appendix
DS-2TD2xxx-xxxx/xx Thermal and Optical Bi-Spectrum Network Camera User Manual Chapter 13 Appendix 13.1 Common Material Emissivity Reference Material Emissivity Human Skin 0.98 Printed Curcuit Board 0.91 Concrete 0.95 Ceramic 0.92 Rubber 0.95 Paint 0.93 Wood 0.85 Pitch 0.96 Brick 0.95 Sand 0.90 Soil...
