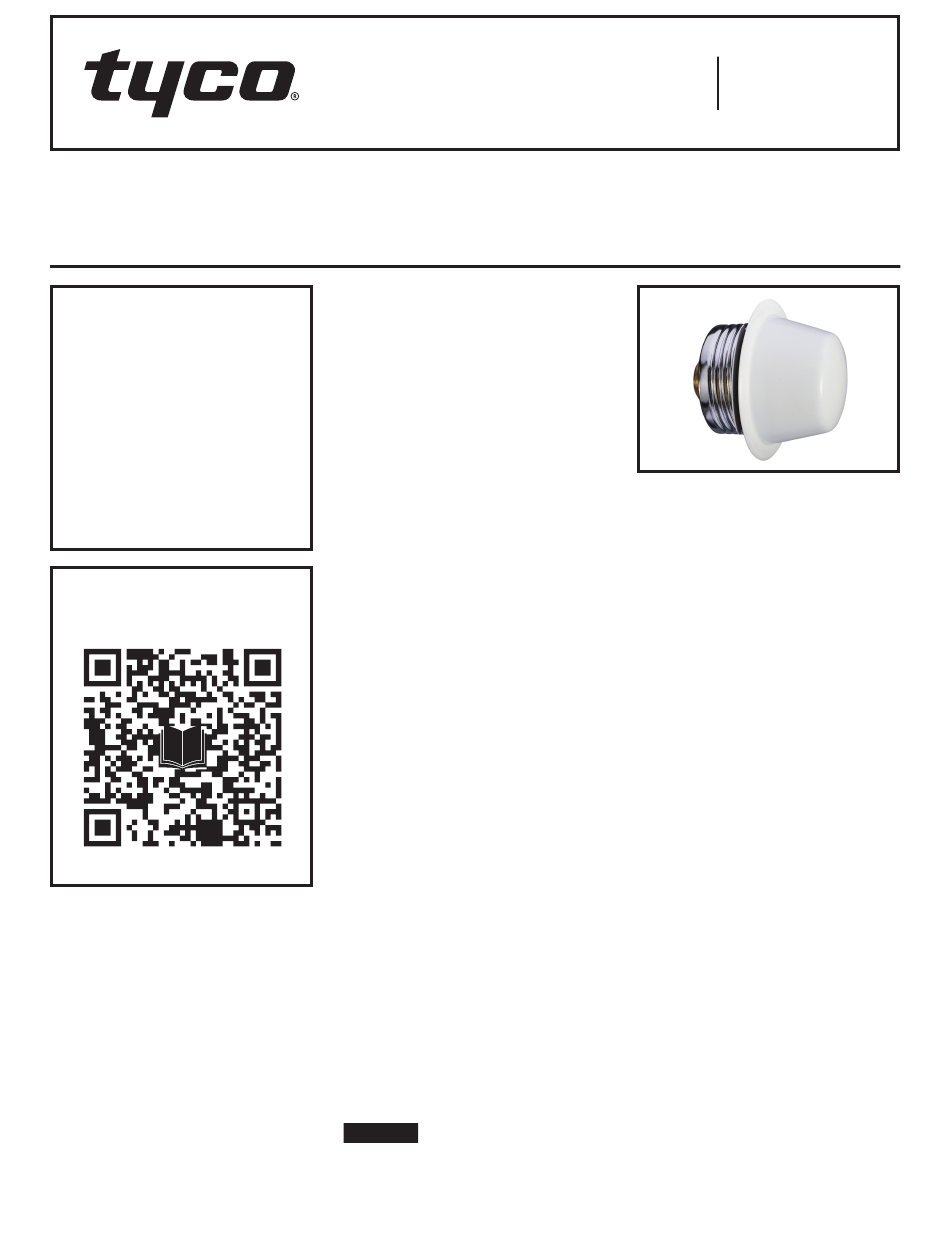

Model CHEC—8.0 K-factor
Concealed Horizontal Extended Coverage
Quick Response Light Hazard, Sidewall Sprinklers
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/tfp265
General
Description
The TYCO Model CHEC 8.0 K-factor,
Concealed Horizontal Extended Cov-
erage Quick Response Light Hazard,
Sidewall Sprinklers are decorative,
3 mm bulb type sprinklers featuring a
unique cover plate designed to conceal
the sprinkler. It is the best choice for
architecturally sensitive areas such as
dormitories, hotel rooms, reception
areas, office buildings, banquet facili-
ties, conference rooms, and hospitals.
The soft contour of the cover plate opti-
mizes a low profile while blending in
with surrounding surfaces. The plate,
while maintaining a fast response sen-
Page 1 of 4
sitivity has been specifically designed
without vent holes to increase its aes-
thetic appeal while helping to avoid
objects from being hung from the sprin-
kler, such as garment bags and clothes
hangers, that might otherwise cause an
inadvertent operation.
They are designed for installation
along a wall or the side of a beam and
beneath a smooth and level ceiling.
Horizontal sidewall sprinklers are com-
monly used in lieu of pendent or upright
sprinklers because of aesthetics or
building construction considerations
where piping across the ceiling is not
desirable.
They are intended for use in automatic
sprinkler systems designed in accor-
dance with standard installation rules
such as NFPA 13 and for light hazard
occupancies. The fast response
thermal sensitivity rating of the sprin-
klers provides for a quick response
extended coverage rating up to a 16 ft
x 16 ft coverage area.
Each unit includes a cover plate assem-
bly that conceals the sprinkler oper-
ating components. The separable
two-piece design of the cover plate and
support cup assemblies allows instal-
lation of the sprinklers and pressure
testing of the fire protection system
prior to the installation of the wall or
application of a finish coating.
Also, the separable "push-on and
thread-off" two-piece design of the
sprinkler provides for 1/2 in. (12,7 mm)
of horizontal adjustment.
The sprinklers are shipped with a pro-
tective cap. The protective cap is tem-
porarily removed for installation, and it
must be replaced to help protect the
sprinkler while the wall is being plas-
tered, wallpapered, or painted. When
the wall installation is complete the
protective cap must be removed and
the cover plate assembly installed.
The protective cap must be removed
to ensure proper performance of the
sprinklers.
NOTICE
The TYCO Model CHEC 8.0 K-factor,
Concealed Horizontal Extended Cov-
erage Quick Response Light Hazard,
Sidewall Sprinklers described herein
AUGUST 2022
Worldwide
www.tyco-fire.com
Contacts
must be installed and maintained in
compliance with this document and
with the applicable standards of the
National Fire Protection Association
(NFPA), in addition to the standards
of any authorities having jurisdiction.
Failure to do so may impair the perfor-
mance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number
TY4332
Technical
Data

Approvals

UL and C-UL Listed
NYC Approved under MEA 177-03-E
Note: The listings apply only to the service
conditions indicated in the Design Criteria
section.
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
½
K=8.0 GPM/psi
(115,2 LPM/bar
Temperature Rating
155°F (68°C) Sprinkler with
139°F (59°C) Cover Plate
Horizontal Adjustment
1/2 in. (12,7 mm)
½
)
TFP265
