Disposal of the Unit

Note: This symbol mark is for EU countries only.
This symbol mark is according to the directive 2012/19/EU Article 14 Information for users and Annex IX, and/
or to the directive 2006/66/EC Article 20 Information for end-users and Annex II.
Your Mitsubishi Electric heating system products have been manufactured with high quality materials and components
which can be recycled and/or reused. The symbol in Figure 1.1 means that electrical and electronic equipment, batter-
ies and accumulators at the end of their life, should be disposed of separately from your household waste.
If a chemical symbol is printed beneath the symbol (Figure 1.1), this chemical symbol means that the battery or accu-
mulator contains a heavy metal at a certain concentration. This is indicated as follows;
Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used electrical and electronic products, batteries and
accumulators.
<Figure 1.1>
Please dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recy-
cling centre.
Contact your local Mitsubishi Electric dealer for country-specific details on disposal.
Please, help us to conserve the environment we live in.

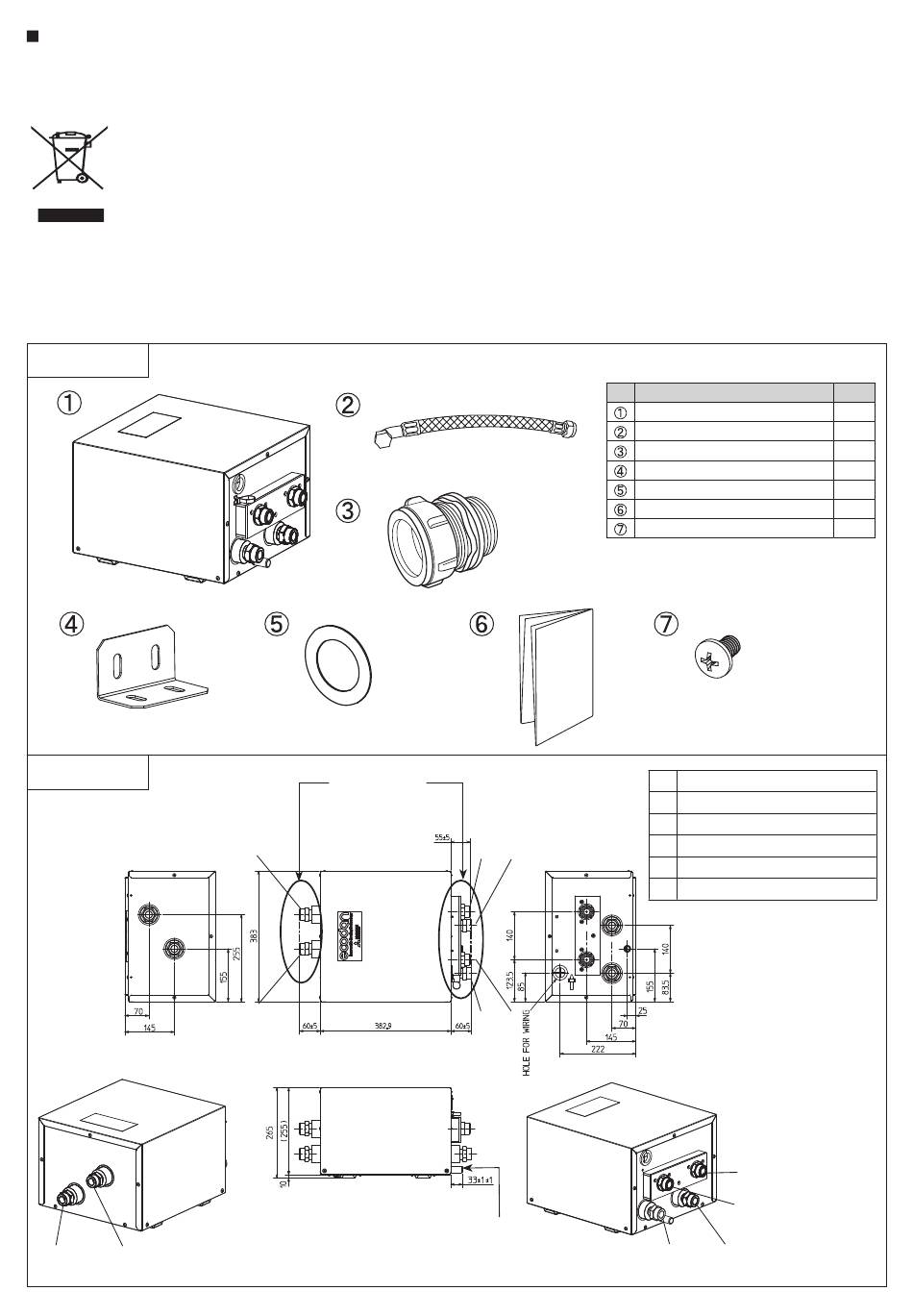

Contents
Outline
B
A
2
G1 connection
B
A
2 zone kit
Flexible hose (520mm)
Conversion joint (Φ 28 → G1)
Fixing plate
Gasket
Installation manual
Screw (M5×8)
Unit: mm
F E
C D
Drain socket
(Size: Φ18.5)
Item
A From Cylinder unit (Hydrobox)
B To Cylinder unit (Hydrobox)
C From Zone1
D To Zone1
E From Zone2
F To Zone2
F
D
E
C
Q'ty
1
2
2
2
4
1
2
