Rigid Industries 46572 Installation Instructions

yamaha
2016-2017 yamaha
Installation Instructions
kit includes
(1) Mount #46572
Important
Thank you for purchasing Rigid Industries® products for your Yamaha®. Installation is fairly simple
with the right tools and good mechanical abilities. If you are not confident in your mechanical skills,
please seek the help of a professional to perform the installation. Please read through all of these
instructions and tips before proceeding with the installation. It is strongly recommended that this
product be installed by a professional.
step 1
Install Rigid Industries A-Series light
to mount using (2) M6x14mm long SS
pan head bolts and (2) M6 SS Nyloc
nuts. See Figure 1.
Figure 1

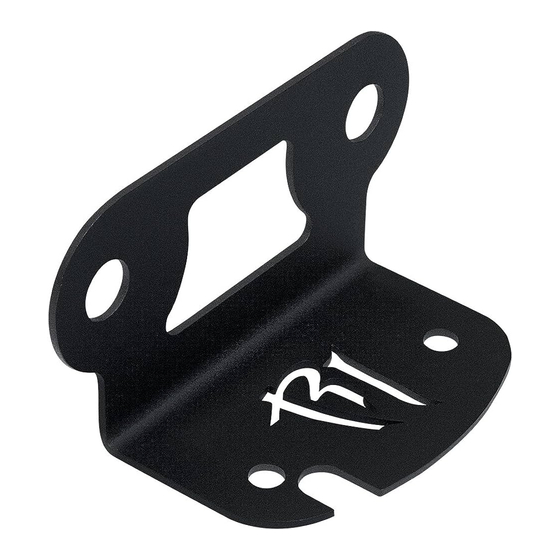

Dome Light Mount
Fits (1) A-Series
*Lights Sold Separately
(2) M6 SS Nyloc Nuts
yxz
® ®
yxz
®
®
(2) M6 x 14mm long SS Pan Head Bolts
step 2
Remove (2) factory bolts under the roof
on the T-Bar and re-install bolts through
Rigid Industries dome light mount.
See Figure 2.
Figure 2
®
