chevrolet grille

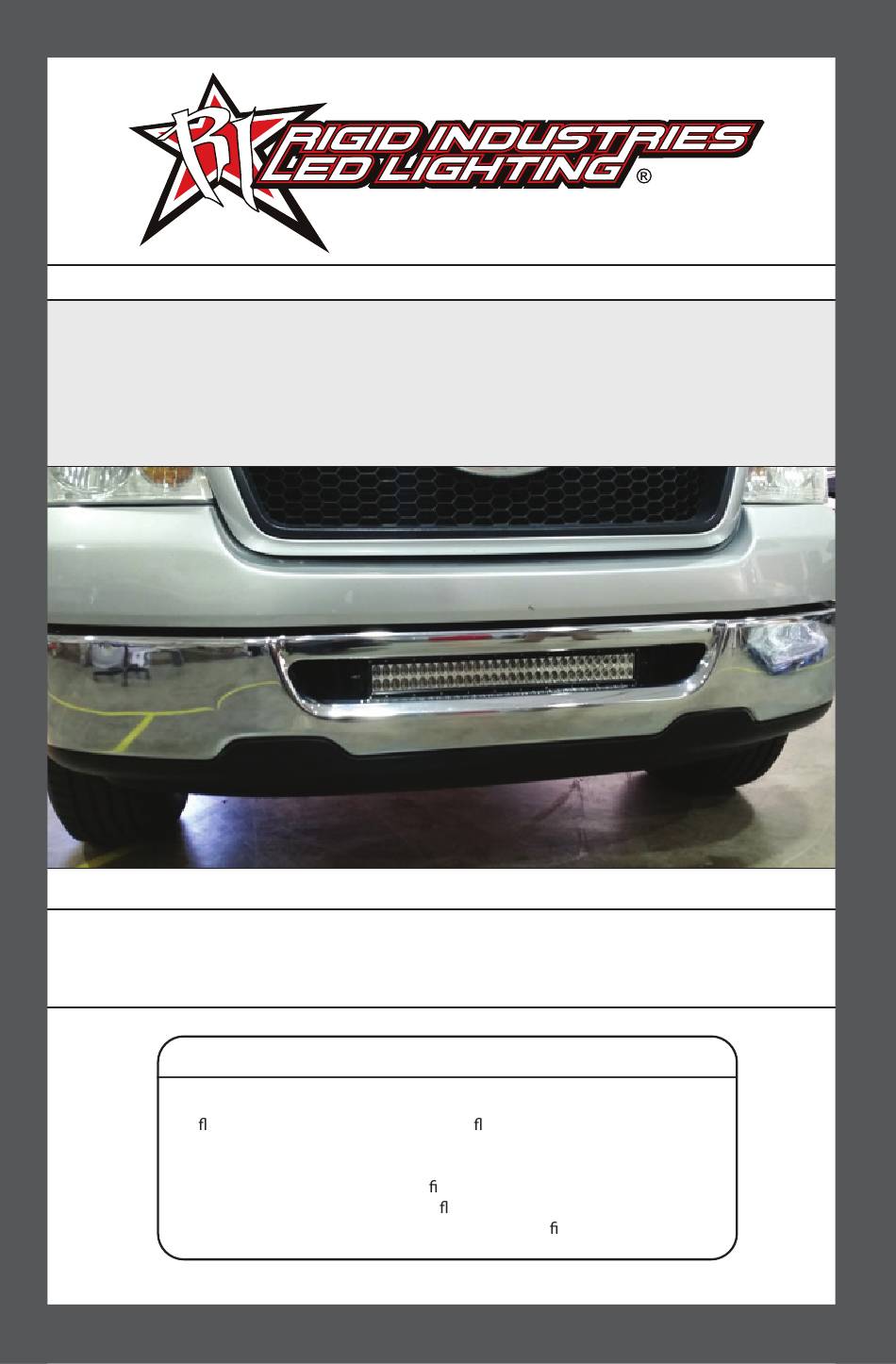

installation instructions
(2) Left & Right Mounts - #46519
(2) 5/16 x 18 x 1'' Bolt
important
This product has more surface area than your factory grille. It may reduce
air ow into your vehicle. Reduction in air ow can potentially lead to
overheating issues.
This product has been pre-bent to t the contour of your vehicle grille
shell. However, it may have partially attened during shipping. It may be
necessary for you to re-bend in order to get a good t.
2004-2008 Ford®
bumper mount
fits (1) 20" e-Series
or (1) 20" SR-Series
*Lights sold Separately
kit includes
Professional Installation Recommended
(2) 5/16 Nyloc Nut
(4) 5/16 x 3/4 Flat Metal Washers
