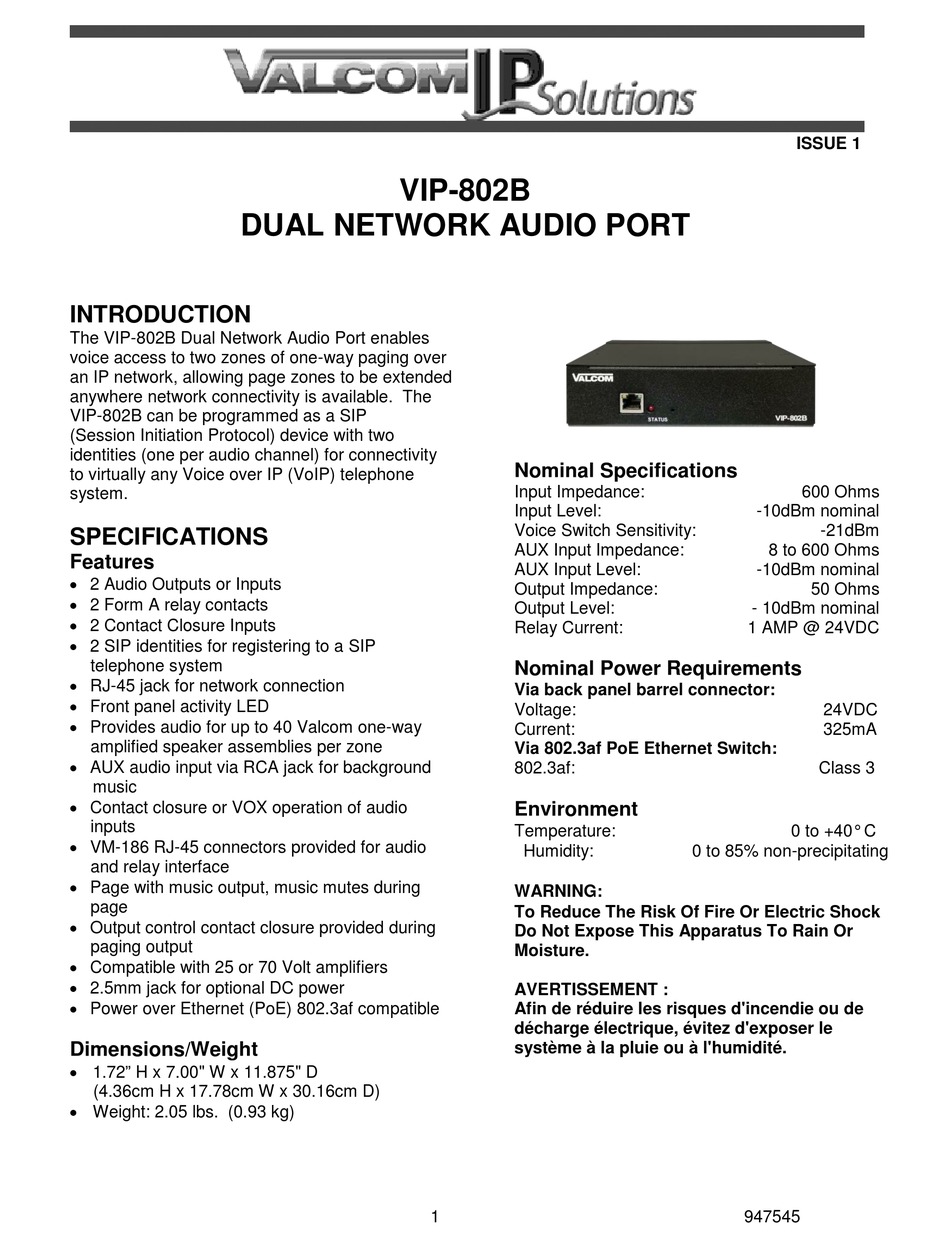

DUAL NETWORK AUDIO PORT
INTRODUCTION

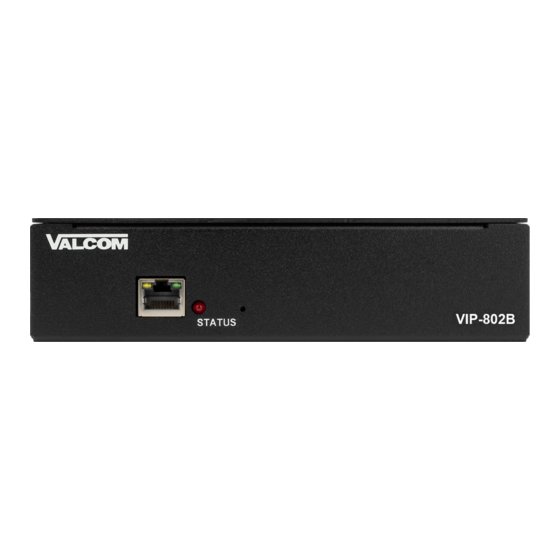

The VIP-802B Dual Network Audio Port enables
voice access to two zones of one-way paging over
an IP network, allowing page zones to be extended
anywhere network connectivity is available. The
VIP-802B can be programmed as a SIP
(Session Initiation Protocol) device with two
identities (one per audio channel) for connectivity
to virtually any Voice over IP (VoIP) telephone
system.
SPECIFICATIONS
Features
 2 Audio Outputs or Inputs
 2 Form A relay contacts
 2 Contact Closure Inputs
 2 SIP identities for registering to a SIP
telephone system
 RJ-45 jack for network connection
 Front panel activity LED
 Provides audio for up to 40 Valcom one-way
amplified speaker assemblies per zone
 AUX audio input via RCA jack for background
music
 Contact closure or VOX operation of audio
inputs
 VM-186 RJ-45 connectors provided for audio
and relay interface
 Page with music output, music mutes during
page
 Output control contact closure provided during
paging output
 Compatible with 25 or 70 Volt amplifiers
 2.5mm jack for optional DC power
 Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
 1.72" H x 7.00" W x 11.875" D
(4.36cm H x 17.78cm W x 30.16cm D)
 Weight: 2.05 lbs. (0.93 kg)
VIP-802B
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
AUX Input Impedance:
AUX Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity:
WARNING:
To Reduce The Risk Of Fire Or Electric Shock
Do Not Expose This Apparatus To Rain Or
Moisture.
AVERTISSEMENT :
Afin de réduire les risques d'incendie ou de
décharge électrique, évitez d'exposer le
système à la pluie ou à l'humidité.
1
ISSUE 1
600 Ohms
-10dBm nominal
-21dBm
8 to 600 Ohms
-10dBm nominal
50 Ohms
- 10dBm nominal
1 AMP @ 24VDC
24VDC
325mA
Class 3
0 to +40° C
0 to 85% non-precipitating
