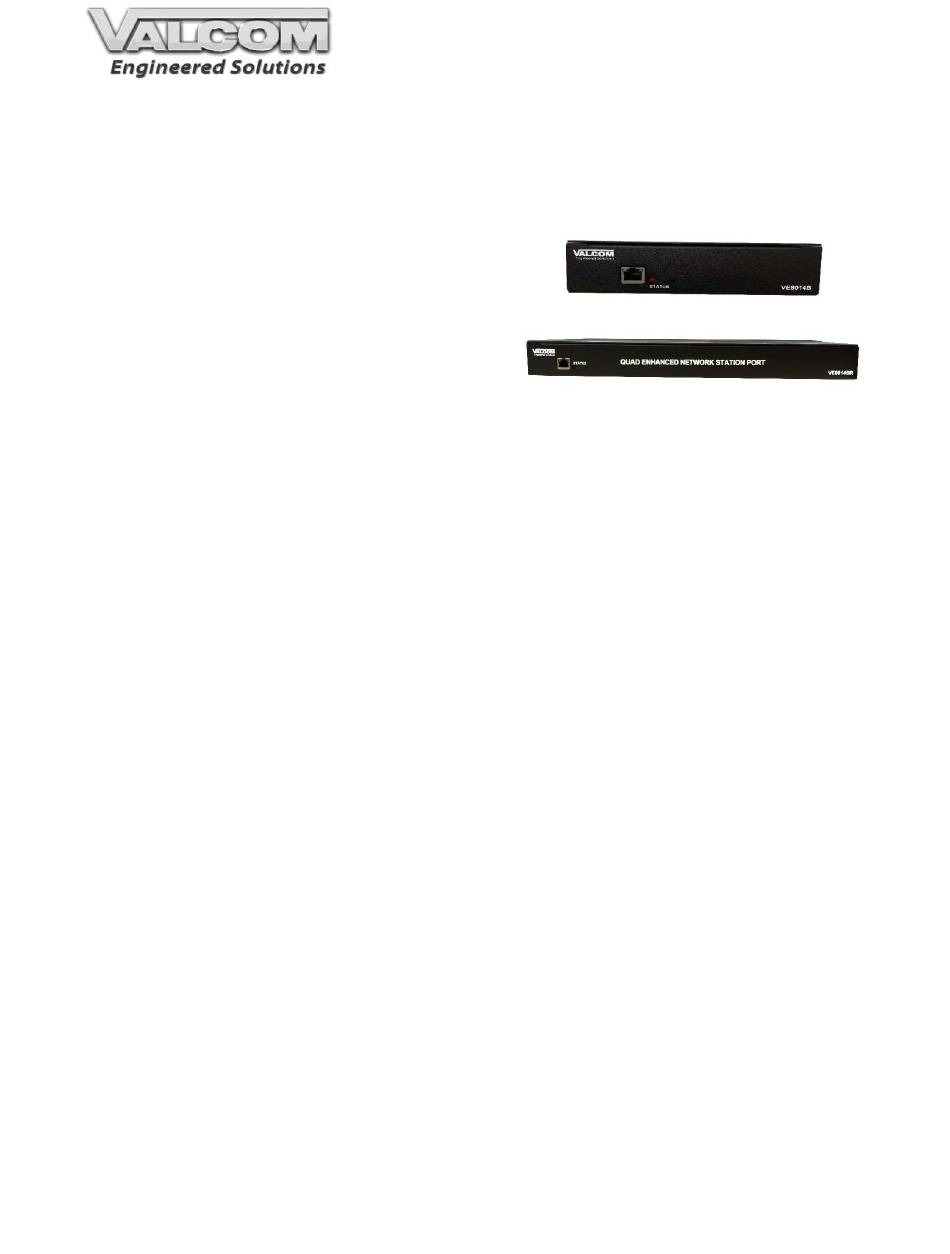

QUAD ENHANCED NETWORK FXS GATEWAY
INTRODUCTION

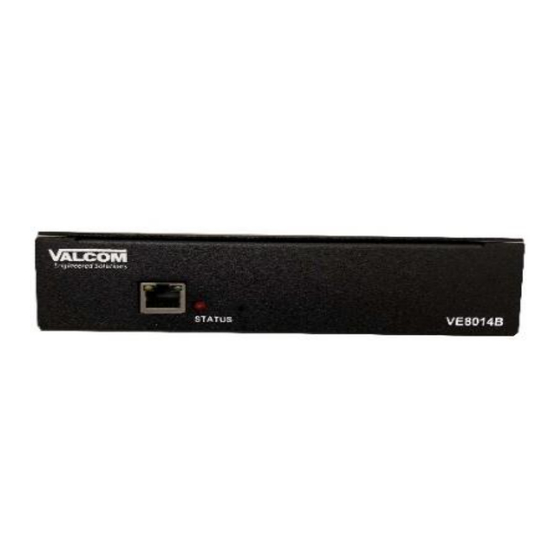

The VE8014B/VE8014BR Quad Enhanced
Network FXS Gateway allows most loop start
terminal devices to be connected to a managed
IP-based network
The VE8014BR is made
.
specifically for rack mounting.
SPECIFICATIONS
Access Methods
PBX, FXO Port
POTS telephone set
Features
RJ-45 for network connection
4 RJ-11 telephone connections
4 Relays with Form C contacts
Generates Caller ID Signals
Front panel Status/Link/Activity LEDs
Ringer equivalency (REN)=0.8A
2.5mm jack for external power (optional)
Power over Ethernet 802.3af compatible
Dimensions/Weight (VE8014B)
1.72" H x 7.00" W x 11.88" D
(4.36cm H x 17.78cm W x 30.18cm D)
Weight: 2.5 lbs. (1.13 kg)
Dimensions/Weight (VE8014BR)
1 Standard 19" Rack Unit
1.72" H x 16.50" W x 11.88" D
(4.36cm H x 41.91cm W x 30.18cm D)
Weight: 4.0 lbs. (1.81 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Relay Current:
Ring Voltage:
Environment
Temperature:
Humidity:
0 to 85% non-precipitating
VE8014B/VE8014BR
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1 AMP @ 24VDC
42vRMS@20Hz
0 to +40° C
1
VE8014B
VE8014BR
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Precautionary Designations
WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à
la pluie ou à l'humidité.
Apparatus shall not be exposed to
drippingor splashing and no objects
filled with liquids,such as vases, shall be
placed on the apparatus.
L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun
Objet Rempli de liquide, comme vase, ne
doit être placé sur l'appareil.
ISSUE 4
24VDC
325mA
Class 3
947542
Advertisement
Related Manuals for Valcom VE8014B
Summary of Contents for Valcom VE8014B
- Page 1 ISSUE 4 VE8014B/VE8014BR QUAD ENHANCED NETWORK FXS GATEWAY INTRODUCTION The VE8014B/VE8014BR Quad Enhanced Network FXS Gateway allows most loop start terminal devices to be connected to a managed IP-based network The VE8014BR is made VE8014B specifically for rack mounting. SPECIFICATIONS...
- Page 2 PBX or dedicated single line telephone Particular attention should be given to supply sets. The VE8014B/VE8014BR is not connections other than direct connections to the intended for direct or indirect connection to branch circuit (e.g. use of power strips).
- Page 3 VE8014B as shown in Figure 2. Use the included wood FXO Connections: Connect loop start FXO port screws to attach the VE8014B to the wall. For or standard analog telephones to the VE8014B / surfaces other than wood, use hardware VE8014BR via the rear panel RJ-11 jacks appropriate for the surface (not provided).
- Page 4 Warranty information may be found on our Support, or visit our website at website at www.valcom.com/warranty. www.ValcomES.com. Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating your...
- Page 5 Figure 2. Wall Mounting Figure 4. Rack Mounting Figure 3. Mounting Two Joined Units 947542...
