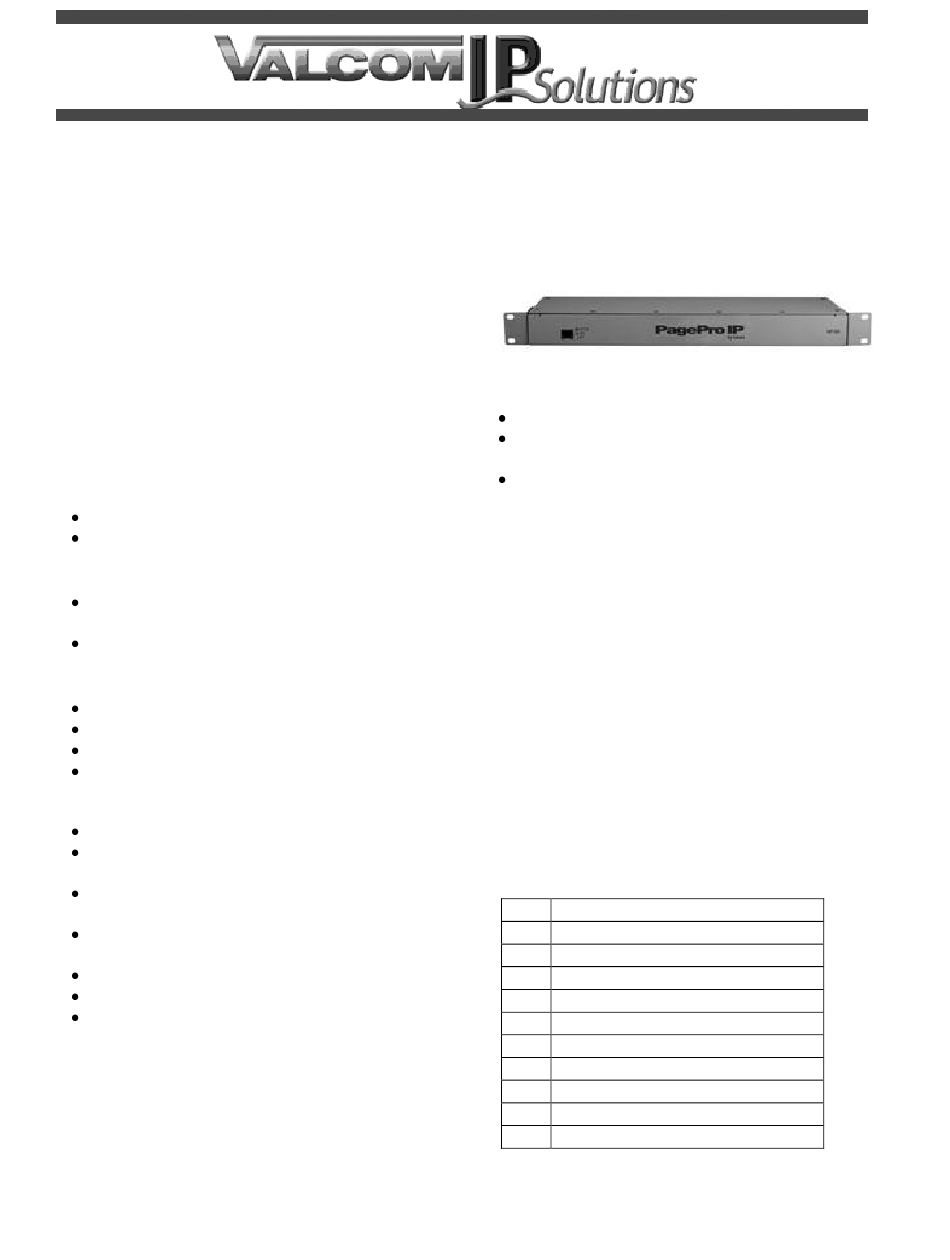

Valcom VIP-201 Quick Start Manual

SIP Based Paging Gateway
INTRODUCTION
The VIP-201 SIP Based Paging Gateway is
designed for use with virtually all IP based
telephone systems. The unit provides 8 SIP
addressable groups and 1 analog I/O. The
VIP-201 can control thousands of IP and/or
analog speakers or provide interface to legacy
paging systems.
SPECIFICATIONS
Access Methods
SIP
Valcom Multicast Page Group
Power Options
802.3af, Class 3 Compliant Power over
Ethernet
Optional External Power Supply (VIP-324)
Features
1 Analog Audio Output
2 Programmable Form C Relay Closures
RJ-45 for Network Connection
Provides Audio for Valcom Analog One-Way
Self Amplified Speaker Assemblies or 25/70
Volt central amplifiers
AUX Audio Input via RCA Jack
Optional Background Music, Music Mutes
During a Page
Output Control Relay Closure Provided
During Paging Output
2.5mm Jack for optional DC Power (non-
POE)
LED Status / Network Activity LEDs
Optional Feedback Elimination/Page Repeat
Programmable Night Ring

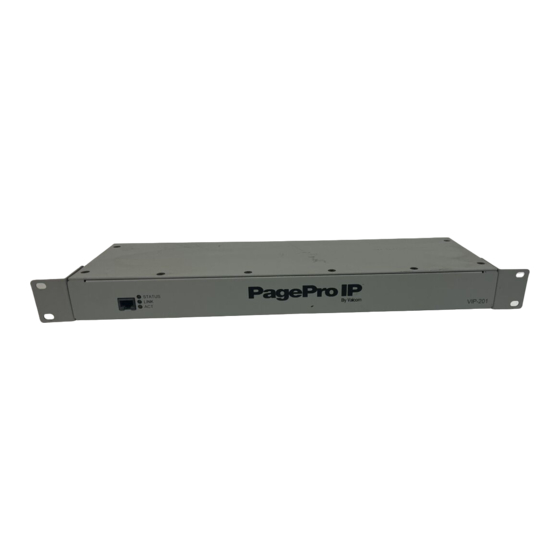

PagePro VIP-201
1
Dimensions/Weight
1 Standard 19" Rack Unit
1.75" H x 16.6" W x 5.4" D
(4.57 cm x 42.16 cm x 13.71 cm)
Weight: 4.65 lbs. (2.10 kg)
Nominal Specifications
AUX Input Impedance:
AUX Input Level:
Output Impedance:
Output Level:
Relay Current Rating:
Nominal Power Requirements
Via rear panel barrel connector
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
Environment
Temperature:
Humidity: 0 to 85% Non-Precipitating
Packing List
Qty Item
1 VIP-201
1 RJ-45 Patch Cable
4 Rubber Pads
2 Mounting Brackets
8 Mounting Bracket Screws
4 Rack Mount Screws
4 Wall Mount Screws
1 VIP Quick Start Guide
1 VSP Document
1 VIP Set Up CD
ISSUE 3
8 to 600 Ohms
-10dBm nominal
50 Ohms
- 10dBm nominal
1 Amp @ 24VDC
24VDC
325mA
Class 3
0 to +40° C
947693
