INTRODUCTION
The VIP-204 SIP Paging Gateway is designed for
use with virtually all IP based telephone systems.
The unit provides SIP addressable groups and 4
analog outputs that may be included as part of
the SIP addressable groups. The VIP-204 can
control thousands of IP speakers and/or analog
speakers or provide an interface to legacy paging
systems.
Connection to a SIP server can be as individual
SIP Stations (extensions) or as a SIP trunk.
Station mode provides up to 8 SIP-adressable
groups.
Trunk mode accepts up to 100 SIP
phone numbers for flexible grouping.
SPECIFICATIONS
Access Methods
SIP
Valcom Multicast Page Group
Features
SIP – Addressable Groups (phone numbers)
4 Analog Audio Outputs (for inclusion in
groups only)
4 Programmable Form A Relay Closures
RJ-45 for Network Connection
Provides Audio for Valcom Analog One-Way
Self Amplified Speaker Assemblies or 25/70
Volt central amplifiers
AUX Audio Input via RCA Jack
Background Music Input, Music Mutes During
a Page
Output Control Relay Closure Provided
During Paging Output
2.5mm Jack for optional DC Power (non-
PoE)
LED Status Indicator
Network Activity LEDs
Programmable Feedback Elimination/Page
Repeat
Programmable Night Ring

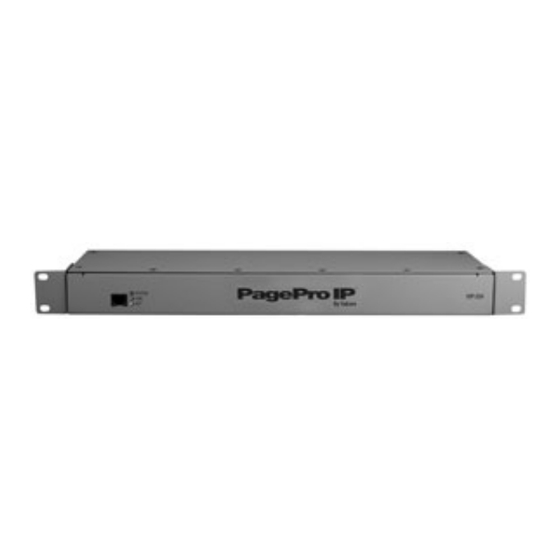

PagePro VIP-204
SIP Paging Gateway
1
Power Options
Power over Ethernet (PoE) 802.3af, Class 3
Compatible
Optional External Power Supply (VIP-324D)
Dimensions/Weight
1 Standard 19" Rack Unit:
1.75" H x 16.6" W x 9.5" D
(4.57 cm x 42.16 cm x 24.13 cm)
Weight: 7.25 lbs. (3.28 kg)
Nominal Specifications
AUX Input Impedance:
AUX Input Level:
Output Impedance:
Output Level:
Relay Current Rating:
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
Environment
Temperature:
Humidity:
0 to 85% Non-Precipitating
Packing List
Qty
Item
1
VIP-204
4
RJ-45 Patch Cables
4
VM-186 RJ-45 Connectors
4
Rubber Pads
2
Mounting Brackets W/ Hardware
1
VSP Document
ISSUE 6
8 to 600 Ohms
-10dBm nominal
50 Ohms
- 10dBm nominal
1 Amp @ 24VDC
24VDC
325mA
Class 3
0 to +40° C
947694
