QUAD ENHANCED NETWORKED TRUNK PORT
INTRODUCTION
The VE8024A/VE8024AR Quad Enhanced
Networked Trunk Port allows most loop start
station ports to be connected to a managed
IP-based LAN/WAN. SIP connectivity allows the
VE8024A/VE8024AR to act as a gateway device
between a SIP telephone system and the loop start
Valcom paging systems.

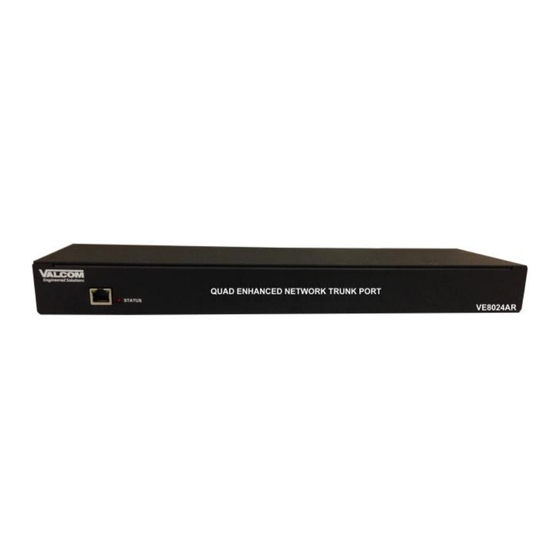

The VE8024A is designed for wall or table
placement. The VE8024AR is designed for 19"
rack mounting (1U).
SPECIFICATIONS
Access Methods
 PBX, FXS Port
 SIP
Features
 RJ45 for network connection
 4 RJ11 FXO connections
 4 RJ11 failover telephone connections
 Decode Caller ID signals
 Front panel activity LED
 Network activity LEDs
 2.5mm jack for optional DC power
 Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight (VE8024A)
 1.38 H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)
 Weight: 1.25 lbs. (0.57 kg)
Dimensions/Weight (VE8024AR)

1 Standard 19" Rack Unit

1.75 H x 16.50" W x 5.25" D
(4.45cm H x 41.91cm W x 13.33cm D)

Weight: 5.10 lbs. (2.32 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
VE8024A/VE8024AR
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1
VE8024A
VE8024AR
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
.
intra-building
Precautionary Designations
:

WARNING To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.

AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à la
pluie ou à l'humidité.

Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall be
placed on the apparatus.

L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l'appareil.
Issue 3
24VDC
325mA
Class 3
0 to +40° C
947496
