typically used for background music and can be
enabled or disabled for each channel.
Networked Channels: Access to the networked
audio output, audio input, contact closure input and
relay closure output is provided via two rear panel
RJ-45 connectors. Provided with the VIP-802B are
two RJ-45 patch cables and two VM-186 RJ-45
Connectors. Signal connections are made by
connecting one end of a patch cable to the VIP-
802B, Port 1 or Port 2, and the other end of the
patch cable to the VM-186 connector. Access to
the signals is via screw connections or 110-style
punch down block connection on the VM-186 (see
Figure 3). Signals are present on pairs of pins, as
shown in the following chart:
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE

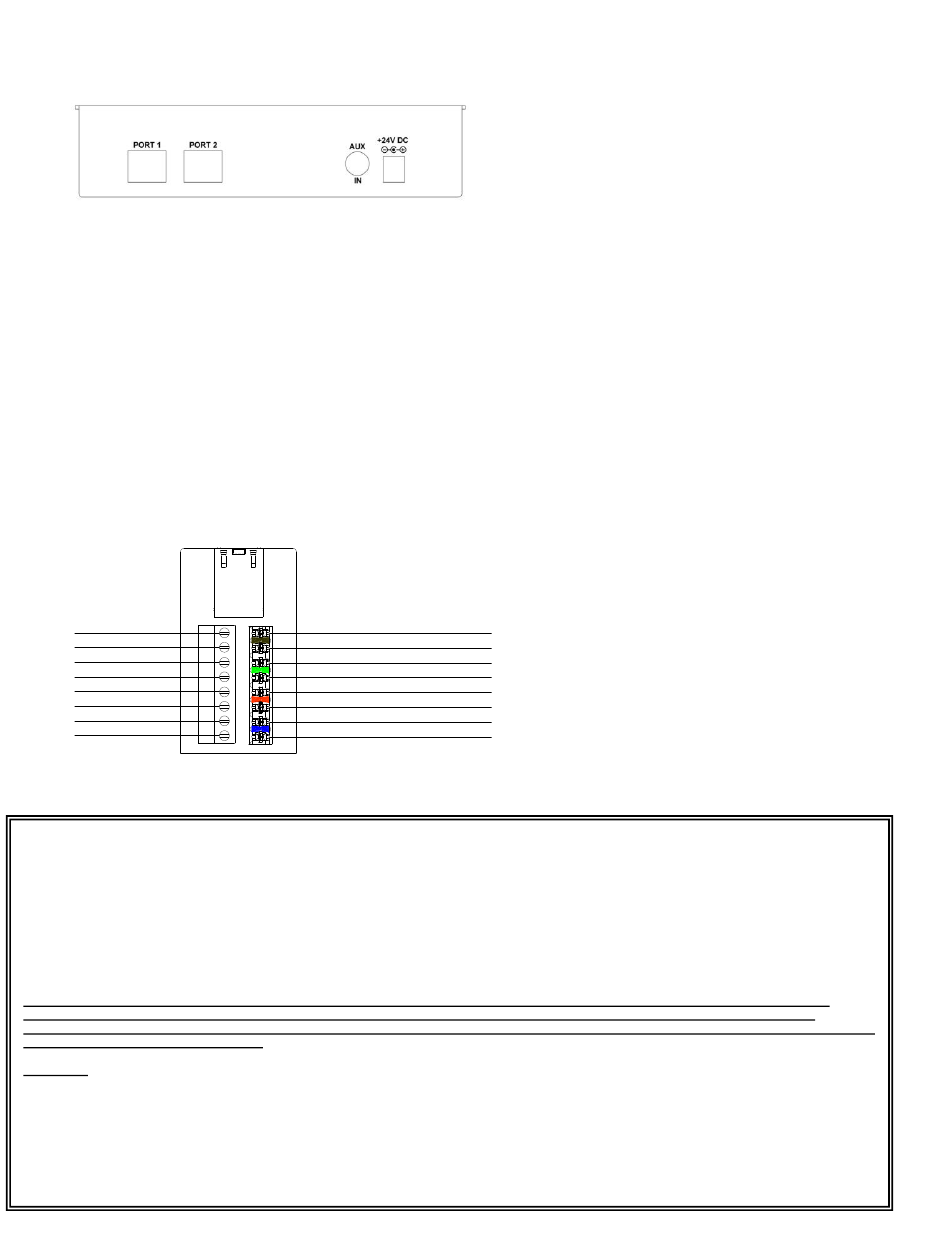

Figure 3. VM-186 RJ-45 Connector
