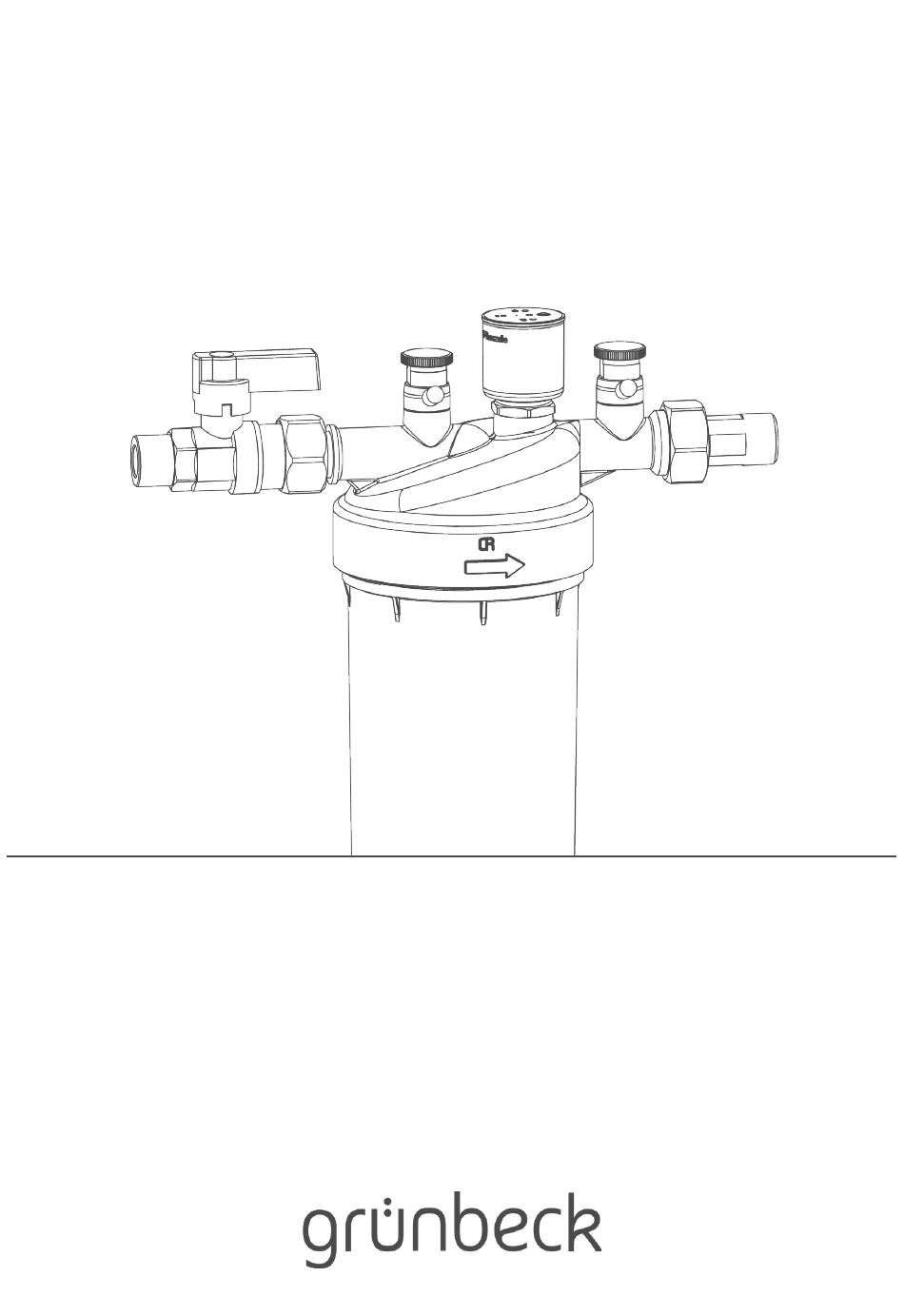

- Page 1 We understand water. Treatment group | thermaliQ:HB2 Operation manual...
- Page 2 General Contact Germany International Sales Phone +49 9074 41-145 Technical Service Phone +49 9074 41-333 Fax +49 9074 41-120 Availability Monday to Thursday 7:00 am - 6:00 pm Friday 7:00 am - 4:00 pm Copyright The manufacturer reserves the copyright to this manual. Without the written consent of Grünbeck Wasseraufbereitung GmbH, no part of this manual may be reproduced in any way, nor may any part be processed, duplicated or distributed using electronic systems.
-
Page 3: Table Of Contents
Table of contents Table of contents Starting up the product ....... 17 About this manual ........ 4 Handing over the product to the owner/user .......... 19 Other applicable documents ....4 Target group ......... 4 Storage of documents ......4 Operation .......... -
Page 4: About This Manual
About this manual About this manual 1.1 Other applicable documents The following documents shall be deemed as applicable documents for the treatment group thermaliQ:HB2: ● The manuals of all accessories used. 1.2 Target group This manual is intended for specialist installers and owners/users. -
Page 5: Symbols Used
About this manual 1.4 Symbols used This symbol identifies instructions that you must comply with for your personal safety. This symbol identifies instructions that you must comply with in order to avoid damage to property. This symbol identifies important information about the product or its handling. -
Page 6: Typographical Conventions
» Result Lists ● Listed item • Listed sub-item Status level>Menu Menu paths level>Submenu Display texts Display text Operating elements Button/key 1.6 Validity of the manual This manual applies to the following products: ● Treatment group thermaliQ:HB2 6 | 32... -
Page 7: Type Plate
Designation Item Designation Observe operation manual Max. operating pressure Ambient temperature QR code Order no. Serial no. Product designation Data matrix code ● Product designation: Treatment group thermaliQ:HB2 ● Order no.: 707 755 ● Serial no.: ________________ 7 | 32... -
Page 8: Safety
Safety Safety 2.1 Safety measures ● Carefully read this manual before operating your product. ● Install the product in a frost-free room. Otherwise, the product may suffer irreparable damage. Water damage may occur as a result. ● Only use genuine spare parts for maintenance or repair. If unsuitable spare parts are used, the warranty for your product will be void. -
Page 9: Regulations
Safety CAUTION: Type and source of danger ● Possible consequences ► Preventive measures The following signal words were defined subject to the degree of danger and may be used in the present document: ● DANGER means that death or serious injury will result. ●... -
Page 10: Responsibilities Of The Owner/User
Safety ● Brief the owner/user on the function and operation of the product. ● Advise the owner/user of the maintenance of the product. ● Inform the owner/user about possible dangers that can arise during the operation of the product. 2.5 Responsibilities of the owner/user Comply with the following instructions to ensure the proper and safe functioning of the product: ●... -
Page 11: Product Description

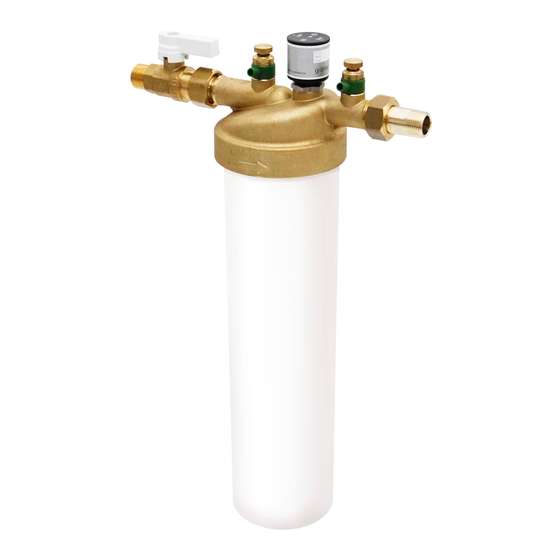

Product description Product description 3.1 Intended use The treatment group thermaliQ:HB2 is designed for the full demineralisation of raw water for the initial filling or make-up water feed of heating systems. The treatment group thermaliQ:HB2 may only be installed in horizontal pipes. -
Page 12: Accessories
126 400 2 drinking water hoses of 1.5 m in length to connect free-standing full demineralisation units to the treatment group thermaliQ:HB2. 3.4 Functional description 3.4.1 Physical The raw water enters the filling cartridge desaliQ:HB2 via the shut-off valve and flows through the filling cartridge’s mixed bed... - Page 13 Product description from top to bottom. The water is demineralised by way of ion exchange. The demineralised water passes the conductivity measuring cell and flows into the heating system. A non-return valve at the outlet of the treatment group prevents the water from flowing back from the heating system.
-
Page 14: Installation
Installation Installation Item Designation Item Designation Drinking water filter pureliQ Filling group thermaliQ:SB13 4.1 Requirements in relation to the installation site Observe local installation directives, general guidelines and technical specifications. The installation site must be frost-proof and ensure the system's protection from chemicals, dyes, solvents and vapours. -
Page 15: Checking The Scope Of Supply
Installation A floor drain must be provided in the installation room. If no floor drain is available, an appropriate safety device must be installed in order to prevent water damage. A drinking water filter, e.g. pureliQ:K (refer to chapter 4, item 1) must be installed upstream of the product. -
Page 16: Installing The Product
Installation ► Check the scope of supply for completeness and possible damage. 4.3 Installing the product 1. Install the shut-off valve at the inlet side of the treatment group. 2. Install the water meter screw connection at the outlet side of the treatment group. -
Page 17: Start-Up
Start-up Start-up 5.1 Starting up the product 5.1.1 Deaerate the product. 1. Open both vent valves. 2. Open the shut-off valve. As soon as no air escapes any longer: 3. Close the vent valve on the inlet side. 4. Close the vent valve on the outlet side. 5. - Page 18 Start-up 5.1.2 Filling the heating system Depending on the size of the heating system, the filling process may take some time. Depiction of conductivity measuring cell 1. Open the shut-off valve. 2. Visually check for leaks. 3. Press the button of the conductivity measuring cell. »...
-
Page 19: Handing Over The Product To The Owner/User
Start-up 5.2 Handing over the product to the owner/user When handing over the product, proceed as follows: 1. Inform the owner/user how the water treatment group works. 2. Hand over all documents to the owner/user for keeping. 3. Use the manual to brief the owner/user and answer any questions. -
Page 20: Operation
Operation Operation 6.1 Functional check of the conductivity measuring cell ► Press the button of the conductivity measuring cell. » The measuring cell is activated. » After the activation, an LED is flashing. The conductivity measuring cell switches off after a period of 45 minutes. -
Page 21: Installation/Replacement Of The Filling Cartridge
Operation 6.2 Installation/replacement of the filling cartridge To replace the filling cartridge, proceed as follows: 1. Close the valve on the inlet side. 2. Open the vent valves. » The treatment group is depressurised. 3. Dismantle the plastic cylinder (turn left). 4. -
Page 22: Replacing The Battery Of The Conductivity Measuring Cell
Operation 6.3 Replacing the battery of the conductivity measuring cell 1. Remove the lid of the conductivity measuring cell. 2. Remove the circuit board. 3. Remove the used battery. 4. Insert a new battery. 5. Close the lid of the conductivity measuring cell. 6. -
Page 23: Cleaning, Inspection, Maintenance
Cleaning, inspection, maintenance Cleaning, inspection, maintenance Inspection and maintenance of a treatment group is stipulated in DIN Standard EN 806-5. Regular maintenance ensures trouble-free and hygienic operation. Have the treatment group maintained by a specialist installer at least once a year. Proper operation and maintenance of the product are essential for trouble-free and hygienic operation. -
Page 24: Maintenance
Cleaning, inspection, maintenance To conduct an inspection, proceed as follows: 1. Visually check for leaks. 2. Check the function of the conductivity measuring cell (refer to chapter 6.1). 7.3 Maintenance In order to carry out maintenance, proceed as follows: 1. Visually check for leaks. 2. -
Page 25: Consumables
Cleaning, inspection, maintenance 7.4 Consumables Product Order no. Filling cartridge desaliQ:HB2 707 745 Battery CR2032 WZ9-790075e 7.5 Spare parts You may order spare parts and consumables from your local Grünbeck representative (refer to the internet at www.gruenbeck.com). 7.6 Wearing parts Wearing parts are listed below. -
Page 26: Troubleshooting
Troubleshooting Troubleshooting Observation Meaning Remedy LED of conductivity The battery is Replace the battery measuring cell exhausted. (refer to 6.3). does not flash. The conductivity Replace the measuring cell is conductivity defective. measuring cell. LED of conductivity The filling cartridge Replace the filling measuring cell is exhausted. -
Page 27: Disposal
Disposal Disposal ► Comply with the applicable national regulations. 9.1 Packaging ► Dispose of the packaging in an environmentally sound manner. 9.2 Product If this symbol (crossed out waste bin) is on the product, this product is subject to the European Directive 2012/19/EU. This means that this product or the electrical and electronic components must not be disposed with household waste. -
Page 28: Technical Specifications
Technical specifications 10 Technical specifications Dimensions and weights A Installation length with screw connection [mm] B Installation length without screw connection [mm] C Height above centre of pipe connection [mm] D Height below centre of pipe connection with cylinder [mm] E Clearance required to replace the filling cartridge [mm] F Min. - Page 29 Parliament and of the Council of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. This certificate becomes void if the system is modified in any way not approved by us. Treatment group | thermaliQ:HB2 Serial no.: Refer to type plate Responsible for documentation: Dipl.-Ing.
- Page 30 Index Index Accessories ........ 13 Product components....12 Conductivity measuring cell .. 12, 19, Spare parts ......9, 26 23, 25, 27 Start-up ......10, 11, 18 Disposal ........28 Technical specifications ....29 Troubleshooting ......27 Inspection ......24, 25 Installation .......
- Page 32 Grünbeck Wasseraufbereitung GmbH Josef-Grünbeck-Str. 1 89420 Hoechstaedt GERMANY +49 9074 41-0 +49 9074 41-100 info@gruenbeck.com For more information go www.gruenbeck.com to www.gruenbeck.com...
