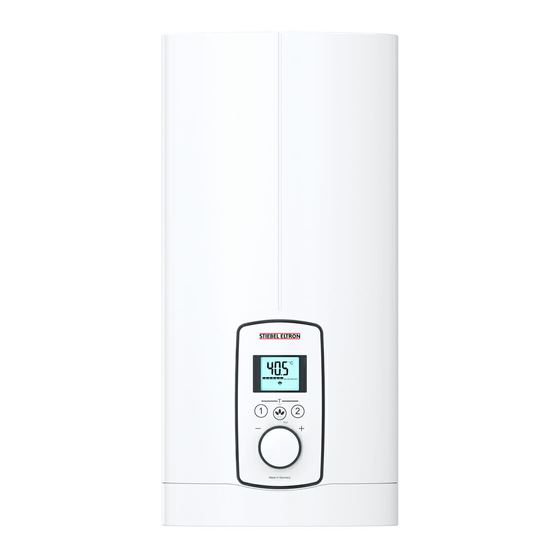

- Page 1 OPERATION AND INSTALLATION Electronically controlled comfort instantaneous water heater » DEL 13 Plus AU » DEL 18 Plus AU » DEL 27 Plus AU...
-
Page 2: Table Of Contents
CONTENTS SPECIAL INFORMATION Service information ���������������������������������������� 14 Troubleshooting �������������������������������������������� 15 OPERATION Maintenance ������������������������������������������������ 16 General information �����������������������������������������3 Safety instructions ����������������������������������������������� 3 Specification ������������������������������������������������ 16 Other symbols in this documentation ����������������������� 4 17.1 Dimensions and connections ��������������������������������� 16 Units of measurement ������������������������������������������ 4 17.2 Wiring diagram �������������������������������������������������... -
Page 3: Special Information
SPECiAL iNfOrmATiON | OPErATiON General information SPECiAL iNfOrmATiON OPErATiON - The appliance may be used by children aged 3 General information and older and persons with reduced physical, The chapters "Special information" and "Operation" are intended sensory or mental capabilities or a lack of ex- for both users and qualified contractors. -
Page 4: Other Symbols In This Documentation
OPErATiON Safety Other symbols in this documentation WARNING Injury The appliance may be used by children aged 3 and older Note and persons with reduced physical, sensory or mental General information is identified by the adjacent symbol. capabilities or a lack of experience and know-how, pro- f Read these texts carefully. -
Page 5: Settings And Displays
OPErATiON Settings and displays Setting the temperature ance or you make a change on the user interface. The backlight switches off automatically 5 seconds after water stops flowing or if no operation has been performed for 30 seconds. You can set the temperature unit and operating lock individually. Heating system The bare wire heating system is enclosed within a pressure-tested Tmax... -
Page 6: Allocating Temperature Memory Buttons
OPErATiON Cleaning, care and maintenance Allocating temperature memory buttons Saving energy The following recommended settings will result in the lowest en- Memory buttons "1" and "2" can each be assigned a required ergy consumption: temperature. - 38 °C for hand washbasins, showers, bath f Select the required temperature. -
Page 7: Installation
iNSTALLATiON Safety iNSTALLATiON Note After a power failure Programming unit displays and selected settings are re- tained following a power failure. Safety If you cannot remedy the fault, contact your qualified contractor. Only a qualified contractor should carry out installation, commis- To facilitate and speed up your request, provide the number from sioning, maintenance and repair of the appliance. -
Page 8: Appliance Description
iNSTALLATiON Appliance description Appliance description Oversink installation Standard delivery The following are delivered with the appliance: - Wall mounting bracket - Installation template - 2 plugs - 2 extensions - 2 caps - 2 tees 1 Cold water inlet 2 DHW outlet - 8 flat gaskets - Strainer Note... -
Page 9: Installation
iNSTALLATiON installation 10. Installation factory settings DEL 13 Plus AU DEL 18 Plus AU DEL 27 Plus AU Internal anti-scalding protection Tmax (= 50 °C) Tmax (= 50 °C) Tmax (= 50 °C) Standard installation DEL 13 Plus AU DEL 18 Plus AU DEL 27 Plus AU Electrical connection from below on unfinished walls x Water connection, installation on finished walls Fitting the wall mounting bracket For further installation options, see chapter "Alternative instal-... - Page 10 iNSTALLATiON installation Installing the appliance f Screw the pre-assembled parts with flat gaskets to the cold water and DHW pipes of the appliance. Note f Fit the cold water inlet pipe and the DHW outlet pipe from If you are installing the appliance with flexible pipe con- the pipework with flat gaskets to the extensions from the nections, also secure the bottom of the back panel with appliance.
-
Page 11: Commissioning
iNSTALLATiON Commissioning 11. Commissioning Note For undersink installation, the appliance cover should 11.1 Preparation be turned round for easier operation; see chapter "Alter- native installation methods / Pivoting appliance cover". Fit the appliance cover 43 °C Tmax 1 Jumper for anti-scalding protection setting Internal anti-scalding protection via jumper slot Jumper position Description... -
Page 12: Recommissioning
iNSTALLATiON Appliance shutdown 13.1 Electrical connection from above on unfinished walls f Switch on the power supply. 11.2.1 Appliance handover f Explain the appliance function to users and familiarise them with how it works. 1 Cable entry installation aid f Make the user aware of potential dangers, especially the risk f Prepare the power cable. -
Page 13: Power Cable
iNSTALLATiON Alternative installation methods 13.2 Electrical connection on unfinished walls with 13.4 Water installation on unfinished walls short power cable f Seal and screw in the twin connectors (not included in stand- ard delivery). f Reposition the mains terminal further downwards. To do this, undo the fixing screw. -
Page 14: Wall Mounting Bracket When Replacing An Appliance
iNSTALLATiON Service information f Remove the programming unit from the appliance cover by Material losses pressing the locking hooks and removing the programming The cover plate of the lower back panel section must not unit. bend when installed. f Turn the appliance cover (not the appliance) the other way up and refit the programming unit. -
Page 15: Troubleshooting
iNSTALLATiON Troubleshooting Appliance cover retainer 15. Troubleshooting WARNING Electrocution Note To test the appliance, it must be connected to the power The diagnostic traffic light is displayed when water flows. supply. indicator options for diagnostic traffic light (LED) Display indication Cause Illuminates in the event of a fault E1 | Spanner... -
Page 16: Maintenance
iNSTALLATiON maintenance 16. Maintenance 17. Specification 17.1 Dimensions and connections WARNING Electrocution Before any work on the appliance, disconnect all poles from the power supply. ≤ 20 Draining the appliance The appliance can be drained for maintenance work. WARNING Burns Hot water may escape when you drain the appliance. -
Page 17: Wiring Diagram
iNSTALLATiON Specification 17.2 Wiring diagram 17.4 Application areas / Conversion table Specific electrical resistance and specific electrical conductivity 3/PE ~ 380-415 V Standard specifica- tion at 15 °C 20 °C 25 °C Conductivity σ ≤ Resis- Conductivity σ ≤ Resis- Conductivity σ ≤ Resis- tivity tivity tivity ρ ≥... -
Page 18: Data Table
Specification 17.7 Data table DEL 13 Plus AU DEL 18 Plus AU DEL 27 Plus AU 234470 236741 236742 Electrical data Rated voltage Rated output 12.2 13.5 14.5 16.2 19.4 23.5 Rated current 18.5 19.5 20.2 24.7 35.6 37.7 38.9... - Page 19 Contact person: Customer Service Representative The Stiebel Eltron warranty for the unit is in addition to any rights service@stiebel-eltron.com.au E-mail: and remedies you may have under the Australian Consumer Law.
- Page 20 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
