C66
VoIP Phone
VoIP Phone C66
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C66 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fanvil C66

Summary of Contents for Fanvil C66

  • Page 1 VoIP Phone VoIP Phone C66 Quick Installation Guide...

  • Page 2: Check Your Package Contents

    If you own this product to make some VoIP calls, an Ethernet-based Cable or a DSL modem with an active connection to the Internet are necessary. Check Your Package Contents These are the items included with your C66 IP Phone purchase: VoIP Phone C66 VoIP Phone...

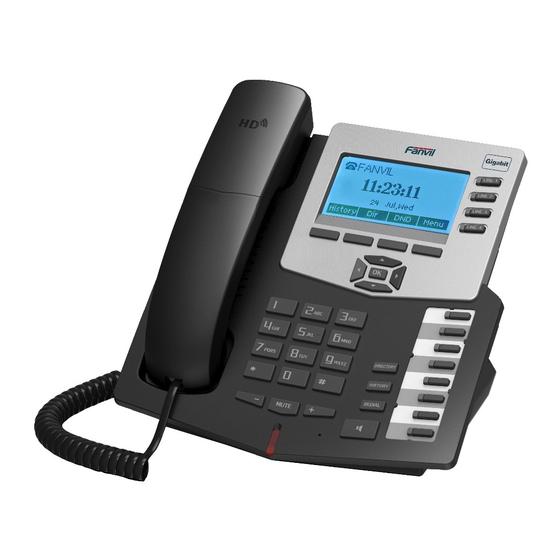

  • Page 3 LCD Screen Soft Function Keys Line1-4 Handset Navigation Keys OK Key Programmable Keys Number Keypad Mute Key Phonebook Key Indicator Light Call Logs Key Redial Key Speaker Key Volume Control Keys You can press these number keys one or more times to complete the corresponding input when you want do some input on the LCD.
  • Page 4 Router/LAN Handset Port Headset Port Power switch WAN port LAN port EXT Console...

  • Page 5: Ip Phone Setup Menu

    IP Phone Setup Menu(1) Network mode Settings diagram: Press Menu Key Select Settings Select Advanced Settings Select Network Select WAN Enable Disable ADSL DialUP Enable/Disable Disable DHCP Select PPPoE Set Enable/Disable Select Static Set Select Account: Enable username IP/Netmask/ Gateway/DNS Set Network Configuration:Auto Select Password:...

  • Page 6: The Menu Of Phone Structure

    IP Phone Setup Menu(2) The menu of phone Structure: Mode WAN IP Keyboard Firmware Screen Settings Network Status Ring Settings Accounts Voice Volume Phone Time &Date Expansion Module Greeting Word TR069 Language Basic Settings Settings Accounts Network Security Advanced Settings Maintenance Factory Reset Memo...

  • Page 7: Web Login

    Configuration(1) Web Login The configuration menu of C66 can be accessed using the convenient and userfriendly interface of a web browser. Open the browser and type into the IP address which can be found in the status of the LCD menu(e.g. http://192.168.1.16) to visit the Web page and make some configuration.

  • Page 8: Network - Pppoe Setting

    Configuration(2) Network - PPPoE Setting Select Network from the main menu. Select PPPoE as network connection type if your ISP uses PPPoE. (Most DSL users use PPPoE.) Network - Static Setting Select Static as network connection type if all Wide Area Network IP is provided to you by your ISP.

  • Page 9: Network - Dhcp Setting

    Configuration(3) Network - DHCP Setting Select DHCP as network connection type if your access network supports DHCP. SIP Settings Select SIP settings from the main menu. The follow fields such as Server Address Server Port, Authentication User Authentication Password and SIP User are required. Then check Enable Registration and click Apply to register your phone to the SIP server.

  • Page 10: Make A Phone Call

    Make a Phone Call IP Address: 1.Lift the handset or press the speaker button or headset button to enter the dialer interface. 2. Dial IP address. For example: Input #192.168.0.1# in the dialer interface, will call the device whose IP address is 192.168.0.1. SIP Number: Note: You have to register with SIP server to use SIP number.
