Fanvil C60 and Elastix Server
Setup Guide
http://www.elastix.org

Advertisement

loading
Need help?

Need help?

Do you have a question about the C60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fanvil C60

Summary of Contents for Fanvil C60

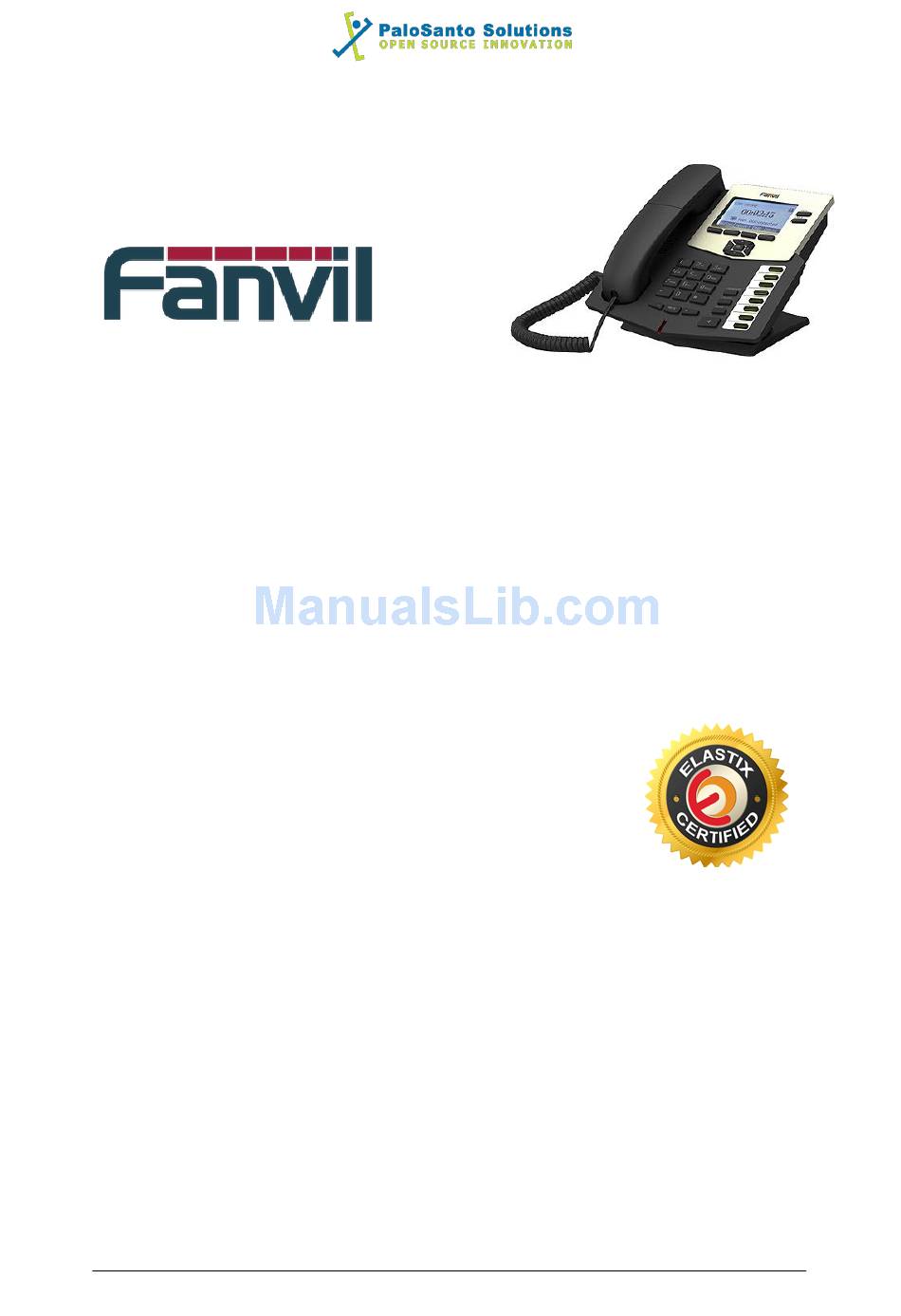

  • Page 1 Fanvil C60 and Elastix Server Setup Guide http://www.elastix.org...

  • Page 2: Setup Diagram

    Fanvil C60 and Elastix Server Setup Guide 1.0 Setup Diagram Figure 1-1 is a setup diagram for a single IP Phone Fanvil C60 configuration. The phone is setup as a SIP telephony device. Figure 1-1. Setup Diagram 2.0 Host PC Environment Table 2-1.

  • Page 3: Setup Procedure

    Fanvil C60 and Elastix Server Setup Guide 4.0 Setup Procedure To set up the Elastix Server for the Fanvil C60, 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.75...
  • Page 4 PaloSanto Solutions Fanvil C60 and Elastix Server Setup Guide 5. Click on the Submit button to add an extension, see Figure 4-3. This will take you to the Add SIP Extension page. Figure 4-3. Add an Extension 6. On the Add SIP Extension page (Figure 4-4), fill in the following information: •...
  • Page 5 9. With this you have just finished creating a SIP extension that will be used by the Fanvil C60 to register with the Elastix Server. Repeat Steps 5 through 8 to similarly create another extension (different values on Step 6) to be used by the IP (SIP) Phone to register as well (extension 302 in this example).

  • Page 6: Manual Configuration

    Fanvil C60 and Elastix Server Setup Guide MANUAL CONFIGURATION 1. Log in to the Fanvil C60 WebUI by pointing your browser to the Fanvil‟s IP address. For the initial configuration of the Fanvil Phone, refer to the Fanvil C60‟s User Manual which can be found in the Fanvil C60‟s product page at:...
  • Page 7 5. Configure the other IP (SIP) Phone with the correct parameters. 6. To test the Fanvil C60, pick up the previously configured IP (SIP) Phone and call the Fanvil C60‟s extension number (301 in this example). When the call is established, speak into the phone and verify that the other IP (SIP) Phone can hear your voice.
  • Page 8 Fanvil C60 and Elastix Server Setup Guide AUTOPROVISIONING USING ELASTIX‟S ENDPOINT CONFIGURATOR Find out the Fanvil C60‟s IP Address so you can easily identify the phone in the Note: next steps. 1. In the Elastix WebUI go to “PBX => Endpoint Configurator” (Figure 4-10).
