Fanvil C66 User Manual

Hide thumbs Also See for C66:
Table of Contents

Advertisement

Quick Links

USER MANUAL

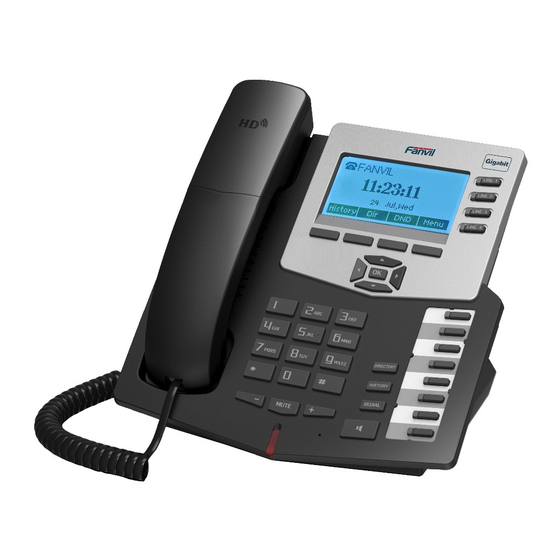

C66 VoIP Phone
Corporate Headquarters
Fanvil Technology Co., Ltd
Address: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park,
Qianjin 1 Road, 35th District, Bao'An, Shenzhen 518101 P.R.China.
Web Site:
www. Fanvil.com
Tel: +86 755 26402199
Fax: +86 755 26402618

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C66 and is the answer not in the manual?

Questions and answers

Related Manuals for Fanvil C66

Summary of Contents for Fanvil C66

  • Page 1 USER MANUAL C66 VoIP Phone Corporate Headquarters Fanvil Technology Co., Ltd Address: Level 3, Block A, Gaoxinqi Building, Anhua Industrial Park, Qianjin 1 Road, 35th District, Bao'An, Shenzhen 518101 P.R.China. Web Site: www. Fanvil.com Tel: +86 755 26402199 Fax: +86 755 26402618...

  • Page 2: Safety Notices

    Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device.  Please use the external power supply that is included in the package. Other powers supplies may cause damage to the phone, affect its performance or induce noise.

  • Page 3: Table Of Contents

    Table of Content INTRODUCING C66 VOIP PHONE ....................6 C66 ................6 HANK YOU FOR YOUR PURCHASING ......................6 ELIVERY ONTENT ..........................7 EYPAD ....................... 8 ORT FOR CONNECTING ......................9 CON INTRODUCTION ......................9 INTRODUCTION INITIAL CONNECTING AND SETTING ................11 ......................
  • Page 4 4.10 ................20 ROGRAMMABLE ONFIGURATION C66’S OTHER FUNCTIONS ....................24 ......................24 ANDDOWN ....................24 NONYMOUS ........................ 24 UTGOING ........................24 ........................24 ........................25 EDIAL ......................25 ALL COMPLETION ......................25 EADSET ........................25 OWER IGHT 5.10 DTMF........................25 5.11...
  • Page 5 8.3.2 Network ........................36 8.3.2.1 WAN Config ........................36 8.3.2.2 LQos&VLAN Config ...................... 38 8.3.2.3 Service Port ........................40 8.3.2.4 TIME&DATE ........................42 8.3.3 VOIP ..........................43 8.3.3.1 SIP Config ........................43 8.3.3.2 Stun Config ........................51 8.3.3.3 DIAL PEER ........................53 8.3.4 Phone ...........................

  • Page 6: Introducing C66 Voip Phone

    Introducing C66 VoIP Phone 1.1 Thank you for your purchasing C66 Thank you for purchasing the C66, C66 is a full-feature telephone that provides voice communication over the same data network that your computer uses. This phone functions not only much like a traditional phone, which allows you...

  • Page 7: Keypad

    1.3 Keypad Key name Function Description Line1/2 There are four SIP lines; user could select any one /3/4 to make the call, if it has been registered. Keys combination, include functions such as History/P-BOOK /DND /Menu /Del /Redial /Send Soft key 1/2/3/4 Quit/Answer/Divert/Reject/Hold/Transfer/Conf/Cl ose and so on.

  • Page 8: Port For Connecting

    Indicator If the light blinking, indicate the phone has missed light call. Inputting the phone number or DTMF. Digital keyboard DSS keys You can configure them in the web page,. 1.4 Port for connecting Port Port name Description Power switch Input: 5V AC, 1A 10/100M Connect it to Network 10/100M Connect it to PC...

  • Page 9: Icon Introduction

    1.5 Icon introduction Icon Description Call out Call in Call hold Auto answer Call mute Contact DND(Do not Disturb) In hand free mode In handset mode In headset mode Missed call Call forward 1.6 LED introduction Table 1 Programmable key LEDs for BLF LED Status Description Steady green...
  • Page 10 Slow blinking red The object is ringing Steady red The object is active The object is failed/ No subscribe Table 3Line key LEDs LED Status Description Steady green The account is active Fast Blinking green There is an incoming call to the account Slow Blinking green The call is on hold/ Registration is unsuccessful The line is unapplied or idle...

  • Page 11: Initial Connecting And Setting

    2 Initial connecting and Setting 2.1 Connect the phone Connect to network 2.1.1 Step 1: Connect the IP Phone to the corporate IP telephony network. Before you connect the phone to the network, please check if your network can work normally.

  • Page 12: Power Adaptor Connection

    1. Plug power adaptor to power socket. 2. Plug power adaptor’s AC output to the AC5V port of C66 to start up. 3. There will be displayed black line and “initializing... wait logon...” on the screen. After finishing startup, phone will show greeting, current date and time and so forth.
  • Page 13 network ->WAN->Net Mode, enter and choose PPPoE through navigation keys and press the Save key. 3. Press Quit, then choose PPPoE Set, press Enter. 4. The screen will show the current information. Press Del to delete it, then input your PPPoE user and password and press Save. 5.

  • Page 14: C66'S Basic Function

    3 C66’s basic function 3.1 Making a call Call Device 3.1.1 You can make a phone call via the following devices: 1. Pick up the handset, icon will be showed in the idle screen. 2. Press the Speaker button, icon will be showed in the idle screen.

  • Page 15: Dnd

    3.3 DND Press DND softkey to active DND Mode. Further incoming calls will be rejected and the display shows: icon. Press DND softkey twice to deactivate DND mode. You can find the incoming call record in the Call History. 3.4 Call Forward This feature allows you to forward an incoming call to another phone number.

  • Page 16: Mute

    3.7 Mute Press Mute button during the conversation, icon will be showed in the LCD. Then the called will not hear you, but you can hear the called. Press it again to get the phone to normal conversation. 3.8 Call transfer 1.
  • Page 17 In order to convenience the enterprise the phone support multiple call answering , call hold and multi-line call.The user can answer 10 incoming call phones at most,you can choose any call through pressing the fluctuation navigation key in taiking and the other 9 calls will be in held.You also can press the fluctuation navigation key to change the call and recover the talking then last call will be held automatic.You also can define the six line keys as multi-line keys ,then each line key will relate to a call...

  • Page 18: C66'S Advanced Function

    4 C66’s advanced function 4.1 Call pickup Call pickup is implemented by simulating pickup function of PBX. it’s that, when A calls B, B rings but no answer, at this moment, C can hook off and input an appointed prefix plus B’s number, pick up A’s call and talk with A.

  • Page 19: Click To Dial

    number before making the redial function. *3* is appointed prefix code. After making the above configuration, A can dial *3* plus B’s phone number to make the redial function. *4* is appointed prefix code. After configuration, A can dial *4* to cancel redial function.

  • Page 20: Memo

    in the Inbox/Outbox. 3) After view the new message, you can press Reply to reply the message, and use the 123 softkey to change the Input Method, when enter the reply message, press OK, then use the navigation keys to select the line from which you want to send, then Send.
  • Page 21 functions per key. The following list shows the functions you can set on the programmable keys and provides a description for each function. The default configuration for each key is N/A which means the key hasn’t been set for any functions.
  • Page 22 Call forward When there is an incoming call, press the key and the incoming call can be transferred to the number set up. 2. Set the type as Line You can set these keys as line keys, and press it, it will enter dialer interface. 3.
  • Page 23 numbers that needed to be subscribed in a group, and the phone use the URL of the group to subscribe and analyze the specific information of each number such as number, name, state and so on according to the notifications from the server.

  • Page 24: C66'S Other Functions

    5 C66’s other functions 5.1 Auto Handdown Press Menu ->Features-> Enter->Auto Handdown-> Enter. 2. Set the Mode Enable through the navigation key, then set Time, unit is minute, then press Save. 3. When the call ends, after the time that you have set, the phone will back to the idle interface.

  • Page 25: Auto Redial

    You can refer to 8.3.3.4 DIAL PEER. 5.6 Auto Redial 1. Press Menu ->Features-> Enter->Auto Redial-> Enter. 2. Choose Mode Enabled or Disabled through the navigation key. If you choose Enable, you also need to set Interval and Times, and then press Save. 3.

  • Page 26: Password Dial

    5.11 Password Dial 1. Press Menu ->Features-> Enter->Password Dial-> Enter. 2. Enable this function, you can also set Prefix and Length. For example，you want call out 1234567 and you set Password Dial Prefix 123 and Password Length 3, then enter the dial interface and input 1234567, and then the screen will show 123***7.

  • Page 27: C66'S Basic Setting

    6 C66’s basic setting 6.1 Keyboard 1. Press Menu ->Settings-> Enter->Basic Setting-> Enter->Keyboard->Enter. 2. There are four items: DSS Keys, Multiplex, Long Click, SoftKey, You can set up respectively on them. Press the key Enter to the interface, then use the navigation keys to choose the function for the key according to you want.

  • Page 28: Greeting Word

    2. You can enter the message and press Save, it will display in the phone screen when the phone start up. 6.7 Language Set 1. Press Menu ->Settings-> Enter->Basic Setting-> Enter->Language Set->Enter. 2. C66 support six languages, namely English, Chinese, French, Spanish, Italian and Turkish, you can use the navigation keys to make a choice.

  • Page 29: C66'S Advanced Settings

    7 C66’s advanced settings 7.1 Account Press Menu->Enter->Advanced settings, and then input the password to enter the interface, the default password is 123. You can set it through the web page. Then choose Account then press Enter, you can do some sip settings.

  • Page 30: Web Configuration

    8 Web configuration 8.1 Introduction of configuration Ways to configure 8.1.1 There are three different configurations with C66 for different users..  Use phone keypad.  Use web browser（recommendatory way）.  Use telnet with CLI command. Password Configuration 8.1.2 There are two levels to access to phone: root level and general level. User with root level can browse and set all configuration parameters, while user with general level can set all configuration parameters except SIP (1-6) or IAX2’s...

  • Page 31: Configuration Via Web

    pressing Status button. The login page is as below picture After you configure the IP phone, you need click save button in config under Maintenance in the left catalog to save your configuration. Otherwise the phone will lose your modification after power off and on. 8.3 Configuration via WEB BASIC 8.3.1...

  • Page 32: Wizard

    Wizard Please select the proper network mode according to the network condition. C66 provide three different network settings:  Static: If your ISP server provides you the static IP address, please select this mode, and then finish Static Mode setting. If you don’t know about parameters of Static Mode setting, please ask your ISP for them.
  • Page 33 SIP(default SIP1)simply, also can browse too. Click【BACK】can return to the last page. IP Address Input the IP address distributed to you. Subnet Mask Input the Netmask distributed to you. IP Gateway Input the Gateway address distributed to you. DNS Domain Set DNS domain postfix.

  • Page 34: Call Log

    Display detailed information that you manual config. Choose DHCP MODE，click【NEXT】can config SIP(default SIP1)simply, also can browse too. Click 【BACK】 can return to the last page. Like Static IP MODE。 Choose PPPoE MODE，click【NEXT】can config the PPPoE account/password and SIP(default SIP1)simply, also can browse too. Click 【BACK】can return to the last page.

  • Page 35: Language

    Call Log Field name explanation Start Time Display the start time of the outgoing record. Duration Display the conversation time of the outgoing record. Dialed Calls Display the account/protocol/line of the outgoing record. LANGUAGE 8.3.1.4 MMI SET Field name explanation Language Set the language of phone, English is default.

  • Page 36: Network

    Network 8.3.2 WAN Config 8.3.2.1 WAN Config Active IP Address The current IP address of the phone. Current Subnet The current Netmask address. Mask MAC Address The current MAC address of the phone.
  • Page 37 Shows the time of getting MAC address Please select the proper network mode according to the network condition. C66 provide three different network settings:  Static: If your ISP server provides you the static IP address, please select this mode, then finish Static Mode setting. If you don’t know about parameters of Static Mode setting, please ask your ISP for them.

  • Page 38: Lqos&Vlan Config

    If you uses PPPoE mode， you need to make the above setting. PPPoE Server It will be provided by ISP. User Input your ADSL account. Password Input your ADSL password. Notice: 1) Click “Apply” button after finished your setting, IP Phone will save the setting automatically and new setting will take effect.
  • Page 39 In chart 1, there is a layer 2 that switches without setting VLAN. Any broadcast frame will be transmitted to the other ports except the send port. For example, a broadcast information is sent out from port 1 then transmitted to port 2,3and 4. In chart 2, red and blue indicate two different VLANs in the switch, and port 1 and port 2 belong to red VLAN, port 3 and port 4 belong to blue VLAN.

  • Page 40: Service Port

    QoS&VLAN Configuration LLDP Setting Enable LLDP Enable LLDP by selecting it After enabling LLDP Learn, telephone can Enable Learning automatically learn the data of DSCP, 802.1p, VLAN Function ID from the switch. If the data is different from the data of the LLDP server, telephone will change its own value as the value of the switch（Synchronous with VLAN in switch）...
  • Page 41 SERVICE PORT Field name explanation Service Port Web Server Type Specify Web Server Type HTTP Port Set web browser port, the default is 80 port，if you want to enhance system safety，you'd better change it into non-80 standard port； Example: The IP address is 192.168.1.70. and the port value is 8090, the accessing address is http://192.168.1.70:8090 HTTPS Port...

  • Page 42: Time&Date

    TIME&DATE 8.3.2.4 Setting time zone and SNTP (Simple Network Time Protocol) server according to your location, you can also manually adjust date and time in this web page. TIME&DATE Field name explanation Simple Network Time Protocol (SNTP) Settings Enable SNTP Enable SNTP by selecting it...

  • Page 43: Voip

    Enable DHCP Time Enable DHCP Time by selecting it, then the phone will automatically synchronize the standard time. Primary Server Set SNTP Primary Server IP address. Secondary Server Set SNTP Secondary Server IP address Time Zone Select the Time zone according to your location. Resync Period Set the time out, the default is 60 seconds.
  • Page 45 SIP Config Field name explanation SIP Line Choose line to set info about SIP, there are 4 lines to choose. You can switch by【Load】button. Basic Settings Status Shows if the phone has been registered the SIP server or not; or so, show Unapplied. Server Address Input your SIP server address.
  • Page 46 and Proxy SIP Server, you need make different settings). Proxy Server Port Set your Proxy SIP server port. Proxy User Input your Proxy SIP server account. Proxy Password Input your Proxy SIP server password. Set the sip domain if needed, otherwise this VoIP Domain Realm phone will use the Register server address as sip domain automatically.
  • Page 47 call. Enable Hot Line Specify Hot Line by selecting it Hot Line Number Specify Hot Line Number, the phone dial the hot line number automatically at hands-free mode or handset mode after warm line time Warm Line Wait Specify the Warm Line Time Time BLF Server the registered server will be gotten subscription...
  • Page 48 message to the server, and the server will turn on/off the function immediately. DND On Code Set the DND On Code, When you press the DND hot key, the phone will send a message to the server, and the server will turn on the DND function. Then any calls to the extension will be rejected by the server automatically.
  • Page 49 phone, it will send message to the server, and the server will turn off the function immediately. Ban Anonymous On Set the Ban Anonymous On Code, When you Code choose to enable the ban anonymous call function on your IP phone, it will send information to the server, and the server will enable the ban anonymous call function for your IP phone automatically.
  • Page 50 Enable DNS SRV Support DNS looking up with _sip. udp mode Enable Missed Call Enable the missed call log by it, the phone will save the missed call log into the call history record and display the missed calls on the idle screen, or won’t save the missed call log into the call history record and display the missed calls on the idle screen.

  • Page 51: Stun Config

    with server Click to talk Set click to Talk (need practical software support). Transport Protocol Set transport protocols, TCP or UDP or TLS; Use VPN Phone use vpn ip to communicate Enable DND When the type of DND feature is line, enable the DND feature for a line SIP Global Settings Strict Branch...
  • Page 52 STUN Field name explanation Simple Traversal of UDP through NATs (STUN) Settings STUN NAT Traversal Shows STUN NAT Transverse estimation, true means STUN can penetrate NAT, while False means not. Server Address Set your SIP STUN Server IP address Server Port Set your SIP STUN Server Port Set STUN blinding period(s).

  • Page 53: Dial Peer

    Choose line to set info about SIP, There are 6lines to choose. You can switch by 【Load】 button. Use STUN Enable/Disable SIP STUN. Notice: SIP STUN is used to realize SIP penetration to NAT. If your phone configures STUN Server IP and Port (default is 3478), and enable SIP Stun, you can use the ordinary SIP Server to realize penetration to NAT.
  • Page 54 2. [] Specifies a range that will match digit. It may be a range, a list of ranges separated by commas, or a list of digits. If user makes the above configuration, after user dials 11 digit numbers started with from 135 to 139, the phone will send out 0 plus the dialed numbers automatically.
  • Page 55 255.255.255.255 or 0.0.0.2 in it.SIP3 into 0.0.0.3 Port Set the Signal port, the default is 5060 for SIP. Set alias. This is optional config item. If you don’t set Alias Alias, it will show no alias. Note: There are four types of aliases. 1) Add: xxx, it means that you need dial xxx in front of phone number, which will reduce dialing number length.

  • Page 56: Phone

    This setting will realize When you dial “2”, the SIP1 speed dial function, after you dialing the numeric server will key “2”, the number after receive all will be sent out. 33334444 The phone will When you dial “8309“, the SIP1 automatically send out alias number adding your server will...
  • Page 57 DSP Configuration Field name explanation First Codec The first preferential DSP codec:G.711A/U,G.722,G.723,G.729,G.726-32, ILBC,AMR,AMR-WB Second Codec The second preferential DSP codec: G.711A/U,G.722,G.723,G.729,G.726-32, ILBC,AMR,AMR-WB,NONE Third Codec The third preferential DSP codec: G.711A/U,G.722,G.723,G.729,G.726-32 , ILBC,AMR,AMR-WB,NONE Fourth Codec The forth preferential DSP codec: G.711A/U,G.722,G.723,G.729,G.726-32 , ILBC,AMR,AMR-WB,NONE Fifth Codec The fifth preferential DSP codec:...

  • Page 58: Feature

    Default Ring Type Select Ring Type Handset Volume Specify Handset Volume grade. Speakerphone Specify Speakerphone Volume grade. volume Headset Volume Specify Headset Volume grade. Headset Ring Specify Headset Ring Volume grade Volume Speakerphone Ring Specify Speakerphone Ring Volume grade Volume ILBC Payload Type Set ILBC payload type ILBC Payload...
  • Page 59 FEATURE Field name explanation Do Not There are there options: Disturb Disabled: The phone accept any normal incoming call Phone: The phone rejects any incoming call, the caller will automatically prompt hang up, but outgoing calls will not be affected Line: A line enabled DND will reject it's any incoming call If you select Ban Outgoing to enable it, and you cannot dial out Outgoing...
  • Page 60 Auto Redial Specify the Auto Redial interval, interval Auto Redial Specify the Auto Redial interval Times Auto Open this function, if there is a headphones in C60, you can press “ answer” key or line key to answer a call with the Headset headset, Enable...
  • Page 61 Accept Any If select it, the phone will accept the call even if the called Call number is IP . Enable Call Enable Call Completion by selecting it, If the callee is busy, the Completion sip server will inspect the callee status at intervals. If the callee is idle, the server will send notify message to inform the caller whether redial.

  • Page 62: Dial Plan

    Call Play Talking Press the number keys in a call, you can hear the sound of the DTMF Tone Play Dialing Press the number keys in dialing, you can hear the sound of the tone Block Out Settings Set Add/Delete Limit List. Please input the prefix of those phone numbers which you forbid the phone to dial out.
  • Page 63 external number totally to the server. For example, there is a rule 9, xxxxxxxx in the digital map table. After dialing 9, phone will send the secondary dial tone, user may keep going dialing. After finished, phone will call the number which starts with 9; actually the number sent out is 9-digit with 9.

  • Page 64: Contact

    Below is user-defined digital map rule: [] Specifies a range that will match digit. May be a range, a list of ranges separated by commas, or a list of digits. * Match any single digit that is dialed. . Match any arbitrary number of digits including none. Tn Indicates an additional time out period before digits are sent of n seconds in length.
  • Page 65 CONTACT Field name explanation Phonebook Table Name Shows the name corresponding to the phone number Number Shows the phone number Ring Type Shows the ring type of the incoming call. Group Shows the group of the contact Notice: the maximum capability of the phonebook is 500 items, you can select many or a contact to add to group and add to blacklist, and delete many or a contact, and delete all contacts.
  • Page 66 Mobile Number Specify the mobile number Other Number Specify the other number Ring Type Specify the ring type for the phone number Line Specify the sip line for the each number Group setting Select the group from the unselected group to selected list for the contact;...

  • Page 67: Remote Contact

    If user wants to allow a number or a series of number incoming, he may add the number(s) to the list as the white list rule. the configuration rule is -number, for example, -123456, or -1234xx Means any incoming number is forbidden except for 4119 Note: End with DOT (.) when set up the white list REMOTE CONTACT 8.3.4.5...

  • Page 68: Web Dial

    Version LDAP version Server Address LDAP server address Server port LDAP server port There are four options: NONE, Authentication DIGEST-MD5,CRAM-MD5,Simple Line contacts call using the selected line Username Enter username Password Enter password Search Base query the root directory access to LDAP the phone search LDAP server in the outgoing / Enable Calling Search incoming call .
  • Page 69 Use the multicast function to send notice to every member of the multicast is simple and easy. By setting the multicast key on your phone, you can send multicast RTP flow to the pre-configured multicast address. By listening multicast address is configured on the phone, listen and play the multicast address to send the RTP stream.
  • Page 70 Priority: Enable priorities of normal call by select it, if the incoming RTP stream priority of multicast lower than the priority of current for normal calls, the phone will ignore the RTP stream of multicast. If the incoming RTP stream priority of multicast higher than the priority of current for normal calls, the phone will receive the RTP stream of multicast, and hold the current call.

  • Page 71: Tone

    TONE 8.3.4.8 You can select the desired tone standard, also can customize the settings...

  • Page 72: Action Url

    Action URL 8.3.4.9 Specify the Action URL that Record the operation of phone, send these corresponding information server, url:http://InternalServer /FileName.xml?(Internal Server is server ip, FileName is name of xml that contains the action message )

  • Page 73: Function Key

    Function Key 8.3.5 Function Key 8.3.5.1 Field name explanation Contrast Set contrast of screen Enable Backlight Set enable/disable backlight You don’t operate the phone more than a backlight Backlight Time timeout setting, the backlight will turn off...
  • Page 74 automatically Line Key Settings Line: select Auto, SIP1, SIP2, SIP3, SIP4, or IAX2 in function key type. After you set it, you pick up handset or hands-free, press this function key, and then you can use the corresponding SIP line. Function Key Settings Show the function key's serial number Type...

  • Page 75: Ext Key

    EXT KEY 8.3.5.2 has the same usage with the Function key. “In” port connects the EXT KEY phone, “Out” port connects the next one, if there is only, you don’t need for power supply, if there are more than one, you need supply 5V power for the first one, and use RJ-45 direct connector.

  • Page 76: Softkey

    SOFTKEY 8.3.5.3 You can configure different functions in different screens for every softkey. Maintenance 8.3.6 Auto Provision 8.3.6.1...
  • Page 77 Fanvil endpoint supports PnP and DHCP and Phone Flash to obtain the parameters. The PnP and DHCP and Phone Flash are all deployed, endpoint will go by the following process to try to obtain the server address and other parameters, when it boots up: DHCP option ...
  • Page 78 stop here. If the endpoints confirm the configuration by Digest method, the endpoints wouldn’t upgrade configuration unless the configuration in the server is different with the running configuration. CPE Serial Number Show CPE Serial Number User Specify FTP/HTTP/HTTPS server Username. System will use anonymous if username keep blank.

  • Page 79: Syslog Config

    name keep blank. For example, 000102030405.。 Protocol Type Specify the Protocol type FTP、TFTP or HTTP. Update Interval Specify update interval time, unit is hour. Different update modes: 1. Disable: means no update Update Mode 2. Update after reboot: means update after reboot. 3.

  • Page 80: Syslog Configuration

    Syslog Configuration Field name explanation Syslog Setting Server Address Set Syslog server IP address. Server Port Set Syslog server port. MGR Log Level Set the level of MGR log. SIP Log Level Set the level of SIP log. Enable Syslog Select it or not to enable or disable syslog.

  • Page 81: Config Setting

    Config Setting 8.3.6.3 Config Setting Field name explanation You can save all changes of configurations. Click the Save Configuration Save button, all changes of configuration will be saved, and be effective immediately. Right clicks on “Right click here…” and select “Save Backup Target As config File(.txt)”...
  • Page 82 Update Field name explanation Web Update Click the browse button, find out the config file saved Web Update before or provided by manufacturer, download it to the phone directly, press “Update” to save. You can also update downloaded update file, logo picture, ring, mmiset file by web.

  • Page 83: Access

    FTP/TFTP server, name and save it. 3. Config fie import: Download the config file to phone from FTP/TFTP server. The configuration will be effective after the phone is reset. 4. Phone book export ( ): Upload the .vcf, .csv, .xml phonebook file to FTP/TFTP server, name and save it.
  • Page 84 Access Configuration Field name explanation Keyboard Password Set the password for entering the setting menu of the phone by the phone‘s key board. The password is digit. This table shows the current user existed. User Set account user name. User Level Set user level, Root user has the right to modify configuration, General can only read.

  • Page 85: Reboot

    Reboot 8.3.6.6 If you modified some configurations which need the phone’s reboot to be effective, you need click the Reboot, then the phone will reboot immediately. Notice: Before reboot, you need confirm that you have saved all configurations. Security 8.3.7 WEB Filter 8.3.7.1 WEB Filter...

  • Page 86: Firewall

    delete the selected IP segment. Web Filter setting Select it or not to enable or disable Web Filter. Click Apply to make it effective. Notice: Do not set your visiting IP outside the Web filter range, otherwise, you cannot logon through the web. Firewall 8.3.7.2 Firewall Configuration...

  • Page 87: Vpn

    We will give you an instance for your reference. Field name explanation Enable Input Rules Select it to Enable Input Rules Enable Output Select it to Enable Output Rules Rules Input / Output Specify current adding rule by selecting input rule or output rule.

  • Page 88: Vpn Configuration

    set it to connect public networks in different areas into inner network via a special tunnel. VPN Configuration Field name explanation VPN IP Shows the current VPN IP address Select L2TP. You can choose only one for current state. After you select it, you’d better save configuration and reboot your phone.

  • Page 89: Security

    VPN Server Addr Set VPN L2TP Server IP address VPN User Name Set User Name access to VPN L2TP Server VPN Password Set Password access to VPN L2TP Server Security 8.3.7.4 Security Field name explanation Update Security File Select Security File Select the security file you want to update, then click Update button to update Delete Security File...
  • Page 90 Click Logout， and you will exit web page. If you want to enter it next time, you need input user name and password again.

  • Page 91: Appendix

    9 Appendix 9.1 Specification Hardware 9.1.1 Item C66(P) Adapter Input: 100-240V (Input / Output) Output: 5V 1A port 10/100/1000 Base- T RJ-45 1 PORT 10/100/1000 Base- T RJ-45 1 PORT RJ45 1 PORT headset RJ9 1 PORT Power Idle: 2.5W/Active: 2.8W...

  • Page 92: Network Features

     Support multi line/HD Voice  SIP support SIP domain, SIP authentication(none basic, MD5), DNS name of server, Peer to Peer/ IP call  Automatically select calling line, if one line can’t be connected, the phone can automatically switch to other line to call. ...

  • Page 93: Maintenance And Management

     Support VPN (L2TP) function  Wan Port supports main DNS and secondary DNS server, can select dynamically to get DNS in DHCP mode or statically set DNS address.  Support DHCP client on WAN  Support DHCP server on LAN ...
