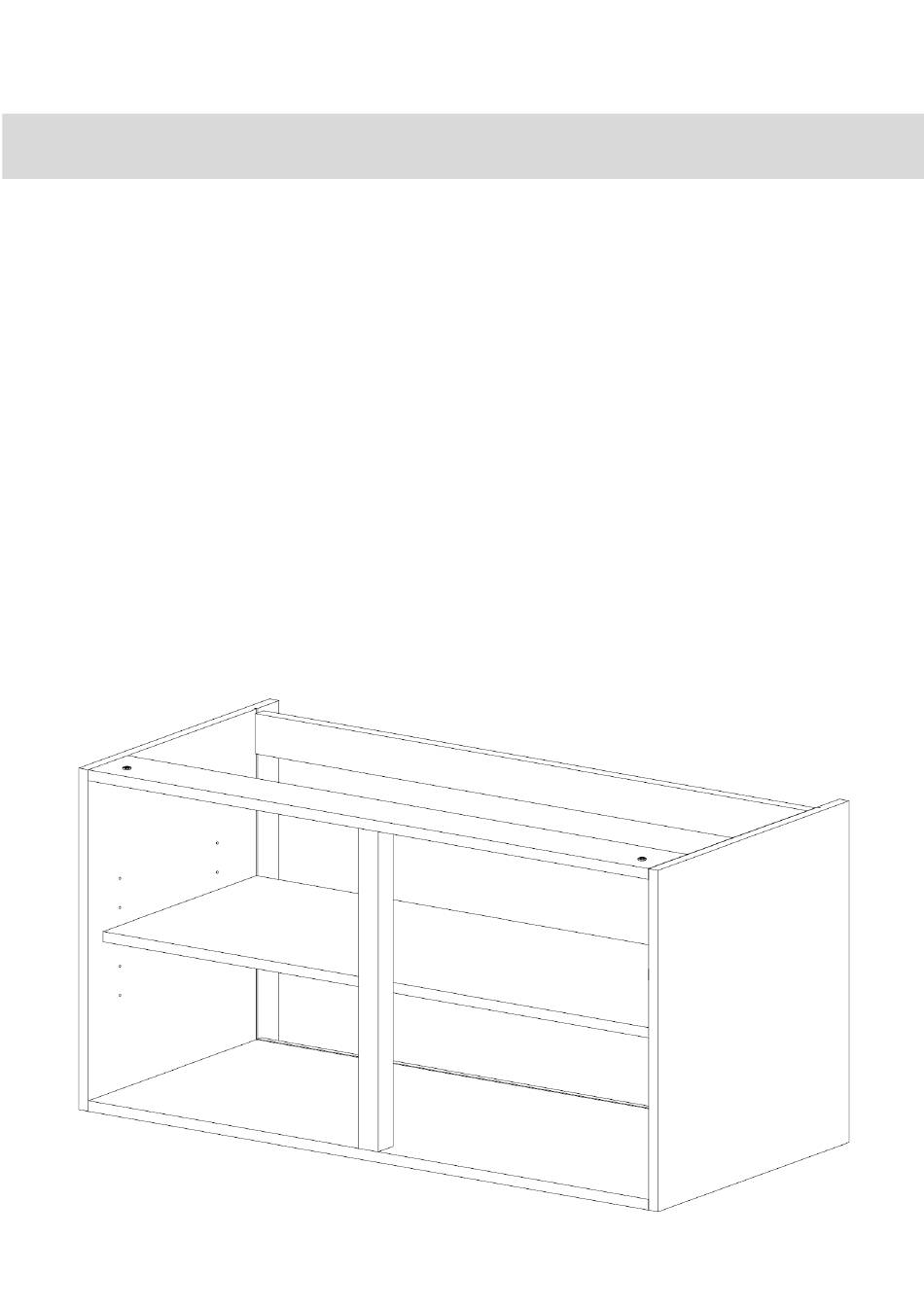

Assembly Guide
800mm — 1200mm Wide Sink Cabinet
IMPORTANT – Please read prior to installation
Thanks for purchasing a solid oak kitchen cabinet. Prior to commencing installation please
check the contents of this package to ensure that all necessary components are included.
Please contact us immediately via email if any parts appear to be missing.
Please ensure that you assemble the goods in a clean, dry area, with plenty of space, and
that you have the correct tools and equipment to hand. We recommend that you read the
instructions in full before commencing assembly; and if unsure we advise an initial rehears-
al of the installation procedure without physically assembling any items. Only construct
one cabinet at a time and follow the installation stages in order without modification. Dur-
ing installation, be careful to keep the relevant fittings for each cabinet together. Do not
over-tighten screws, and ensure that any larger panels are laid flat and protected.
We advise using a damp cloth and – if necessary – a small amount of liquid soap to clean
the cabinet. Do not use abrasive materials. For more information, please view the full
cleaning and aftercare guide on our website.
SC-IFU-330-SP-SI-W800-1200
