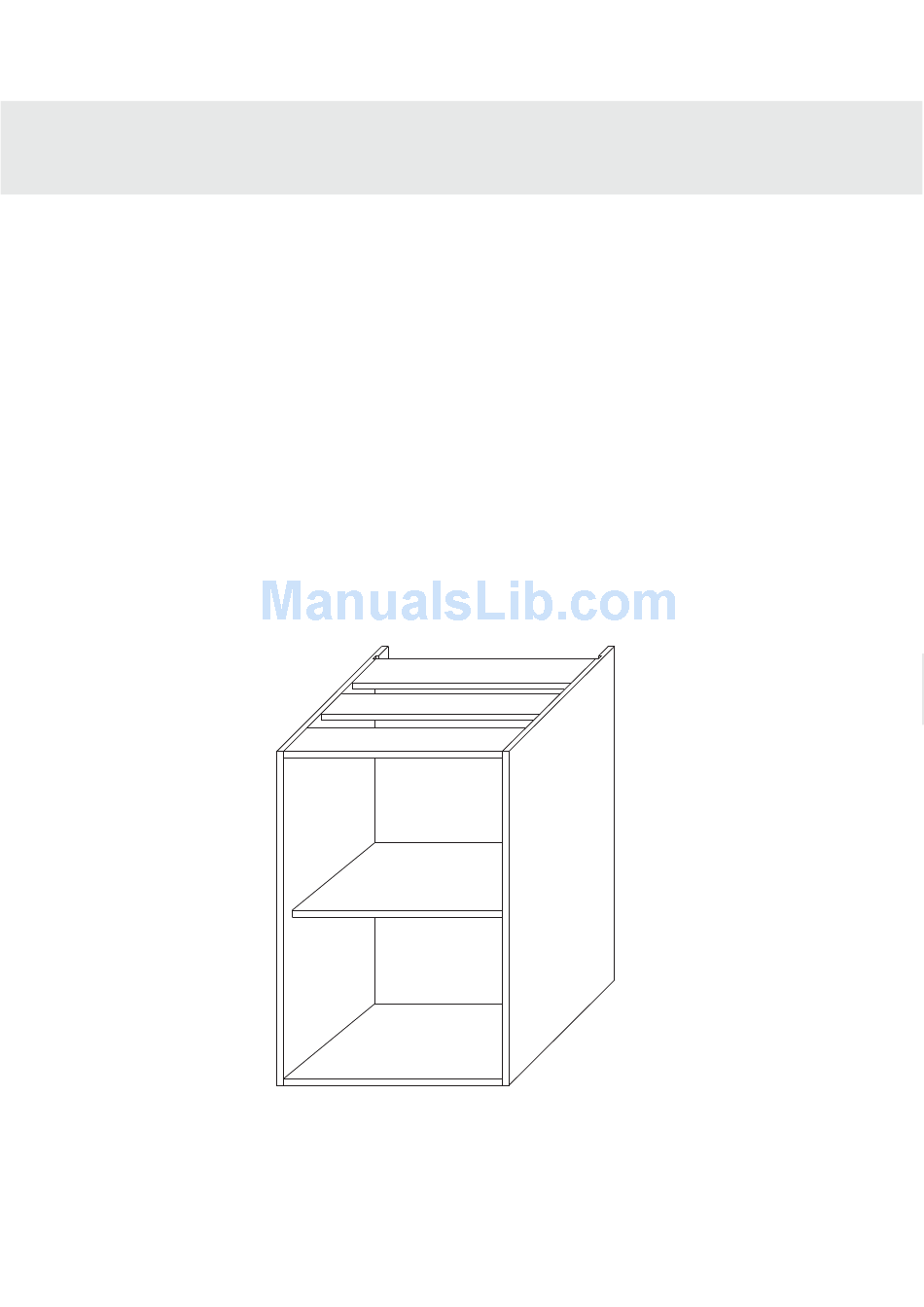

Assembly Guide
300mm - 600mm Wide Slimline Base Cabinet D450mm
IMPORTANT – Please read prior to installation
Thanks for purchasing a solid oak kitchen cabinet. Before you commence installation, please check the contents of
this package to ensure that all necessary components are included. Please contact us immediately via email if any
parts appear to be missing.
Please ensure that you assemble the goods in a clean, dry area, with plenty of space, and that you have the correct
tools and equipment to hand. We recommend that you read the instructions in full before you commence assembly,
and if necessary, run through the installation procedure without physically assembling any items before you begin.
Only construct one cabinet at a time, and follow the installation stages in order, without modification. During
installation, be careful to keep the relevant fittings for the current cabinet together. Do not over tighten screws, and
ensure that any larger panels are laid flat and protected.
We advise using a damp cloth and – if necessary – a small amount of liquid soap to clean the cabinet. Do not use
abrasive materials. For more information, please view the full cleaning and aftercare guide on our website
SC-IFU-308-SL-D450-W300-600
Advertisement
Related Manuals for Solid Wood Kitchen Cabinets Slimline D450mm
Summary of Contents for Solid Wood Kitchen Cabinets Slimline D450mm
- Page 1 Assembly Guide 300mm - 600mm Wide Slimline Base Cabinet D450mm IMPORTANT – Please read prior to installation Thanks for purchasing a solid oak kitchen cabinet. Before you commence installation, please check the contents of this package to ensure that all necessary components are included. Please contact us immediately via email if any parts appear to be missing.
- Page 2 Panels Hardware 12 x 12 x 24 x 15mm 25mm 12 x...
- Page 3 Insert as shown in the diagram below. Apply a small drop of glue to each dowel before inserting. Insert as shown ensuring the arrow marking is pointing towards the outside edge.
- Page 4 Connect the base panel to the side panel using the fittings inserted during steps 1 and 2. Repeat the process for all top panels Connect the opposite side panel as shown then tighten all fittings by turning in direction of arrow with screwdriver.
- Page 5 Slide the back panel between the grooves on the inside edge of each side panel as shown. It is advised that you run a small amount of glue along the grooves first.
- Page 6 Fitting Cabinet Legs Position each foot mount towards the edge of the base panel at each corner. Ensure screw holes are not aligned over the panel join and that the overhang foot support is overlapping the side panel as shown below.
- Page 7 Joining Cabinets Cabinets should be joined be- tween each set of hinge holes on the inside edge of the side panel as shown in the diagram. Mark 25mm as a guide on a 3mm diameter drill bit using masking tape. Drill between the hinge holes into the cabi- net side panel (18mm) and 7mm into the next until you...
- Page 8 Fitting Shelves and Plinths Shelves Push the shelf supports into the pre-drilled shelf holes then sit the shelf on top. Plinths Secure plinth to plinth clip using screw provided Clip each plinth clip onto the legs at the front of the cabinet.
