Solid Wood Kitchen Cabinets Wide Wall Cabinet Assembly Manual

800mm - 1200mm

Download this manual

Assembly Guide

800mm - 1200mm Wide Wall Cabinet

IMPORTANT – Please read prior to installation

Thanks for purchasing a solid oak kitchen cabinet. Before you commence installation, please check the contents of

this package to ensure that all necessary components are included. Please contact us immediately via email if any

parts appear to be missing.

Please ensure that you assemble the goods in a clean, dry area, with plenty of space, and that you have the correct

tools and equipment to hand. We recommend that you read the instructions in full before you commence assembly,

and if necessary, run through the installation procedure without physically assembling any items before you begin.

Only construct one cabinet at a time, and follow the installation stages in order, without modi cation. During

installation, be careful to keep the relevant ttings for the current cabinet together. Do not over tighten screws, and

ensure that any larger panels are laid at and protected.

Clean the cabinets with a damp cloth, and if necessary a small amount of liquid soap, only. Do not use abrasives.

We provide a full cleaning and aftercare guide on our website, please view this for further information.

Need help?

Do you have a question about the Wide Wall Cabinet and is the answer not in the manual?

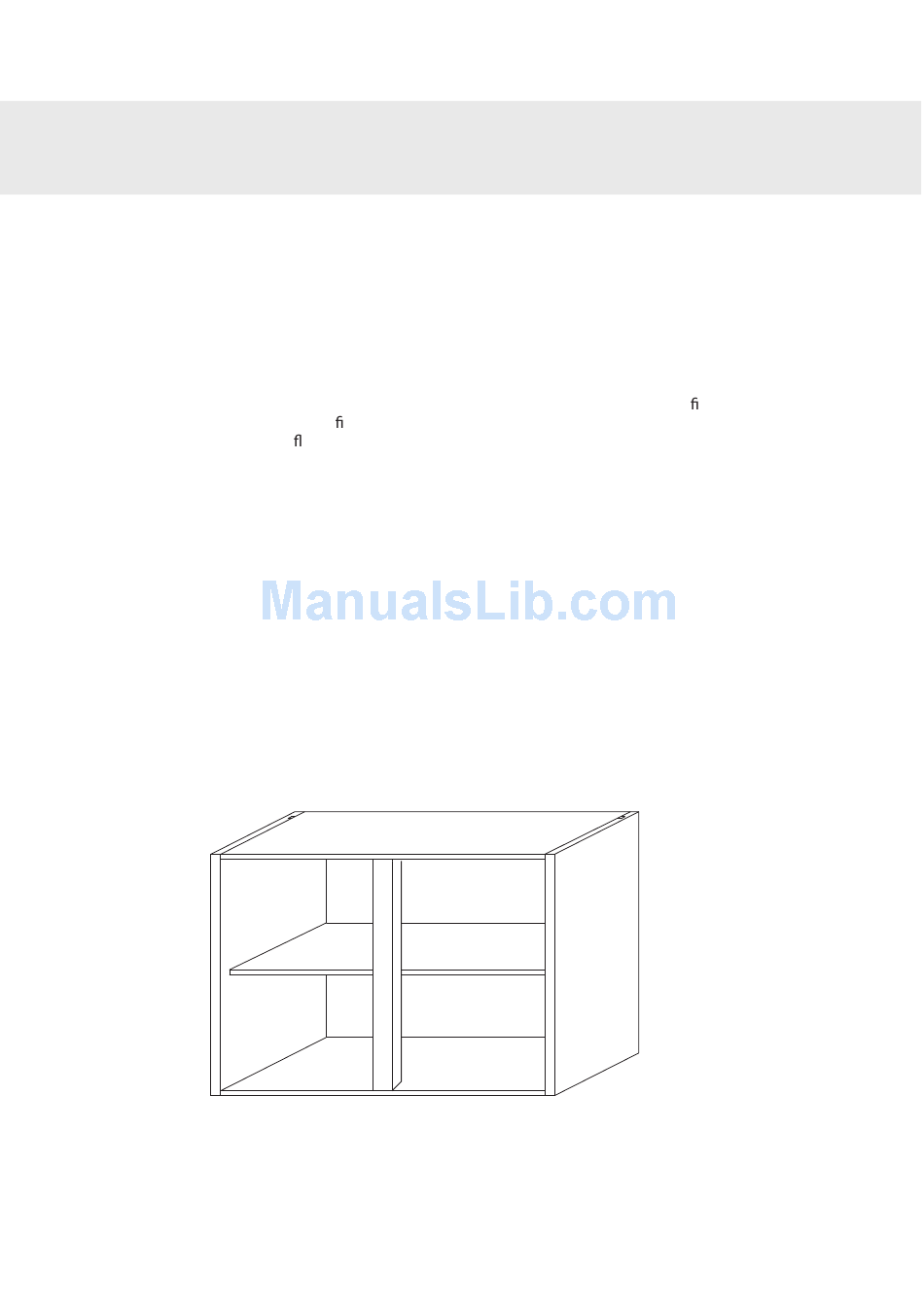

Page 1 Assembly Guide 800mm - 1200mm Wide Wall Cabinet IMPORTANT – Please read prior to installation Thanks for purchasing a solid oak kitchen cabinet. Before you commence installation, please check the contents of this package to ensure that all necessary components are included. Please contact us immediately via email if any parts appear to be missing.
Page 2 Panels Hardware 25mm 30mm 12 x...
Page 3 Insert as shown in the diagram below. Apply a small drop of glue to each dowel before inserting. Attach wall hanging unit to top of side panels using screws.
Page 4 Insert as shown ensuring the arrow marking is pointing towards the outside edge. Connect the base panel to the side panel using the ttings inserted during steps 1 and 2. Repeat the process for the top panel...
Page 5 Fit support panel using 4 x dowels and secure with 2 x screws Slide the back panel between the grooves on the inside edge of panels It is advised that you run a small amount of glue along the grooves rst.
Page 6 Connect the opposite side panel as shown then tighten all ttings Tighten all ttings by turning in direction of arrow with a screwdriver.
Page 7 Joining Cabinets Cabinets should be joined be- tween each set of hinge holes on the inside edge of the side panel as shown in the diagram. Mark 25mm as a guide on a 3mm diameter drill bit using masking tape. Drill between the hinge holes into the cabi- net side panel (18mm) and 7mm into the next until you...
