Assembly Guide

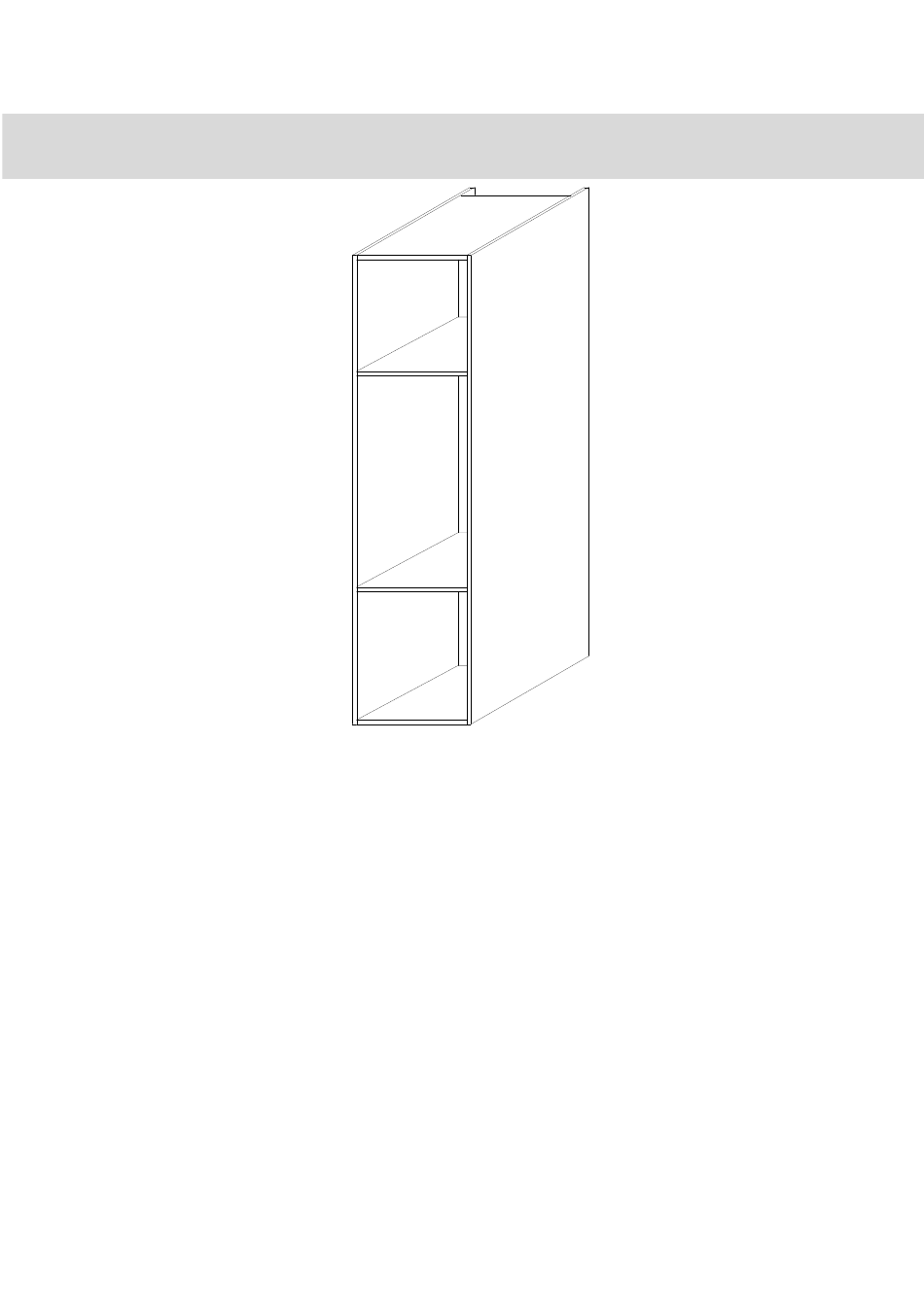

Full Height Oven Cabinet
IMPORTANT – Please read prior to installation
Thanks for purchasing a solid oak kitchen cabinet. Prior to commencing installation please
check the contents of this package to ensure that all necessary components are included.
Please contact us immediately via email if any parts appear to be missing.
Please ensure that you assemble the goods in a clean, dry area, with plenty of space, and
that you have the correct tools and equipment to hand. We recommend that you read the
instructions in full before commencing assembly; and if unsure we advise an initial rehears-
al of the installation procedure without physically assembling any items. Only construct
one cabinet at a time and follow the installation stages in order without modification. Dur-
ing installation, be careful to keep the relevant fittings for each cabinet together. Do not
over-tighten screws, and ensure that any larger panels are laid flat and protected.
We advise using a damp cloth and – if necessary – a small amount of liquid soap to clean
the cabinet. Do not use abrasive materials. For more information, please view the full
cleaning and aftercare guide on our website.
IFU-321/322.1
Advertisement
Related Manuals for Solid Wood Kitchen Cabinets Full Height Oven Cabinet
Summary of Contents for Solid Wood Kitchen Cabinets Full Height Oven Cabinet
- Page 1 Assembly Guide Full Height Oven Cabinet IMPORTANT – Please read prior to installation Thanks for purchasing a solid oak kitchen cabinet. Prior to commencing installation please check the contents of this package to ensure that all necessary components are included.
- Page 2 Panels Hardware 24 x 24 x 28 x 24 x IFU-321/322.1...
- Page 3 Insert connecting bolts and dowels shown in the diagram below for both side pan- Apply a small drop of glue to each dowel before inserting. Insert cams into the top and bottom panels as shown in the diagram below. Ensure that the arrow marking is pointing towards the outside edge of the panel.
- Page 4 Insert cams into the shelf panel as shown in the diagram below. Ensure that the arrow marking is pointing towards the outside edge of the panel. Connect the top and base panels to the side panel using the fittings inserted dur- ing steps 1 and 2.
- Page 5 Make a cut out in the back panel as de- tailed in your appliance instructions. Slide the back panel between the grooves on the inside edge of the top and base panels It is advised to apply a small amount of glue along the grooves first.
- Page 6 Fitting Cabinet Legs Position each leg housing towards the edge of the base panel at each corner. Ensure screw holes are not aligned over the panel join and that the overhang foot support is overlapping the side panel as shown in the diagram below. Attach the adjustable Drill 3mm pilot holes into legs...
- Page 7 Joining Cabinets Cabinets should be joined between each set of hinge holes on the inside edge of the side panel as shown in the diagram. Mark 25mm as a guide on a 3mm diameter drill bit using masking tape. Drill between the hinge holes into the cabinet side panel (18mm) and 7mm in- to the next until you reach...
- Page 8 Fitting Plinths Secure plinth to plinth holder clip using screw provided. Clip each plinth clip onto the legs the front of the cabinet. IFU-321/322.1...
