LMU Controller

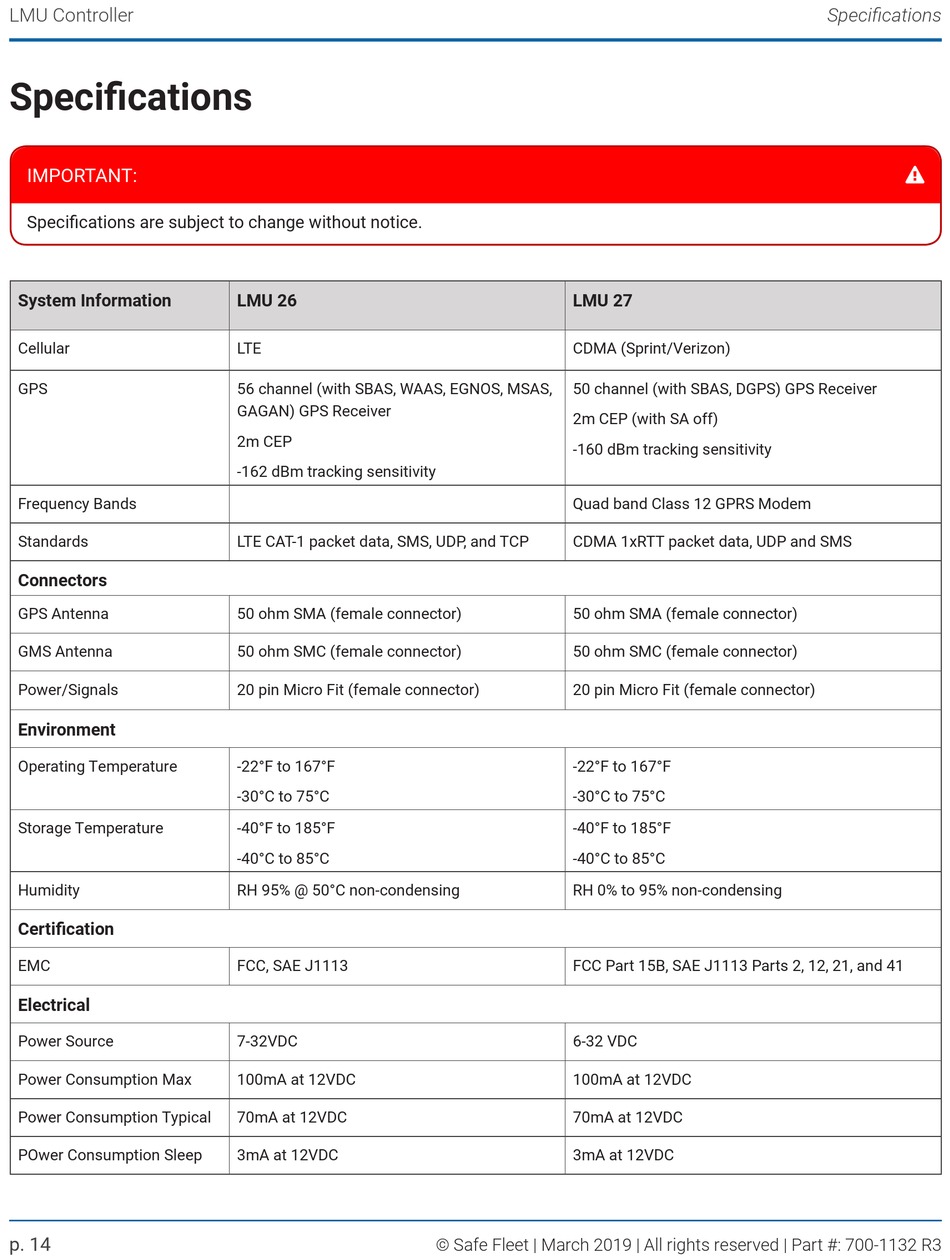

Specifications
IMPORTANT:
Specifications are subject to change without notice.
System Information
Cellular
GPS
Frequency Bands
Standards
Connectors
GPS Antenna
GMS Antenna
Power/Signals
Environment
Operating Temperature
Storage Temperature
Humidity
Certification
EMC
Electrical
Power Source
Power Consumption Max
Power Consumption Typical
POwer Consumption Sleep
p. 14
LMU 26
LTE
56 channel (with SBAS, WAAS, EGNOS, MSAS,
GAGAN) GPS Receiver
2m CEP
-162 dBm tracking sensitivity
LTE CAT-1 packet data, SMS, UDP, and TCP
50 ohm SMA (female connector)
50 ohm SMC (female connector)
20 pin Micro Fit (female connector)
-22°F to 167°F
-30°C to 75°C
-40°F to 185°F
-40°C to 85°C
RH 95% @ 50°C non-condensing
FCC, SAE J1113
7-32VDC
100mA at 12VDC
70mA at 12VDC
3mA at 12VDC
LMU 27
CDMA (Sprint/Verizon)
50 channel (with SBAS, DGPS) GPS Receiver
2m CEP (with SA off)
-160 dBm tracking sensitivity
Quad band Class 12 GPRS Modem
CDMA 1xRTT packet data, UDP and SMS
50 ohm SMA (female connector)
50 ohm SMC (female connector)
20 pin Micro Fit (female connector)
-22°F to 167°F
-30°C to 75°C
-40°F to 185°F
-40°C to 85°C
RH 0% to 95% non-condensing
FCC Part 15B, SAE J1113 Parts 2, 12, 21, and 41
6-32 VDC
100mA at 12VDC
70mA at 12VDC
3mA at 12VDC
© Safe Fleet | March 2019 | All rights reserved | Part #: 700-1132 R3
