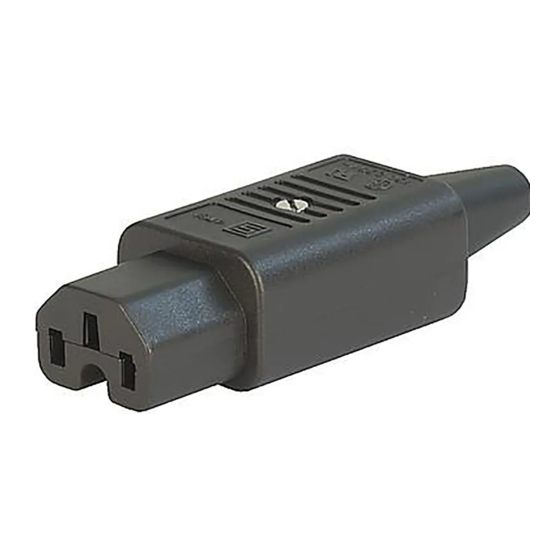

SCHURTER 4781 Manual

1. Wiring for 4781 & 4782 1. Wiring for 4781 & 4782
Torque Value Torque Value
0.5Nm 0.5Nm
Engineering Documentation
owner creation date
hotzar 2016-11-08
Cable Clamp Cable Clamp
9 9
Cable end sleeves Cable end sleeves
(Optional, not enclosed) (Optional, not enclosed)
Torque Value Torque Value
0.30Nm 0.30Nm
N N blue blue
Yellow / Yellow / green green
L L brown brown
Torque Value Torque Value
0.30Nm 0.30Nm
release date released by
2016-11-18 hotzar
35 35
Applicable Cable Types: Applicable Cable Types:
Cable Type: Cable Type:
4781.XXXX 4781.XXXX According to IEC60245-8 According to IEC60245-8
Type 60245 IEC 89 Type 60245 IEC 89
4782.XXXX 4782.XXXX According to IEC60227-5 or IEC60245-8 According to IEC60227-5 or IEC60245-8
Type 60227 IEC 53 or Type 60245 IEC 89 Type 60227 IEC 53 or Type 60245 IEC 89
SVT (10A/125V) SVT (10A/125V)
SJT (15A/250V) SJT (15A/250V)
Max. Cable Diameter: Max. Cable Diameter:
Ø 8.5mm for 478X.0000 Ø 8.5mm for 478X.0000
Ø 10.0mm for 478X.0100 Ø 10.0mm for 478X.0100
Max. Wire Size: Max. Wire Size:
3x1.5mm 3x1.5mm
3x16AWG 3x16AWG
Min. Wire Size: Min. Wire Size:
3x0.75mm 3x0.75mm
3x18AWG 3x18AWG
if cord has a length exeeding 2m, nominal cross- if cord has a length exeeding 2m, nominal cross-
sectional areas shall be 1.0mm sectional areas shall be 1.0mm
N N
IN IN PE PE
L L
Wiring for 478X
change order no rev page
2011424 C 1 of 3
Tension Relief Tension Relief
2 2
for 10A for 10A
for 15A for 15A
2 2
for 10A for 10A
for 15A for 15A
2 2
/16AWG /16AWG
N' N'
PE' PE' OUT OUT
L' L'
0115.0054
