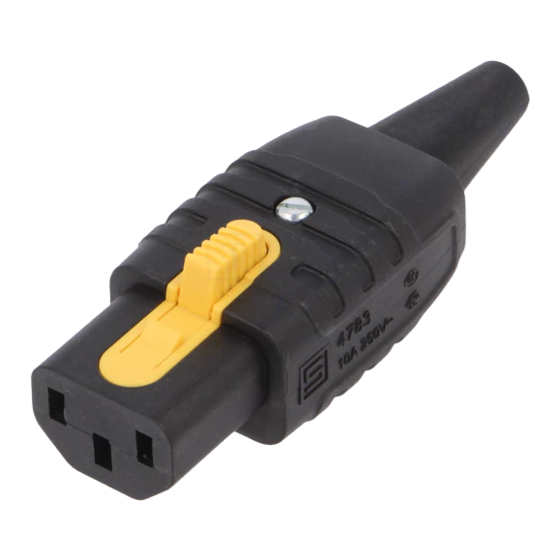

SCHURTER 4783 Series Operation Manual

1. Wiring for 4783 1. Wiring for 4783
Torque Value 0.5 Nm Torque Value 0.5 Nm
Operation Manual
owner creation date
huberth 29.07.2019
Cable Clamp Cable Clamp
Cable Type Cable Type
Cable Diameter min Cable Diameter min
Cable Diameter max Cable Diameter max
Wire Size min Wire Size min
Wire Size max Wire Size max
Torque Value 0.3 Nm Torque Value 0.3 Nm
L L brown brown
yellow / yellow / green green
N N blue blue
Torque Value 0.8 Nm Torque Value 0.8 Nm
release date released by
29.07.2019 huberth
35 35
IEC IEC
H05VV-F H05VV-F
Ø 7.6mm Ø 7.6mm
Ø 9.4mm Ø 9.4mm
3x0.75mm² 3x0.75mm²
3x1.50mm² 3x1.50mm²
Reversible Cable Clamp Reversible Cable Clamp
For large For large
Cable diameters Cable diameters
L L
PE PE
N N
Wiring for 4783
change order no rev page
2018100 B 1 of 2
Cable Guard Cable Guard
UL UL
SVT, SJT SVT, SJT
Ø 7.7mm Ø 7.7mm
Ø 9.5mm Ø 9.5mm
3xAWG18 (0.82mm²) 3xAWG18 (0.82mm²)
3xAWG14 (2.08mm²) 3xAWG14 (2.08mm²)
For small For small
Cable diameters Cable diameters
L L
PE PE
N N
