Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be
sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
If factory equipped, winch bumper may interfere with parking, proximity and external cruise control sensors.
KIT CONTENTS:
1-EXO Front Bumper W/ Light mount
2– 2" Flush Mount LED Cubes
1– Single Row 20" LED
1– Drivers Side EXO Bumper mount
1– Passengers EXO Bumper mount
1– Drivers Side Bumper Bracket
1– Passengers Side Bumper Bracket
2-Bolt Plates
2-D-rings
Torque Specs:
Size
Grade 5
5/16"
15 ft/lbs
3/8"
30 ft/lbs
7/16"
45 ft/lbs
1/2"
65 ft/lbs
9/16"
95 ft/lbs
5/8"
135ft/lbs
3/4"
185ft/lbs
Thank you for choosing Rough Country for all your vehicle needs.
Rough Country LED lights are for off-road use only.
13mm wrench and socket
15mm wrench and socket
19mm wrench and socket
18mm wrench and socket
Grade 8
Size
20ft/lbs
6MM
35ft/lbs
8MM
60ft/lbs
10MM
90ft/lbs
12MM
130ft/lbs
14MM
175ft/lbs
16MM
280ft/lbs
18MM
FORD 2011-16 F-250 EXO Bumper
TOOLS NEEDED:
3/4 wrench and socket
Ratchet
Tape Measure
Auto Trim Puller
Class 8.8
Class 10.9
5ft/lbs
18ft/lbs
32ft/lbs
55ft/lbs
85ft/lbs
130ft/lbs
170ft/lbs
*51006BAG1*
51006BAG1
HARDWARE INCLUDED:
6-7/16-14 x 1 1/2 bolts
6-7/16 Lock Washers
6–7/16 Flat Washers
2-12mm x 120mm Bolts
4-1/2" x 1 1/2" Bolts
6-1/2" Flat Washers
6-1/2" Lock Washers
4-12mm x 35mm Bolts
4-12mm Flat Washers
4-12mm Flange Lock Nuts
9ft/lbs
23ft/lbs
45ft/lbs
75ft/lbs
120ft/lbs
165ft/lbs
240ft/lbs
921510060
Advertisement
Table of Contents
Related Manuals for rough country 51006BAG1
Summary of Contents for rough country 51006BAG1

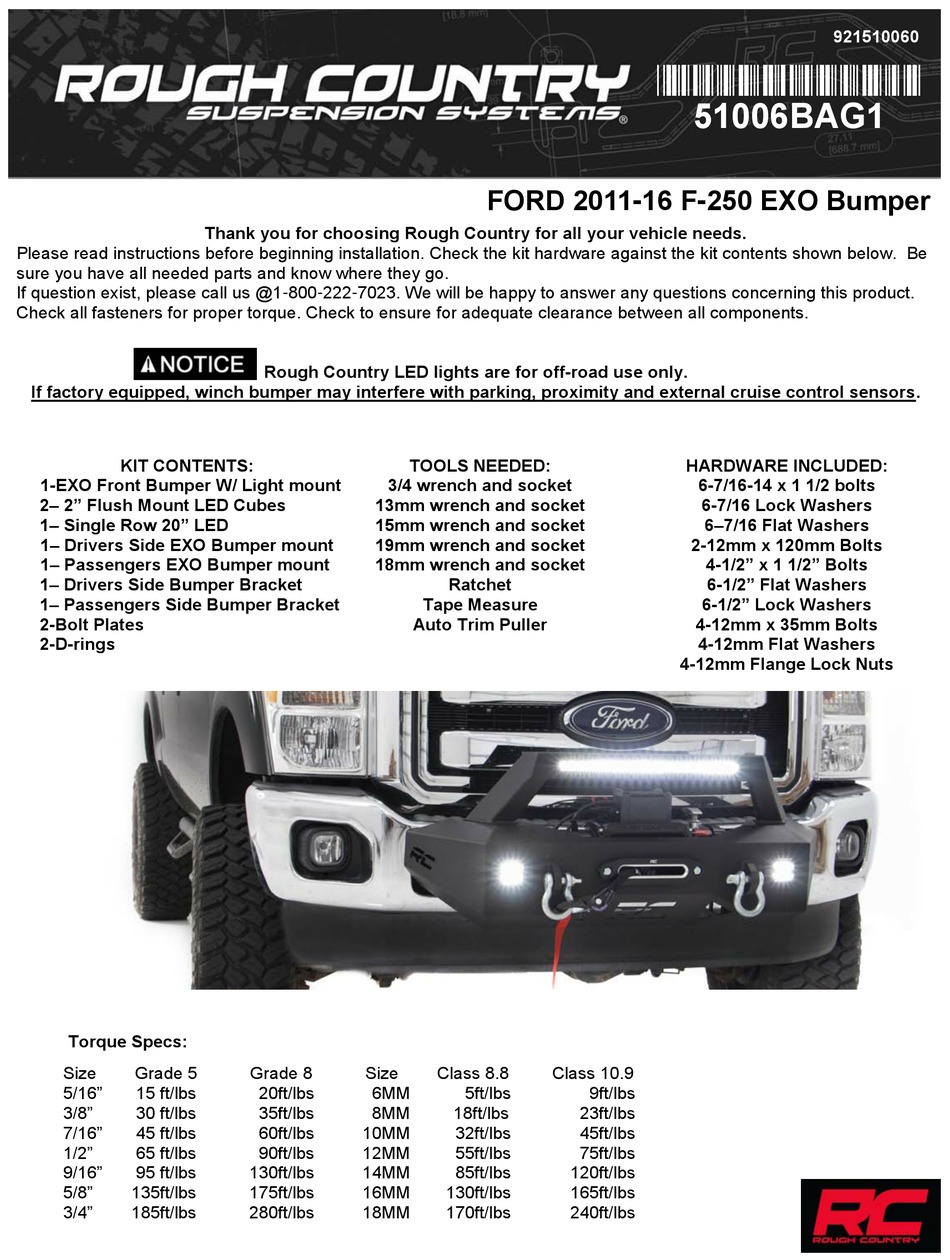

- Page 1 51006BAG1 FORD 2011-16 F-250 EXO Bumper Thank you for choosing Rough Country for all your vehicle needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
- Page 2 INSTALLATION INSTRUCTONS Place the vehicle in park, If the bumper is equipped with fog lights or sensors unplug these harnesses. See Photo 2. Remove the push pins in the splash guard located on the back side of the bumper, use an auto trim puller, save for reuse.
- Page 3 7. Remove the nuts from the bolt plate securing the lower bumper bracket on, using a 18mm wrench. See Photo 7. Save hardware for reuse. 8. Mount the new EXO bumper mount to the top of the frame, using the supplied 7/16-14x1-1/2 bolt, lock washer and washers, secure through the bottom.
- Page 4 Install the hoop onto EXO bumper. By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable , State, and Local laws and regulations regarding the purchase, ownership, and use of the item.
