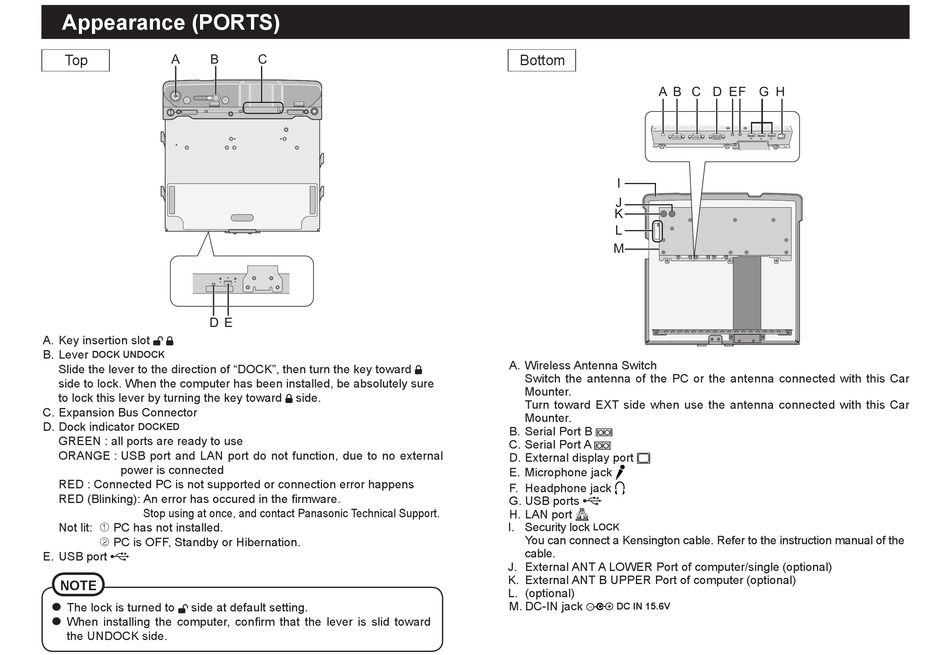

Appearance (PORTS)
A B
Top
D E
A. Key insertion slot
B. Lever
DOCK UNDOCK
Slide the lever to the direction of "DOCK", then turn the key toward
side to lock. When the computer has been installed, be absolutely sure
to lock this lever by turning the key toward
C. Expansion Bus Connector
D. Dock indicator
DOCKED
GREEN : all ports are ready to use
ORANGE : USB port and LAN port do not function, due to no external
power is connected
RED : Connected PC is not supported or connection error happens
RED (Blinking): An error has occured in the fi rmware.
Stop using at once, and contact Panasonic Technical Support.
Not lit: 1 PC has not installed.
2 PC is OFF, Standby or Hibernation.
E. USB port
NOTE
The lock is turned to side at default setting.
When installing the computer, confi rm that the lever is slid toward
the UNDOCK side.
C
side.
Bottom
A B C D EF G H
I
J
K
L
M
A. Wireless Antenna Switch
Switch the antenna of the PC or the antenna connected with this Car
Mounter.
Turn toward EXT side when use the antenna connected with this Car
Mounter.
B. Serial Port B
C. Serial Port A
D. External display port
E. Microphone jack
F. Headphone jack
G. USB ports
H. LAN port
I. Security lock
LOCK
You can connect a Kensington cable. Refer to the instruction manual of the
cable.
J. External ANT A LOWER Port of computer/single (optional)
K. External ANT B UPPER Port of computer (optional)
L. (optional)
M. DC-IN jack
DC IN 15.6V
