Otto HORSENS OTHOR2CBWE Assembly Instructions Manual
2 drawer lateral filing cabinet
Hide thumbs
Also See for HORSENS OTHOR2CBWE:
- Assembly instructions manual (15 pages) ,
- Assembly instructions manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Otto HORSENS OTHOR2CBWE
Summary of Contents for Otto HORSENS OTHOR2CBWE

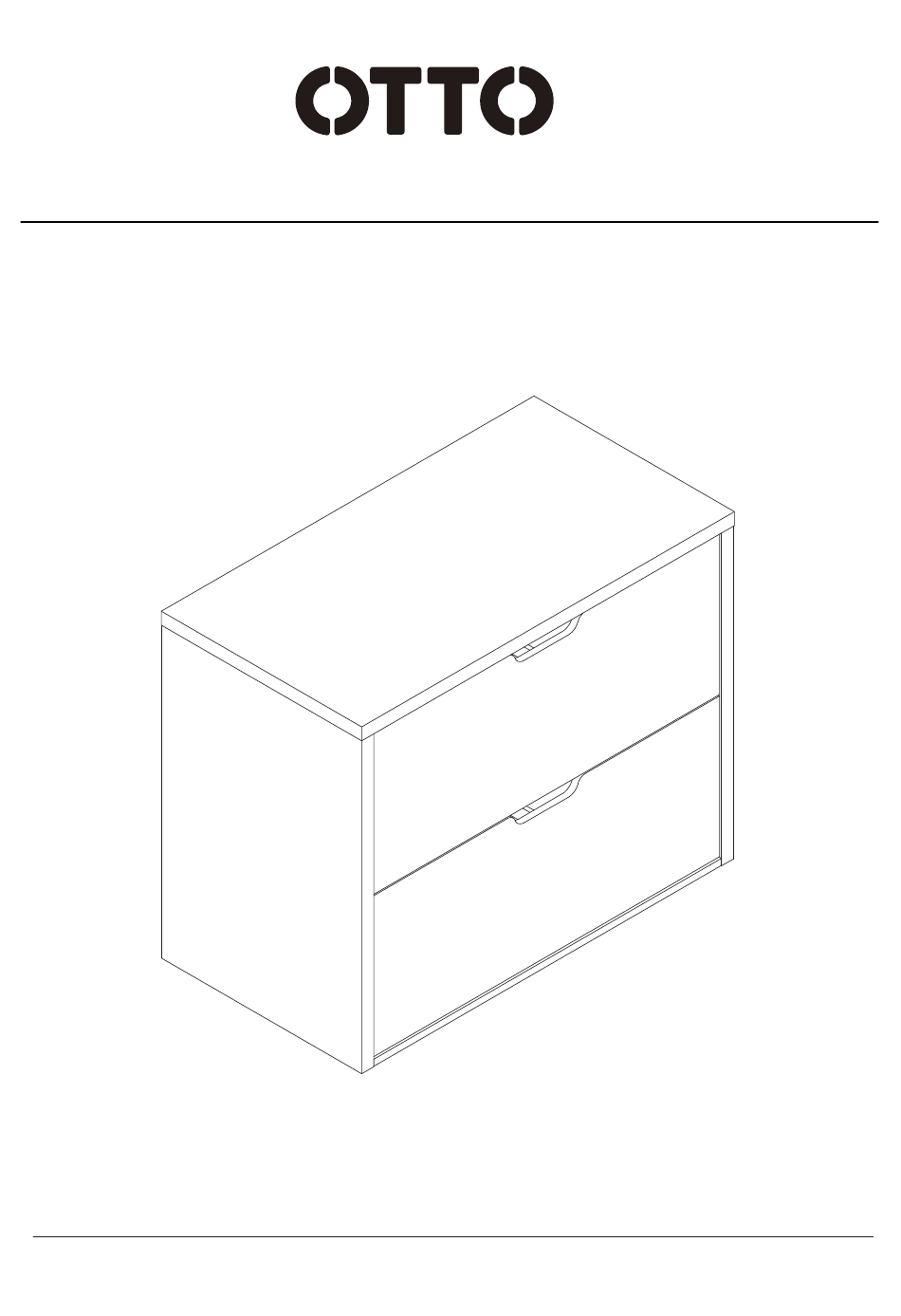

- Page 1 ASSEMBLY INSTRUCTIONS HORSENS 2 DRAWER LATERAL FILING CABINET OTHOR2CBWE This design and instruction booklet is subject to copyright. 1 Carton www.officeworks.com.au For spare parts or hardware call 1300 OFFICE 1/13...
- Page 2 Estimated Assembly Time: 45minutes Furniture Assem bly Ins Customer Service Contact Details Spare Parts & Hardware 1300 OFFICE People Required General Advice 2/13...
- Page 3 Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item NOTE • Please check you have all hardware before assembling. • If you are missing any hardware, please contact the store of purchase. •...
- Page 4 Parts List 2pcs 2pcs 2pcs 2pcs 2pcs 2pcs 4pcs Included Hardware 32pcs 20pcs 4pcs 16pcs Ø 15x11mm Ø 8x30mm Ø 4x30mm M6x35mm 24pcs 4pcs 4pcs 12pcs Ø 3.5x12mm Ø 15x9mm 400mm 400mm 8pcs 4pcs 8pcs 8pcs Ø 3x16mm Ø 7x414mm Ø...
- Page 5 Assembly Step 1 16pcs 12pcs 4pcs 5/13...
- Page 6 Step 2 8pcs Step 3 6/13...
- Page 7 Step 4 8pcs Step 5 7/13...
- Page 8 Step 6 4pcs L×1 K×1 Step 7 4pcs 4pcs 8/13...
- Page 9 Step 8 4pcs Step 9 8pcs 8pcs XX=YY 9/13...
- Page 10 Step 10 Wall Wall Wall DANGER – To prevent furniture from toppling attach, mount, bolt or otherwise secure to walls and floors. Do not put heavy items on top shelves of bookcases. Do not place unstable furniture near where children play. An anchor kit suitable for plaster walls is included with this item, if you require a different kit consult your nearest hardware store.
- Page 11 Step 12 12pcs Step 13 12pcs 11/13...
- Page 12 Step 14 Step 15 16pcs 12/13...
-
Page 13: Maximum Weight Capacity
Step 16 Place the assembled drawers into the frame by aligning the slide runners of the drawers with the runners on the unit. If the drawer does not slide in smoothly, remove the drawer to ensure the alignment on both sides are correct. Push the drawers all the way into the unit until it stops.
