Otto BAKKEN 1500OA Assembly Instructions Manual

Otto BAKKEN 1500OA Assembly Instructions Manual

Electric height adjustable desk

Advertisement

Quick Links

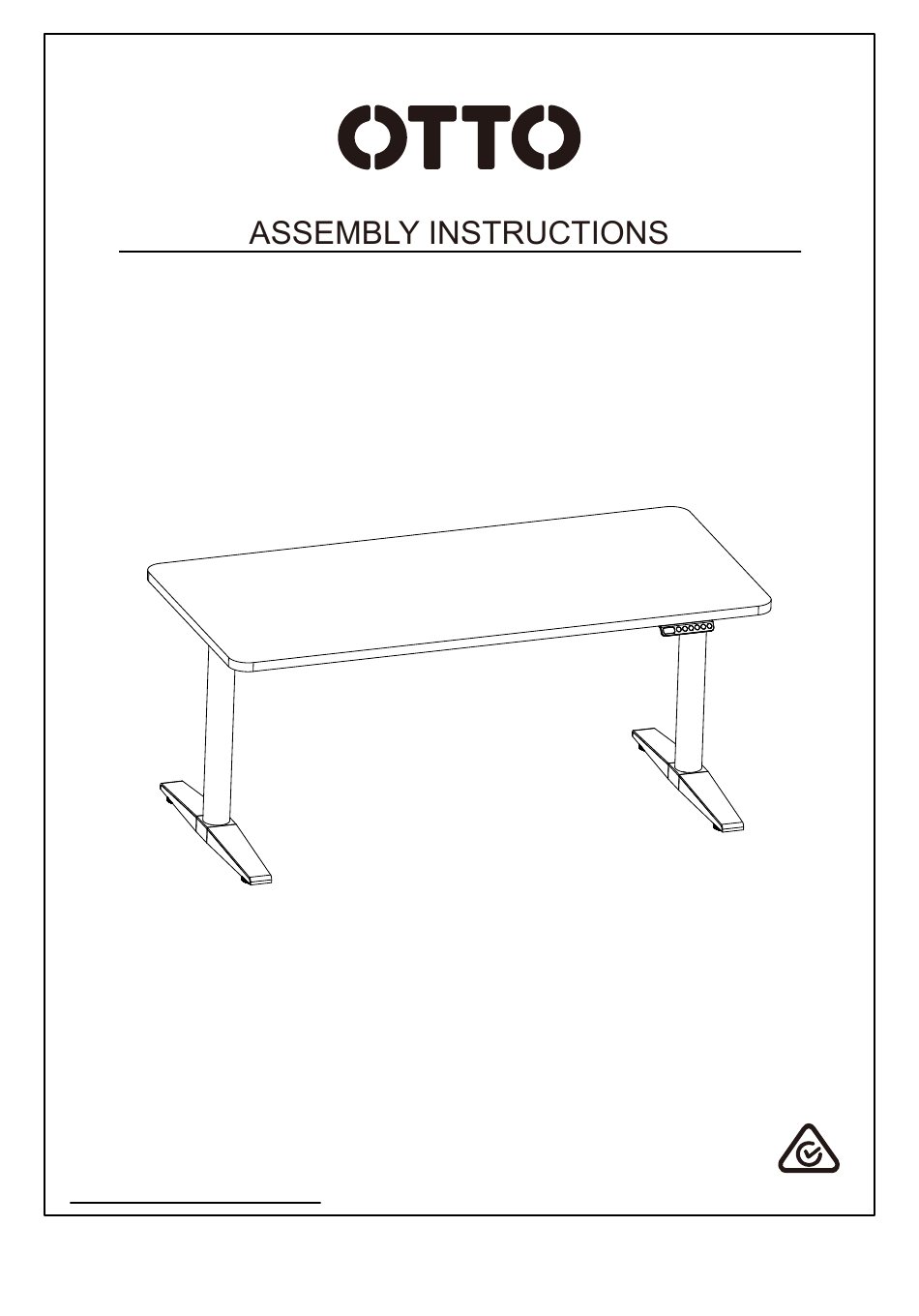

BAKKEN ELECTRIC HEIGHT ADJUSTABLE DESK 1500OA
T
h
s i
d
e
s
g i
n
a
n
d
n i
w
w
. w
f o
c i f
e
w
r o
s k
c .
For spare parts or hardware call 1300 OFFICE
OTBAK150WE
t s
u r
t c
o i
n
b
o
o
l k
t e
s i
o
m
a .
u
s
u
b
e j
t c
o t
c
o
p
r y
g i
1 (
3
0
0
6
1 / 23
h
. t
2 Cartons
3
3
4
2
3
. )

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAKKEN 1500OA and is the answer not in the manual?

Questions and answers

Summary of Contents for Otto BAKKEN 1500OA

  • Page 1 BAKKEN ELECTRIC HEIGHT ADJUSTABLE DESK 1500OA OTBAK150WE c i f 2 Cartons For spare parts or hardware call 1300 OFFICE 1 / 23...
  • Page 2 40 minutes People Required 2 / 23...
  • Page 3 Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item NOTE Please check you have all hardware before assembling. If you are missing any hardware, please contact 1300 OFFICE (1300 633 423). Please ensure you have the name of the item, required hardware part and quantity.
  • Page 4: Safety And Warnings

    Safety and Warnings •This table complies with the prescribed safety regulations. Inappropriate use may cause damage to persons and table. •Please read the operation manual prior to start using the table. It provides you with important information about safety, use, installation and maintenance of the table, and thus protecting you and your children and avoiding damage on the table.
  • Page 5 Parts Located in Carton - OTBAK150W1 5 / 23...
  • Page 6 Parts Located in Carton - OTBAK150W2 6 / 23...
  • Page 7 M6x10 M6x14 M4x10 Ax16 Bx19 70mm Spare parts number- Spare parts number- Spare parts number- HWBAKCNTPN HWBAKBOTFR HWCABSITST 7 / 23...
  • Page 8 Step 1 Take out the frame ②⑥ ⑥ ⑤ ② 8 / 23...
  • Page 9 Step 2 Install legs Put column ① on the frame ② ,tighten 4x screws(A) with Allen key (D) 9 / 23...
  • Page 10 Step 3 Install side brackets Insert side brackets ③ to frame ② ,tighten 2x screws(B) with Allen key(D) 10 / 23...
  • Page 11 Step 4 Install feet Put feet ④ on the column,tighten 4x screws(B) with Allen key (D) 11 / 23...
  • Page 12 Step 5 Install legs Put column ① on the frame ⑥ ,tighten 4x screws(A) with Allen key (D) 12 / 23...
  • Page 13 Step 6 Install side brackets Insert side brackets ③ to frame ⑥ ,tighten 2x screws(B) with Allen key(D) 13 / 23...
  • Page 14 Step 7 Install feet Put feet ④ on the column,tighten 4x screws(B) with Allen key (D) 14 / 23...
  • Page 15 Step 8 Install centre rail Insert the centre rail ⑤ into frame ②⑥ ⑤x1 15 / 23...
  • Page 16 Step 9 Fix the tabletop Put the whole frame on the tabletop,matching all the pri-drilled hole with tabletop,then lock it by 4 screws (B) with Allen key (D) Please watch out the feet when you install the top 16 / 23...
  • Page 17 Step 10 Tighten the centre rail Ttighten the 8 screws (A) on the frame ②⑥ with Allen key (D),and lock the remain 3 screws(B) Please watch out the feet when you install the top 17 / 23...
  • Page 18 Step 11 Connect cables Install the handset by 2 screws(C) with Allen key(E),insert the control box ⑧ to frame ⑥ , Please note that the handset can be installed by both side(Left or right) Please watch out the feet when you install the top 18 / 23...
  • Page 19 Step 12 Connect cables Right column (9) (7)Handset Power cable (10) Left column Use the cable tie (F) to fix the cable at proper position and keep cables organized Tear off Manage Cable 19 / 23...
  • Page 20 Step 13 Finished Maximum weight capacity 120 KG 20 / 23...
  • Page 21 Press 5S Press 2S 21 / 23...
  • Page 22 Press 2S Press 2S Press 8S Press 5S Press 5S 22 / 23...
  • Page 23 Warranty 5 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 5 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.

This manual is also suitable for:

Otbak150we
