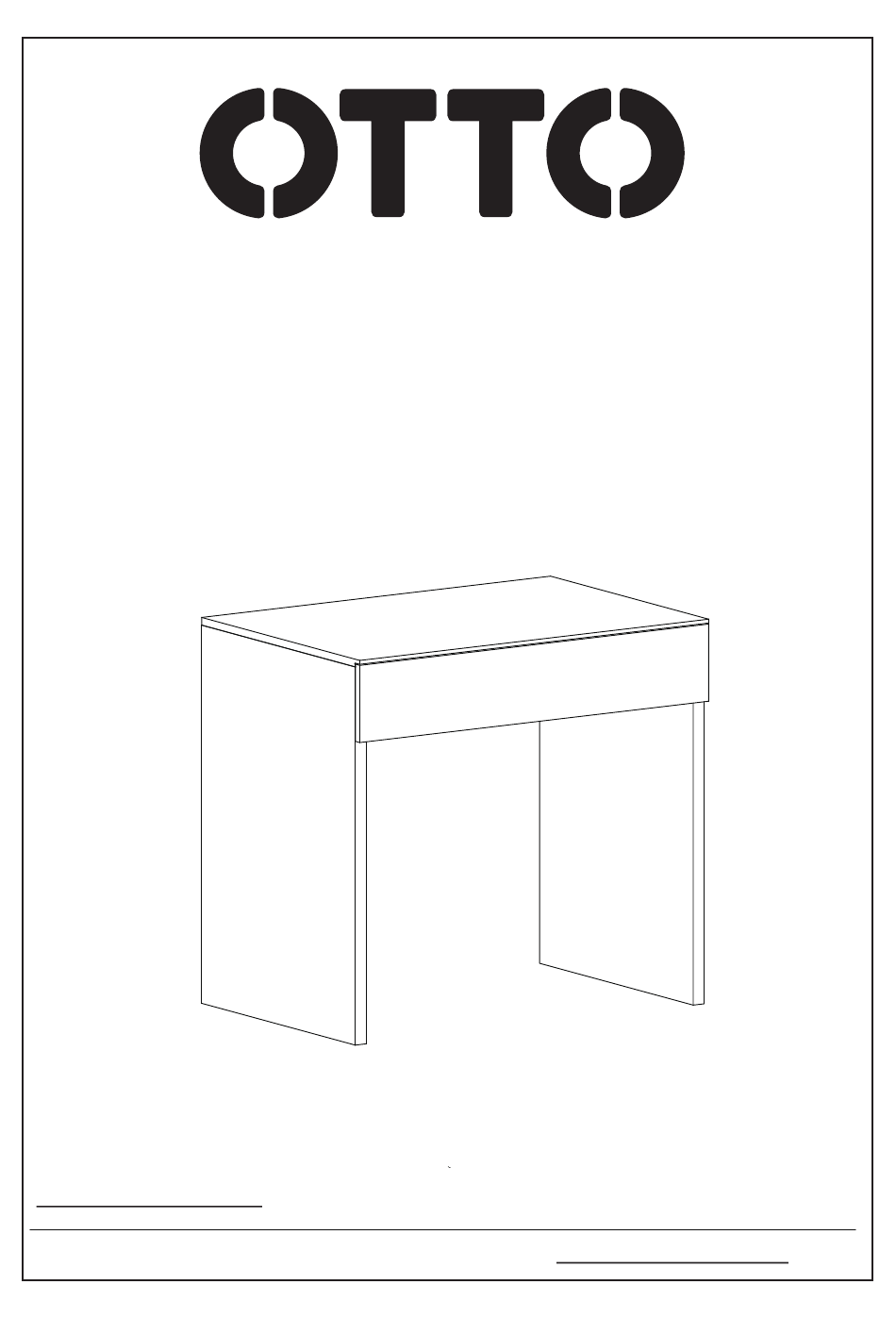

- Page 1 ASSEMBLY INSTRUCTIONS ARDEN SMALL 1 DRAWER 800MM DESK WHITE OTARD800WE This design and instruction booklet is subject to copyright. 1 Carton www.officeworks.com.au For spare parts or hardware call (03) 9310 3011 or email hardware@kyvas.com.au 1/15...
-
Page 2: Tools Required
Estimated Assemble Time: 50min To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. Customer Service People Required General Advice Contact Details More Than One Person Is Required Spare Parts &... -
Page 3: Panel Overview
Panel Overview 3/15... -
Page 4: Part List
Part List Parts located in Carton - OTARD800WE X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc 4/15... -
Page 5: Hardware List
Hardware List Hardware Pack located in Carton - OTARD800WE ( 6 x 45 mm) ( 15 x 12 mm) ( 8 x 30 mm) X 18pcs X 8pcs X 18pcs Sticker ( 3.5 x 14 mm) ( 7 x 48 mm) X 2pcs X 8pcs X 12pcs... - Page 6 Assembly Step 1 (F) x2 ) x2 Remark: Press the plastic slider in the indicated direction to separate drawer runner F1 and F2 before assembling 2 sets Step 2 Front Front 2 pcs 2 pcs 2 pcs 1 pc 6/15...
- Page 7 Step 3 Front Front 2 pcs 2 pcs 2 pcs 1 pc Step 4 4 pcs 7/15...
- Page 8 Step 5 6 pcs Step 6 Tighten cam locks once panel is in place. 4 pcs 8/15...
- Page 9 Step 7 Tighten cam locks once panel is in place. 6 pcs Step 8 4 pcs 4 pcs 2 pcs 9/15...
- Page 10 Step 9 2 pcs 4 pcs Step 10 Tighten cam locks once panel is in place. 2 pcs Step 11 10/15...
- Page 11 Step 12 6 pcs Step 13 Tighten cam locks once panel is in place. 6 pcs Step 14 Front 4 pcs 2 pcs 11/15...
- Page 12 Step 15 Note: Move the sliding part as shown below to the front end on both sides before inserting the drawer. This will assist for easier assembly. Front Front Step 16 2 pcs 12/15...
- Page 13 Maximum Load Capacity: Desk Top - 40 kg Drawer - 5 kg Your ARDEN SMALL 1 DRAWER 800M DESK WHITE is now complete and ready for use! 13/15...
-
Page 14: Care Advice
Care Advice Care Instructions - PU Painting Finish Desk Keep away and protect from direct sunlight and heat. Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp material may scrape and damage the finish. Clean up spills quickly. Water left over a prolonged period of time may cause damage. - Page 15 Warranty 3 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
