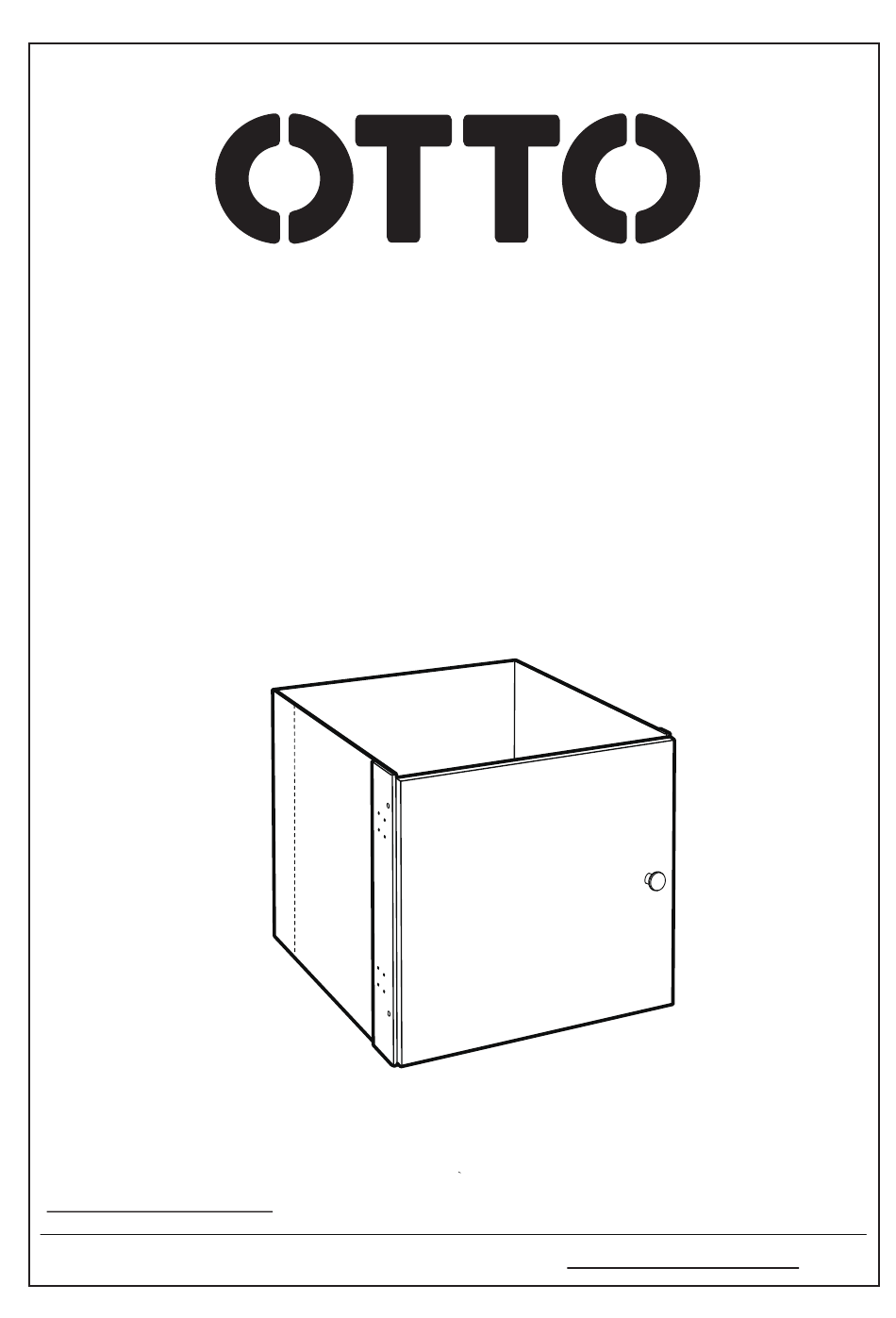

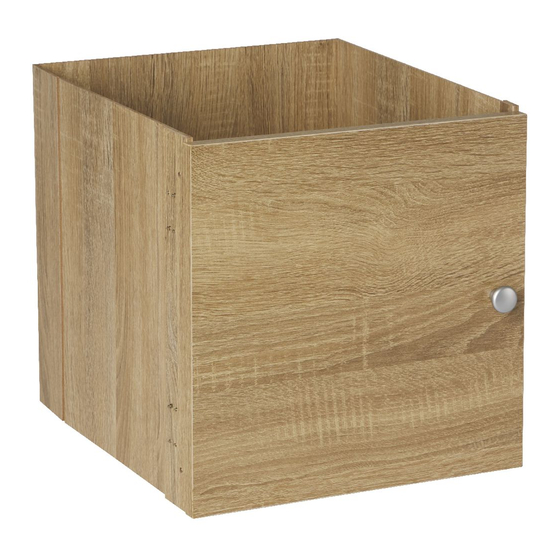

- Page 1 ASSEMBLY INSTRUCTIONS HORSEN 1 DOOR CUBE INSERT OTHOR1DOOA / OTHOR1DOWE / OTHOR1DOWN This design and instruction booklet is subject to copyright. 1 Carton www.officeworks.com.au For spare parts or hardware call (03) 9310 3011 or email hardware@kyvas.com.au 1/15...
-
Page 2: Tools Required
Estimated Assemble Time: 20min To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. Customer Service People Required General Advice Contact Details One Person Is Required To Spare Parts &... -
Page 3: Part List
Part Overview Part List Parts located in Carton - OTHOR1DOOA / OTHOR1DOWE / OTHOR1DOWN X 1 pc X 1 pc 3/15... -
Page 4: Hardware List
Hardware List Hardware Pack located in Carton - OTHOR1DOOA / OTHOR1DOWE / OTHOR1DOWN ( 4 x 16 mm) ( 4 x 14 mm) ( 4 x 30 mm) X 4pcs X 1pc X 12pcs Other hardware located in Carton - OTHOR1DOOA / OTHOR1DOWE / OTHOR1DOWN Handle Hinge... - Page 5 Assembly Note: Before installing this item, please ensure the main cube unit is square. To check this measure the opening as indicated and the A & B measurements should be the same. If there is a difference greater than 2mm, please fix the main cube unit before proceeding.
- Page 6 Step 2 4 pcs 1 pc 1 pc 2 pcs Note: You can assemble the 1 Door Cube Insert by 2 different options. Option 1 Option 2 Page 7 Page 10 6/15...
- Page 7 Step 3 Option 1 7/15...
- Page 8 Step 4 Step 5 4 pcs 8/15...
- Page 9 Step 6 8 pcs Your HORSEN 1 DOOR CUBE INSERT Option 1 is now complete and ready for use. 9/15...
- Page 10 Step 7 Option 2 10/15...
- Page 11 Step 9 Step 10 4 pcs 11/15...
- Page 12 Step 11 8 pcs Your HORSEN 1 DOOR CUBE INSERT Option 2 is now complete and ready for use. 12/15...
- Page 13 13/15...
-
Page 14: Care Advice
Care Advice Care Instructions - PVC/ Melamine Finish Cube Insert Keep away and protect from direct sunlight and heat. Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp material may scrape and damage the finish. Clean up spills quickly. Water left over a prolonged period of time may cause damage. - Page 15 Warranty 3 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
