Omni International TH Series User Manual

Tissue homogenizer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

TH
Tissue Homogenizer
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH Series and is the answer not in the manual?

Questions and answers

Related Manuals for Omni International TH Series

Summary of Contents for Omni International TH Series

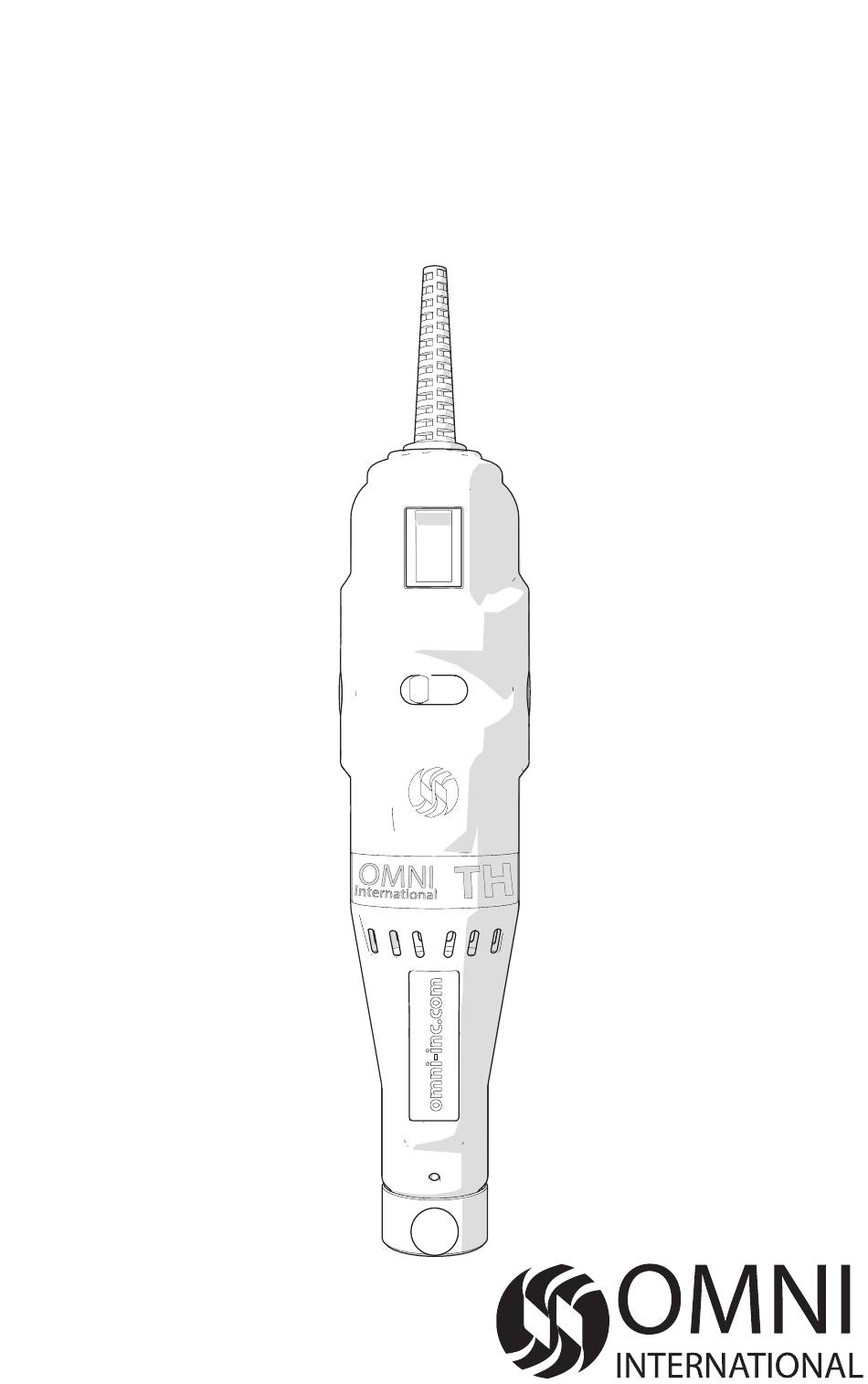

  • Page 1 Tissue Homogenizer User Manual...
  • Page 2 This product is warranted to be free from defects in material and workmanship for a period of TWO YEARS from the date of delivery. Omni International will repair or replace and return free of charge any part which is returned to its factory within said period, transportation prepaid by user, and which is found upon inspection to have been defective in materials or workmanship.
  • Page 3 Overview 4. Motor Brushes 1. Power Cord 5. Thumb Screw 2. On/Off Switch 6. Probe Coupling 3. Speed Control Adapter Clamp The Omni TH consists of the following: 12-120 12-118 Description Quantity Motor Drive Unit (110V) Or Motor Drive Unit (220V) Clamp Tool Kit Soft Tissue Omni Tip...
  • Page 4 Stand Mounting Clamp Release Button Push to lock into Clamp Clamp 1. Slide the TH into the opening 12-118 on the end of the post clamp assembly and push it down firmly. The unit will lock in place. 2. To release the motor, press the clamp release button on the back of the opening of the post clamp assembly and lift the motor from the cradle.
  • Page 5 Accessories Generator Probes 1. Insert Generator 2. Quarter turn 3. Tighten 4. Ready to use *always submerge probe Probe into coupling clockwise to lock Thumbscrew in liquid before starting 1/4 Turn *Never run dry Omni Tips and Adapter 1. Insert Adapter 2.
  • Page 6 Stainless Steel Generator Probes Processing Size Type Order No. Range Flat Bottom G5-75 5 mm .020 mL - 5 mL Flat Bottom - Wide Window G5-75W Flat Bottom G7-95 Flat Bottom - Wide Window G7-95W 7 mm .25 mL - 30 mL Saw Tooth G7-115ST Saw Tooth - Wide Window...
  • Page 7 Troubleshooting PROBLEM CORRECTIVE ACTION The Omni TH is plugged in and turned on - Check power cord connectors but is not functioning. - Check wall socket for power to the outlet Motor is turned ON and makes a makes a - Check that the brushes are not worn “buzzing”...
  • Page 8 Omni International, Inc. 935C Cobb Place Blvd. Kennesaw, GA 30144 800.776.4431 • 770.421.0058 www.omni-inc.com PN H259-TH Rev A...

This manual is also suitable for:

Th115
