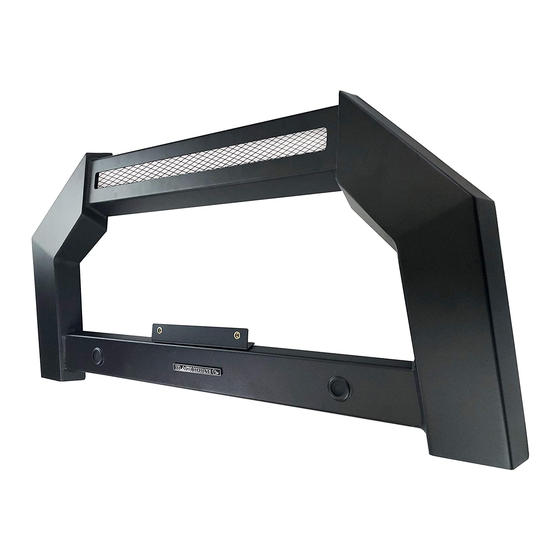

- Page 1 TEL：1-866-XANATOS INSTALLATION INSTRUCTIONS ARMOUR BULL BAR FOR 2011-2016 FORD SUPER DUTY F250-F550 PART#AB-FO19...
- Page 2 ARMOUR BULL BAR 2011-2016 FORD SUPER DUTY F250-F550 PARTS LIST: Bull Bar 8-1.25mm x 16mm Hex Bolts Driver/Left Side Frame Bracket 8mm x 24mm x 2mm Flat Washers Passenger/Right Side Frame Bracket 8mm Lock Washers Driver/Left Side Light Bar Bracket 8mm Hex Nuts Passenger/Right Side Light Bar Bracket 6-1.0mm x 20mm Combo Bolts...
- Page 3 ARMOUR BULL BAR 2011-2016 FORD SUPER DUTY F250-F550 place during hardware removal to prevent the bumper from falling. Only remove the bumper bolts from one side and install one Frame Bracket at a time. 2. Select the driver side Frame Bracket. Reuse the factory bumper bolts to attach the Frame Bracket to the bumper, (Figure 2).
- Page 4 ARMOUR BULL BAR 2011-2016 FORD SUPER DUTY F250-F550 Driver Side Installation Pictured (2) 6mm Combo Bolts Front (2) 6mm Button Head Bolts (4) 6mm Flat Washers (2) 6mm Lock Washers (1) 8mm x 20mm Hex Bolt (2) 6mm Hex Nuts (2) 8mm Flat Washers (1) 8mm Lock Washer (1) 8mm Hex Nut...
- Page 5 ARMOUR BULL BAR 2011-2016 FORD SUPER DUTY F250-F550 Driver Side Installation Pictured (2) 10mm x 25mm Hex Bolts (2) 10mm Lock Washers (2) 10mm x 30mm Flat Washers Front Fig 7 Front (Fig 8) Attach Sensor Plug into Sensor Sleeve Page 4 of4...
