Parallax Boe-Bot Tank Treads Manual page 5

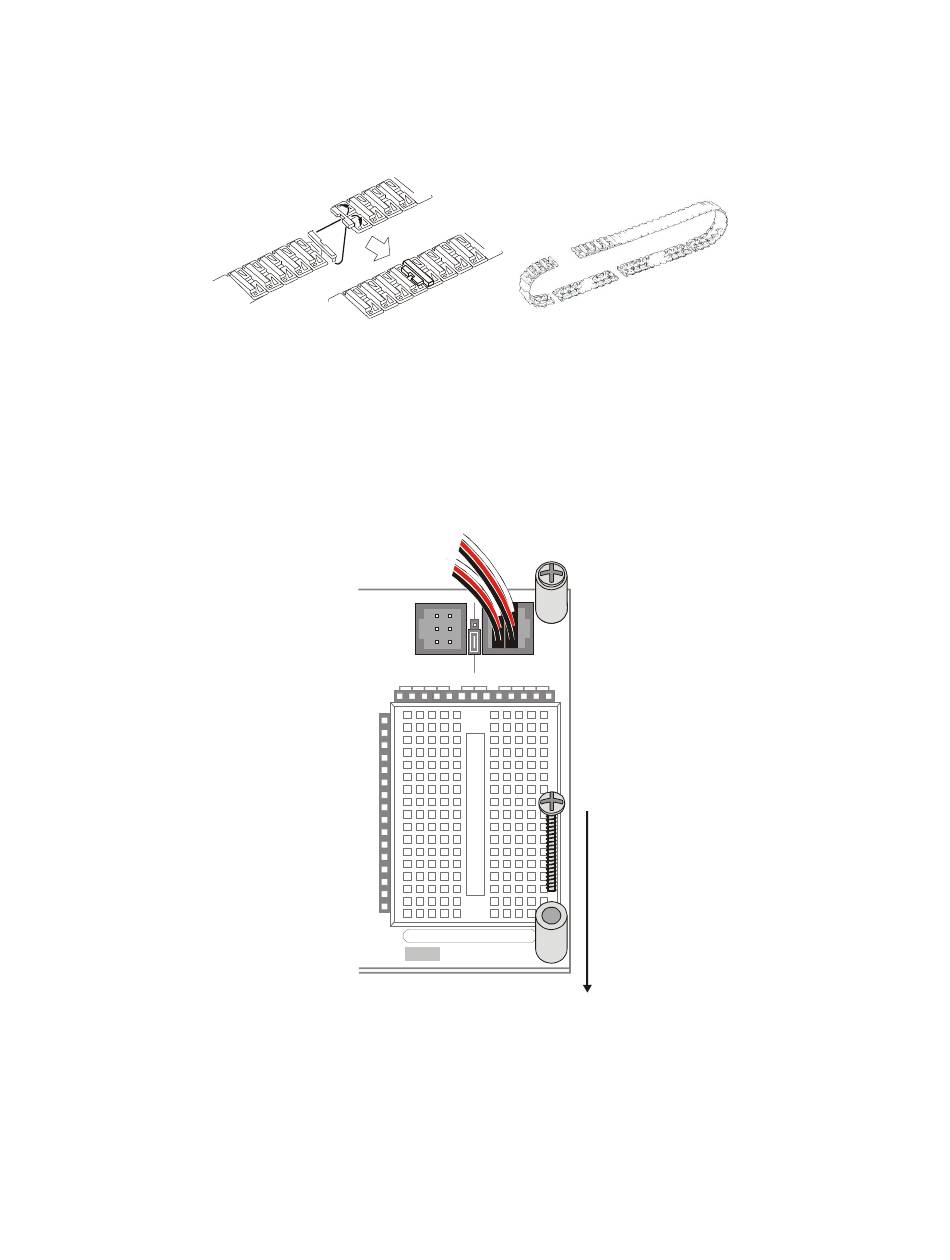

Separate all the rubber tread pieces and connect together as shown in Figure 9.
Each loop contains 1 long, 2 medium and 2 short treads.
Check each wheel to make sure it rolls without binding. If any wheels bind, loosen the nut and remount
to maintain a small gap between the wheel and nut. Stretch the tread over the wheels and the assembly
is done.
The Boe-Bot's breadboard circuit can be protected by installing (2) 1.5" screws and (2) 1.25" spacers on
the front of the Board of Education.
5
Figure 9: Connect the Tread Links
To Servos
15 14
Vdd
X3
P15
P14
P13
P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
P0
X2
Board of Education
Rev C
Figure 10: Installing the Standoff "Protectors"
Parallax, Inc. • Boe-Bot Tank Tread Kit (#28106)
Vdd 13 12
Red
Black
X4 X5
Vin Vss
© 2000-2003
03/2004
