Placing the Flip-up Deck in the Service Position

A

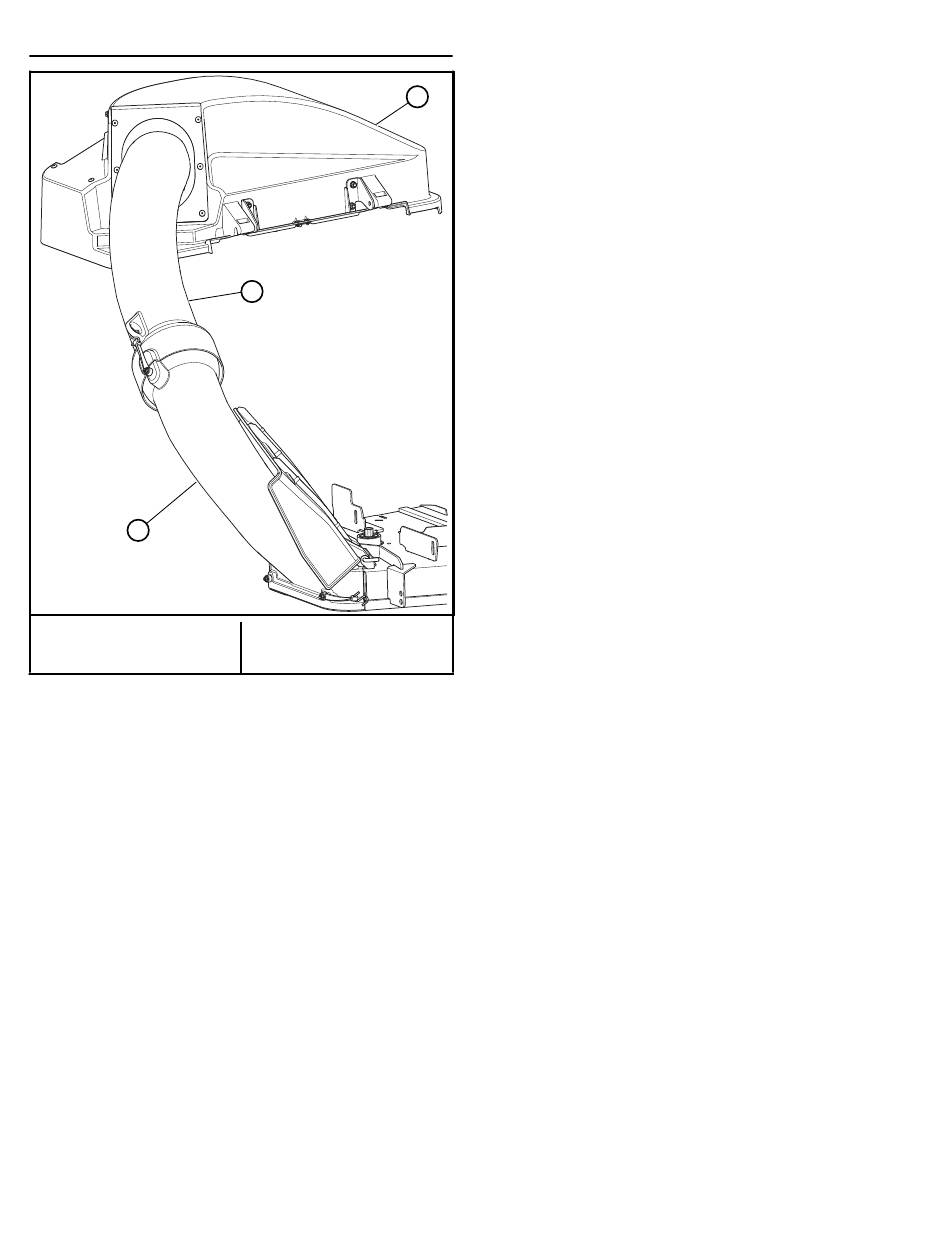

A. Outlet tube
B. Transfer tube
Figure 4-5
REV A
C
B
C. Catcher lid
The Flip-Up deck cannot be pivoted to the service position
if the catcher transfer tube and outlet tube are attached.
Figure 4-5
It will be necessary to remove the catcher transfer tube
from the catcher lid and the outlet tube from the deck before
the deck can be pivoted into the service position.
Attach the catcher transfer tube and outlet tube after the
deck is placed back in the operating position.
