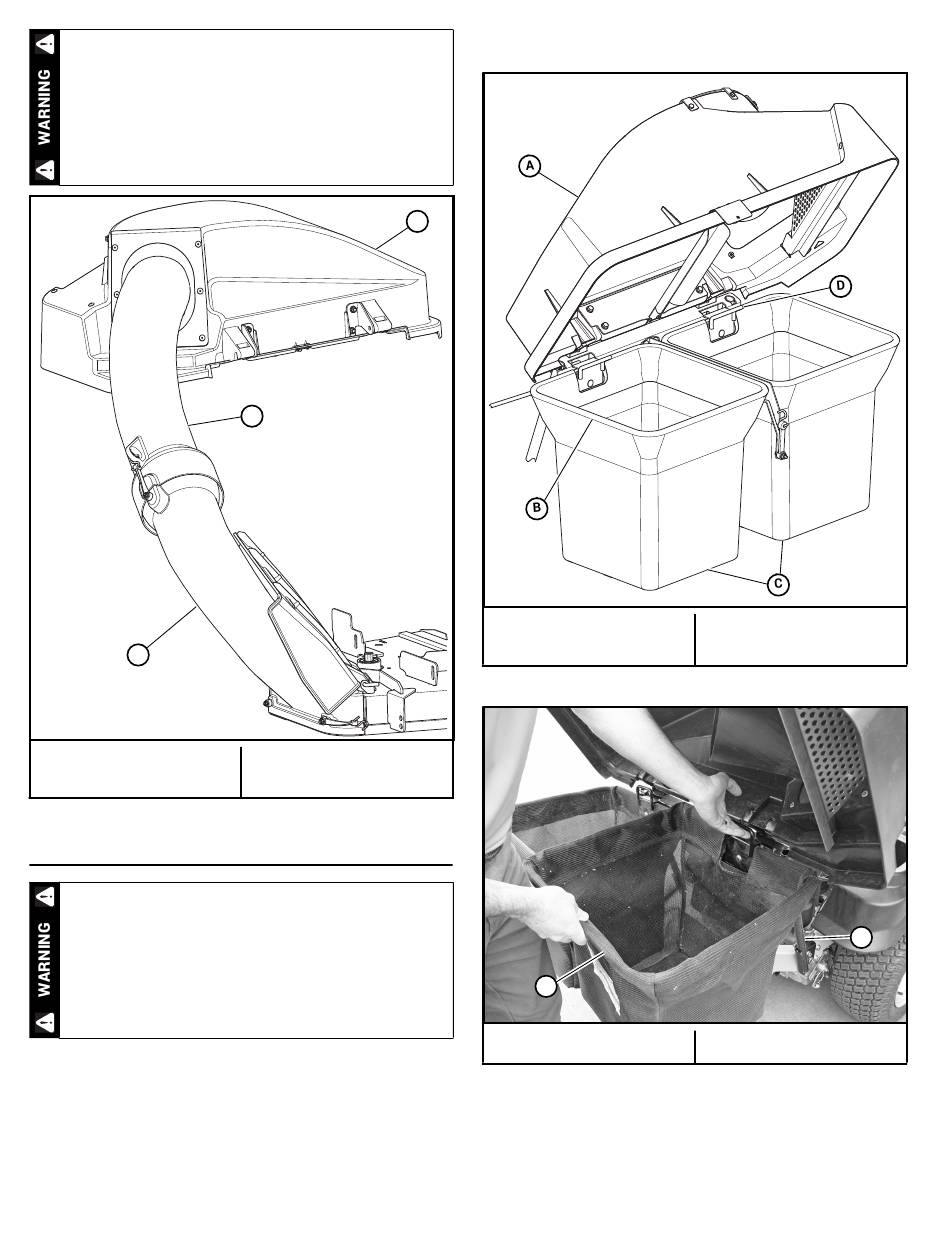

Unloading The Catcher Bags - Excel Two Bag Catcher Operator's Manual

Never engage the mower deck unless the catcher
transfer tube is secured in place, with the bungee
latch, on the outlet tube and is inserted into the
catcher lid. Figure 4-1
A
A. Outlet tube
B. Transfer tube
Figure 4-1

Unloading the Catcher Bags

Park the unit on a level surface, disengage the
deck clutch switch, place the steering control
levers in the park brake position and shut the
engine off. Make certain the deck clutch switch is
in the disengaged position before unloading.
Get off the mower. Raise the catcher lid and remove the
bag by lifting the bag frame at the rear of the bag and the bag
frame handle. Proceed to dump the bag. Figure 4-2 &
Figure 4-3
REV A
C
B
C. Catcher lid
Return the bags to the catcher frame and close the catcher
lid. Figure 4-3
A. Catcher lid
B. Bag frame
B
A. Catcher Frame
4-2
C. Catcher bag
D. Bag frame handle
Figure 4-2
B. Bag
Figure 4-3
A
124505
