Excel Two Bag Catcher Operator's Manual page 15

48"/54" decks
Hide thumbs Also See for Two Bag Catcher:
Table of Contents

Advertisement

A
D
B

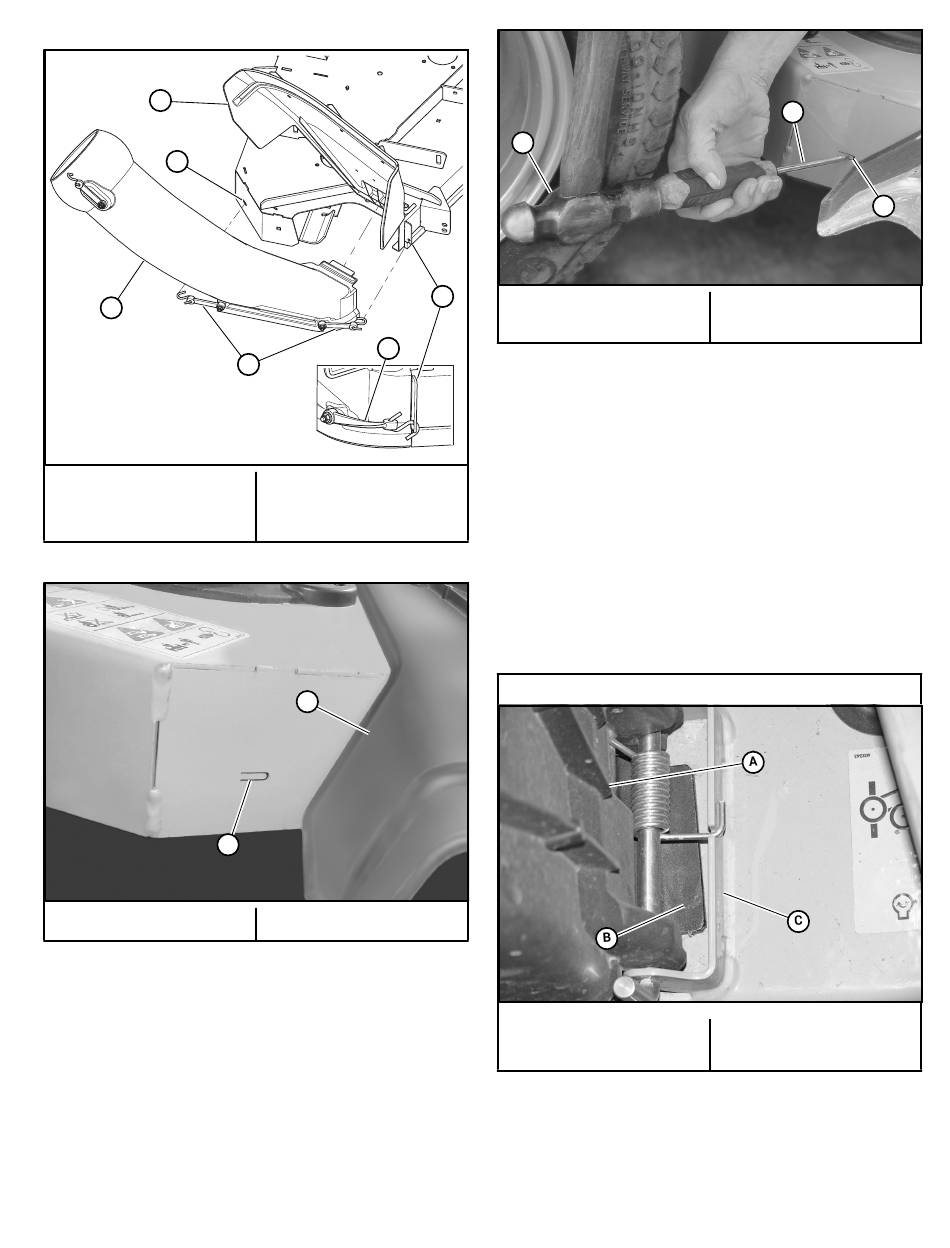

A. Discharge chute
B. Outlet tube
C. Bungee latch
Figure 3-5
A. Tab
Figure 3-6
124505
C
C
D. Tab
E. Chute stop
B
A
B. Discharge chute
A
E
A. Hammer
B. Screwdriver
12. Raise the deck discharge chute to the full up position
o
(90
) and slide the outlet tube into position.
It will be necessary to force the discharge chute to the
o
90
position. The chute will contact the mower fender
before the 90
discharge chute until the chute is open enough to allow
the tab of the outlet tube to be inserted into the slot in
the discharge chute bracket of the deck. The downward
spring force of the discharge chute helps to secure the
outlet tube to the deck by locking the bump on the outlet
tube with the cams of the discharge chute. Figure 3-8 &
Figure 3-9
Secure the outlet tube in place with the bungee latches.
Figure 3-5
Outlet Tube Tab Not Installed Correctly
A. Discharge chute
B. Outlet tube tab
3-5
B
C. Tab
Figure 3-7
o
position is attained. Push on the
C. Discharge chute
bracket slot
Figure 3-8
C
REV A
