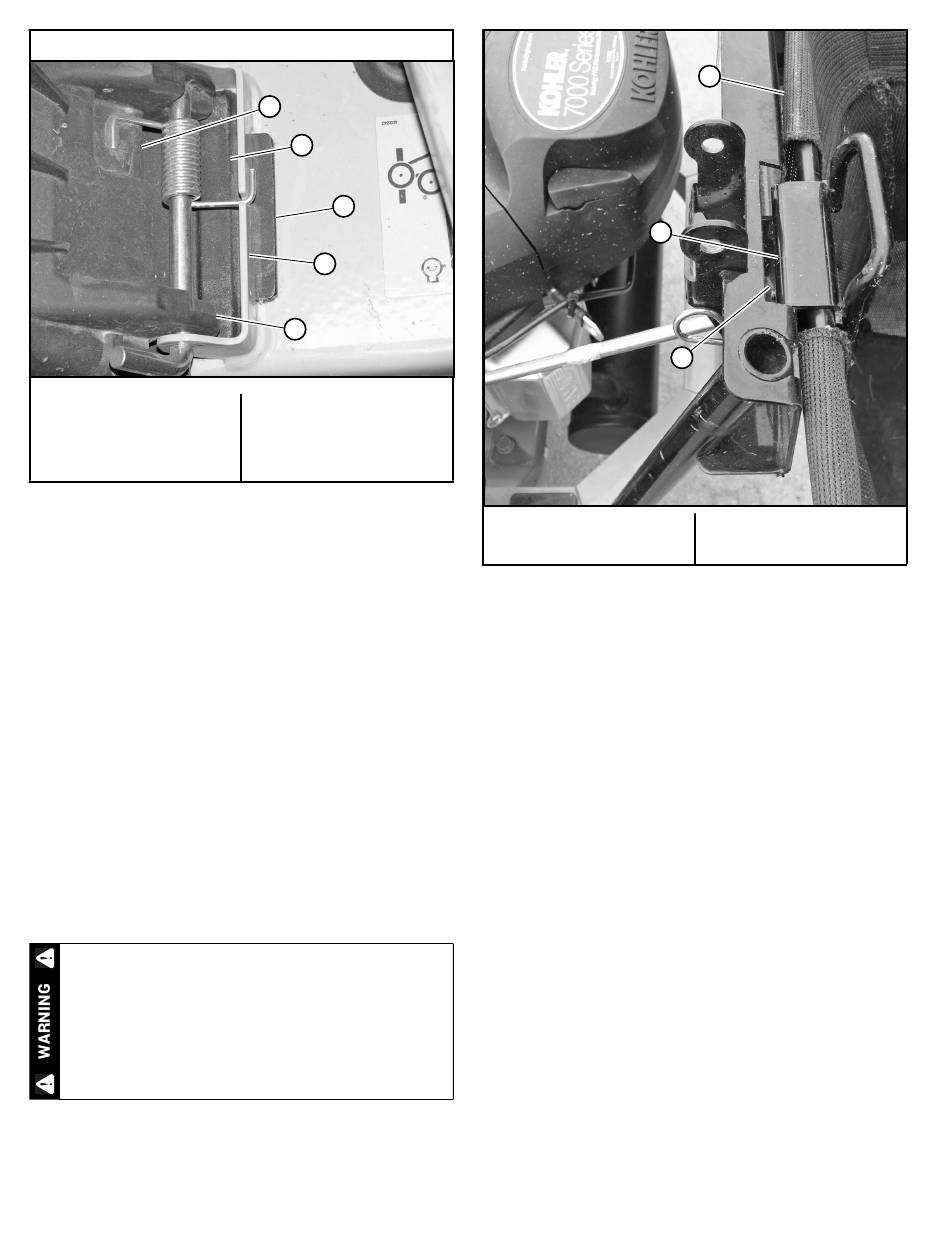

Excel Two Bag Catcher Operator's Manual page 16

Outlet Tube Tab Installed Correctly
A. Discharge chute
B. Ridge on outlet tube
C. Outlet tube tab
Figure 3-9
13. Place the bags on the catcher frame by inserting the
bag frame hook into the catcher frame slot.
Figure 3-10
14. Attach the catcher lid to the catcher frame using the
CE .375 x 3.00 with bale pins. Close the catcher lid.
Figure 3-11
NOTE: It is easier for two people to attach the catcher lid
to the catcher frame than it is for one person.
15. Slide the end of the transfer tube into the opening in
the catcher lid. Figure 3-12
16. Attach the transfer tube to the outlet tube by aligning
the slot on the transfer tube with the knob on the
outlet tube and hooking the bungee latch through the
loop of the transfer tube. Figure 3-13 & Figure 3-14
17. Remove the existing hardware from the front of the
mower and attach the weight plate to the front of the
mower using the hardware supplied with the catcher.
Figure 3-15
18. Reconnect the negative battery cable.
Do not operate deck without discharge chute or
complete catcher system, including the weight plate,
in place.
REV A
A
B
C
D
E
D. Discharge chute
bracket slot
E. Cam of discharge
chute
A. Bag
B. Bag frame hook
3-6
A
B
C
C. Catcher frame slot
Figure 3-10
124505
